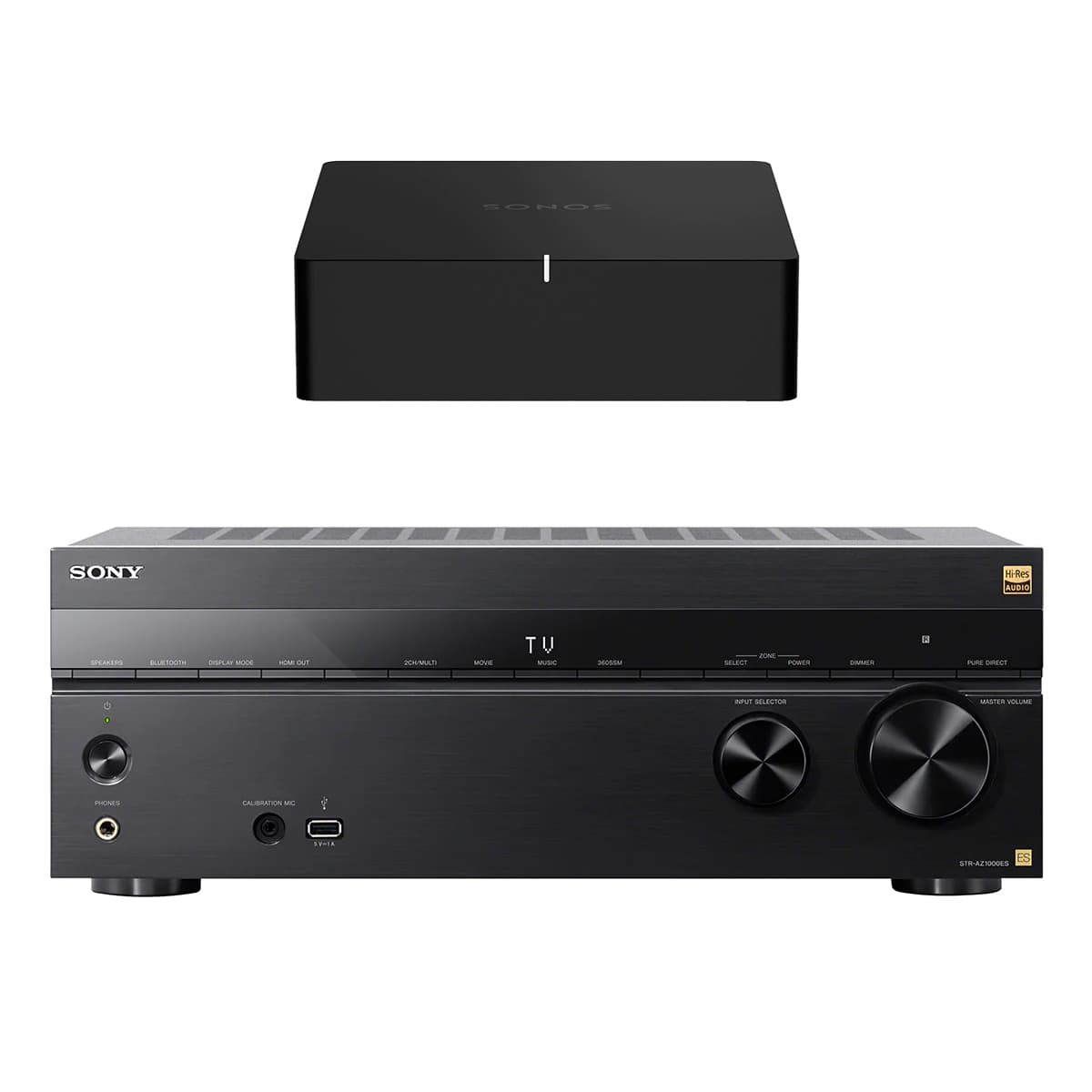

Sony STR-AZ1000ES 7.2 Channel 8K Home Theater AV Receiver with Sonos Port Wi-Fi Network Streamer
Overview
Product Information
Specifications
What's In The Box
Product Information
This Package Includes
- Sony STR-AZ1000ES 7.2 Channel 8K Home Theater AV Receiver with Dolby Atmos, DTS: X, IMAX Enhanced, Google Assistant, & Works with Sonos
- Sonos Port Wi-Fi Network Streamer with Built-In DAC

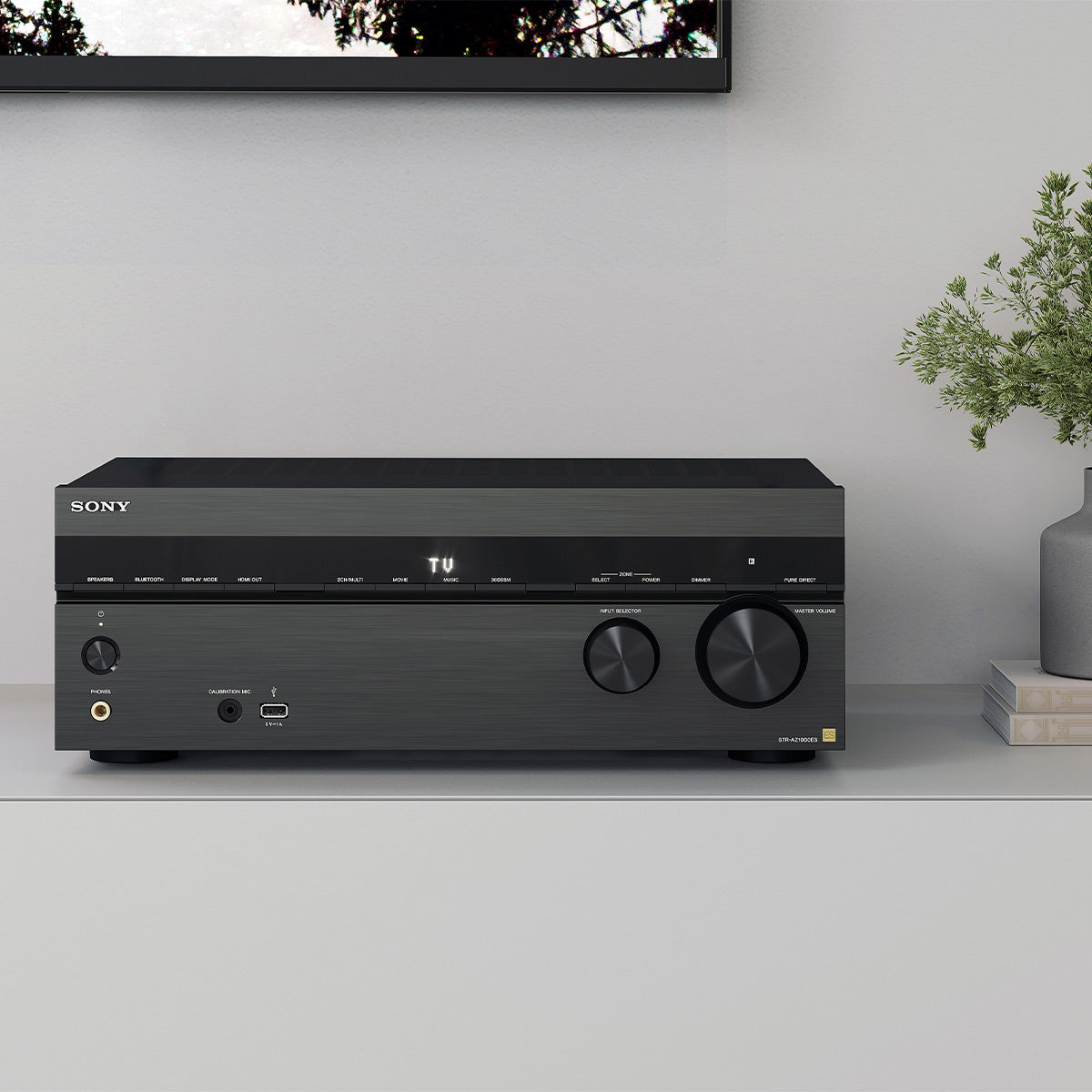

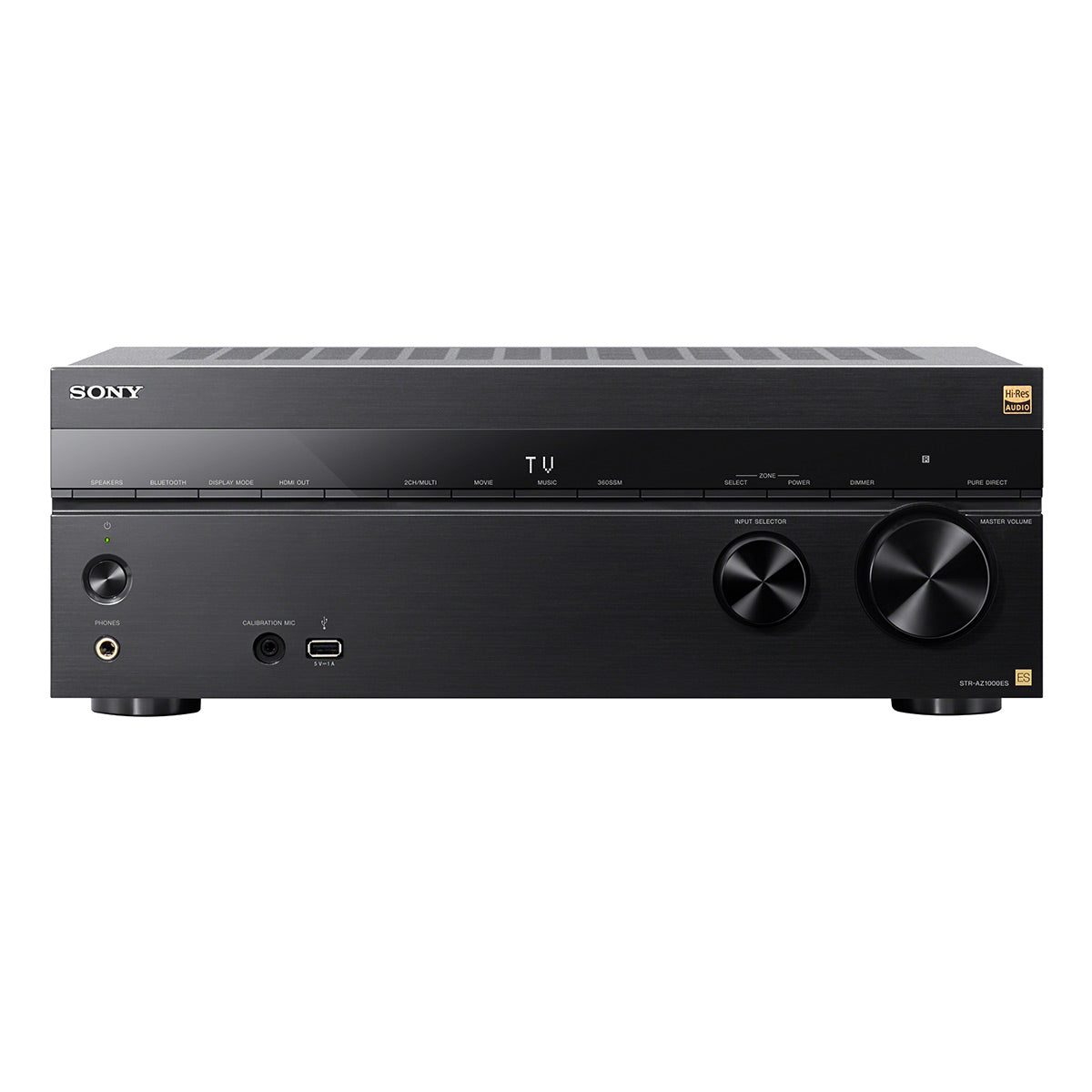

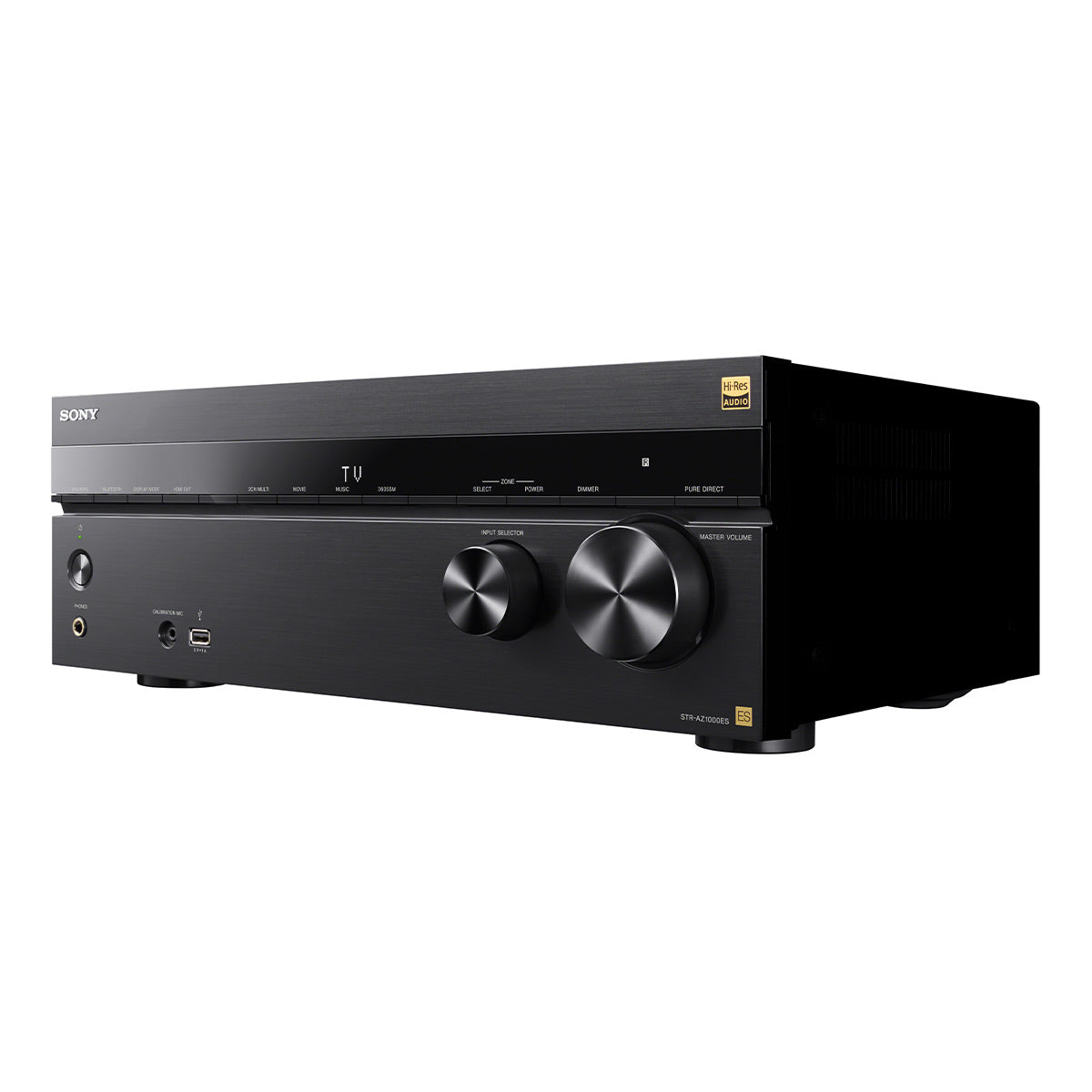

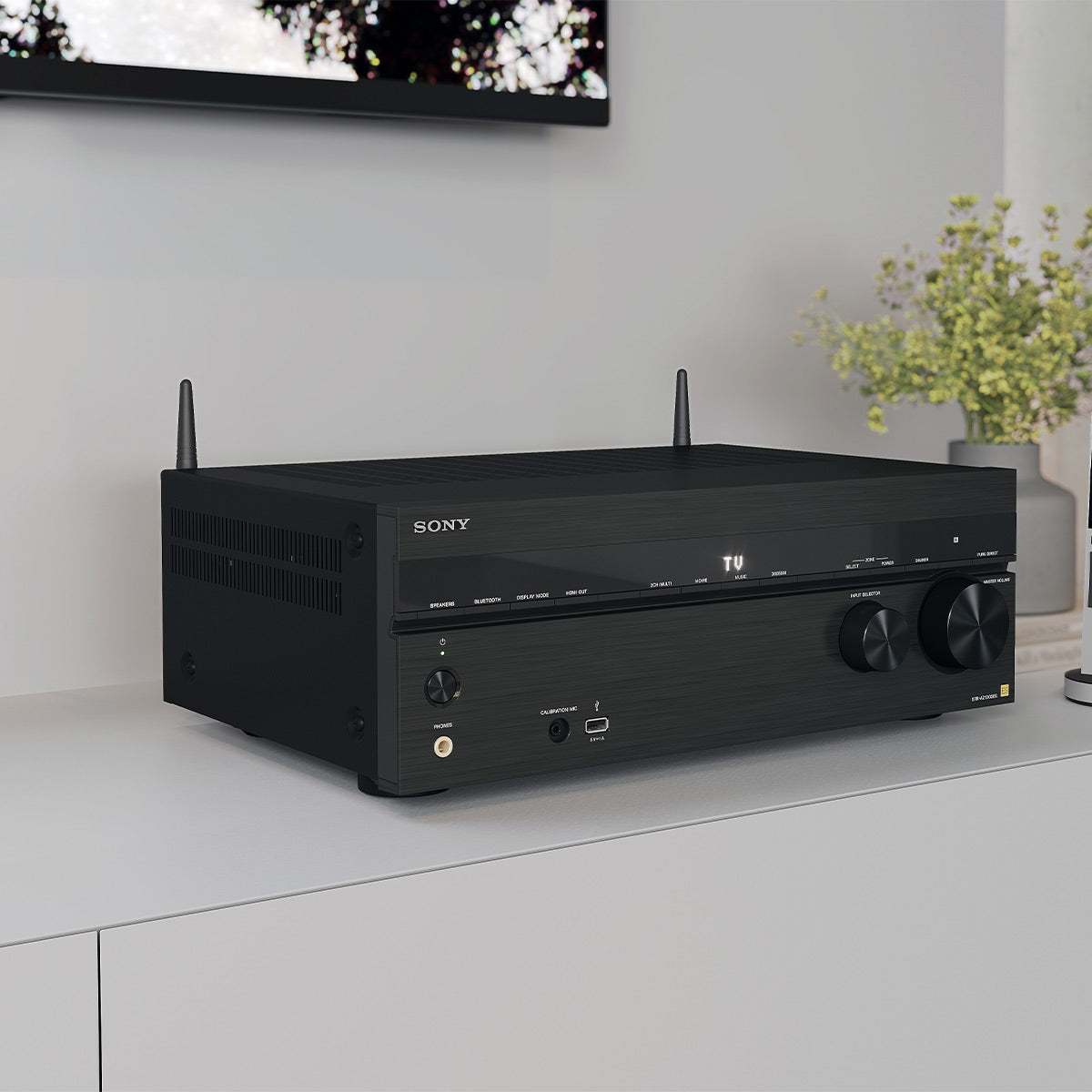

Sony STR-AZ1000ES 7.2 Channel 8K Home Theater AV Receiver with Dolby Atmos, DTS: X, IMAX Enhanced, Google Assistant, & Works with Sonos
Elevated Performance for All
Elevate your home theater standards with Sony’s 7.2 CH 8K A/V Receiver featuring renowned ES quality. Designed for integrators with optimized configurability, flexible connectivity, and advanced IP control for leading control systems. The STR-AZ1000ES is the total package for audio/visual performance and installation-friendly features.
Features
- 7.2 CH A/V Receiver (100 W + 100 W 8 ohms, 1 kHz, 2ch, THD 0.9%)
- 8K & 4K/120 HDMI Connectivity with HDMI 2.1 support (6-in/2-out)
- Optimized especially for custom in-home integration, and system configuration - Seamless IP Control integration with the leading control systems
- Supports Dolby Atmos® & DTS:X® object-based sound decoding
- Truly Immersive audio with Digital Cinema Auto Calibration IX and 360 Spatial Sound Mapping
- Support for the most common HDR formats Dolby Vision, HDR10, Hybrid Log Gamma, IMAX Enhanced
- “Works with SONOS” makes it possible to integrate the STR-AZ1000ES with your new or already existing SONOS system.
- Stream your way with Bluetooth, Wi-Fi, Chromecast built-in, Spotify Connect, and Apple AirPlay 2.
- Connects to your home’s other devices with Google Assistant
- Flexible setup options with built-in graphical user interface or front panel display
- Zone 2 & Zone 3 for Flexible, multi-zone distribution capability
- Premium componentry meets ES standards for audio performance
- Center channel enhancements include Center Speaker Lift Up and Acoustic Center Sync
- Control with Sony Music Center app
- Compatible with Sony’s SA-RS3S & SA-RS5 wireless rear speakers and SA-SW3 & SASW5 wireless subwoofers
- Covered by Sony's Sony® ES 5-Year Limited Warranty
Elevated Sound Quality And Powerful Amplification That Meets ES Standards
With 100 watts, the STR-AZ1000ES delivers cinema-like surround sound and crystal-clear music reproduction with powerful amplification.
8K & 4K/120 HDMI Connectivity
Enjoy the latest HDMI technology with support for 8K & 4K/120 video sources. Equipped with four 8K HDMI inputs and two outputs the STR-AZ1000ES is capable of delivering the most stunning picture quality and amazing clarity.
Support For the Most Advanced Object-Based Audio Formats
With support for Dolby Atmos®, Dolby Speaker Virtualization, DTS:X®, and DTS Virtual: X the STR-AZ1000ES delivers a truly elevated object-based surround-sound experience.
360 Spatial Sound Mapping
Experience true immersion. Sony’s exclusive 360 Spatial Sound Mapping technology reproduces a physical sound field that can adapt to your environment and create an experience that feels like a movie theatre or concert hall.
Digital Cinema Auto Calibration IX
A new technology developed by Sony, Digital Cinema Auto Calibration IX precisely corrects the distance, angle, sound pressure, and frequency response of each speaker that’s connected to the STR-AZ1000ES to create the ideal sound field for any home theater setup.
Supports Dolby Vision, HDR10, and Hybrid Log Gamma, and IMAX Enhanced
Enjoy dynamic, realistic picture quality with support for exciting HDR formats like Dolby Vision, HDR10, Hybrid Log Gamma, and IMAX Enhanced.
“Works with SONOS”
From the SONOS app you will be able to turn on your A/V receiver, switch to the designated input source for playback, and control the volume of your A/V receiver.
Easy Listening
Listen to all your favorite tracks. The STR-AZ1000ES supports audio streaming via Bluetooth, Wi-Fi, Chromecast built-in, Spotify Connect, and Apple AirPlay 2.
Voice Assistant Compatibility
Connect to your home’s other devices and use voice control to operate your receiver with Google Assistant.
Roon Tested
Enjoy seamless integration with your Roon system for full access to all your music—including your digital files and streaming services—all in one place.
Compatible with Sony Music Center App
Control the STR-AZ1000ES from your mobile device for operations like source selection, zone control, sound field control, volume control, media playback, and voice assistant setup.
Center Speaker Lift Up and Acoustic Center Sync
Enhance your sound in multiple ways: Center Speaker Lift Up raises the sound from the center speaker to match what’s on the TV, Acoustic Center Sync matches the audio to your compatible BRAVIA TV.
Support for Integration with Leading Home Control Systems
With support for leading control and remote monitoring systems Control4, Savant, Crestron, and OvrC, the STR-AZ1000ES is built for integration.
Flexible Setup Options
Installing the STR-AZ1000ES is easy. Setup can be performed via the onscreen Graphical User Interface (GUI).
USB Front Input with Settings Save Option
Using the front-mounted USB, you can easily apply system updates and during setup, save all receiver settings to a flash drive for backing up and porting over to another unit to replicate settings.
RS232C
RS232C port for control system configuration.
Zone 2 & Zone 3
Flexible multi-zone distribution capability.
Wireless Speaker & Subwoofer Compatibility
Sony’s RS3S & SA-RS5 wireless rear speakers and SA-SW3 & SASW5 wireless subwoofers are compatible with the STR-AZ1000ES. Two subwoofers of the same model may be connected simultaneously to the receiver.
DSEE Ultimate
Using AI-based technology, DSEE Ultimate accurately upscales audio to near-high-resolution sound quality.
HDMI 2.1
While enabling higher-quality video output and reduced latency from input devices like game consoles, HDMI 2.1 also provides support for Auto Low Latency Mode (ALLM), Variable Refresh Rate (VRR).
6 HDMI Inputs/2 Outputs
The STR-AZ1000ES has six HDMI inputs with two inputs supporting full 8K & 4K/12 video sources, and two HDMI outputs that also support full 8K & 4K/120 video sources.
Chassis and Sub-Chassis
With the addition of a sub-chassis structure on the rear of the front panel, the rigidity of the receiver is increased. This results in a further reduction of vibration and improved sound quality overall.
Power Supply Capacitors
The newly designed power supply capacitors, developed by Sony, improve stability and achieve superior sound quality.
New Large Capacity Power Transformer
The redesigned power transformer also features a new core material and bobbin to lower distortion and improve sound quality.
Redeveloped Digital Section
The new digital section enables all signal processing to be performed on a single chip while also providing lower impedance, increased capacitance, and better stability.
New DAC Enables 32-bit Operations
Digital PCM signal input is processed at 32-bit and converted to analog by the DAC, while DSD signal input during direct mode is natively input to the DAC and converted to an analog signal.
Improved Analog Power for DAC
The DAC analog power supply uses a low-noise power supply IC to ensure that performance hi-fidelity performance can be achieved.
Buffer Amp for DAC
A new DAC analog output filter circuit was designed utilizing a JFET and op-amp improvement in noise floor. The phase rotation was shifted to a higher frequency, expanding the bandwidth and improving sound clarity for wide-bandwidth sources like high-resolution audio.
Sony Exclusive Pre-Amp Integrated Circuit
A Sony-exclusive integrated circuit was developed to improve all amplification functions of the STR-AZ1000ES. The pre-amp is independently connected to each individual amplifier channel, improving channel separation and reducing internal interference over more traditional cascading designs.
Hi-Res Audio & 360 Reality Audio
Enjoy music the way the artists truly intended with High-Resolution Audio for crystal clear precision or discover a new way of listening with 360 Reality Audio for a truly immersive live concert or studio session experience. With the STR-AZ1000ES, your music comes to life like never before.
Covered by Sony® ES 5-Year Limited Warranty
All ES-Series receivers come with an 5-year parts and labor warranty, and dedicated toll-free support staffed by trained product experts.

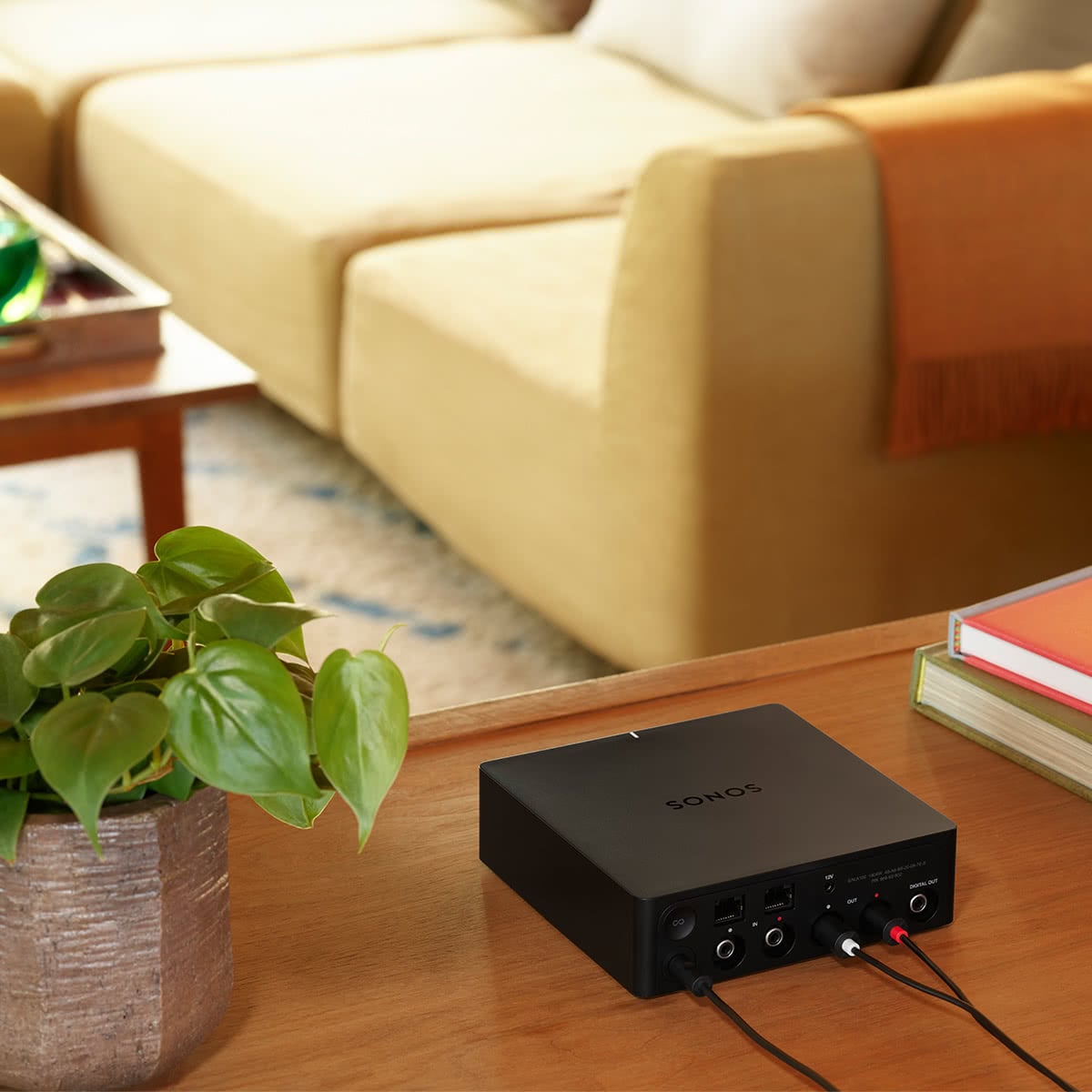

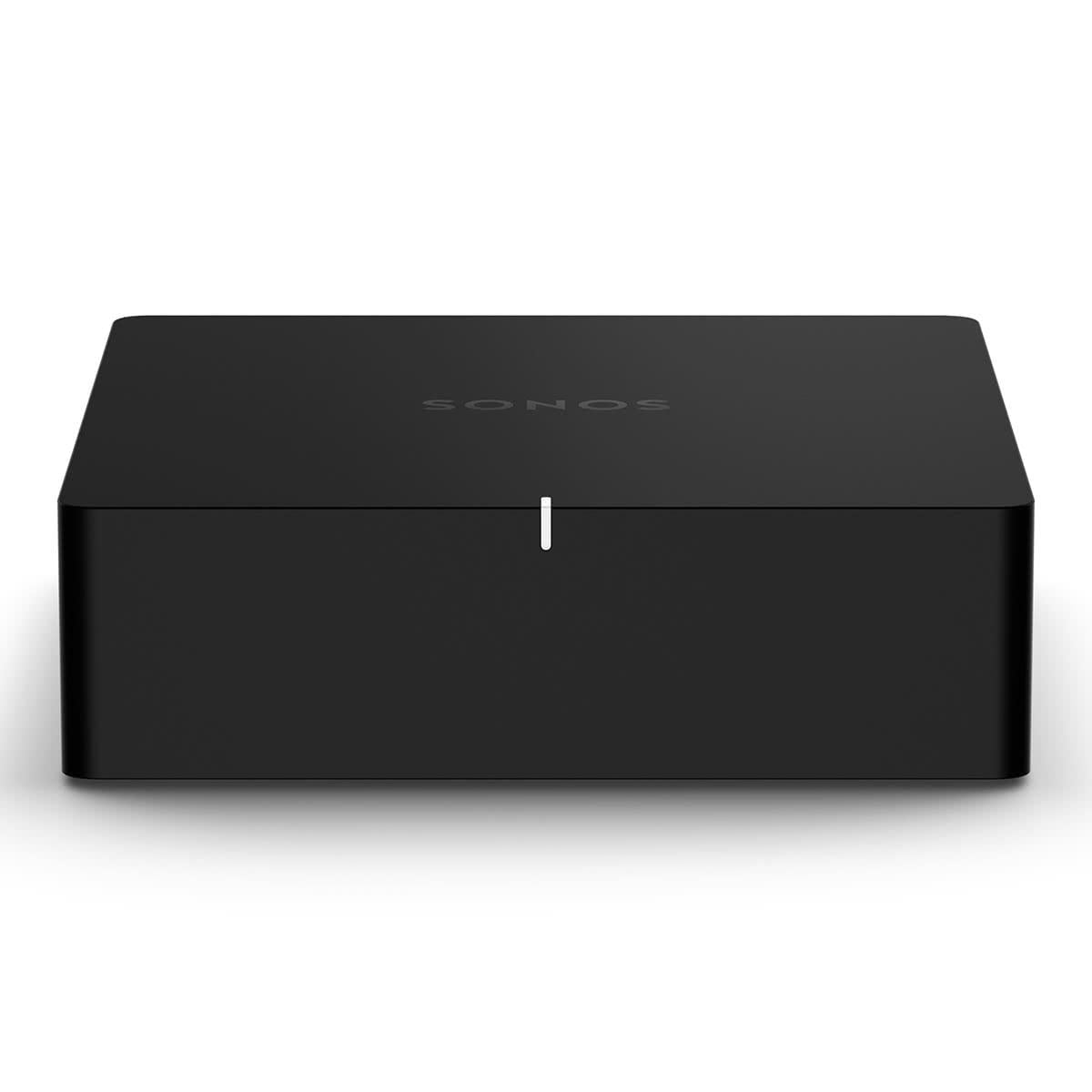

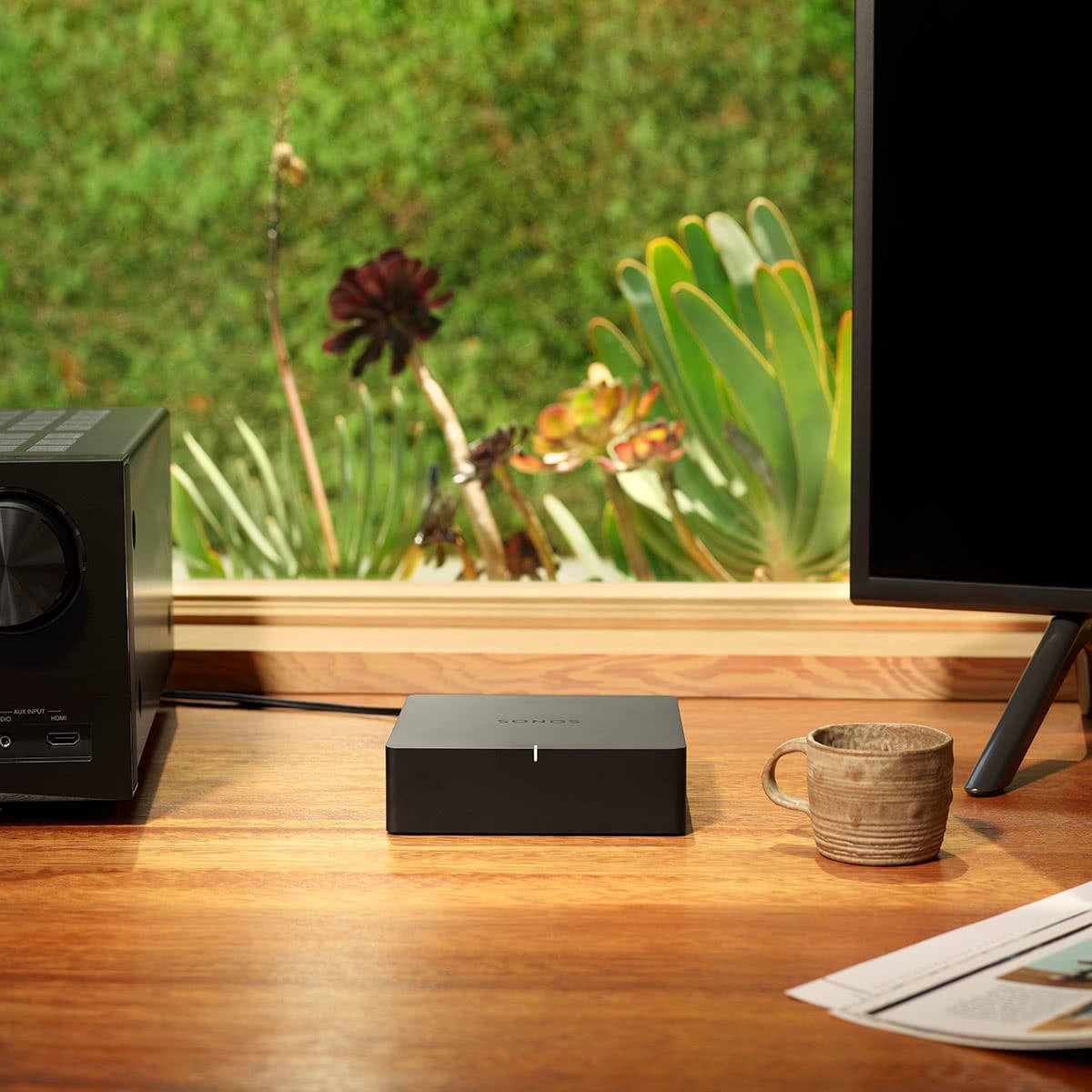

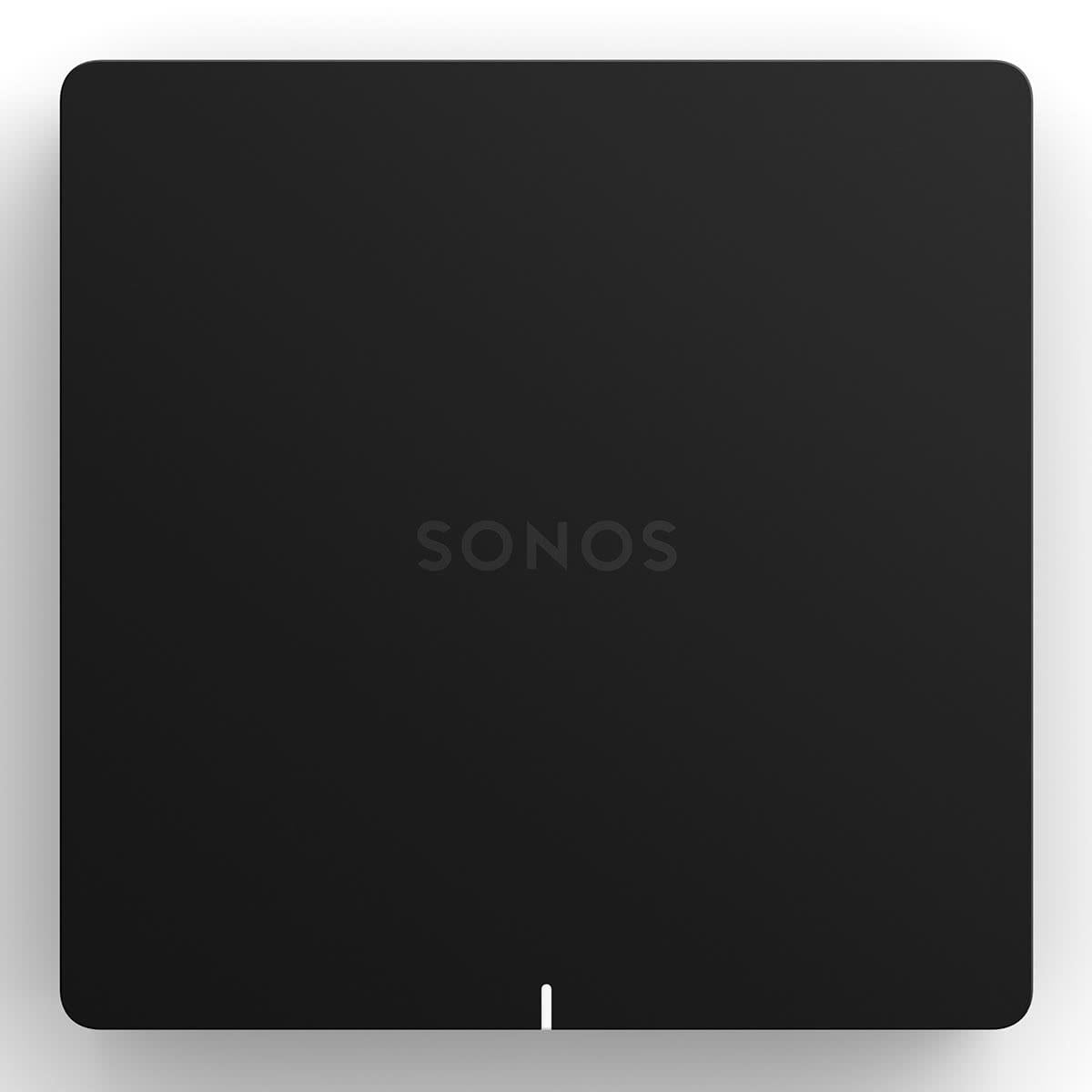

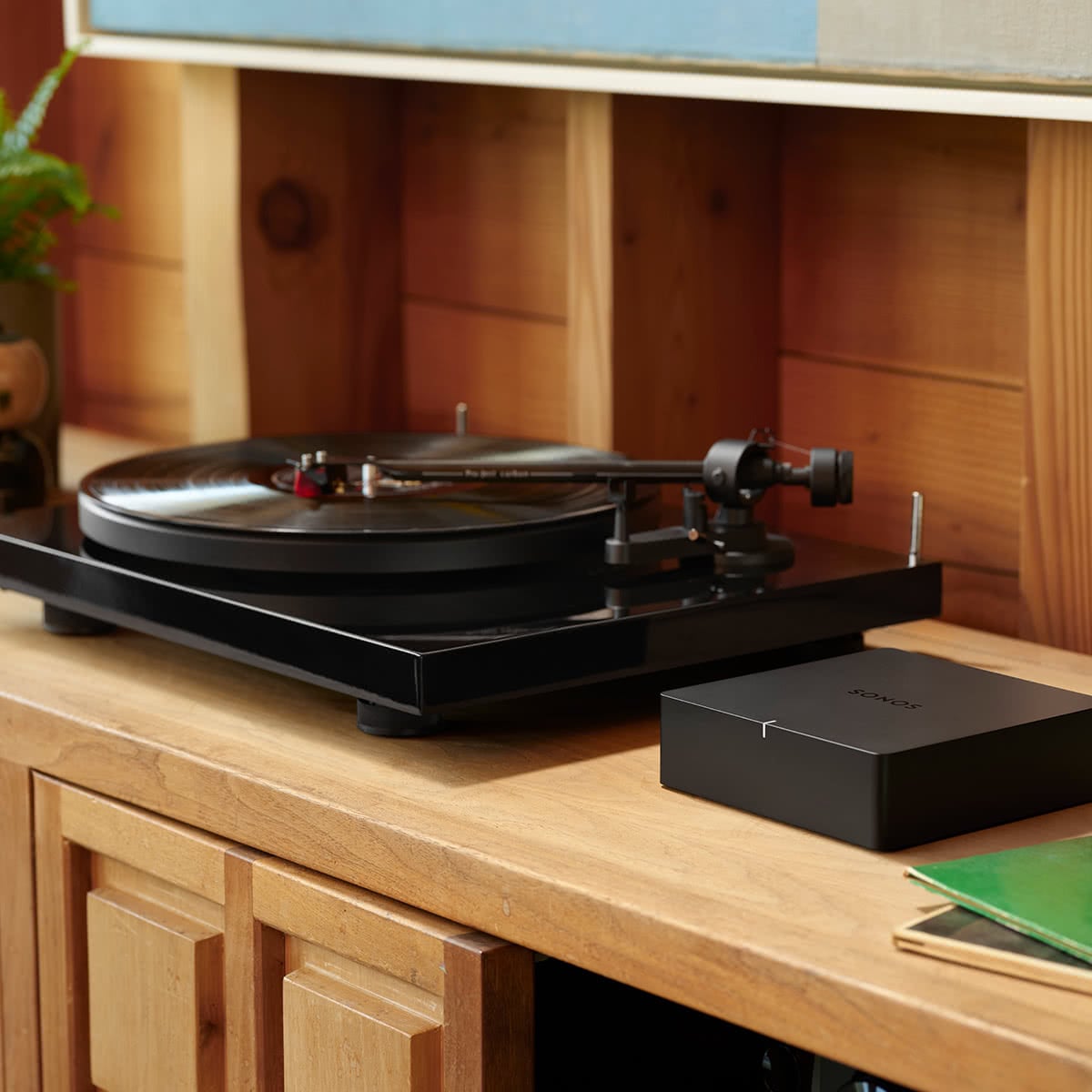

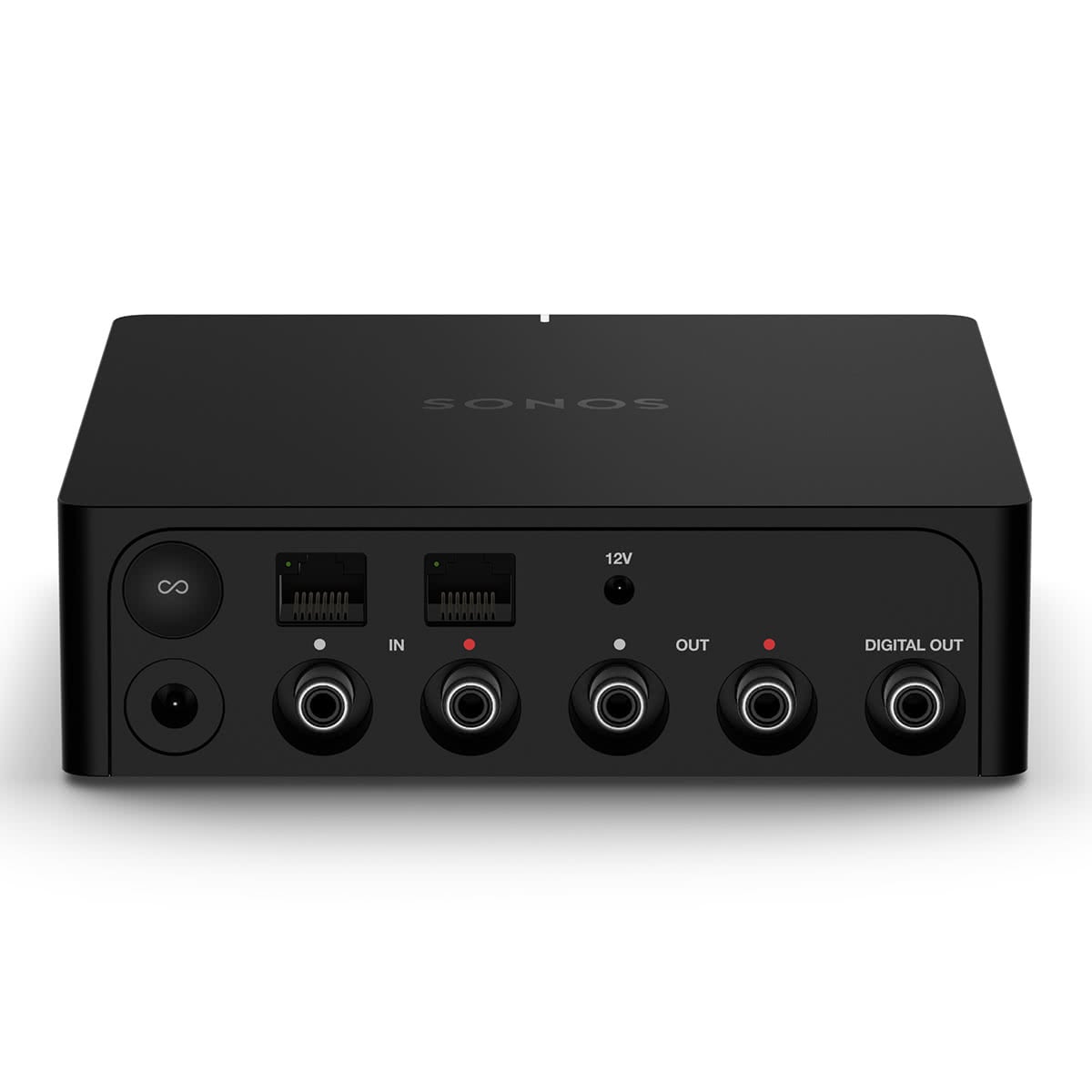

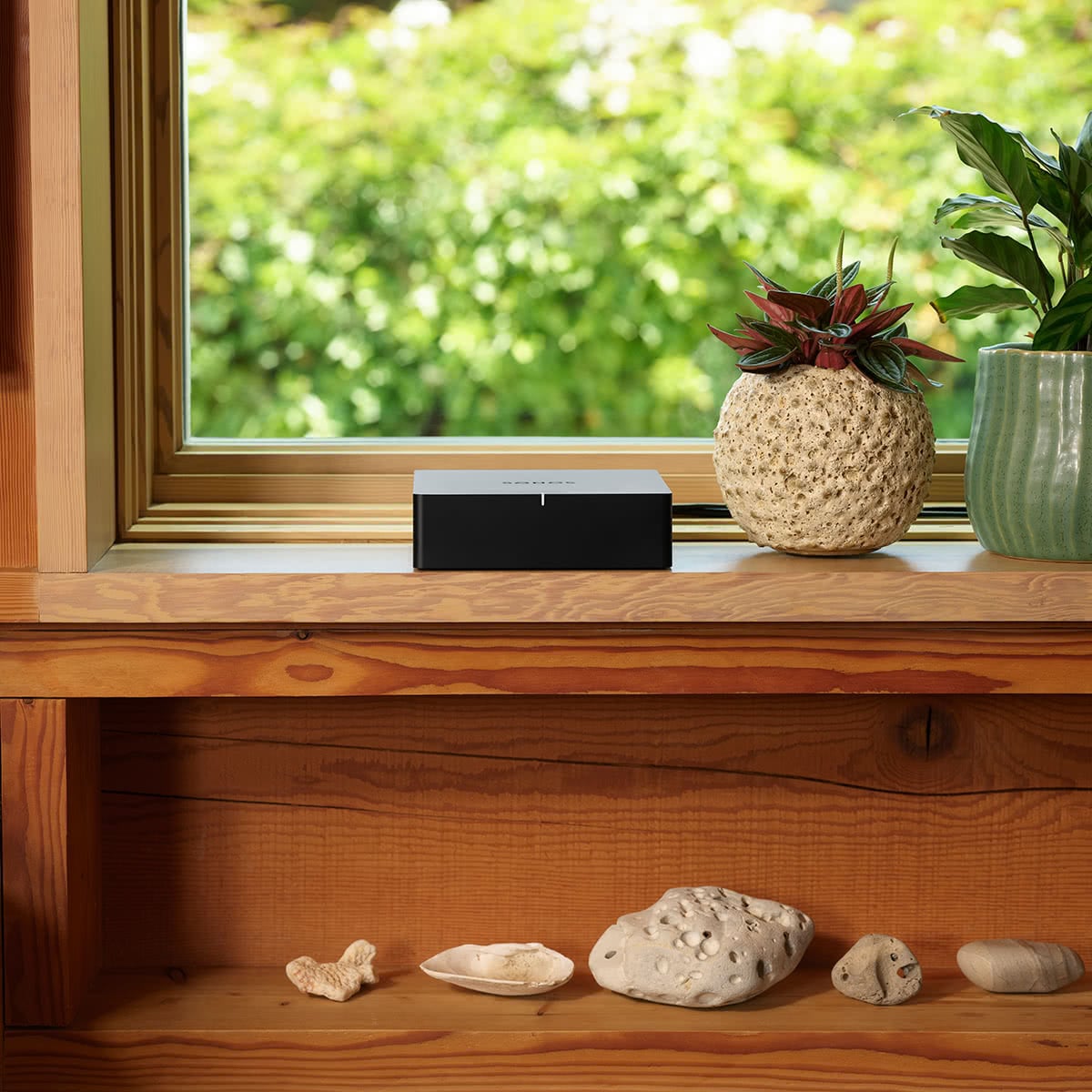

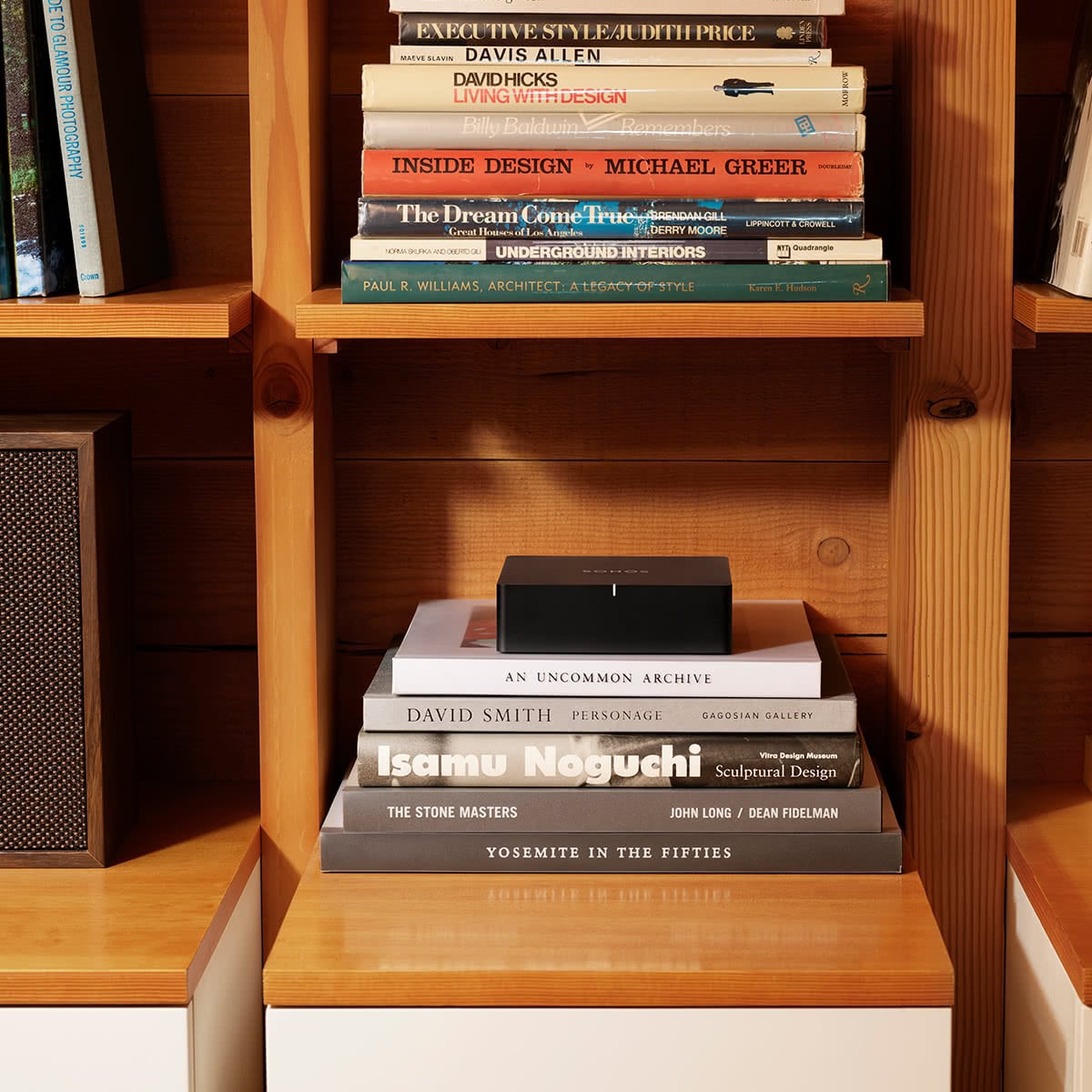

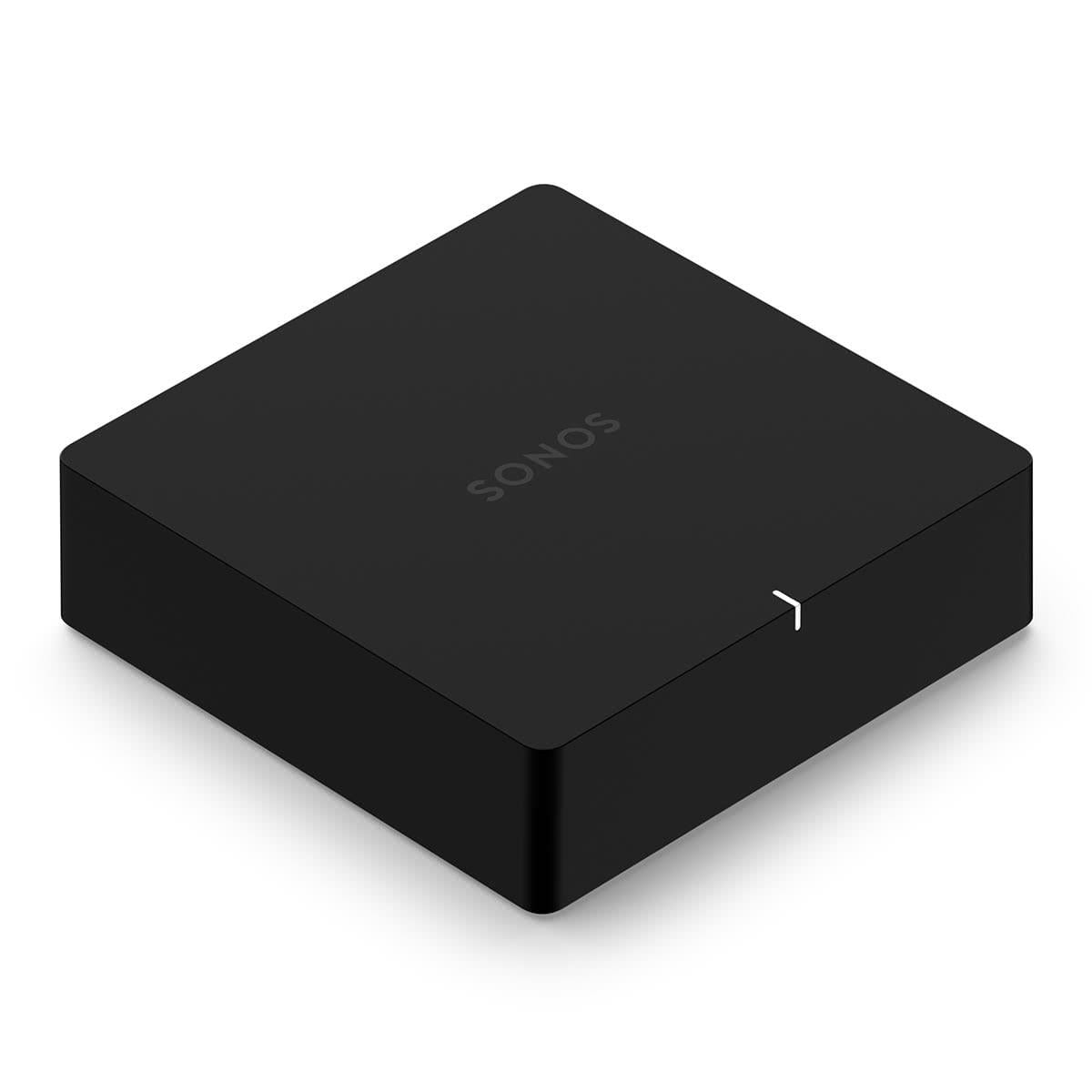

Sonos Port Wi-Fi Network Streamer with Built-In DAC
Features
- Stream vinyl, CDs, and stored audio files to Sonos speakers in other rooms of your home
- Connect Port to your traditional stereo to stream music and more
- Control with the Sonos app or Apple AirPlay 2, and easily expand your sound system to more rooms
- Enjoy music, podcasts, audiobooks, and internet radio with your amplified audio equipment
- Stream sound directly from your iPhone or iPad and ask Siri to play Apple Music
- Use the line-in to connect your phone or another device to your stereo
Stream all your favorites
Enjoy music, podcasts, audiobooks, and internet radio with your amplified audio equipment. You can also stream vinyl, CDs, and stored audio files to Sonos speakers in other rooms of your home.
Apple AirPlay 2
Stream sound directly from your iPhone or iPad and ask Siri to play Apple Music.
Line-in and play
Use the line-in to connect your phone or another device to your stereo.
Build your system
Easily connect Sonos speakers in different rooms over WiFi to create a home sound system that brings every room and everyone together.
Brilliant sound
Enjoy clear, richly detailed sound that fills the room at any volume.
Easy to use
Setup takes minutes, and control is simple with the Sonos app and AirPlay 2.
Listen your way
Customize your system and play what you want, where you want.

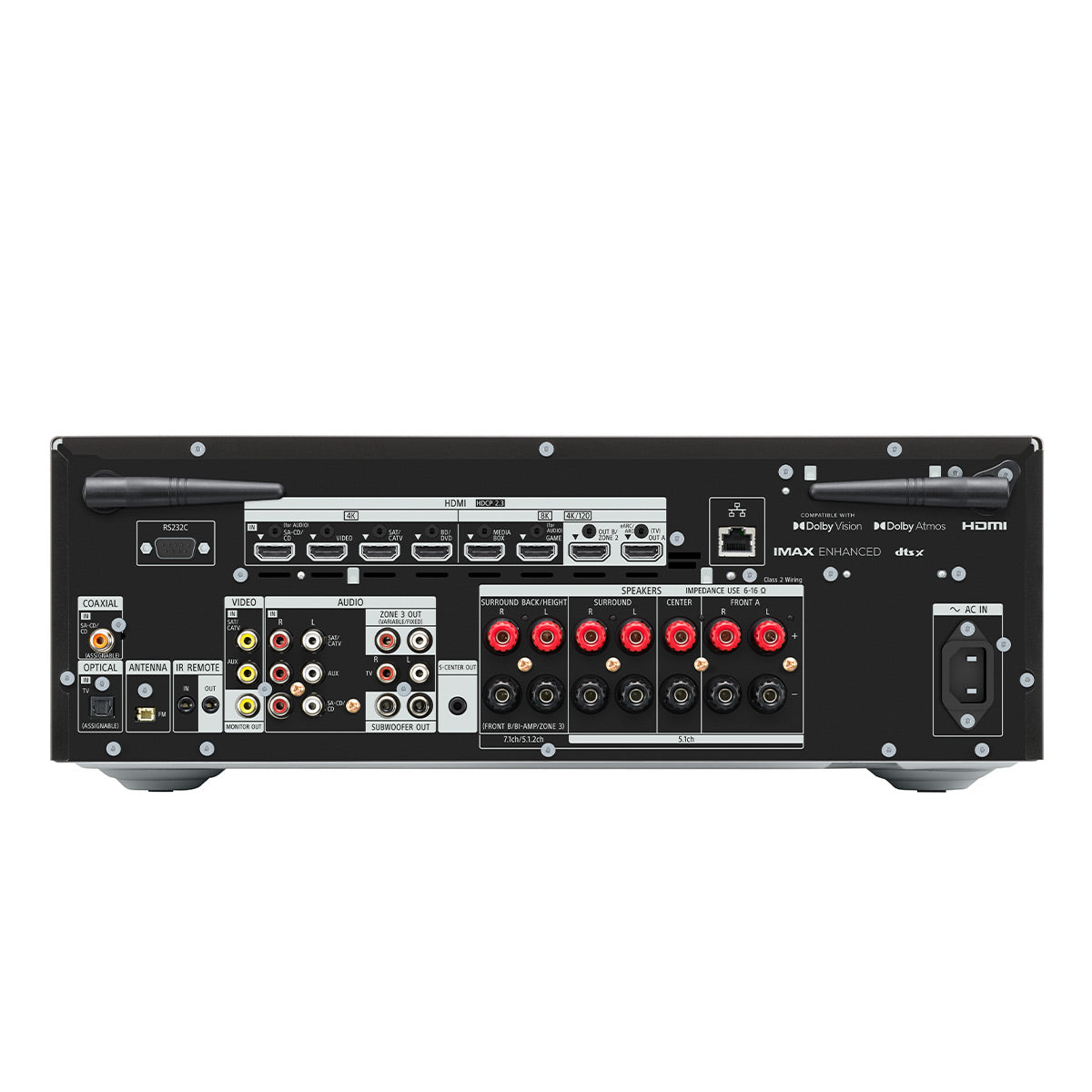

Specifications
Sony STR-AZ1000ES 7.2 Channel 8K Home Theater AV Receiver with Dolby Atmos, DTS: X, IMAX Enhanced, Google Assistant, & Works with Sonos
- Receiver
- Video Input
- HDMI (Front): 6(0)
- HDCP2.2 (Front): 6(0)
- HDMI Input supporting HDCP2.2(Front): 6(0)
- HDCP2.2 (Front/Rear): 0/6
- Composite (Front): 2(0)
- Video Output
- HDMI: 2
- HDCP2.2: 2
- HDMI Output supporting HDCP2.2: 2
- Composite Monitor Out: 1
- Audio Input
- Opt: 1
- Coax.: 1
- Analog Audio In: 4
- Audio Output
- Headphone Out: Yes
- Pre-Out (Subwoofer): 2
- S-Center out: Yes
- Input/Output Others
- Bluetooth Receiver: Yes
- Bluetooth Transmitter: Yes
- Wi-Fi: Yes
- USB: 1
- USB Front(ver) / Rear(ver): 1/0
- Ethernet Port (Power over Ethernet): 1(0)
- Ethernet Port (Power over Ethernet Plus): 1(0)
- Wireless speakers option: Yes
- Speaker Out
- Front A: Yes
- Center: Yes
- Surround: Yes
- Surround Back/Height(Front B/Bi-AMP/Zone 3): Yes
- Output Power
- Number of amp. Channels: 7ch
- Front: 100W + 100W (8ohms, 1kHz, THD 0.9%)
- Center: 100W (8ohms, 1kHz, THD 0.9%)
- Surround: 100W + 100W (8ohms, 1kHz, THD 0.9%)
- Surround Back: 100W + 100W (8ohms, 1kHz, THD 0.9%)
- Speaker Impedance: 6ohms-16ohms
- Frequency Characteristics: 10Hz-100kHz ±3dB
- Signal-to-Noise Ratio(A Network)(When all of EQ/Surround off): 105dB(Analog In)
- Audio Features
- Decodable channel number: 7.1ch
- OP processing: Yes
- Sub Woofer Low Pass Filter: Yes
- Cross Over Frequency: 17 points(40-200Hz)
- Speaker Selector: A/B/A+B/OFF
- Speaker Terminal Type: Screw
- Pure Direct: Yes
- DSD Native Playback: Yes
- 360 Spatial sound mapping: Yes
- Center Speaker Lift Up: Yes
- Acoustic Center Sync: Yes
- In-Ceiling Speaker Mode: Yes
- A/V SYNC: Yes (Variable)
- A/V Sync Time/Sampling Frequency: 0-300msec
- DSEE Ultimate: Yes
- High Resolution Audio: Yes
- High Resolution Audio Wireless: Yes
- 360 Reality Audio: Yes
- DCAC Features
- D.C.A.C. IX / D.C.A.C. EX / Advanced D.C.A.C. / D.C.A.C.: D.C.A.C. IX
- Speaker Relocation: Yes
- Phantom Surround Back: Yes
- Automatic Phase Matching: Yes
- Calibration Mic: Stereo
- EQ for D.C.A.C: 31band GEQ
- Tone Control
- Front (Bass / Treble): Yes
- Center (Bass / Treble): Yes
- Surround (Bass / Treble): Yes (Common with Surround Back)
- Surround Back (Bass / Treble): Yes (Common with Surround)
- Height1: Yes
- Sound Field
- 2ch Stereo: Yes
- Direct: Yes
- Dolby Mode: Yes
- DTS:X Mode: Yes
- Auto Format Decoding for Movie: Yes
- Auto Format Decoding: Yes
- Multi Stereo: Yes
- Audio Enhancer: Yes
- Headphone 2ch: Yes
- Tuner
- FM/AM: Yes / No
- Preset Channel (FM/AM): TTL30 (30/0)
- Station Name: Yes
- Auto Tuning: Yes
- Direct Tuning: Yes
- Video Input
- HDMI
- Decoding Formats
- DSD: Yes (Up to 2.8MHz 5.1ch)
- LPCM: Yes (Up to 192kHz/24 bit 7.1ch)
- LPCM 96kHz/24bit: Yes
- LPCM 192kHz/24bit: Yes
- DTS HD MA / DTS HD HR: Yes/Yes
- Dolby TrueHD/Dolby Digital Plus: Yes/Yes
- DTS / DTS-ES (Matrix6.1 / Discrete6.1): Yes/Yes
- Dolby Digital EX / Dolby Digital: Yes/Yes
- DTS 96/24: Yes
- DTS:X: Yes
- Dolby Dual Mono: Yes
- Dolby Atmos: Yes
- Video Features
- HDMI Video Output capability: 8K, 4K, 1080p, 1080/24p, Deep Color (up to 36 bit), Triluminous Color (xvYCC)
- 8K 60 Support: Yes(GAME, MEDIA BOX)
- 4K 120 support: Yes(GAME, MEDIA BOX)
- 4K 60p 4:4:4 Support: Yes
- Video Up Scaler: Yes(2K24/50/60p, 4K24/50/60p, up to 8K)
- 3D over HDMI: Yes
- HDR: Yes(HDR10, Hybrid Log Gamma, Dolby Vision)
- IMAX Enhanced: Yes
- Audio Features
- Audio Return Channel: Yes
- eARC: Yes
- ARC without CEC control: Yes
- Others
- BRAVIA® SYNC (CEC Control): Yes (System Audio Control, System Power Off, RC Pass Through, Language Follow, One-Touch Play)
- Standby Through: Yes
- Audio Widget: Yes
- Decoding Formats
- Features for PlayStation(R)5
- Auto HDR Tone Mapping Compatible (Pass-Through): Yes
- Auto Genre Picture Mode Compatible (Pass-Through): Yes
- USB Type A
- USB Mass Storage
- Interface: Yes
- DSD: Yes (11.2MHz 2ch, 5.6MHz 5.1ch)
- LPCM: Yes
- DSDIFF(DSD): Yes
- DSF: Yes
- WAV(LPCM): Yes
- AIFF(LPCM): Yes
- FLAC: Yes
- ALAC: Yes
- WMA: Yes
- MP3: Yes
- AAC: Yes
- Walkman Connectivity
- Music/Video/Photo: Yes/No/No
- USB Mass Storage
- Network Features
- Network Player/Renderer: No / Yes
- DSD: Yes (11.2MHz 2ch, 5.6MHz 5.1ch)
- LPCM: Yes
- DSDIFF(DSD): Yes
- DSF: Yes
- WAV(LPCM): Yes
- AIFF(LPCM): Yes
- FLAC: Yes
- ALAC: Yes
- WMA: Yes
- MP3: Yes
- Network Renderer: Yes
- DLNA Party Streaming: Yes
- AirPlay2: Yes
- Spotify Connect: Yes
- Music Center compatible: Yes
- Music Center compatible models with iPod/iPhone/iPad: Yes
- SongPal Link: Yes
- Chromecast built-in: Yes
- Works with the Google Assistant: Yes
- Works with SONOS :Yes
- Roon tested: Yes
- Installation
- Zone Features
- 2nd A: HDMI(Fixed)
- 2nd V: HDMI
- 3rd A: Speaker(Variable) / Line (Variable, Fixed)
- Multi Zone Line Out Level Control (Zone2/Zone3): Yes(-/Yes)
- Digital Audio D/A distribution to Zone: Yes(Zone3 Source)
- Coaxial/Opt Audio D/A distribution to Zone: Yes(Zone3 Source)
- HDMI Audio for Zone Down Mix: Yes for Source
- Control Features
- IR Repeat (In/Out): Yes(1/1)
- RS-232C for control: Yes
- CIS IP Control: Yes
- 12V Trigger: 0
- Controller Connectivity
- Certification (Crestron/Control4/Savant): Yes/Yes/Yes
- SDDP(Control4): Yes
- Certification (AMX/Crestron/Control4): No/Yes/Yes
- Crestron Connected: Yes
- OvrC (Control4): Yes
- Domotz: Yes
- Josh AI: Yes
- System Setting
- Setting Save / Load by USB: Yes
- Setting Lock: Yes
- Zone Features
- Others
- UI
- GUI: Yes
- GUI Blending: Yes
- GUI Language : EN/FR/ES/DE/JP
- Easy Setup Wizard: Yes
- Customize Features
- Custom Preset (Easy Automation): Yes
- Input Assign (HDMI/Component/Opt/Coax): Yes(-/-/Yes/Yes)
- UI
- General
- Pin Jack: Nickel
- Heat Sink: Aluminum (Corrugated)
- Detachable AC: Yes
- Power Requirement: 120V 60Hz
- Power Consumption: 240W
- Power Consumption(Standby): 0.5W
- Power Consumption(Network/BLUETOOTH Standby): 3.5W
- Auto Standby: Yes

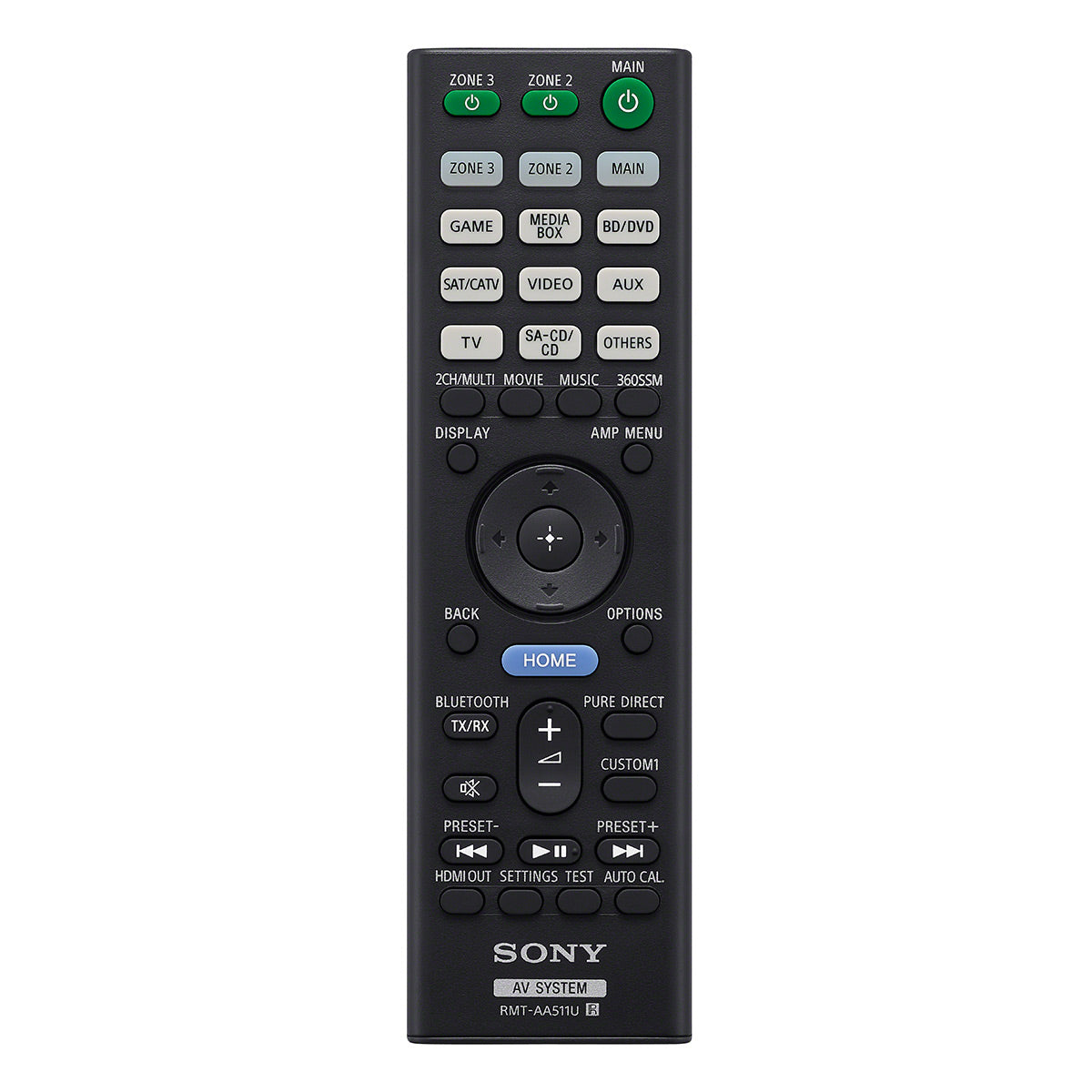

- Remote Commander: RMT-AA511U
- Attachment: Calibration microphone, Calibration mic stand, FM wire antenna, AC power cord, Remote control, R03 (size-AAA) batteries
- System Update (Internet/USB/PC): Yes (Yes/Yes/No)
- Weight and Measurements
- Receiver Dimensions (W x H x D):17” x 6 ¼” x 13 1/8”
- Receiver Weight: 20lb 9oz
- Gross Weight: 27lb 2oz
- Language
- Quick Setup Guide: English, Spanish, French
- Instruction Manual: English, Spanish, French
- Help Guide: English, Spanish, French
Sonos Port Wi-Fi Network Streamer with Built-In DAC
- Audio
- Audio line-in to bring your record player, CD player, or other audio source into the Sonos ecosystem.
- Audio line-out through either analog (RCA) or digital (coaxial) for connecting amplified audio equipment.
- 12V trigger turns on your stereo or receiver automatically when a signal is sent so there's no extra steps or remote needed.
- Adjustable bass and treble controls to optimize sound performance. Adjust volume by individual room or by groups of rooms.
- Physical
- Dimensions - H x W x D : 1.6 x 5.4 x 5.4 inches (41 x 138 x 138 mm)
- Product finish: Matte black
- Light: LED indicates status
- Weight: 1.04 lbs. (0.472 kg)
- Weight: 6.61 lb (3 kg) including battery
- Power & Networking
- Ethernet port: Two 10/100 Mbps Ethernet port. Wire directly to your router if WiFi is unreliable.
- Power supply: Auto-switching 100-240 V, 50-60 Hz AC universal input.
- WiFi: Connects to your home WiFi network with any 802.11b/g, 2.4 GHz broadcast-capable router.
- Apple AirPlay 2: Works with AirPlay 2 on Apple devices iOS 11.4 and later.
- System requirements: Amplified audio equipment with analog or digital audio inputs, or an audio source with audio output, and broadband internet.
What's In The Box
Sony STR-AZ1000ES 7.2 Channel 8K Home Theater AV Receiver with Dolby Atmos, DTS: X, IMAX Enhanced, Google Assistant, & Works with Sonos
- STR-AZ1000ES 7.2 Channel 8K Home Theater AV Receiver with Dolby Atmos, DTS: X, IMAX Enhanced, Google Assistant, & Works with Sonos
- Calibration Microphone with Stand
- FM Antenna
- Remote Control
- Remote Control Batteries
- Power Cord
- Manual
Sonos Port Wi-Fi Network Streamer with Built-In DAC
- Port Wi-Fi Network Streamer with Built-In DAC
- Power cord
- QuickStart Guide
- RCA cable
- Legal/warranty information.
Expert Review
Review: Sony ES Receivers for Home Theater
Curious about the brand-new Sony ES receivers lineup? Discover Sony's ultimate home theater experience in this review and comparison.
Read More
Explore Packaged Solutions
Recently Viewed
- Choosing a selection results in a full page refresh.
