Specifications
Specifications
- Receiver
- Video Input
- HDMI (Front): 6(0)
- HDCP2.2 (Front): 6(0)
- HDMI Input supporting HDCP2.2(Front): 6(0)
- HDCP2.2 (Front/Rear): 0/6
- Composite (Front): 2(0)
- Video Output
- HDMI: 2
- HDCP2.2: 2
- HDMI Output supporting HDCP2.2: 2
- Composite Monitor Out: 1
- Audio Input
- Opt: 1
- Coax.: 1
- Analog Audio In: 4
- Audio Output
- Headphone Out: Yes
- Pre-Out (Subwoofer): 2
- S-Center out: Yes
- Input/Output Others
- Bluetooth Receiver: Yes
- Bluetooth Transmitter: Yes
- Wi-Fi: Yes
- USB: 1
- USB Front(ver) / Rear(ver): 1/0
- Ethernet Port (Power over Ethernet): 1(0)
- Ethernet Port (Power over Ethernet Plus): 1(0)
- Wireless speakers option: Yes
- Speaker Out
- Front A: Yes
- Center: Yes
- Surround: Yes
- Surround Back/Height(Front B/Bi-AMP/Zone 3): Yes
- Output Power
- Number of amp. Channels: 7ch
- Front: 100W + 100W (8ohms, 1kHz, THD 0.9%)
- Center: 100W (8ohms, 1kHz, THD 0.9%)
- Surround: 100W + 100W (8ohms, 1kHz, THD 0.9%)
- Surround Back: 100W + 100W (8ohms, 1kHz, THD 0.9%)
- Speaker Impedance: 6ohms-16ohms
- Frequency Characteristics: 10Hz-100kHz ±3dB
- Signal-to-Noise Ratio(A Network)(When all of EQ/Surround off): 105dB(Analog In)
- Audio Features
- Decodable channel number: 7.1ch
- OP processing: Yes
- Sub Woofer Low Pass Filter: Yes
- Cross Over Frequency: 17 points(40-200Hz)
- Speaker Selector: A/B/A+B/OFF
- Speaker Terminal Type: Screw
- Pure Direct: Yes
- DSD Native Playback: Yes
- 360 Spatial sound mapping: Yes
- Center Speaker Lift Up: Yes
- Acoustic Center Sync: Yes
- In-Ceiling Speaker Mode: Yes
- A/V SYNC: Yes (Variable)
- A/V Sync Time/Sampling Frequency: 0-300msec
- DSEE Ultimate: Yes
- High Resolution Audio: Yes
- High Resolution Audio Wireless: Yes
- 360 Reality Audio: Yes
- DCAC Features
- D.C.A.C. IX / D.C.A.C. EX / Advanced D.C.A.C. / D.C.A.C.: D.C.A.C. IX
- Speaker Relocation: Yes
- Phantom Surround Back: Yes
- Automatic Phase Matching: Yes
- Calibration Mic: Stereo
- EQ for D.C.A.C: 31band GEQ
- Tone Control
- Front (Bass / Treble): Yes
- Center (Bass / Treble): Yes
- Surround (Bass / Treble): Yes (Common with Surround Back)
- Surround Back (Bass / Treble): Yes (Common with Surround)
- Height1: Yes
- Sound Field
- 2ch Stereo: Yes
- Direct: Yes
- Dolby Mode: Yes
- DTS:X Mode: Yes
- Auto Format Decoding for Movie: Yes
- Auto Format Decoding: Yes
- Multi Stereo: Yes
- Audio Enhancer: Yes
- Headphone 2ch: Yes
- Tuner
- FM/AM: Yes / No
- Preset Channel (FM/AM): TTL30 (30/0)
- Station Name: Yes
- Auto Tuning: Yes
- Direct Tuning: Yes
- Video Input
- HDMI
- Decoding Formats
- DSD: Yes (Up to 2.8MHz 5.1ch)
- LPCM: Yes (Up to 192kHz/24 bit 7.1ch)
- LPCM 96kHz/24bit: Yes
- LPCM 192kHz/24bit: Yes
- DTS HD MA / DTS HD HR: Yes/Yes
- Dolby TrueHD/Dolby Digital Plus: Yes/Yes
- DTS / DTS-ES (Matrix6.1 / Discrete6.1): Yes/Yes
- Dolby Digital EX / Dolby Digital: Yes/Yes
- DTS 96/24: Yes
- DTS:X: Yes
- Dolby Dual Mono: Yes
- Dolby Atmos: Yes
- Video Features
- HDMI Video Output capability: 8K, 4K, 1080p, 1080/24p, Deep Color (up to 36 bit), Triluminous Color (xvYCC)
- 8K 60 Support: Yes(GAME, MEDIA BOX)
- 4K 120 support: Yes(GAME, MEDIA BOX)
- 4K 60p 4:4:4 Support: Yes
- Video Up Scaler: Yes(2K24/50/60p, 4K24/50/60p, up to 8K)
- 3D over HDMI: Yes
- HDR: Yes(HDR10, Hybrid Log Gamma, Dolby Vision)
- IMAX Enhanced: Yes
- Audio Features
- Audio Return Channel: Yes
- eARC: Yes
- ARC without CEC control: Yes
- Others
- BRAVIA® SYNC (CEC Control): Yes (System Audio Control, System Power Off, RC Pass Through, Language Follow, One-Touch Play)
- Standby Through: Yes
- Audio Widget: Yes
- Decoding Formats
- Features for PlayStation(R)5
- Auto HDR Tone Mapping Compatible (Pass-Through): Yes
- Auto Genre Picture Mode Compatible (Pass-Through): Yes
- USB Type A
- USB Mass Storage
- Interface: Yes
- DSD: Yes (11.2MHz 2ch, 5.6MHz 5.1ch)
- LPCM: Yes
- DSDIFF(DSD): Yes
- DSF: Yes
- WAV(LPCM): Yes
- AIFF(LPCM): Yes
- FLAC: Yes
- ALAC: Yes
- WMA: Yes
- MP3: Yes
- AAC: Yes
- Walkman Connectivity
- Music/Video/Photo: Yes/No/No
- USB Mass Storage
- Network Features
- Network Player/Renderer: No / Yes
- DSD: Yes (11.2MHz 2ch, 5.6MHz 5.1ch)
- LPCM: Yes
- DSDIFF(DSD): Yes
- DSF: Yes
- WAV(LPCM): Yes
- AIFF(LPCM): Yes
- FLAC: Yes
- ALAC: Yes
- WMA: Yes
- MP3: Yes
- Network Renderer: Yes
- DLNA Party Streaming: Yes
- AirPlay2: Yes
- Spotify Connect: Yes
- Music Center compatible: Yes
- Music Center compatible models with iPod/iPhone/iPad: Yes
- SongPal Link: Yes
- Chromecast built-in: Yes
- Works with the Google Assistant: Yes
- Works with SONOS :Yes
- Roon tested: Yes
- Installation
- Zone Features
- 2nd A: HDMI(Fixed)
- 2nd V: HDMI
- 3rd A: Speaker(Variable) / Line (Variable, Fixed)
- Multi Zone Line Out Level Control (Zone2/Zone3): Yes(-/Yes)
- Digital Audio D/A distribution to Zone: Yes(Zone3 Source)
- Coaxial/Opt Audio D/A distribution to Zone: Yes(Zone3 Source)
- HDMI Audio for Zone Down Mix: Yes for Source
- Control Features
- IR Repeat (In/Out): Yes(1/1)
- RS-232C for control: Yes
- CIS IP Control: Yes
- 12V Trigger: 0
- Controller Connectivity
- Certification (Crestron/Control4/Savant): Yes/Yes/Yes
- SDDP(Control4): Yes
- Certification (AMX/Crestron/Control4): No/Yes/Yes
- Crestron Connected: Yes
- OvrC (Control4): Yes
- Domotz: Yes
- Josh AI: Yes
- System Setting
- Setting Save / Load by USB: Yes
- Setting Lock: Yes
- Zone Features
- Others
- UI
- GUI: Yes
- GUI Blending: Yes
- GUI Language : EN/FR/ES/DE/JP
- Easy Setup Wizard: Yes
- Customize Features
- Custom Preset (Easy Automation): Yes
- Input Assign (HDMI/Component/Opt/Coax): Yes(-/-/Yes/Yes)
- UI
- General
- Pin Jack: Nickel
- Heat Sink: Aluminum (Corrugated)
- Detachable AC: Yes
- Power Requirement: 120V 60Hz
- Power Consumption: 240W
- Power Consumption(Standby): 0.5W
- Power Consumption(Network/BLUETOOTH Standby): 3.5W
- Auto Standby: Yes

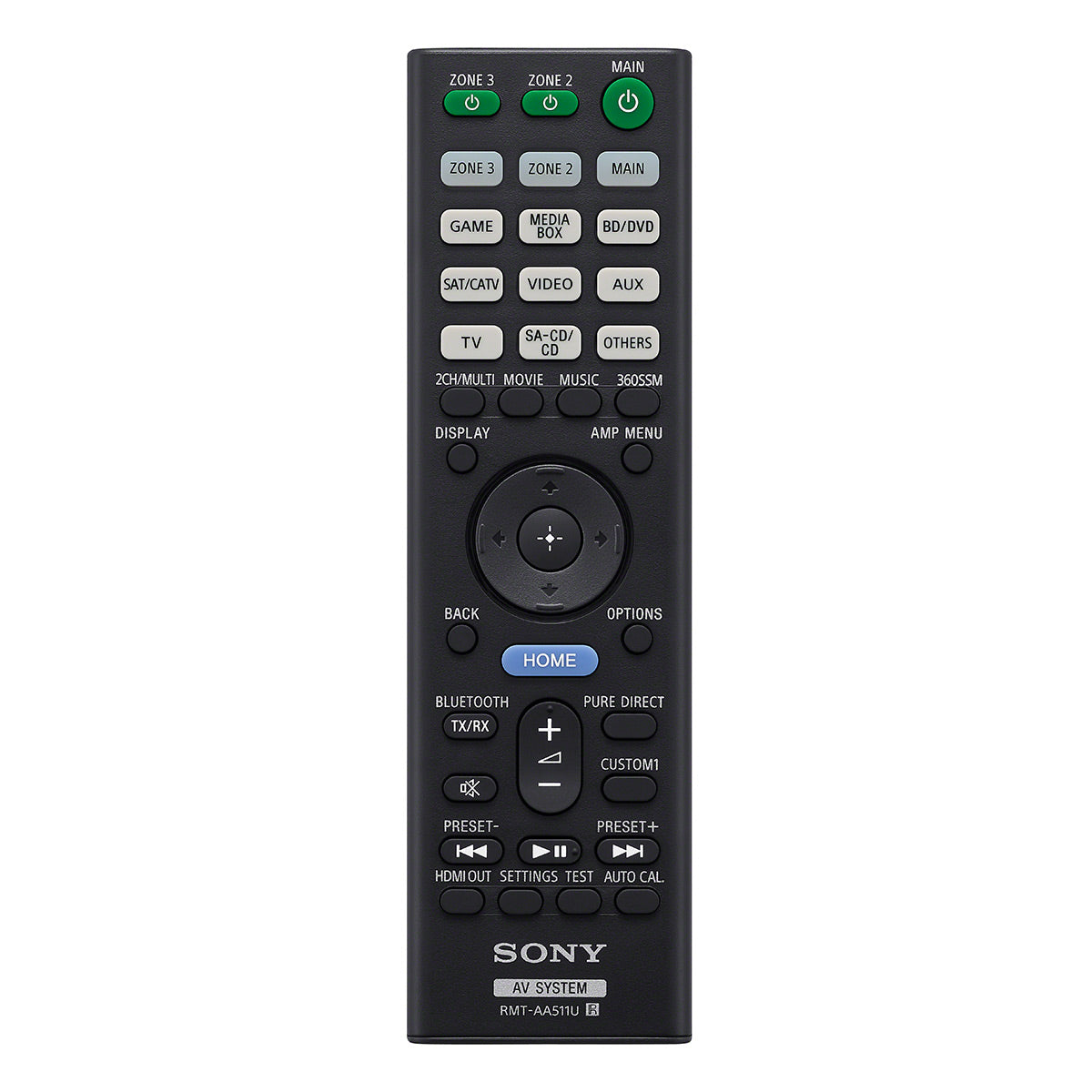

- Remote Commander: RMT-AA511U
- Attachment: Calibration microphone, Calibration mic stand, FM wire antenna, AC power cord, Remote control, R03 (size-AAA) batteries
- System Update (Internet/USB/PC): Yes (Yes/Yes/No)
- Weight and Measurements
- Receiver Dimensions (W x H x D):17” x 6 ¼” x 13 1/8”
- Receiver Weight: 20lb 9oz
- Gross Weight: 27lb 2oz
- Language
- Quick Setup Guide: English, Spanish, French
- Instruction Manual: English, Spanish, French
- Help Guide: English, Spanish, French
What's in the Box
What’s in the Box

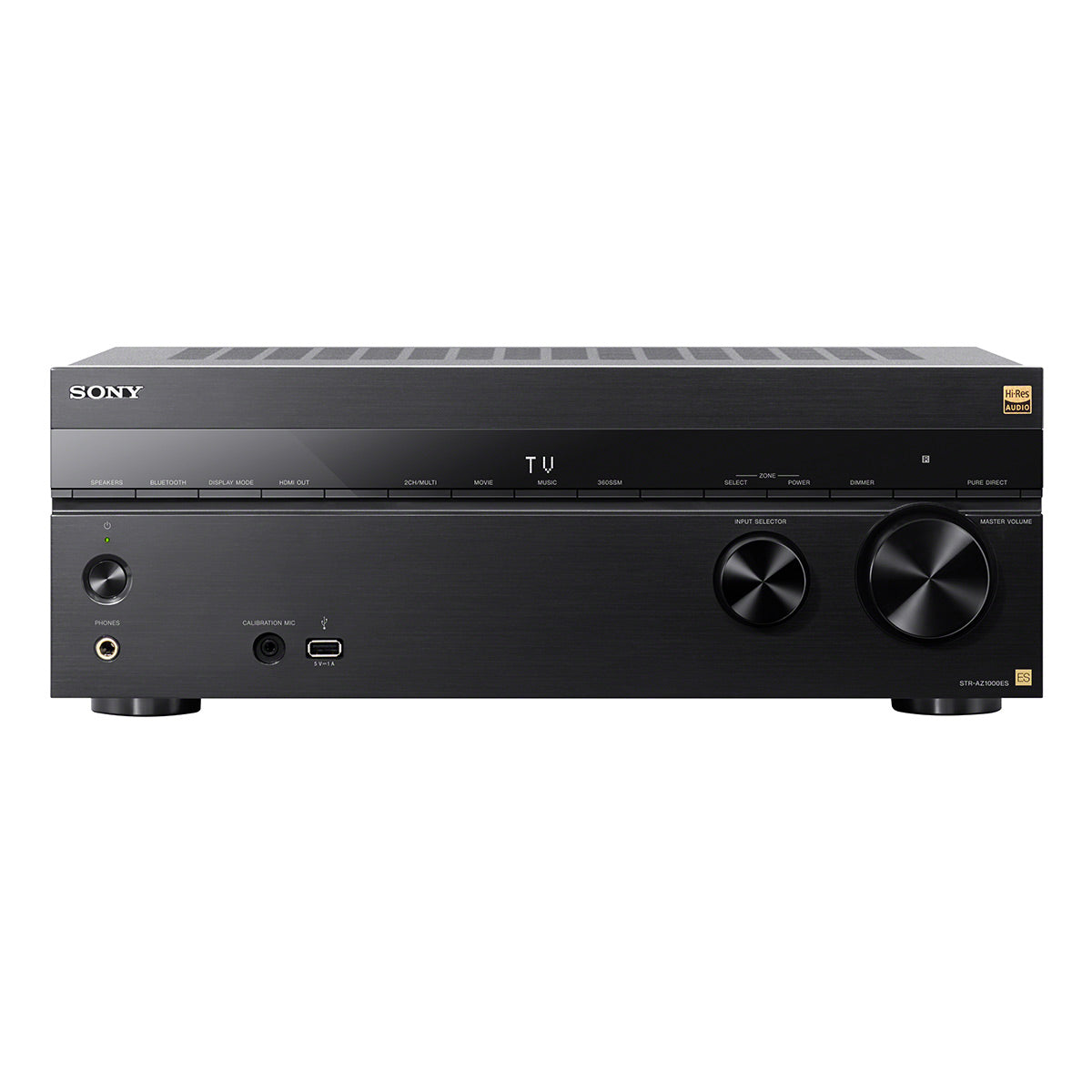

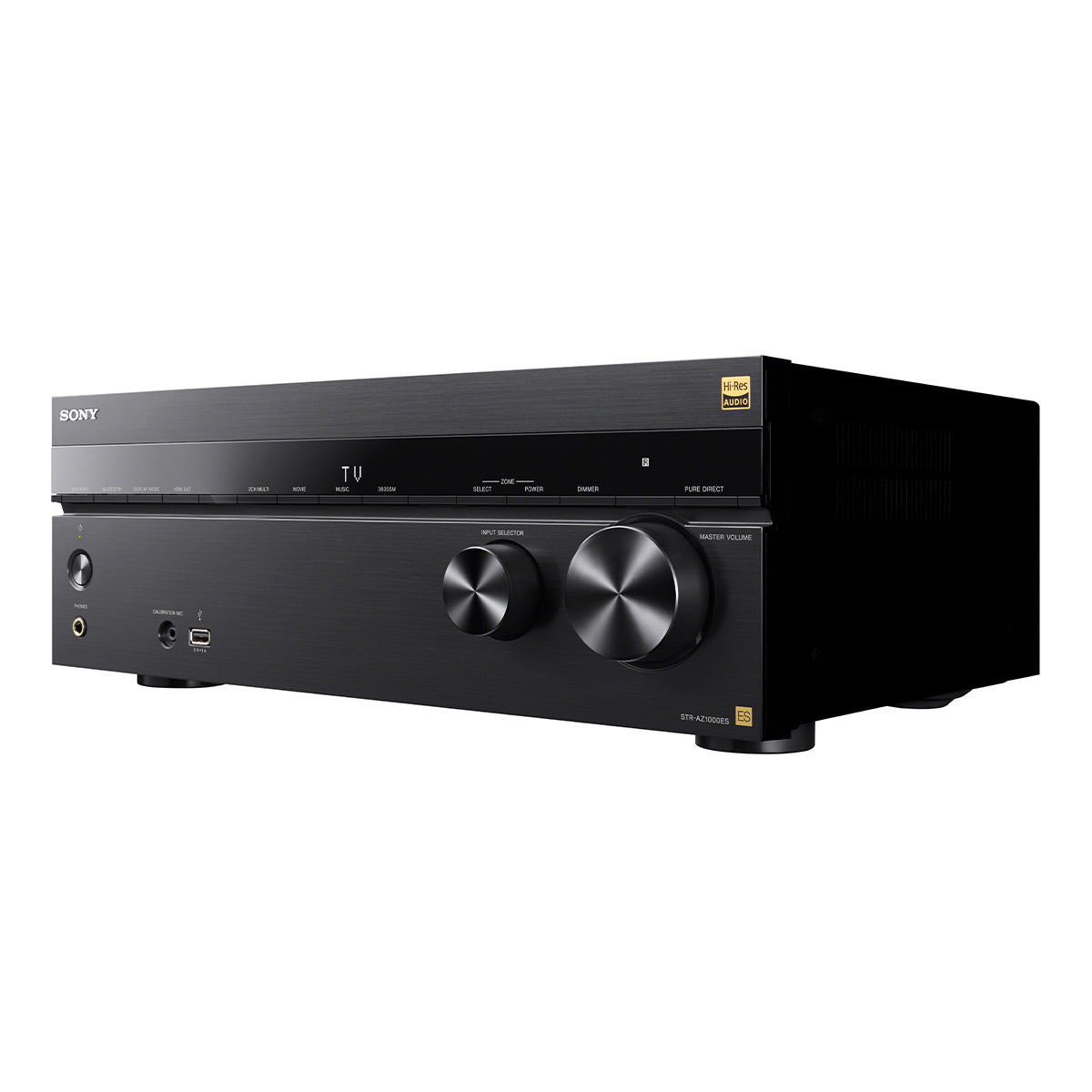

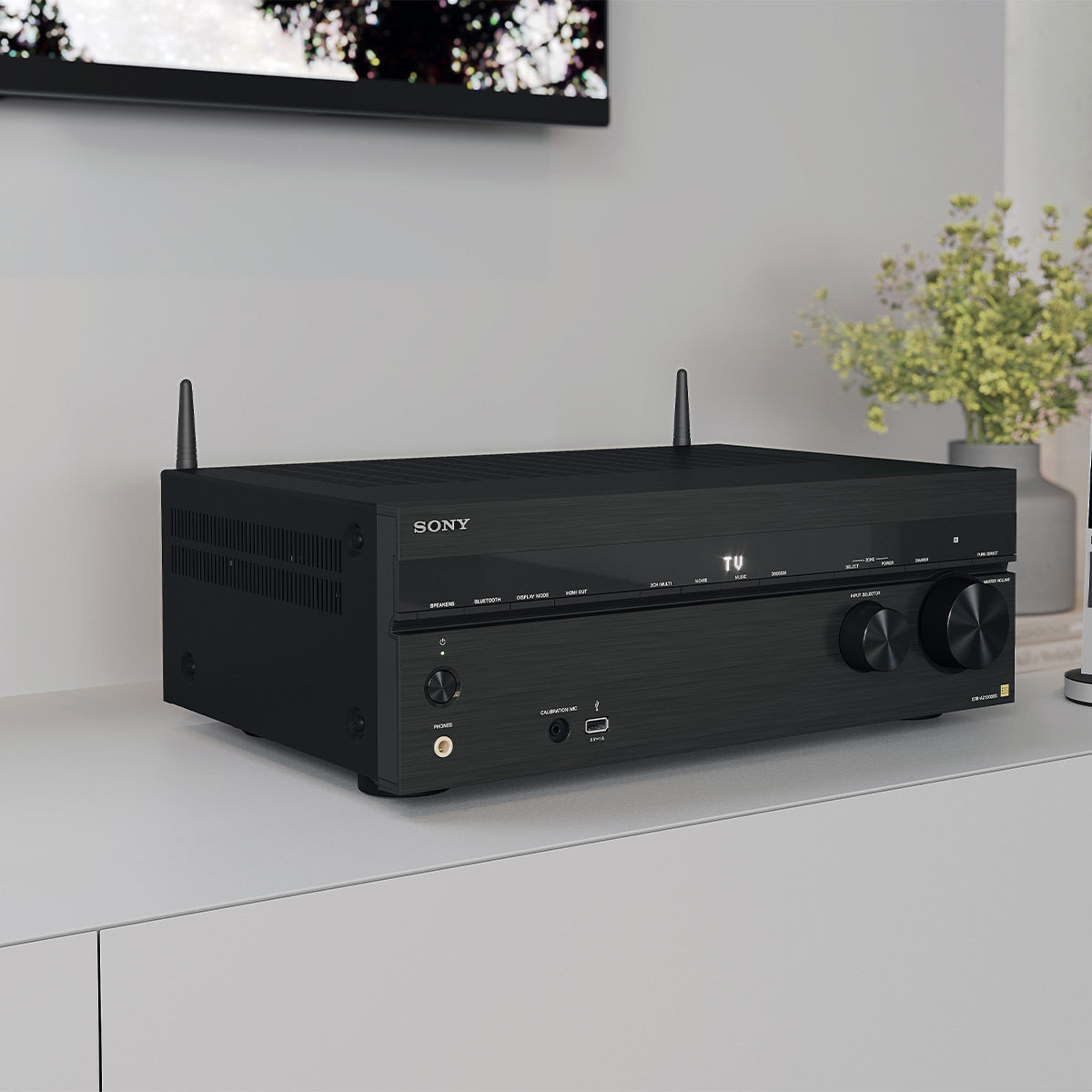

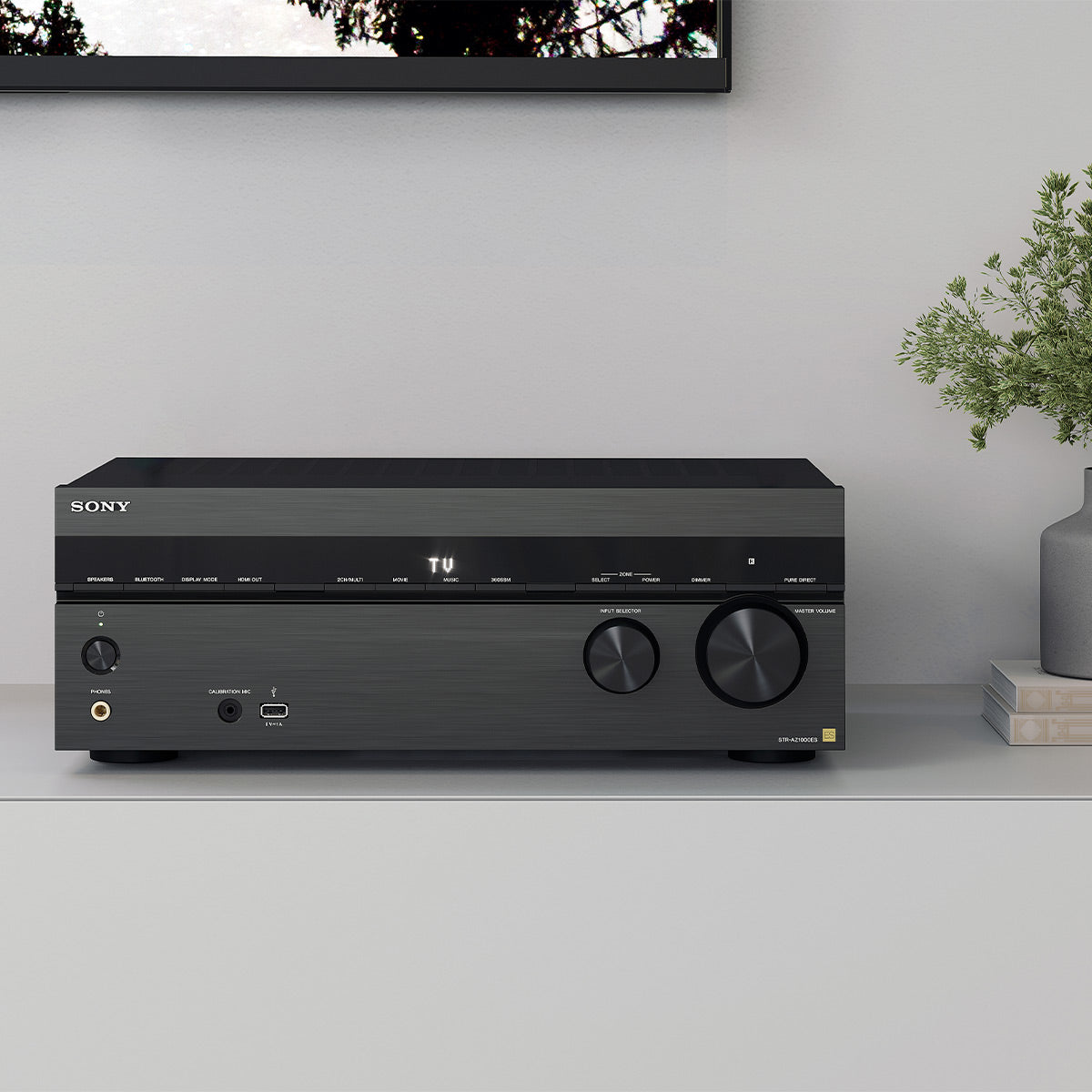

- STR-AZ1000ES 7.2 Channel 8K Home Theater AV Receiver with Dolby Atmos, DTS: X, IMAX Enhanced, Google Assistant, & Works with Sonos
- Calibration Microphone with Stand
- FM Antenna
- Remote Control
- Remote Control Batteries
- Power Cord
- Manual
