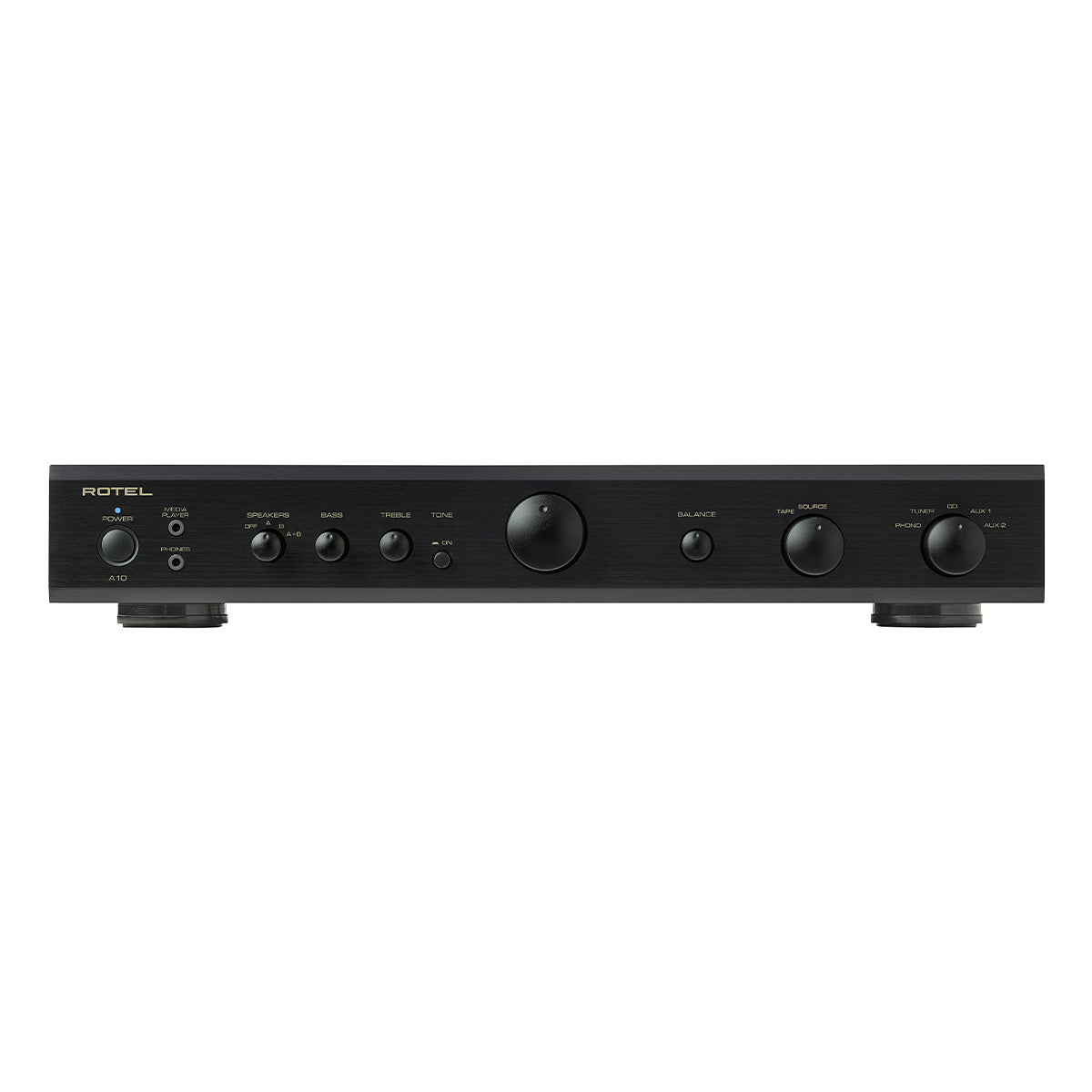

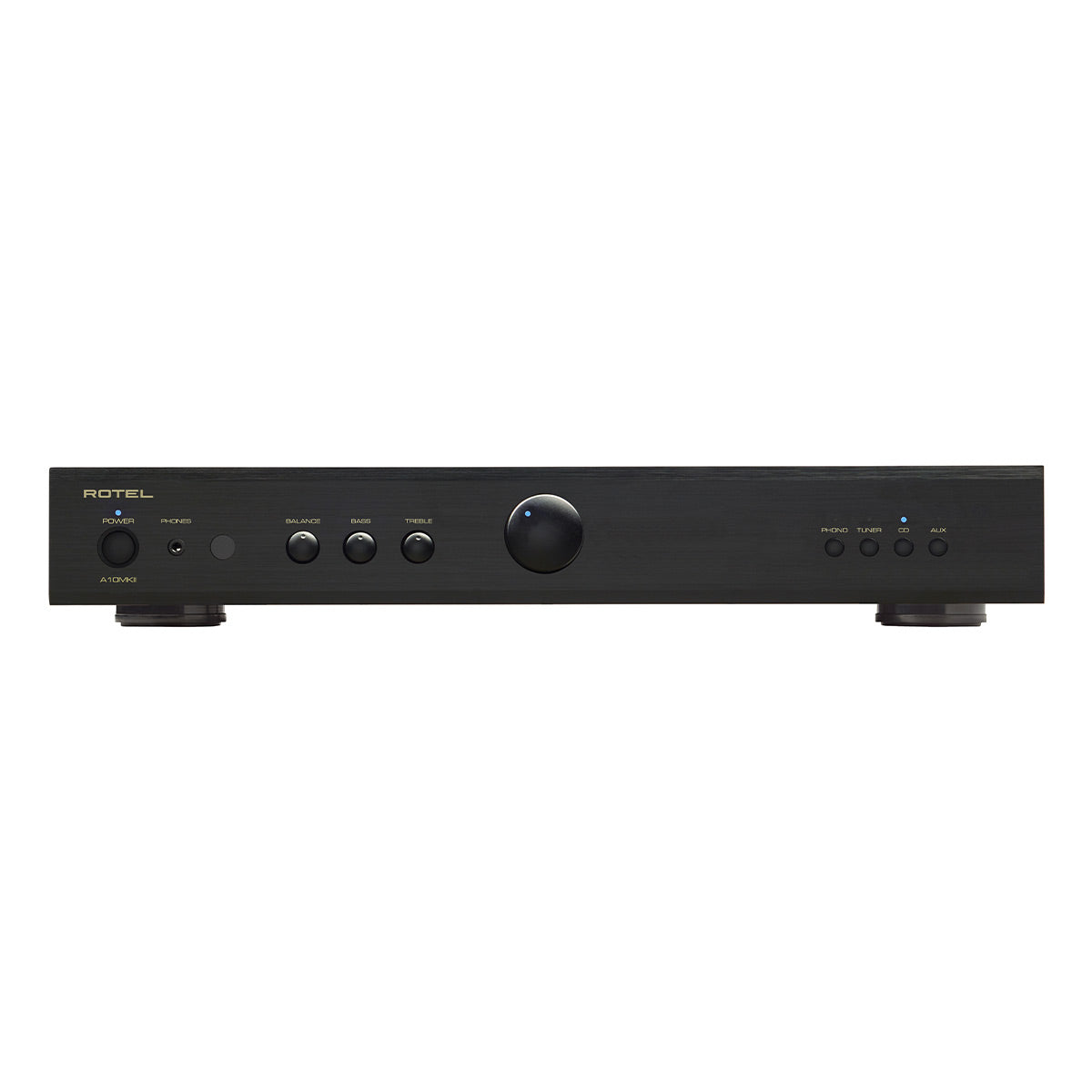

Rotel A10 MKII Integrated Amplifier (Black)

Regular price $599.00
Sale price $599.00 Regular price
Save $-599.00 (%)
OR

In Stock & Ready to Ship
Free Shipping Get it between Tue, Oct 15 – Tue, Oct 22
Other Options

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Rotel A10 Overview

Product Information

Model: A10M2B | UPC: 672563260117

Specifications

What's In The Box

Product Information

Model: A10M2B | UPC: 672563260117

The A10MKII Integrated Amplifier offers the perfect combination of power and style for the music lover seeking to elevate their listening experience.

Features

  • Robust Power with Class AB Design
  • MM Phono Input
  • High Current Power Supply
  • Remote Control

All Analog Sources Are Welcome

With three line-level RCA inputs, and a Moving Magnet compatible Phono stage provided for vinyl lovers. An 1/8” headphone jack with dedicated headphone amplifier circuit is provided on the front panel for private listening sessions.

Controls

An intuitive front panel layout includes rotary Bass, Treble, and Balance controls making the A10MKII a joy to use up close, while the included IR remote control, and a motorized analog volume controller extend ease of use to the listening seat.

Specifications

  • Total Harmonic Distortion: < 0.03%
  • Intermodulation Distortion: < 0.03% (60 Hz : 7k Hz, 4:1)
  • Frequency Response
  • Phono input: 20 Hz - 20k Hz, -0.5 dB, +0.3 dB
  • Line Level Inputs: 10 Hz - 100k Hz, -0.5 dB, +0.05 dB
  • Damping Factor: 120 (20 - 20,000 Hz, 8 Ohms)
  • Input Sensitivity / Impedance
    • Phono input: 1.5 mV / 43k Ohms
    • Line Level Inputs: 120 mV / 45k Ohms
  • Input Overload
    • Phono input: 50 mV
    • Line Level Inputs: 4 V
  • Tone Controls - Bass / Treble: ± 6 dB at 100 Hz / 10k Hz
  • Signal to Noise Ratio (IHF “A” weighted)
  • Phono input: 85 dB
  • Line Level Inputs: 90 dB
  • Power Requirements: 120 V, 60 Hz
  • Power Consumption: 150 Watts
  • Standby Power Consumption: < 0.5 Watts
  • BTU (4 Ohms, 1/8 power): 450 BTU/h
  • Dimensions (W x H x D): 17” x 2 7/8” x 13 5/8”
  • Front Panel Height: 2-3/8”
  • Weight: 14.5 lbs.

What's In The Box

  • A10 MKII Integrated Amplifier
  • Power Cord
  • Remote
  • Manual
