Bowers & Wilkins 804 D4 3-Way Floorstanding Speaker - Each (Satin Walnut)
Overview
Product Information
Specifications
What's In The Box
Product Information
Excellence. Evolved.
This is not just another speaker range. Each new generation of 800 Series Diamond is a landmark even for Bowers & Wilkins. This is their benchmark, their icon; the most advanced range of loudspeakers they know how to make. For Bowers & Wilkins, the 800 Series Diamond is everything they know, and everything they are.

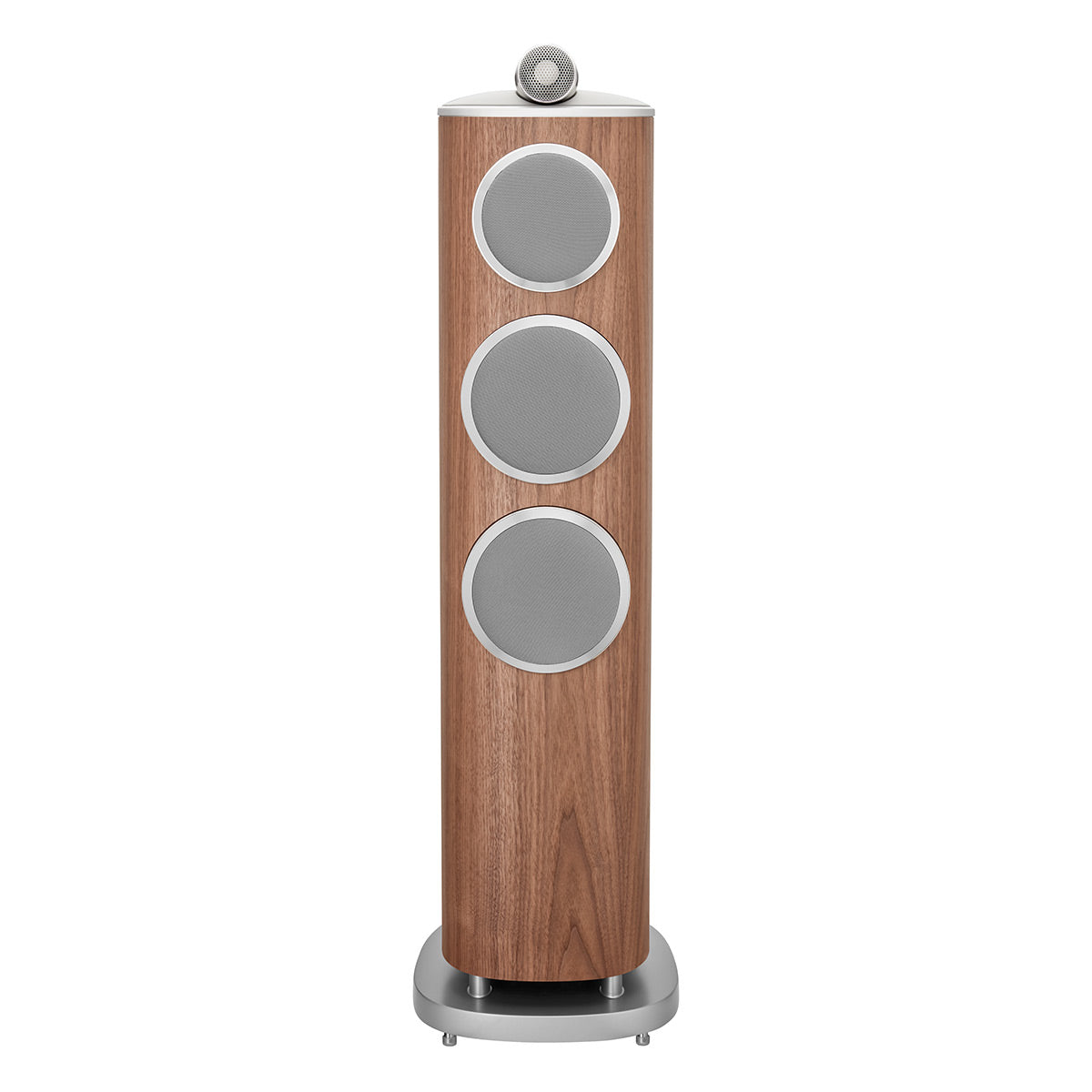

For listeners who prefer a more conventional aesthetic but crave the performance of an 800 Series Diamond loudspeaker, the 804 D4 is a perfect choice. Its new reverse-wrap cabinet follows the proven design principles established by its larger siblings.
Features:
- Diamond tweeter
- Solid-body Tweeter-on-Top
- Continuum cone FST™
- Anti-Resonance plug
- Biomimetic Suspension
- Matrix™
- Aerofoil cone bass units
- Flowport™
Reverse Wrap Cabinet
When it came to designing the ideal shape for the 800 Series Diamond cabinet, Bowers & Wilkins did a U-turn. Quite literally. The cabinets are formed from one continuous curve, backed by a spine of solid aluminum, so the sound dispersion is improved and cabinet reflection is reduced.
Aluminum Plinth
A great speaker needs a rock-solid foundation. The new 804 D4 uses a downwards-firing Flowport™ exiting on to a solid aluminum plinth complete with a steel constrained layer damping sheet, which controls unwanted resonance. It also has greatly upgraded spikes for maximum stability.
Specifications
- Description: 3-way vented-box system
- Drive Units
- 1x 25mm (1 in) diamond dome high-frequency
- 1x 130mm (5 in) Continuum cone FST™ midrange
- 2x 165mm (6.5 in) Aerofoil cone bass units
- Frequency Range: 20Hz to 35kHz
- Frequency Response (+/- 3dB from reference axis): 24Hz to 28kHz
- Sensitivity (on axis at 2.83Vrms at 1m): 89dB
- Harmonic Distortion
- 2nd and 3rd harmonics (90dB, 1m on axis)
- <1% 90Hz - 20kHz
- <0.3% 120Hz - 20kHz
- Nominal Impedance: 8Ω (minimum 3.0Ω)
- Recommended Amplifier Power: 50W - 200W into 8Ω on unclipped program
- Max. Recommended Cable Impedance: 0.1Ω
- Dimensions (W x H x D): 12.05" x 42.17" x 15.39"
- Weight: 81.24 lbs
What's In The Box
- 1x Loudspeaker
- Literature Pack
