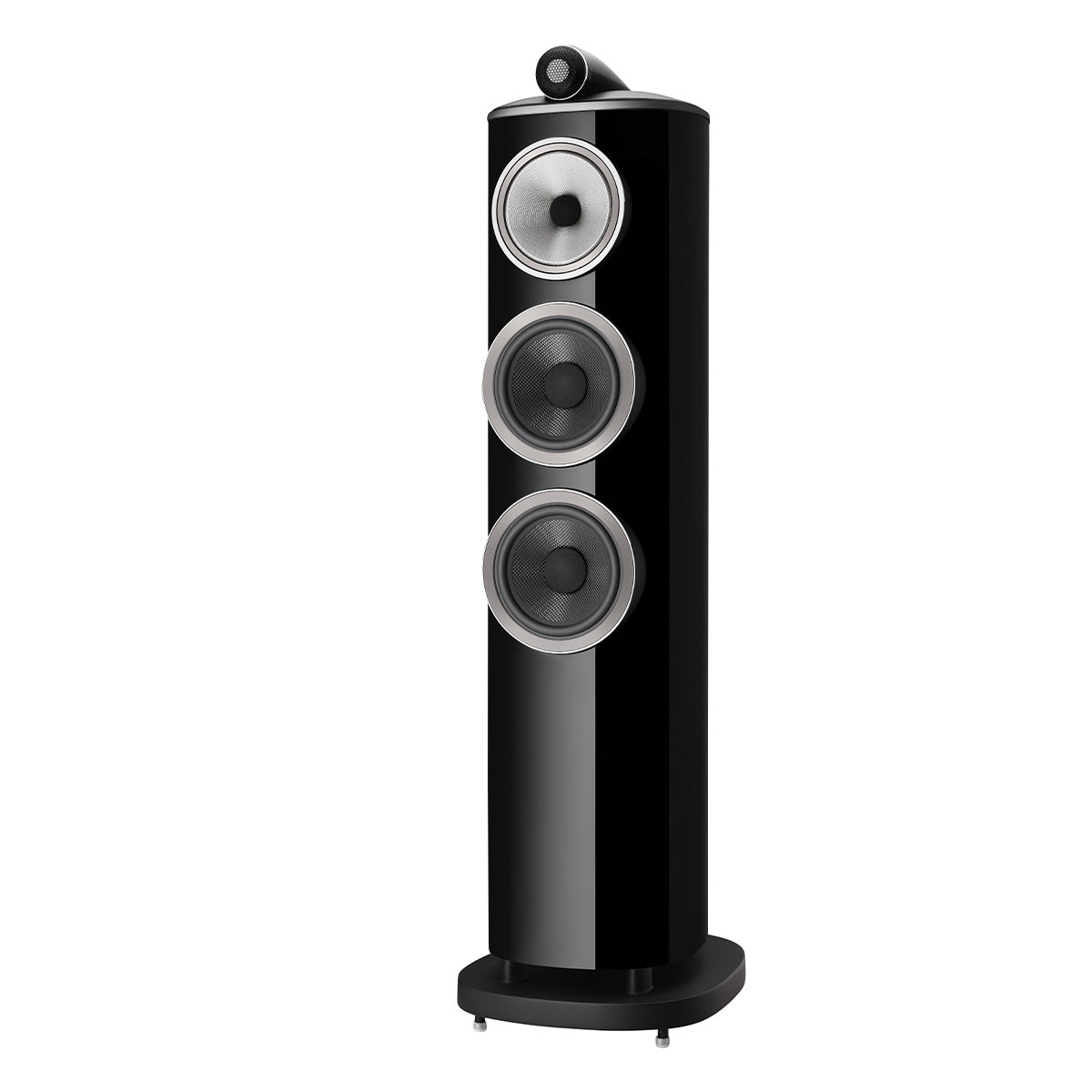

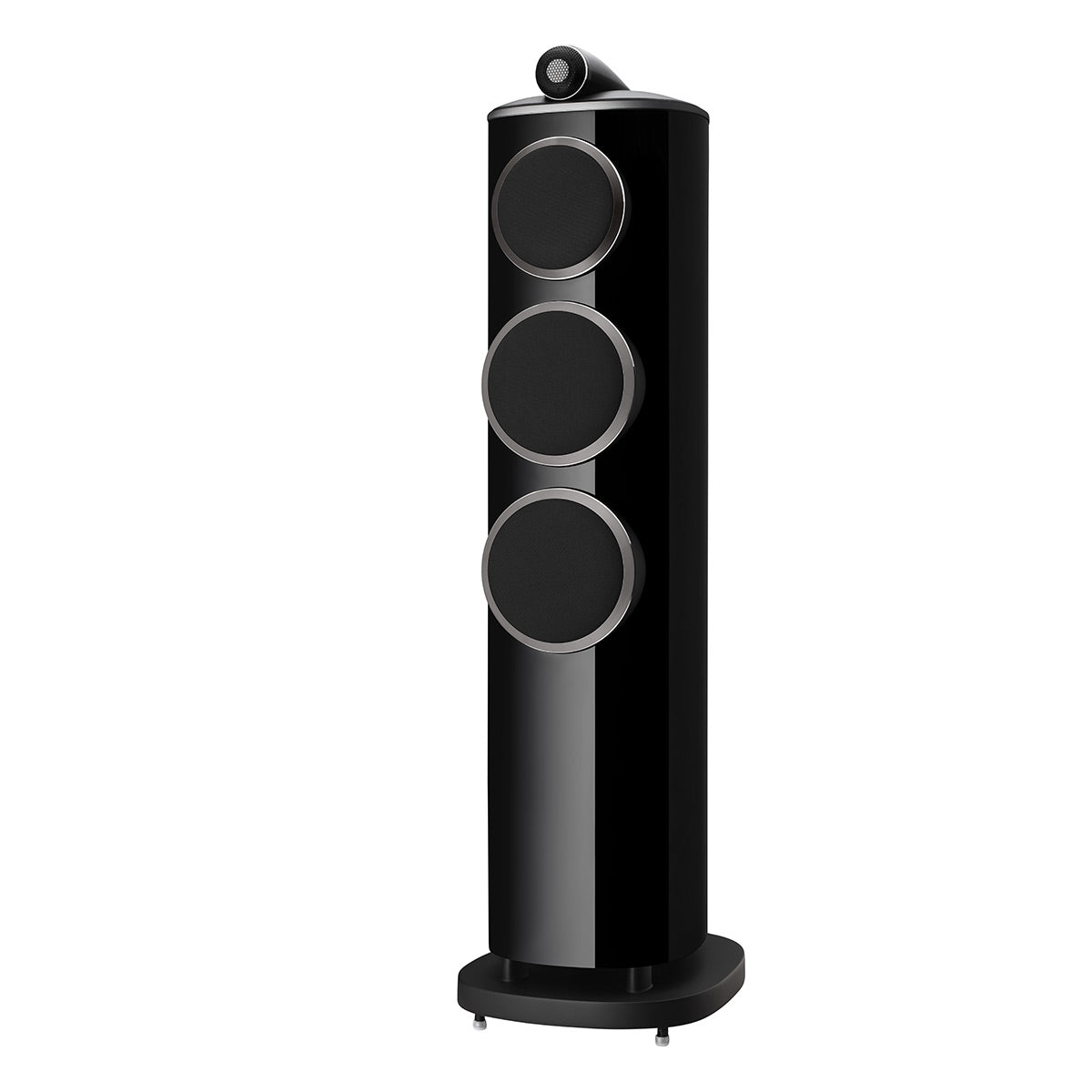

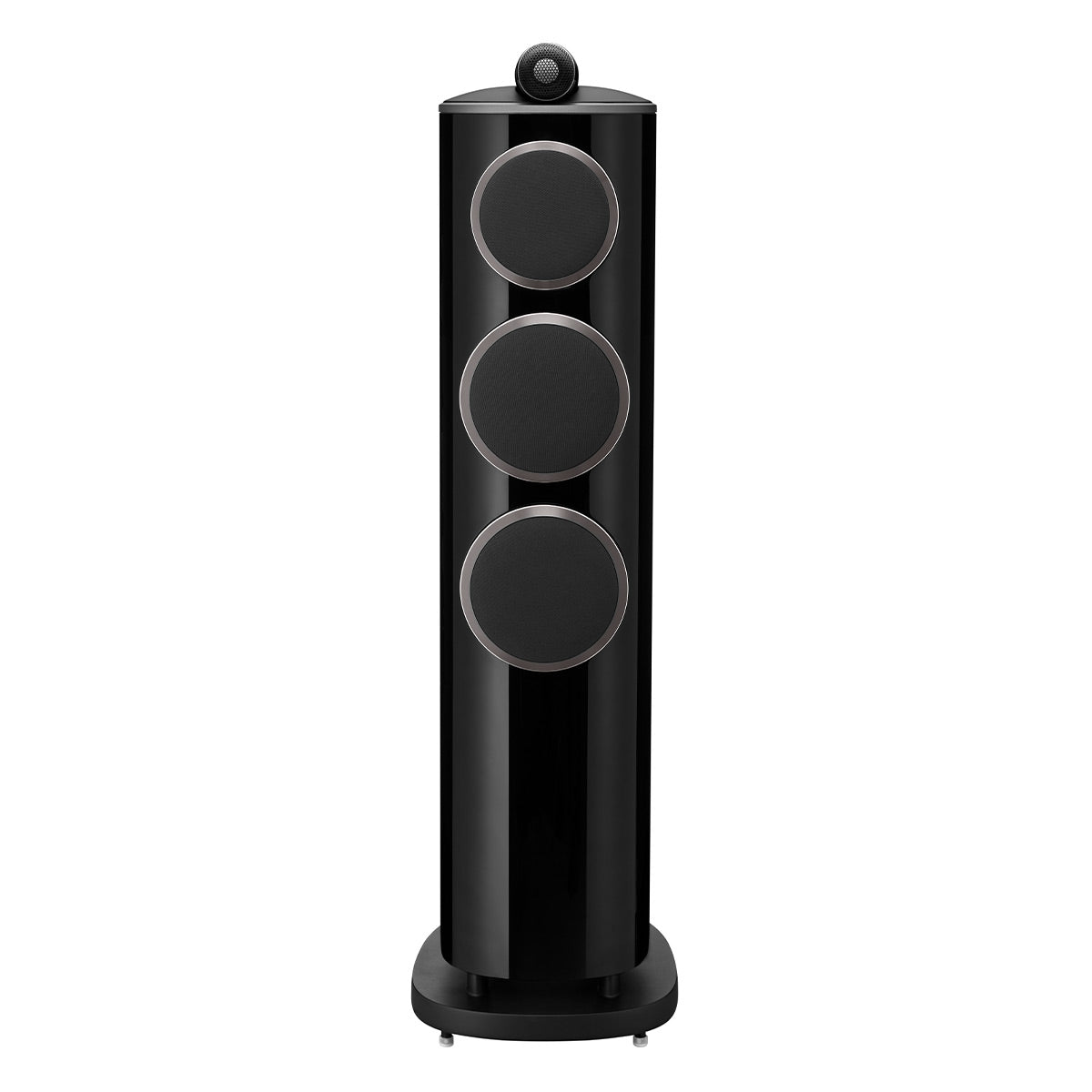

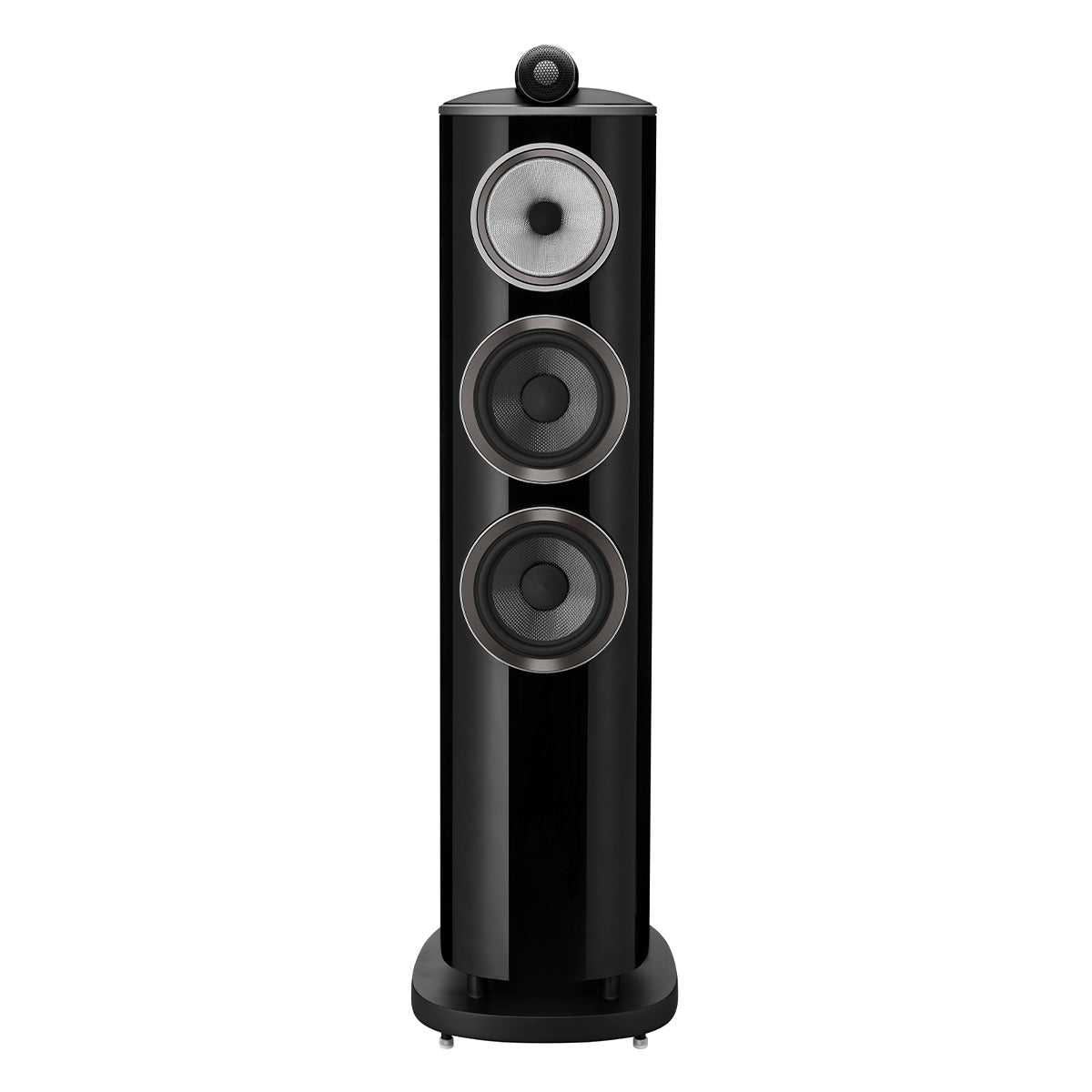

Bowers & Wilkins 804 D4 3-Way Floorstanding Speaker - Each (Gloss Black)

Regular price $7,500.00
Sale price $7,500.00 Regular price
Save $-7,500.00 (%)
This item is only available in our showroom. Call 215-368-8343 for details.

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Bowers & Wilkins 804 D4 Overview

Product Information

Model: FP41920 | UPC: 714346334049

Specifications

What's In The Box

Product Information

Model: FP41920 | UPC: 714346334049

Excellence. Evolved.

This is not just another speaker range. Each new generation of 800 Series Diamond is a landmark even for Bowers & Wilkins. This is their benchmark, their icon; the most advanced range of loudspeakers they know how to make. For Bowers & Wilkins, the 800 Series Diamond is everything they know, and everything they are.

For listeners who prefer a more conventional aesthetic but crave the performance of an 800 Series Diamond loudspeaker, the 804 D4 is a perfect choice. Its new reverse-wrap cabinet follows the proven design principles established by its larger siblings.

Features:

  • Diamond tweeter
  • Solid-body Tweeter-on-Top
  • Continuum cone FST™
  • Anti-Resonance plug
  • Biomimetic Suspension
  • Matrix™
  • Aerofoil cone bass units
  • Flowport™

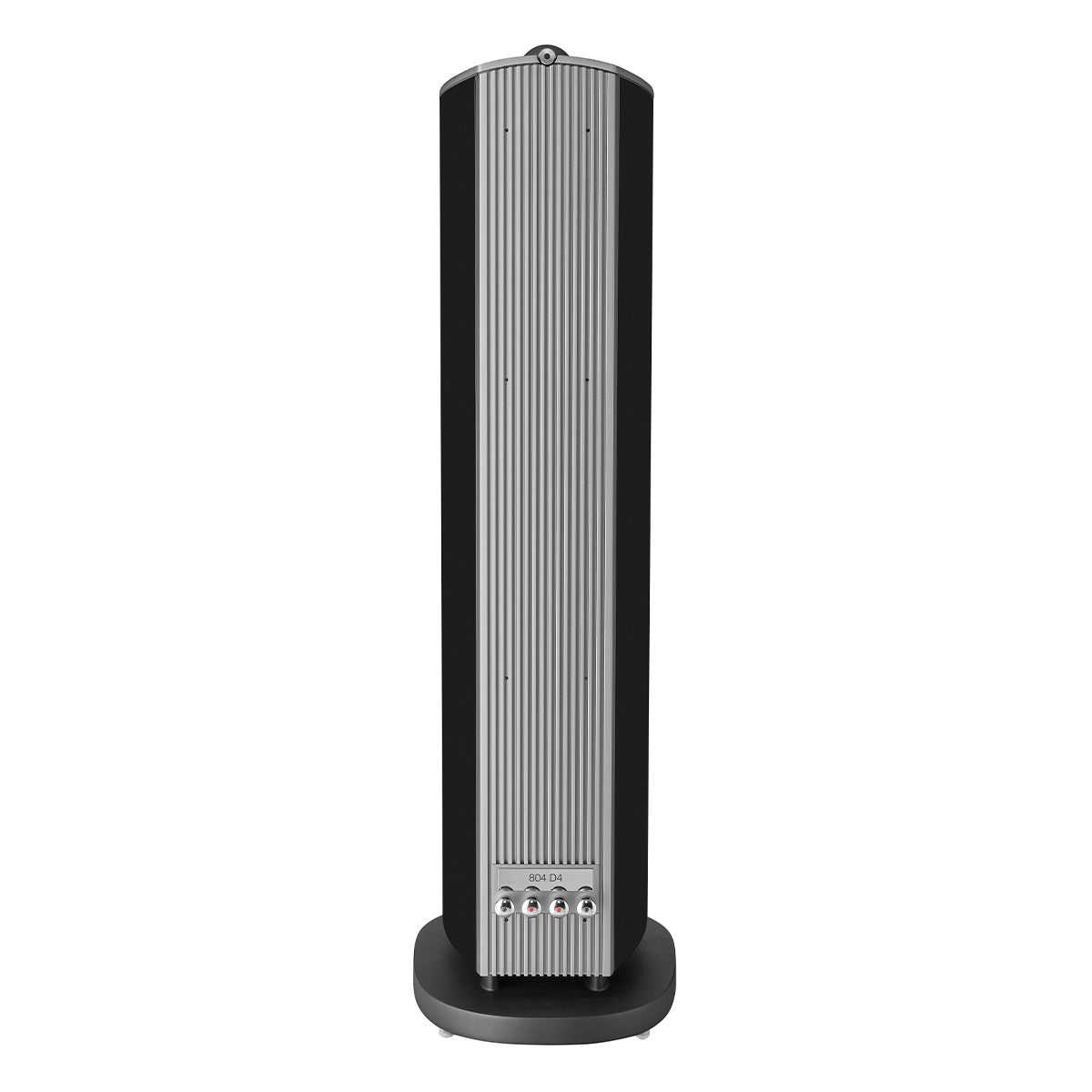

Reverse Wrap Cabinet

When it came to designing the ideal shape for the 800 Series Diamond cabinet, Bowers & Wilkins did a U-turn. Quite literally. The cabinets are formed from one continuous curve, backed by a spine of solid aluminum, so the sound dispersion is improved and cabinet reflection is reduced.

Aluminum Plinth

A great speaker needs a rock-solid foundation. The new 804 D4 uses a downwards-firing Flowport™ exiting on to a solid aluminum plinth complete with a steel constrained layer damping sheet, which controls unwanted resonance. It also has greatly upgraded spikes for maximum stability.

Specifications

  • Description: 3-way vented-box system
  • Drive Units
    • 1x 25mm (1 in) diamond dome high-frequency
    • 1x 130mm (5 in) Continuum cone FST™ midrange
    • 2x 165mm (6.5 in) Aerofoil cone bass units
  • Frequency Range: 20Hz to 35kHz
  • Frequency Response (+/- 3dB from reference axis): 24Hz to 28kHz
  • Sensitivity (on axis at 2.83Vrms at 1m): 89dB
  • Harmonic Distortion
    • 2nd and 3rd harmonics (90dB, 1m on axis)
    • <1% 90Hz - 20kHz
    • <0.3% 120Hz - 20kHz
  • Nominal Impedance: 8Ω (minimum 3.0Ω)
  • Recommended Amplifier Power: 50W - 200W into 8Ω on unclipped program
  • Max. Recommended Cable Impedance: 0.1Ω
  • Dimensions (W x H x D): 12.05" x 42.17" x 15.39"
  • Weight: 81.24 lbs

What's In The Box

  • 1x Loudspeaker
  • Literature Pack
