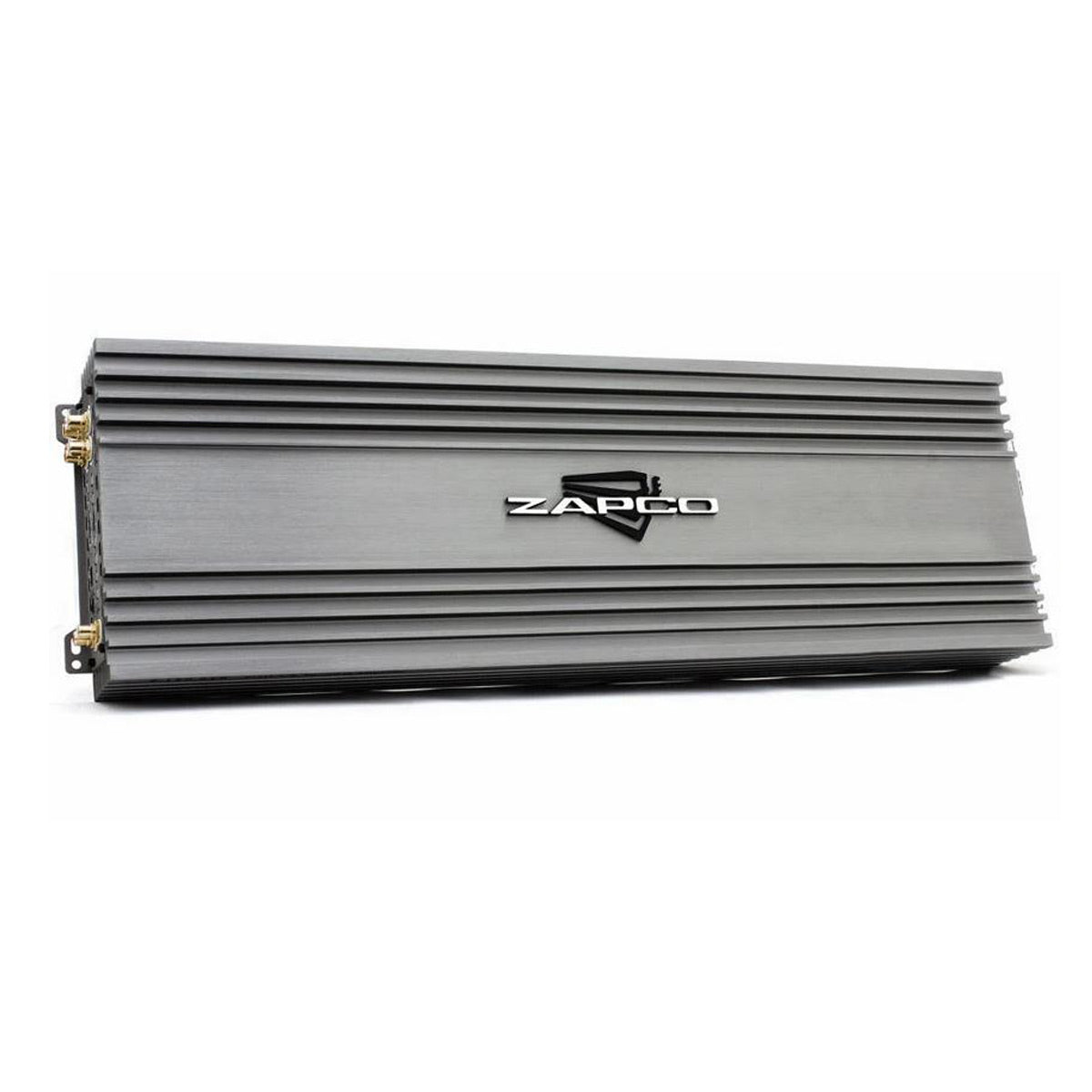

Zapco Z-150.6 II 6-Channel 1650-Watt Class AB Amplifier

Regular price $1,199.99
Sale price $1,199.99 Regular price
Save $-1,199.99 (%)
OR

In Stock & Ready to Ship
Free Shipping Get it between Wed, Jun 19 – Wed, Jun 26

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Overview

Product Information

Model: Z-150.6 II | UPC: 8033373003035

Specifications

What's In The Box

Product Documents

Product Information

Model: Z-150.6 II | UPC: 8033373003035

The Z-II Series. Class AB Competition Sound Quality Amplifiers.

The Z-II Series amplifiers are meticulously engineered to offer everyday usability while delivering competition-level sound quality. They incorporate advanced circuit designs and top-of-the-line internal components to ensure the accurate reproduction of sound. Additionally, user-friendly features like adjustable crossovers and gain controls make operating the Z-II series a breeze for all users. Available in multi-channel class AB (full range) and mono class D (bass) configurations, the Zapco Z-II series of amplifiers provide the versatility and performance required to meet the demands of any audio system.

Features

  • 6-Channel, Full Range Class-AB Sound Quality Amplifier
  • Stable into 4 ohms bridged or 2 ohms stereo load
  • PWM MOSFET power supply for higher efficiency and current handling
  • High-end Op-amps and Capacitors produce a better signal-to-noise ratio with lower floor noise

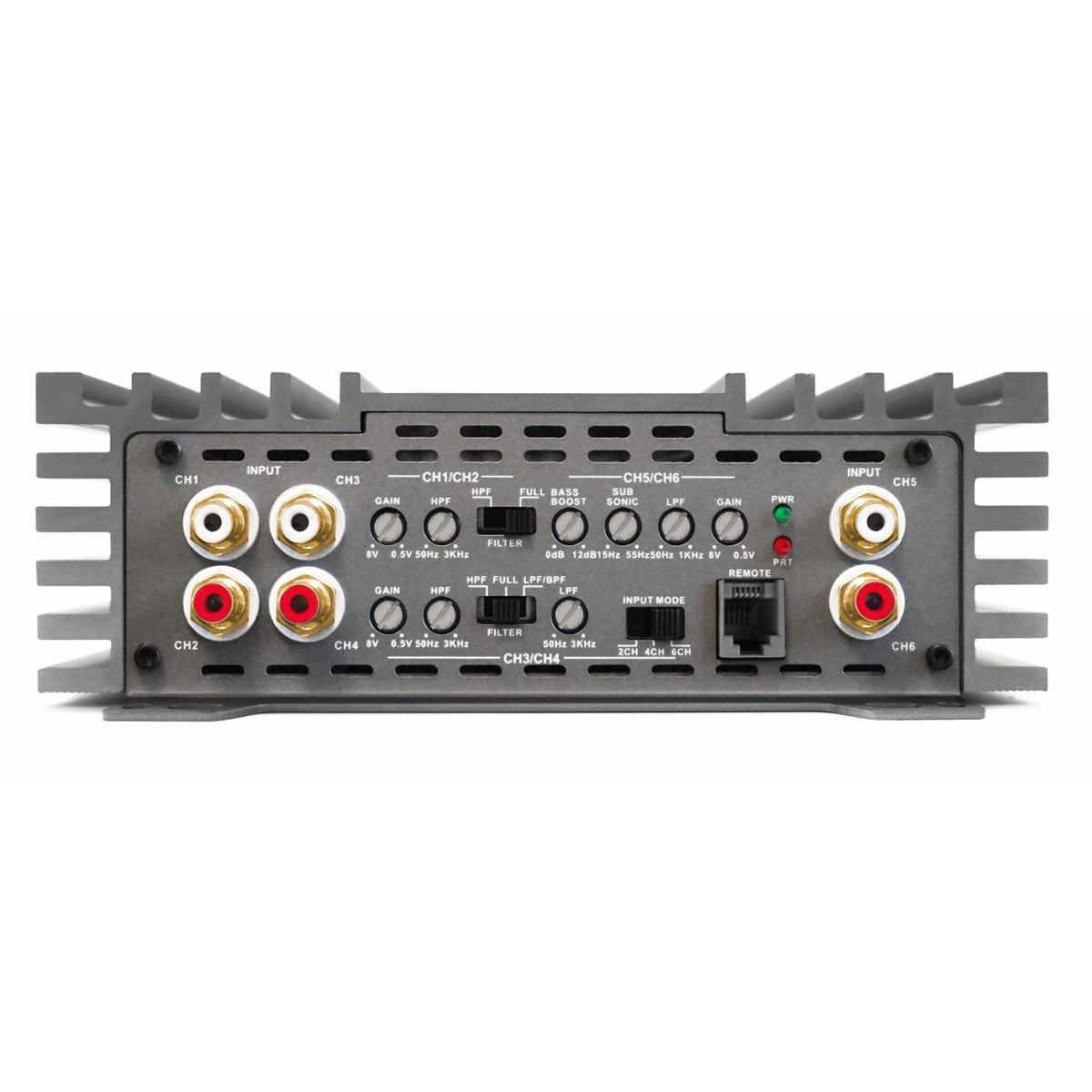

  • Variable FULL/LP/HP Electronic Crossover allows for flexible amplifier configuration
  • 0-12dB variable bass boost to dial in low frequencies
  • 2-CH, 4-CH or 6CH of input making it possible to drive all the channels from a single 2-CH (head unit) stereo output
  • Panel mount RCA connectors allow for a clean look and secure connection
  • Compatible with Z-BR II bass remote control (sold separately)

Specifications

  • Power @ 4Ω: 6 x 165 watts
  • Power @ 2Ω: 6 x 275 watts
  • Power @ 4Ω Bridged: 3 x 550 watts
  • THD @ Rated Power: < 0.05%
  • Signal to Noise Ratio: > 100dB
  • Frequency Response: 10Hz to 30,000Hz ±1dB
  • Input Sensitivity: .5v to 8v
  • Dimensions: 7.48" x 2.44" x 24.17"

What's In The Box

  • Z-150.6 II 6-Channel 1650-Watt Class AB Amplifier
  • Installation Accessories
  • Owner's Manual
