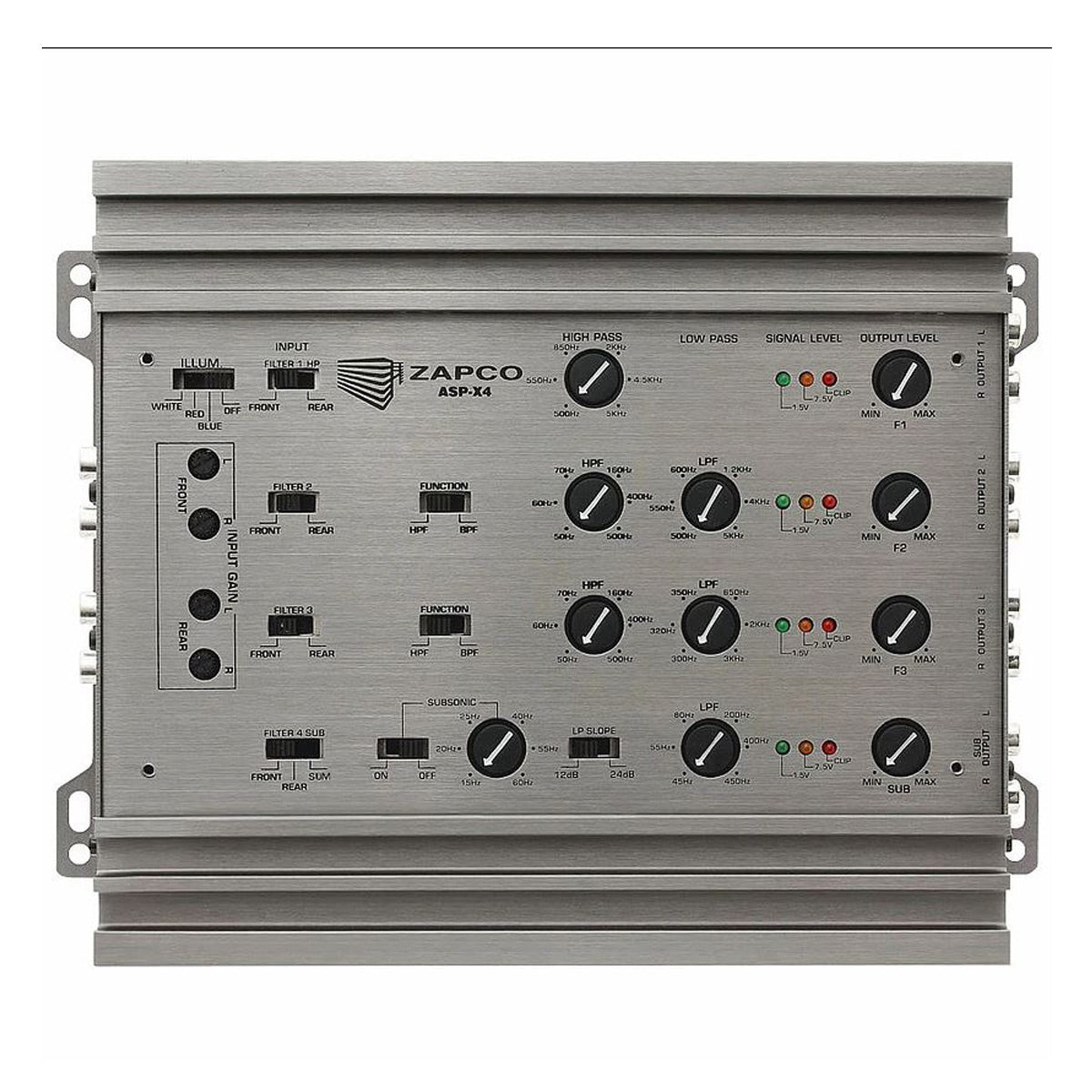

Zapco ASP-X4 2/3/4-Way Electronic Crossover

Regular price $399.99
Sale price $399.99 Regular price
Save $-399.99 (%)
OR

In Stock & Ready to Ship
Free Shipping Get it between Thu, Dec 12 – Thu, Dec 19

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Overview

Product Information

Model: ASP-X4 | UPC: 8033373002809

Specifications

What's In The Box

Product Documents

Product Information

Model: ASP-X4 | UPC: 8033373002809

The Zapco ASP-X4 is definitely the “Mac Daddy” of Analog Electronic Crossovers. This unit was designed originally to compliment their new LX models of the Zapco Z-Series amplifiers. The LX are no-compromise, no holds barred, sound quality competition amplifiers and have no preamp functions other than input sensitivity. It takes a special crossover to meet the standards of an amp like the LX Series, and the ASP-X4 has just what it takes, and then some.

Features

  • Extremely versatile for 2-way, 3-way, 4-way, or 3-way plus full range to fit the most advanced sound system
  • Two band pass outputs
  • Dual inputs allow fading between the main 3-way system and the rear fill
  • Clipping indicators for each output
  • Switchable 12/24dB sub crossover
  • Remote power supply
  • Selectable ground reference for noise elimination
  • 9.5 Volt RMS line driver

High-Quality Components

To begin, the very same high end audio grade Elna Silmic ll capacitors and OP275 op-amps used in the LX amps are also used in the ASP-X4 (as well as in the other Zapco competition grade processors). Another important factor in the sound quality is the quality of the control pots. They need to be clean, precise, and must not add distortion. Zapco went out to the maker of the finest pots around and had their own custom high precision pots built for their competition grade processors. Then they built in all that Zapco versatility.

Versatility

With a high pass, a low pass and 2 band pass filter systems you can run a 3-way system or a 4-way system. You can even have an active 3-way system and a full range rear fill. And with the dual input system you can fade between the main 3-way system and the rear fill. For that extra little touch… the X4 is designed to match the Z-series chassis. Since Zapco assumes this crossover will likely be displayed with the amps, they have illuminated the clear plastic protective cover for that extra touch in the installation.

Specifications

  • THD < 0.01%THD
  • Signal to Noise Ratio > 110dB
  • Stereo Separation 90dB
  • Crossover Slopes 24dB
  • Preamp Output 9.5V RMS / 14V Peak
  • Dimensions (W x H x D): 7.48" x 1.53" x 8.42"

What's In The Box

  • One ASP-X4 electronic crossover
  • Remote power supply
  • Wired remote knob
  • Owner's manual
