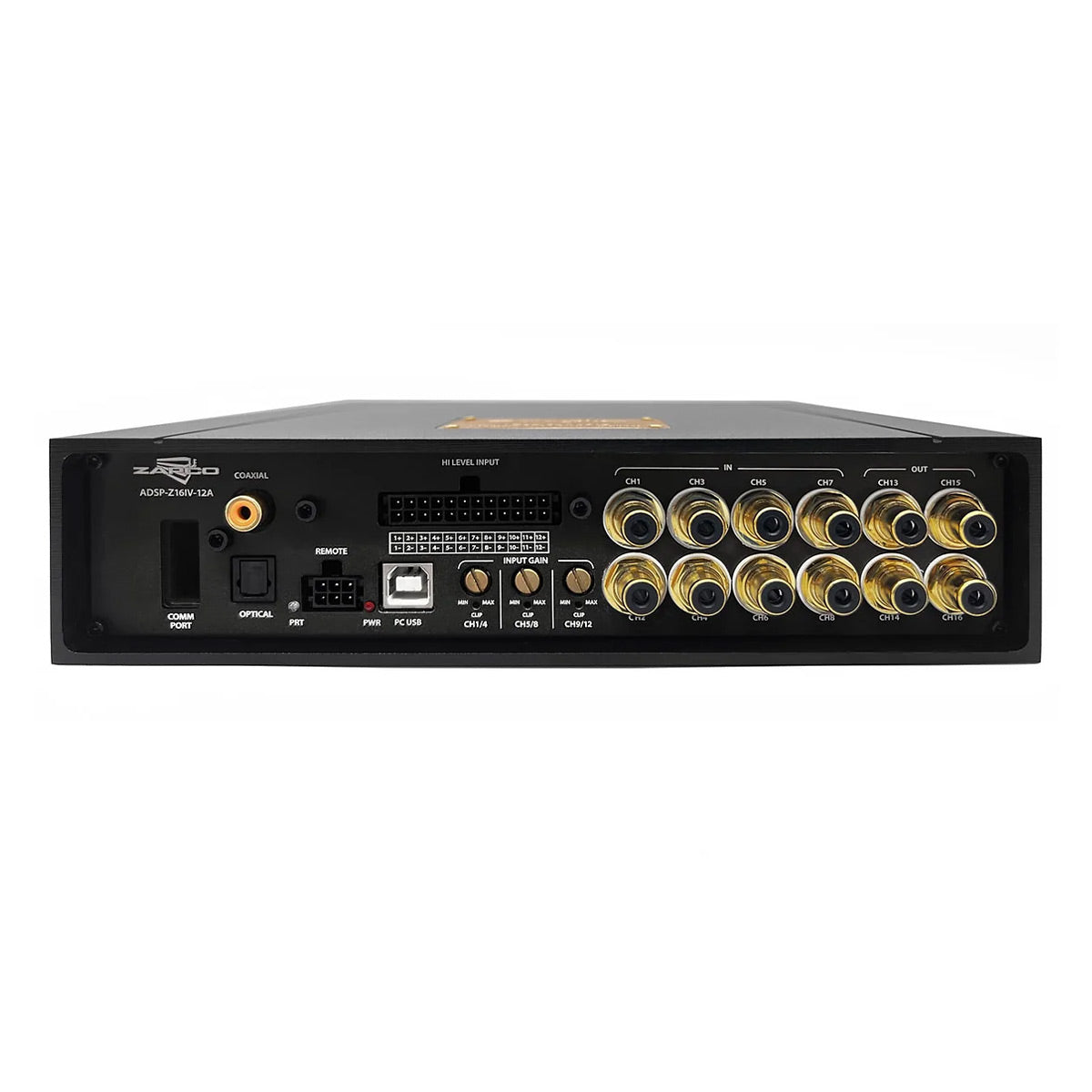

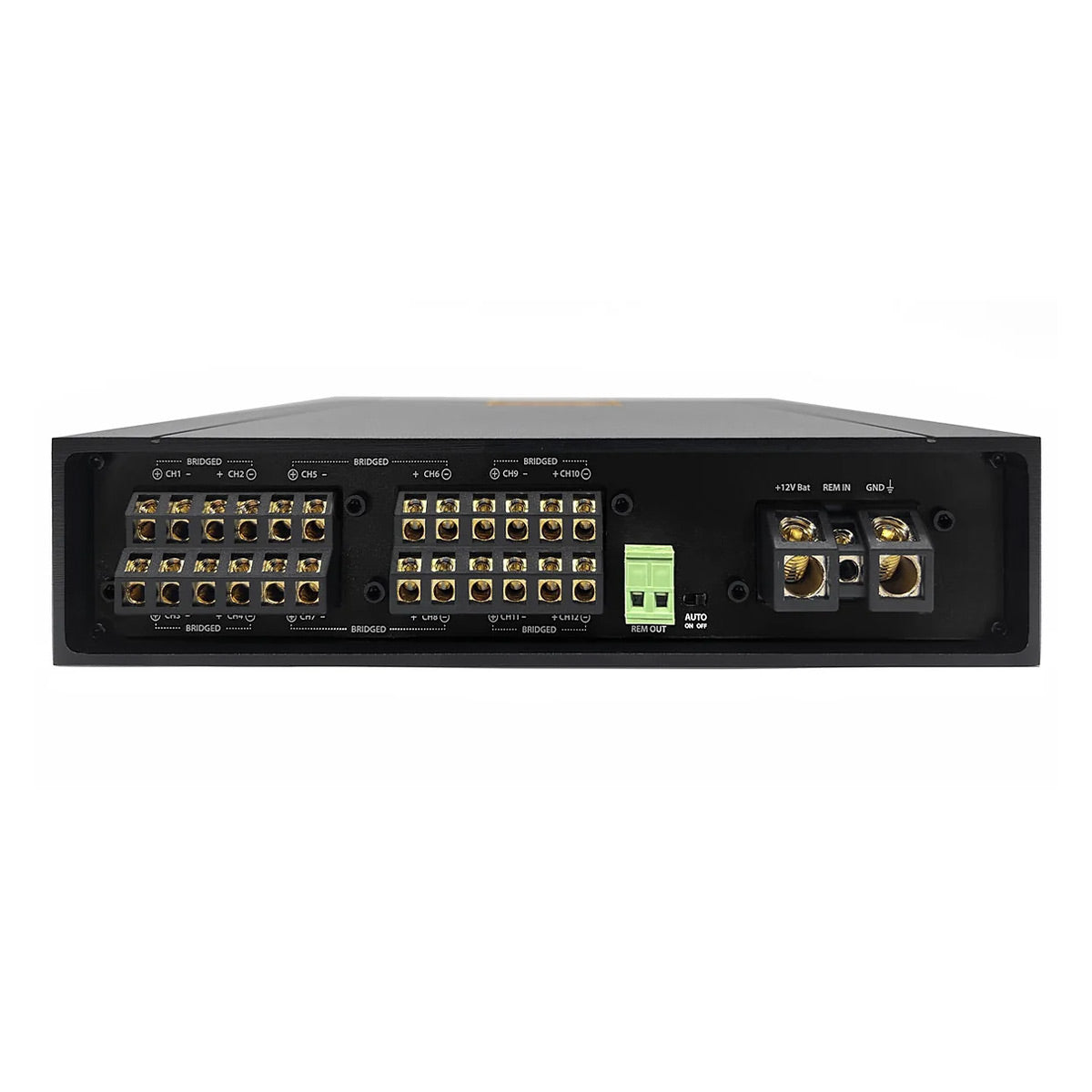

Zapco ADSP-Z16 IV-12A 16 Channel DSP with 12 Channel Amplifier

Regular price $1,499.99
Sale price $1,499.99 Regular price
Save $-1,499.99 (%)
OR

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Overview

Product Information

Model: ADSP-Z16IV-12A | UPC: 8033373005664

Specifications

What's In The Box

Product Information

Model: ADSP-Z16IV-12A | UPC: 8033373005664

The DSP-IV Series signal processors present a complete solution tailored for sound quality enthusiasts. Available with or without onboard amplification, the DSP-IV Series signal processors are feature-packed and deliver audiophile sound quality with enhanced software and the latest in OEM integration technology.

Features

  • 16 Channel DSP
  • On-board 12 channel (1440 Watt) amplifier
  • Coaxial and optical inputs

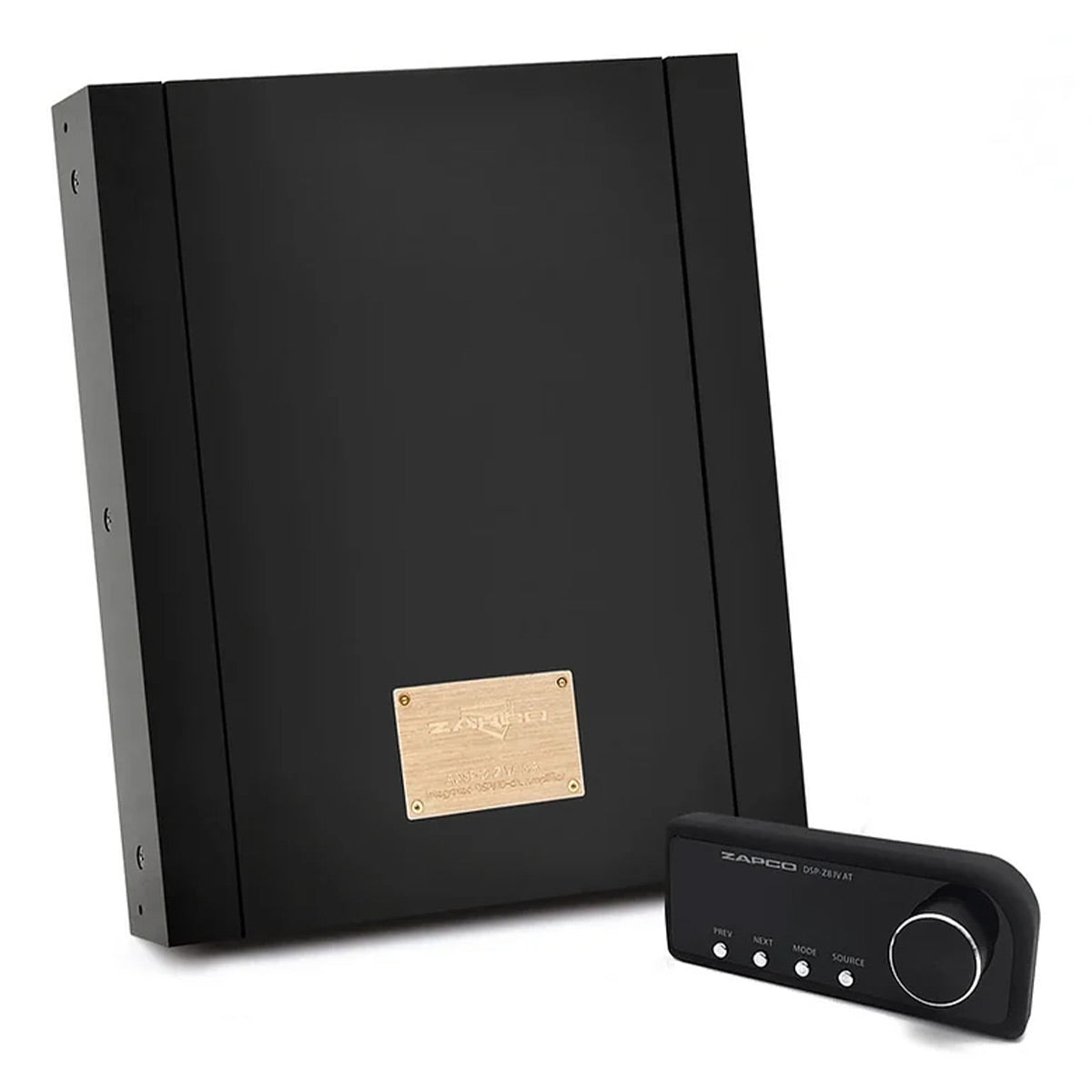

  • Dash remote with interactive control for input source, control the master volume, and bass output
  • Determine which inputs will be used for each output and how much of each input the output will receive with the mixing set function
  • HD-BT streaming (with optional HD-BT II-D module)
  • User-friendly software

New Features, New Control, Even Improved Sound Quality

You can only be as good as your source material, and the new DSP-IV series greatly expands your potential for the best possible source material. The new coaxial and optical inputs accept the digital signal from your head unit or from a portable HD player. The DSP-IV units also have a port for HD Bluetooth streaming (with the optional HD-BT module). An interactive digital port will expand your options even more. The port accepts the control input from the included Dash Remote so you can change input source, select your song, control the master volume and even control the output of your system’s bass amps. The added Advanced menu also has a Mixing Set and an AutoTune function (except the 12-ch. and 16-ch. model), when you add the optional tuning microphone.

Specifications

  • DSP Processor: Cirrus Logic CS47048
  • Power: 150 MHz/32 bit/192 KHz
  • 16-Channels
  • ADC: Cirrus Logic CS47048 32 bit/192 KHz
  • ADC Dynamic Range/THD: 108 dB/-98 dB
  • DAC: Cirrus Logic CS47048 32 bit/192 KHz
  • DAC Dynamic Range/THD: 140 dB/-120 dB
  • Low level (Pre)/Sensitivity: 1-5 VRMS
  • High Level (Spk In)/Sens.: 2-20 V
  • Optical Digital IN: 24 bit-192 KHz
  • Coaxial Digital IN: 24 bit-192 KHz
  • Freq. Response (-3dB): 10 Hz - 22.5 KHz
  • S/N Input: 110 dBA (D) - 106 dBA (A)
  • S/N Ratio Amp + DSP at max. power: 95 dBA
  • THD+N Input: 0,002% (D) - 0,005% (A)
  • THD+N Amplif. + DSP Analog Input:  0,07 %
  • Crosstalk at 1 Khz only DSP: 90 dB
  • Crosstalk Amplifier + DSP: 45 dB
  • Amp Power @ 4Ω: 12 x 80 watts
  • Amp Power @ 2Ω: 12 x 120 watts
  • Amp Power @ 4Ω Bridged: 6 x 240 watts
  • F/R EQ: 1-6 ch Gr. & Par./31 poles
  • Effect EQ: 7-8 ch Gr. & Par./11 poles
  • Mute/Solo: Yes, each channel
  • Time Align. (Range/Steps): 0/15 ms / 0.02 ms
  • Max Delay (Cm/Steps): 515 cm / 0.68 cm
  • Polarity: 0/180°
  • HD-BT Streaming (with optional HD-BT)
  • PC/Display Connection: USB/6-pin Mini DIN
  • Unit Dimensions (W x H x D): 8.38" x 1.96" x 11.45"

What's In The Box

  • ADSP-Z16 IV-12A 16 Channel DSP with 12 Channel Amplifier
  • Dash Remote & Cable
  • Speaker LeveL Input Harnes
  • USB A to B Cable (for PC control)
  • Mounting Hardware
  • Manual
