Specifications
Specifications
- General
- Drivers: Front L/R: 1.8" full-range cone x 4, 1 tweeter cone x 2, 3" built-in subwoofer x 2
- Output Power: 120 W (Front L/R: 30 W x 2-ch), Built-in subwoofer: 60 W)
- Power Consumption: 23 W
- Standby Power Consumption: 0.3 W (HDMI control off, Bluetooth standby off), 0.6 W (HDMI control on, Bluetooth standby on)
- Dimension (W x H x D): Installing the unit in front of a TV: 35-7/8" x 2-5/8" x 5-1/4", Mounting the unit on a wall with spacers: 35-7/8" x 2-5/8" x 5-1/2"
- Weight: 8.6 lbs
- Input/Output
- HDMI: 1 out (eARC)
- Digital Optical: Yes
- Subwoofer Output: Yes
- Analog Audio: No
- HDMI
- 4K Pass-through: No
- eARC/ARC: eARC/ARC
- CEC: Yes
- Auto Lip-Sync: No
- Surround Technology: Dolby Atmos
- Sound Technology
- Surround Mode: Stereo, Standard, Movie, Game
- Compressed Music Enhancer: No
- Bass Extension: Yes
- Audio Formats
- Dolby TrueHD: Yes
- Dolby Digital Plus: Yes
- Dolby Digital: Yes
- Dolby Pro Logic II: No
- DTS Digital Surround: No
- File Format: -
- Connectivity
- Wireless Music Streaming: Bluetooth
- Wi-Fi: No
- MusicCast Surround: No
- AirPlay: No
- Bluetooth Version/Profile: Version: Ver 5.1 / Profiles: A2DP / Codecs: SBC, AAC
- Bluetooth Maximum Communication Range: Approx. 33 ft. (without obstructions)
- Wireless Subwoofer: No
- Other Features: App Control: Yes (Sound Bar Remote)
What's in the Box
What's in the Box

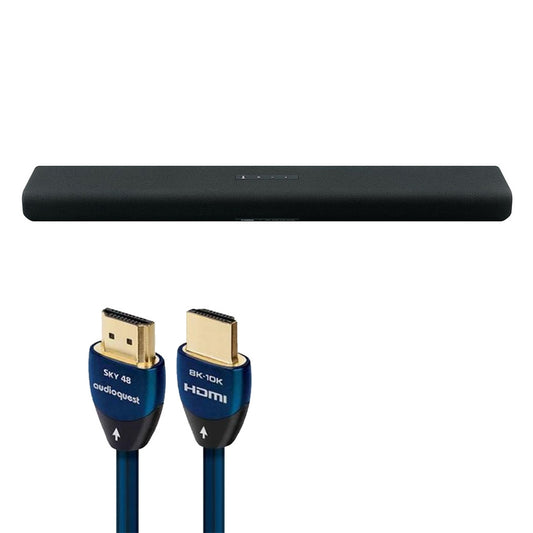

- SR-B30A Dolby Atmos Soundbar with Built-In Subwoofers

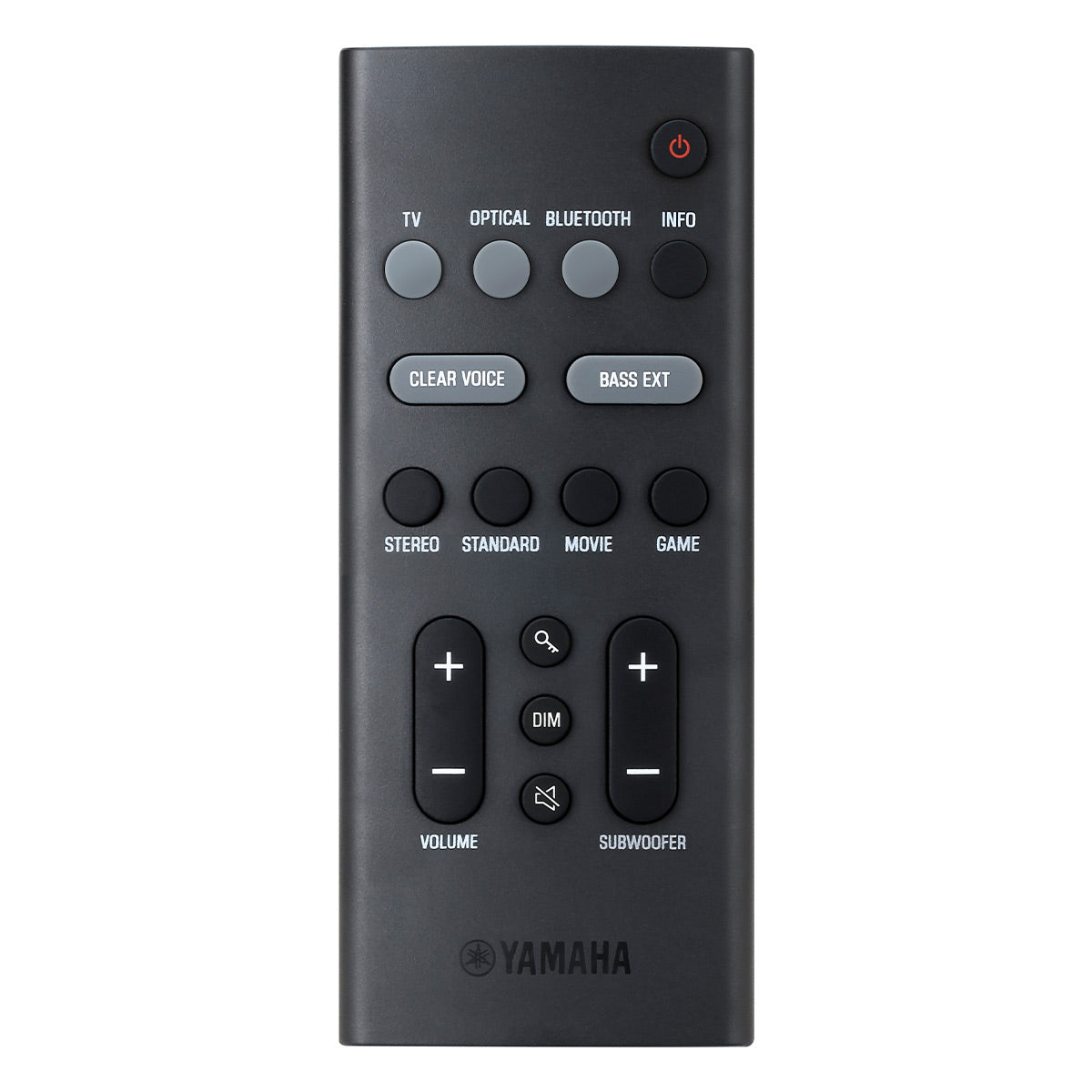

- Remote control
- Power cord
- HDMI Cable (1.5m)
- Mounting Template
- (2) Spacers
- Quick Start Guide
