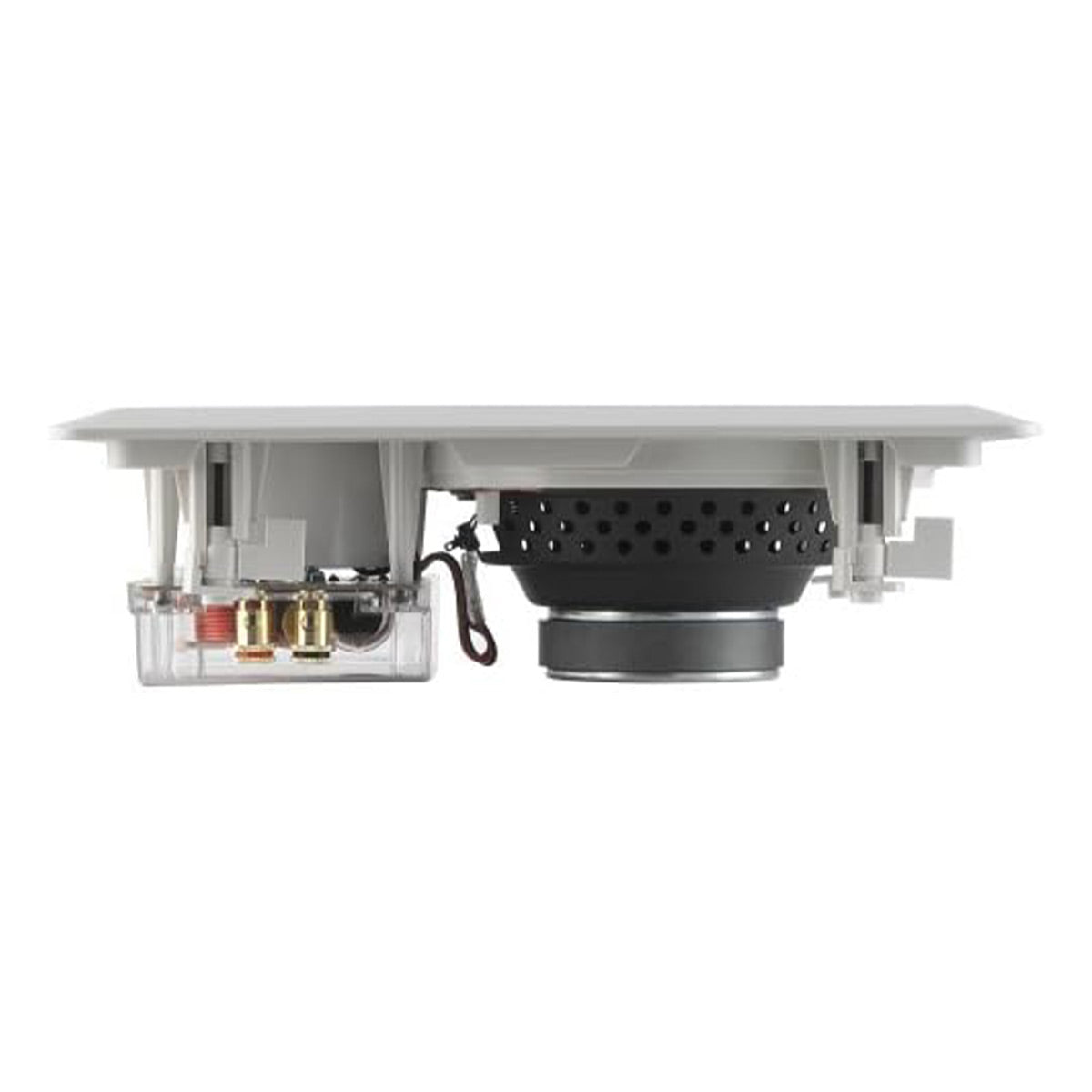

Yamaha NS-IW660 6.5" 3-Way In-Wall Speakers - Pair (White)

Regular price $319.95
Sale price $319.95 Regular price
Save $-319.95 (%)
OR

In Stock & Ready to Ship
Free Shipping Get it between Tue, Feb 18 – Tue, Feb 25

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Yamaha NS-IW660 Overview

Product Information

Model: NS-IW660 | UPC: 027108104485

Specifications

What's In The Box

Product Documents

Product Information

Model: NS-IW660 | UPC: 027108104485

Easy-to-install, in-wall front/center speaker system delivers high-performance sound for the most demanding custom applications.

Features

  • Versatile, Perfect Design for Front & Center Channels
  • High-Capacity, High-Quality Customized Crossover Network
  • 6.5" Kevlar® Cone Woofer
  • 1-5/8" Aluminum Dome Midrange Driver
  • 1" Titanium Dome Tweeter
  • Swivel Tweeter and Midrange Driver
  • Gold-Plated Push-Type Speaker Terminals
  • 150 W Maximum Input Capability
  • Paintable Grille with Protective Cover Included

For Custom Installation, High Audio Quality and Easy to Install

The use of high-quality materials for all drivers (Kevlar for the woofer, Aluminum for the midrange driver, Titanium for the tweeter) ensures superb sound quality from any source. Installation is made easy with gold plated push-type speaker terminals, paintable grills/frames, a cut-out template and a paint protective cover.

Swivel Tweeter and Midrange Driver, High-Level Adjustment

You can swivel the tweeter and midrange driver to " aim" the high frequency sounds toward the main listening position. To do so, simply press on the edge of the tweeter to change the direction it faces. You can also change the high frequency level of the tweeter by using a "High-Level" adjustor to suit the customer's taste or installation environment.

Low Distortion, High-Capacity Customized Crossover Network

The NS-IW660 features a customized high quality crossover network to ensure maximum sound performance. The crossover circuit is designed to minimize distortion and prevent the deterioration of transients as they pass through the network.

Specifications

  • Recommended Usage: In-wall front / Surround speakers
  • Type: 3-way in-wall
  • Woofers: 6-1/2" Kevlar® cone woofer
  • MidRange Driver: 1-5/8" aluminum dome driver
  • Tweeters: 1" titanium dome tweeter
  • Swivel Tweeter and Midrange Driver: Yes
  • Paintable Grill with Protective Cover Included: Yes
  • Frequency Response: 50 Hz - 28 kHz
  • Sensitivity: 88 dB/2.83 V/1 m
  • Input Power (Max / Nominal): 150 W / 50 W
  • Impedance: 8 ohms
  • Product Dimensions (W x H x D): 11-5/16" x 8-29/32" x 3-13/16"
  • Mounting Depth: 3-1/16"
  • Product Weight (lbs. each): 4.4

What's In The Box

  • NS-IW660 3-Way In-Wall Speakers - Pair
  • Manual
