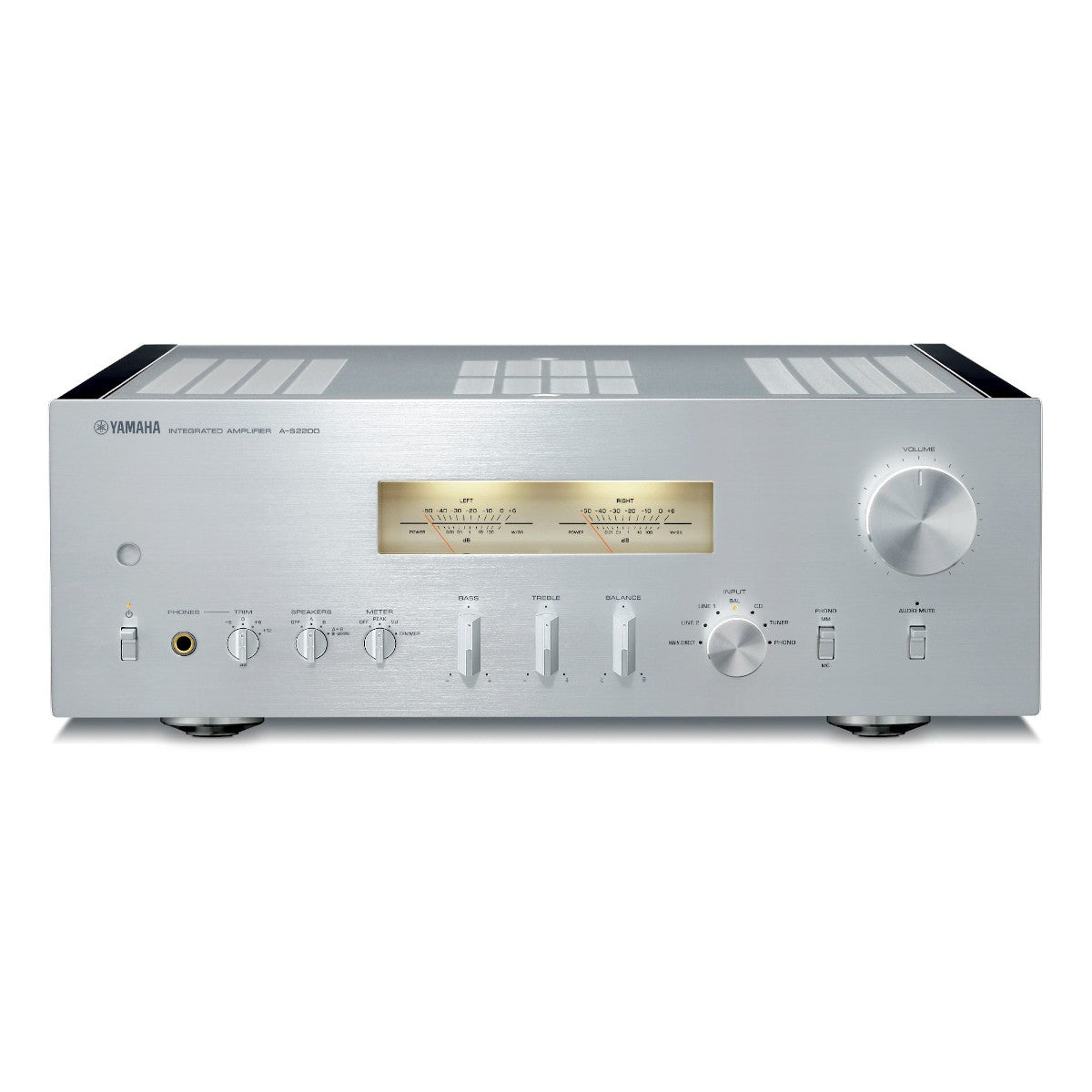

Yamaha A-S2200 Integrated Amp (Silver)

Regular price $4,499.95
Sale price $4,499.95 Regular price
Save $-4,499.95 (%)
OR

In Stock & Ready to Ship
Free Shipping Get it between Mon, Feb 17 – Mon, Feb 24
Other Options

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Overview

Product Information

Model: A-S2200SL | UPC: 027108958606

Specifications

What's In The Box

Product Information

Model: A-S2200SL | UPC: 027108958606
A performance fit for the global stage and inheriting many features from its big brother, the A-S2200 delivers an authentic, powerful yet somehow elegant and emotional Hi-Fi sound. Absolute musicality from a luxuriously beautiful instrument.
  • Floating Balanced Circuit for Power Amplifier
  • Fully-Balanced Transmission From Input To Output
  • Tone Control Circuit with A Parallel Volume System
  • Large Power Supply with Four Separate Circuits
  • Left-Right Symmetrical Design
  • Fully Discrete Phono Amp
  • Low-Impedance, High-Performance Headphone Amp

Toroidal power transformers, renowned for their superior performance in Hi-Fi components has been appointed to power the A-S2200. Its ability to maintain energy when compared to substitutes aids the A-S2200 in delivering all the emotional energy of the artist infused in the music.

The level meters are both a nod to the nostalgic era of Hi-Fi while simultaneously demonstrating the importance of pure Hi-Fi for today’s discerning enthusiast. Visually presenting the dynamics and pulse of the music, the level meters imbue a warm feeling through their softly illuminated LEDs.

A naturally open sound stage is achieved through a culmination of design and component selection. Thick wires for ground connection were purposely selected, adding to the overall low impedance amplifier design, producing a wide and open sound stage for the listener. Consequently, the components disappear, leaving the artist in their place.

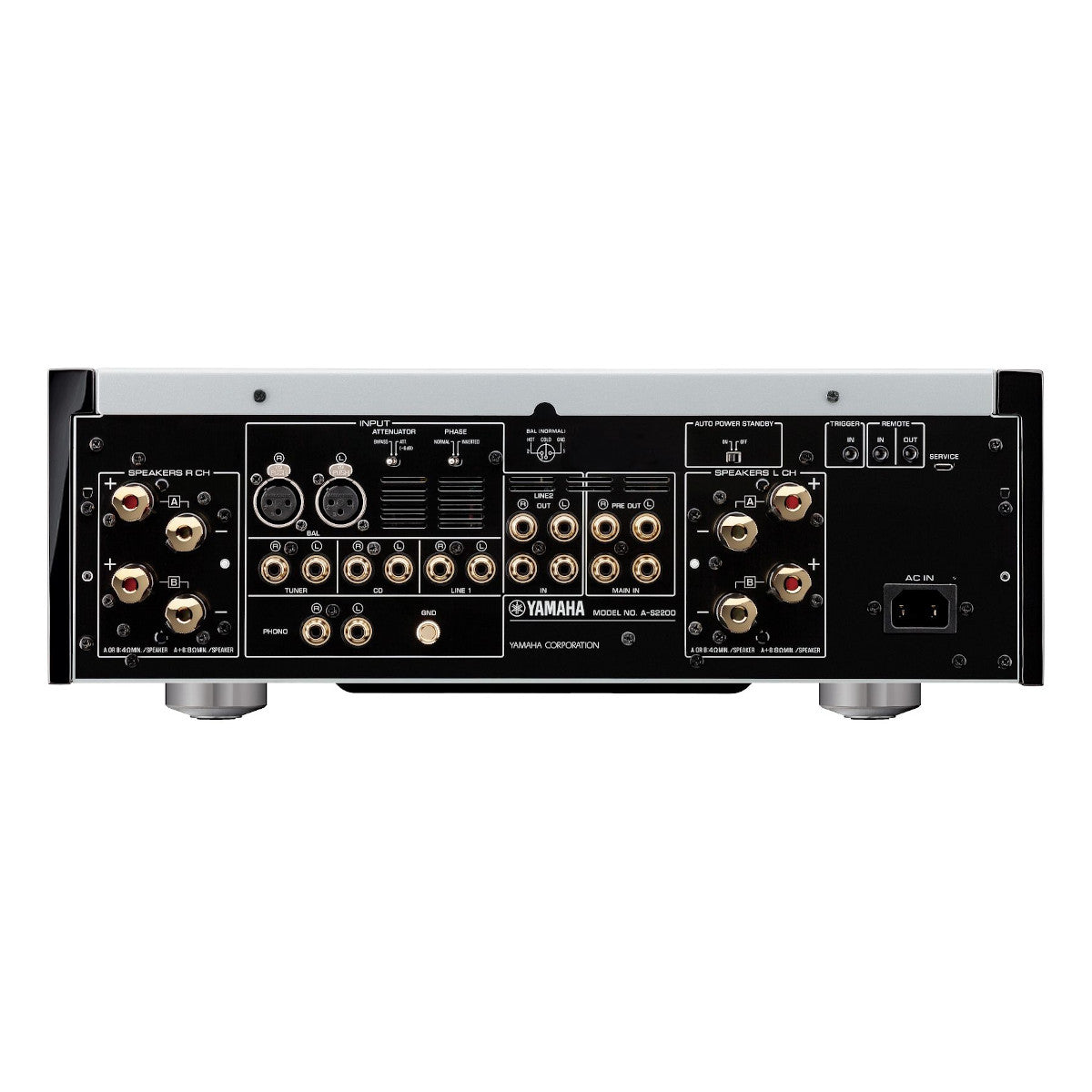

Cut directly from pure brass, the luxurious speaker terminals effortlessly allow tightening by hand, achieving a highly secure connection.

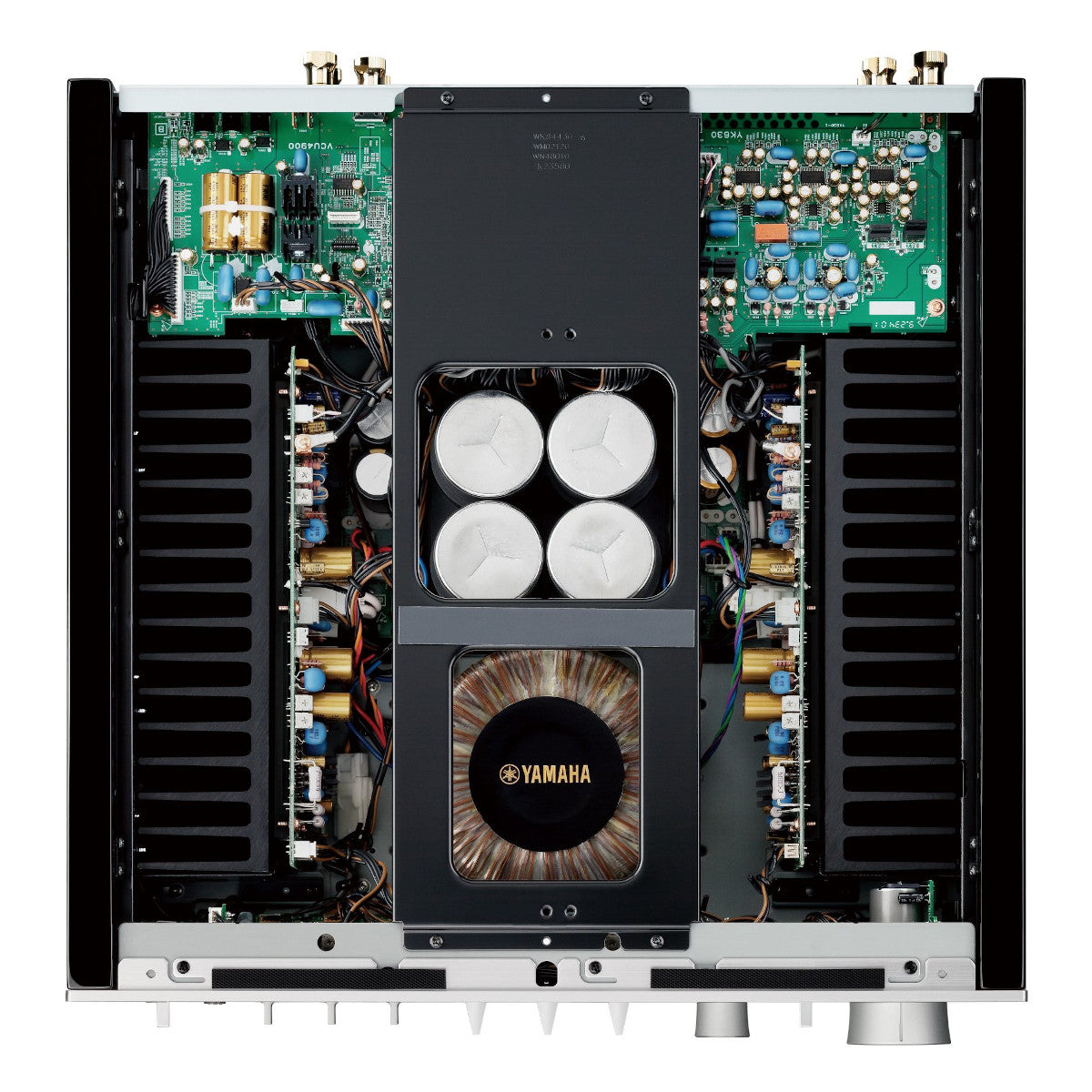

The Mechanical Ground Concept adopted in the A-S2200 maximizes rigidity and reduces any unwanted vibration, achieving expressive and rhythmic bass. Further rigidity is achieved with the large power transformer, block capacitors and heat sink directly bolted to the chassis while the feet, with bolts directly welded to the main chassis, provide further reinforcement for absolute rigidity.

Completing the amplifier rigidity are the heavy-duty chrome-plated brass feet.

Specifications

  • Rated Output Power [20 Hz-20 kHz, 0.07% THD]: 90 W + 90 W (8 ohms), 150 W + 150 W (4 ohms)
  • High Dynamic Power/Channel (8/6/4/2 ohms): 105/135/190/220 W
  • Damping Factor: > 250 (1 kHz, 8 ohms)
  • Frequency Response: +0 / -3 dB (5 Hz-100 kHz) , 0 / -0.3 dB (20 Hz-20 kHz)
  • RIAA Equalization Deviation: +/-0.5 dB (PHONO (MM/MC))
  • Total Harmonic Distortion (20Hz to 20kHz)
    • PHONO MC - LINE2 OUT: 0.02 % (1.2 Vrms)
    • PHONO - LINE2 OUT: 0.005 % (1.2 Vrms)
    • CD, etc./BAL - SP OUT: 0.035 % (50 W/8 ohms)
  • Signal-to-Noise Ratio
    • PHONO MC: 90 db
    • PHONO MM: 96 dB
    • CD, etc.: 110 dB
    • BAL: 114 dB
  • Input Sensitivity: [1 kHz, 100 W/8 ohms]
    • PHONO MC: 150 uVrms/50 ohms
    • PHONO MM: 3.5 mVrms/47 kohms
    • CD, etc.: 200 mVrms/47 kohms
    • MAIN IN: 1 Vrms/47 kohms
    • BAL: 200 mVrms/100 kohms
  • Transformer: 625VA (Toroidal)
  • Dimensions (W x H x D): 17-1/8" x 6-1/8" x 18-1/4"
  • Weight: 50.0 lbs.

What's In The Box

  • A-S2200 Integrated Amplifier

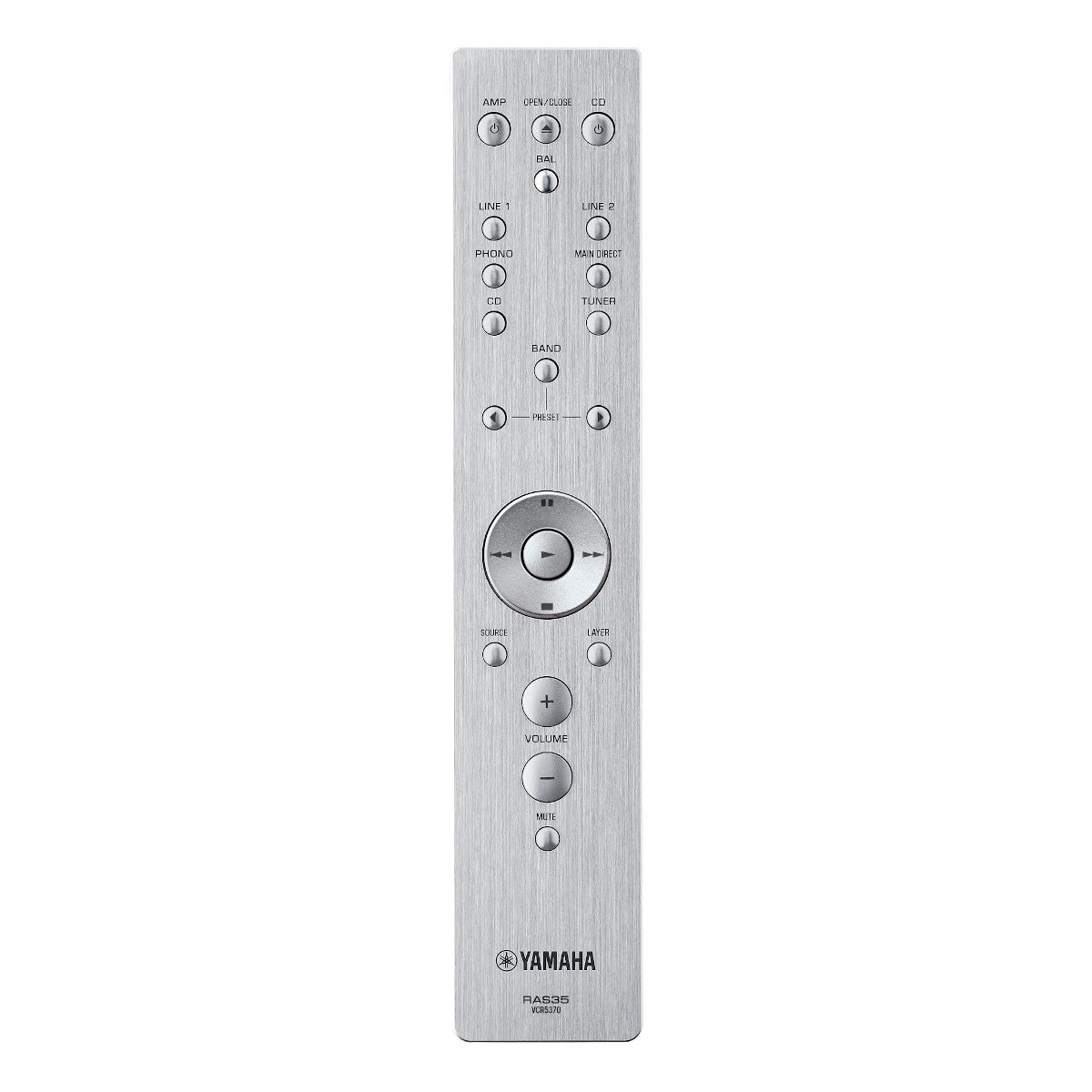

  • Remote
  • Power Cord
  • Manual
