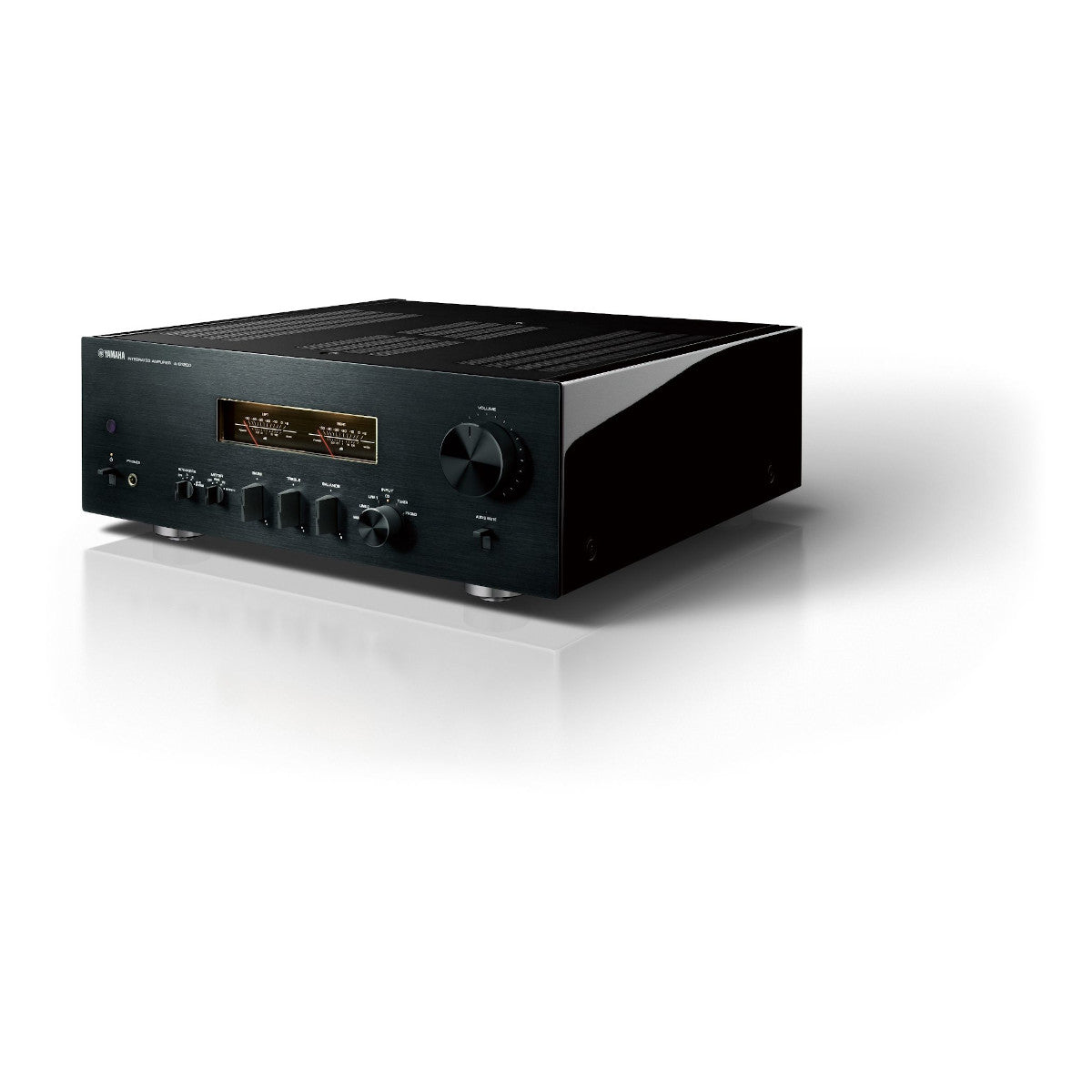

Yamaha A-S1200 Integrated Amp (Black)

Regular price $2,999.95
Sale price $2,999.95 Regular price
Save $-2,999.95 (%)
OR

In Stock & Ready to Ship
Free Shipping Get it between Tue, Feb 18 – Tue, Feb 25
Other Options

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Overview

Product Information

Model: A-S1200BL | UPC: 027108958682

Specifications

What's In The Box

Product Information

Model: A-S1200BL | UPC: 027108958682
Acknowledging the golden era of Hi-Fi with its beautiful design, the A-S1200 boasts an impressive array of the latest technology to accurately deliver an emotional, purely musical sound.

Features

  • Floating Balanced Circuit for Power Amplifier
  • Tone Control Circuit with A Parallel Volume System
  • Large Power Supply with Four Separate Circuits
  • Left-Right Symmetrical Design
  • Fully Discrete Phono Amp

Usually reserved for flagship Hi-Fi components, the A-S1200 benefits from the technical proficiency and absolute musicality of a toroidal transformer. Combined with an array of high-end Hi-Fi features and components, the toroidal transformer assists in ensuring the musical emotion is conveyed to the listener.

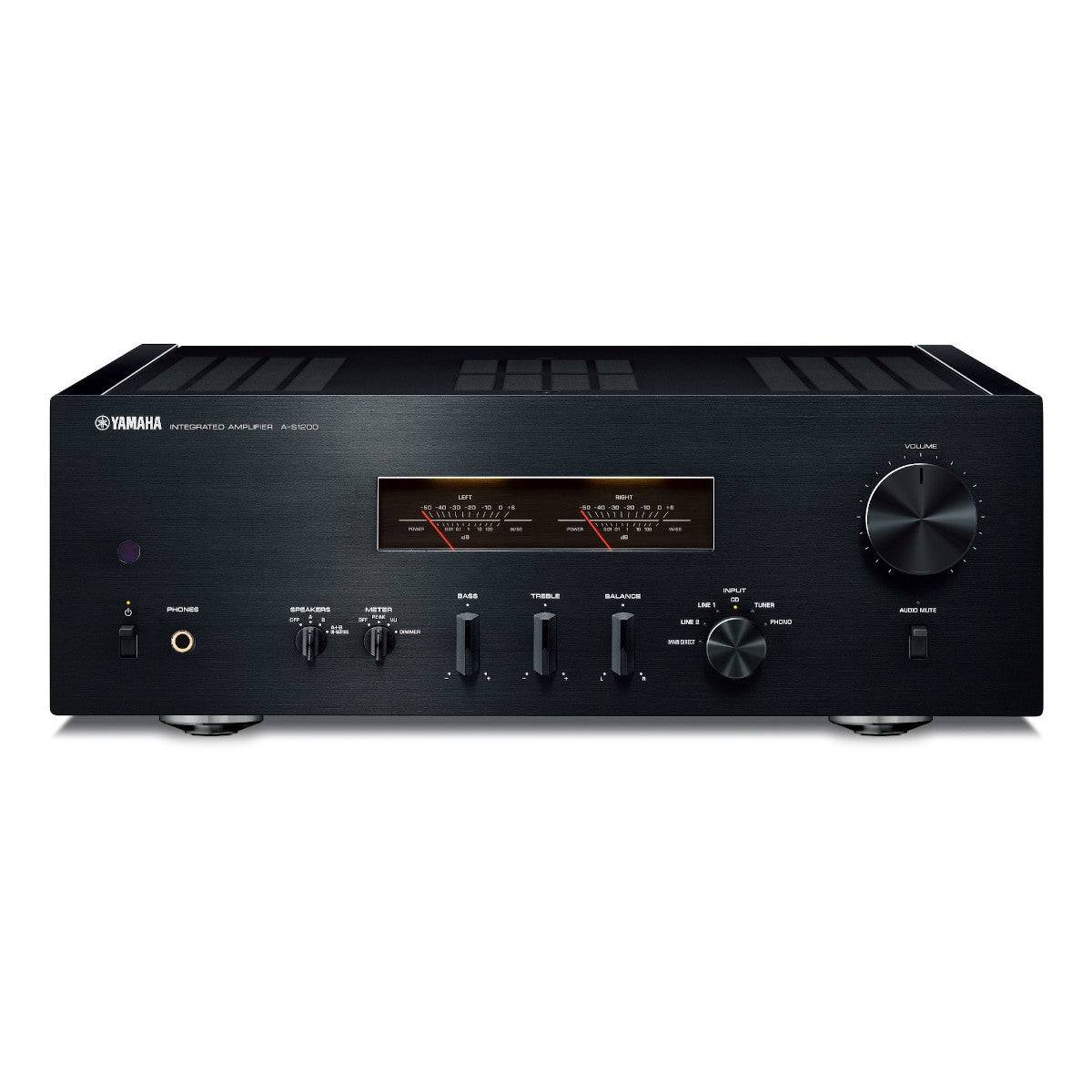

The level meters are both a nod to the nostalgic era of Hi-Fi, while simultaneously demonstrating the return of pure Hi-Fi for today’s discerning enthusiast. Visually presenting the dynamics and pulse of the music, the level meters imbue a warm feeling through their softly illuminated LEDs.

Yamaha's low Impedance concept, aided by the thick wires for ground connection, is critical for componentry adopting the badge of premium Hi-Fi. This Yamaha design concept begins in Yamaha's premium Hi-Fi components with the A-S1200, helping to present an open, natural sound stage, bringing the artist and listener closer together.

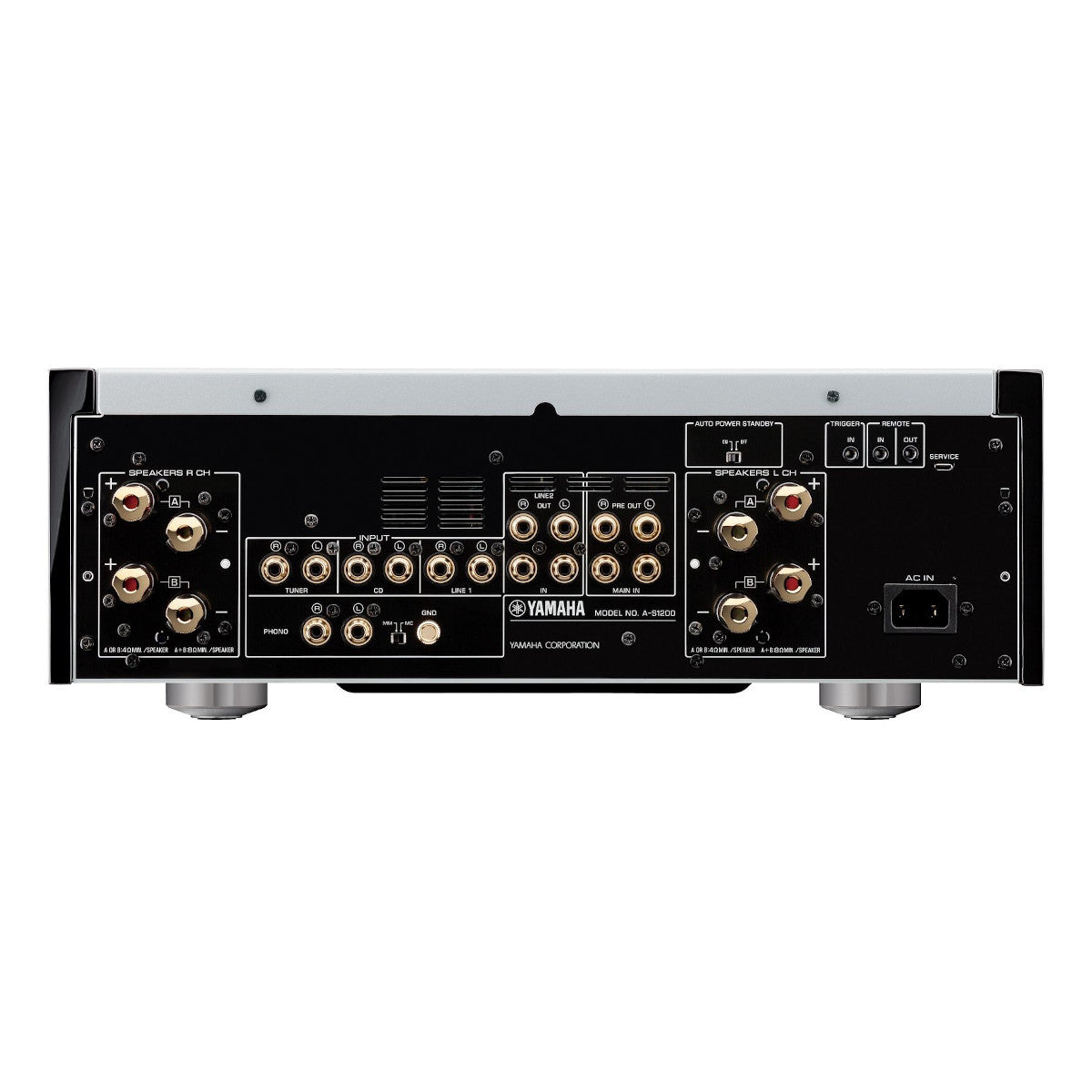

Cut directly from pure brass, the luxurious speaker terminals comfortably fit the human hand for effortless tightening, achieving a highly secure connection.

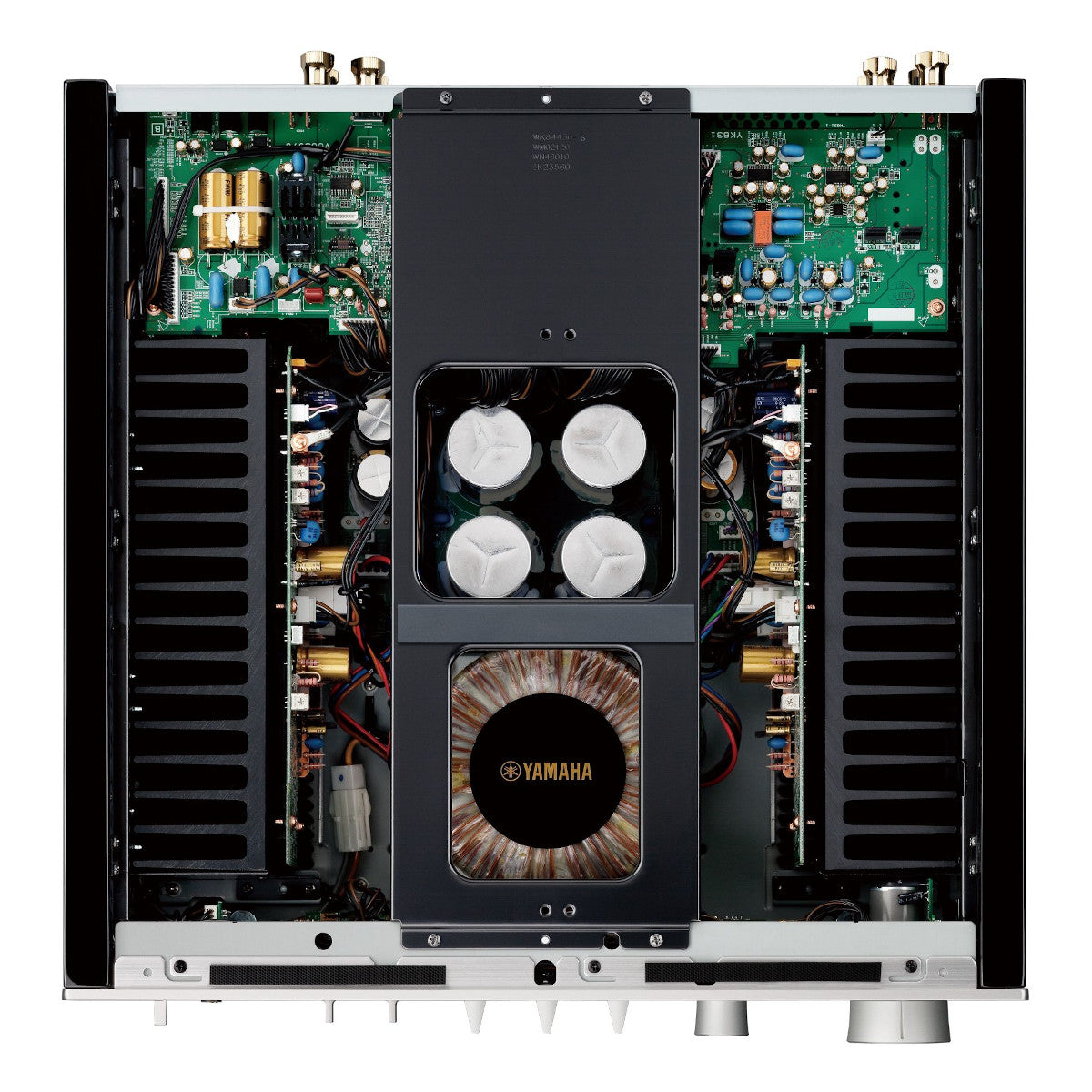

The A-S1200 adopts a Mechanical Ground Concept, inherited from both the A-S2200 and A-S3200. The concept begins with the bolts of the feet welded directly to the main chassis, followed with the large heat sink, power transformer and block capacitors also directly bolted to the chassis. Through this design, unwanted vibration is avoided, achieving expressive and rhythmic bass, presenting the ‘Groove’ of the music to the listener.

Completing the rigidity of the amplifier are the heavy-duty chrome-plated iron feet.

Specifications

  • Rated Output Power [20 Hz-20 kHz, 0.07% THD]: 90 W + 90 W (8 ohms), 150 W + 150 W (4 ohms)
  • High Dynamic Power/Channel (8/6/4/2 ohms): 105/135/190/220 W
  • Damping Factor: > 250 (1 kHz, 8 ohms)
  • Frequency Response: +0 / -3 dB (5Hz-100kHz) , 0 / -0.3 dB (20 Hz-20 kHz)
  • RIAA Equalization Deviation: +/-0.5 dB (PHONO (MM/MC))
  • Total Harmonic Distortion (20Hz to 20kHz):
    • PHONO MC - LINE2 OUT: 0.02% (1.2 Vrms)
    • PHONO - LINE2 OUT: 0.005% (1.2 Vrms)
    • CD, etc. - SP OUT: 0.035% (50 W/8 ohms)
  • Signal-to-Noise Ratio: PHONO MC: 90 db, PHONO MM: 96 dB, CD, etc.: 110 dB
  • Input Sensitivity: [1 kHz, 100 W/8 ohms]
    • PHONO MC: 150 uVrms/50 ohms
    • PHONO MM: 3.5 mVrms/47 kohms
    • CD, etc.: 200 mVrms/47 kohms
    • MAIN IN: 1 Vrms/47 kohms
  • Transformer: 625VA (Toroidal)
  • Dimensions (W x H x D): 17-1/8" x 6-1/8" x 18-1/4"
  • Weight: 48.5 lbs

What's In The Box

  • A-S1200 Integrated Amplifier

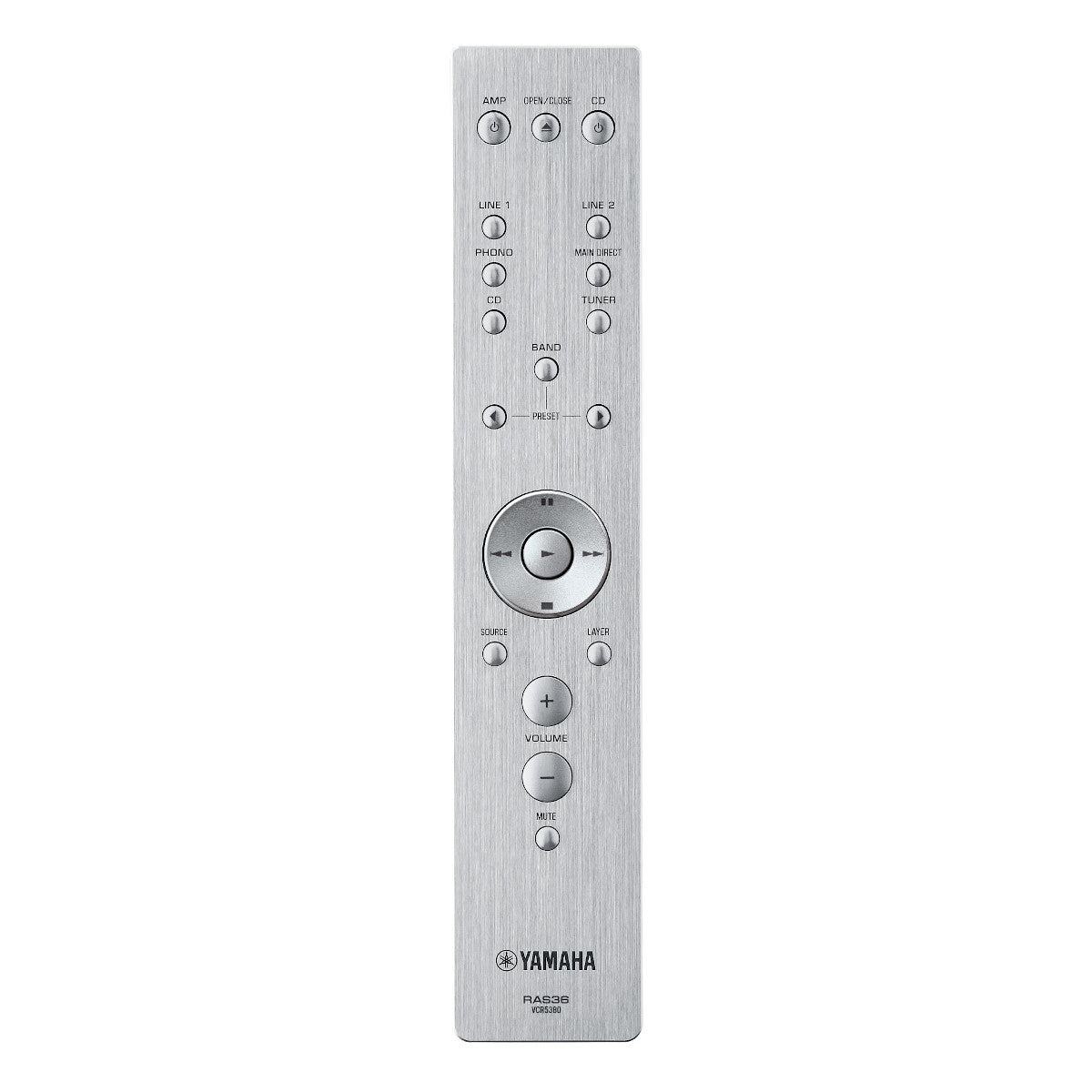

  • Remote
  • Power Cable
  • Manual
