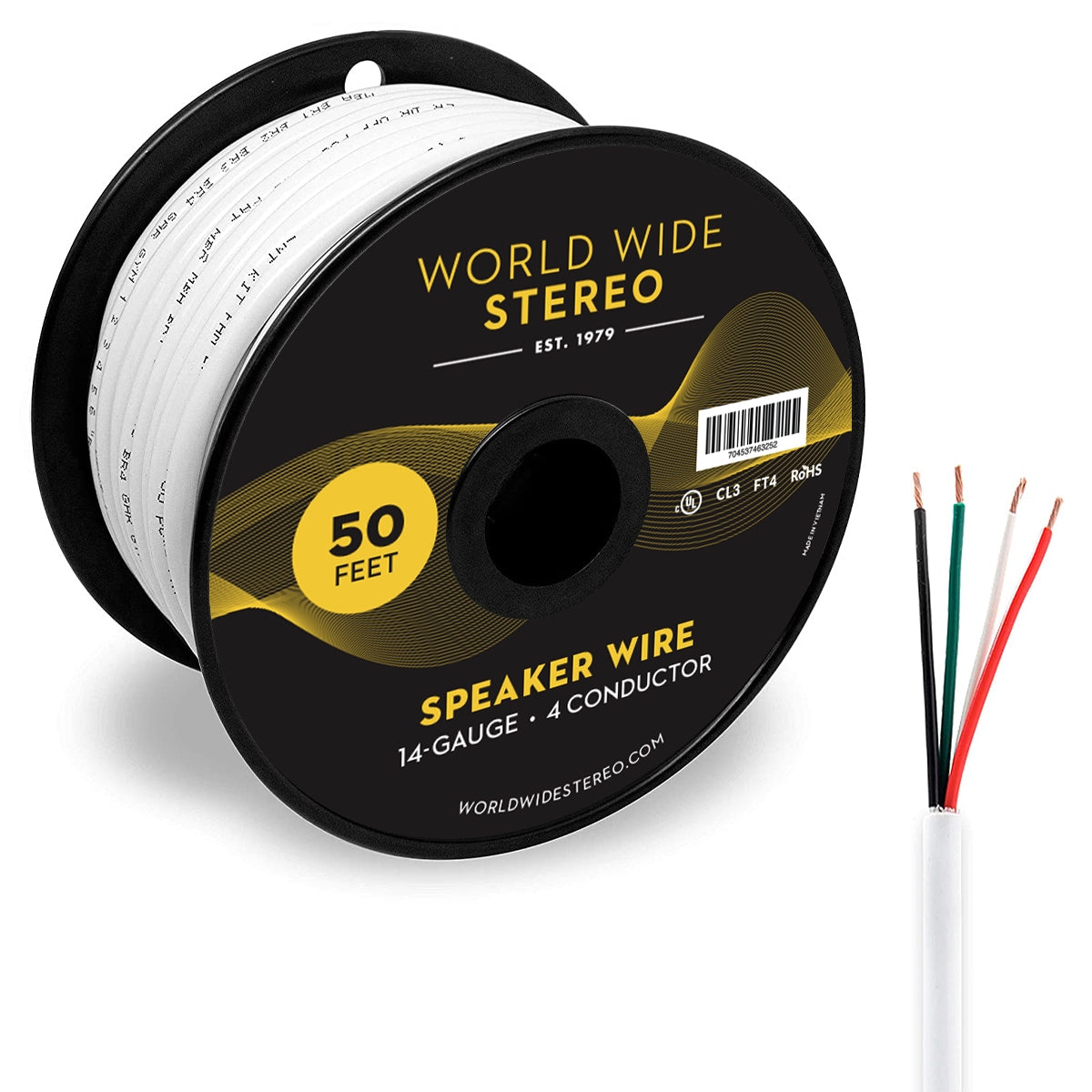

World Wide Stereo 14-Gauge, 4-Conductor Copper Speaker Wire - 50 Feet

Regular price $49.99
Sale price $49.99 Regular price
$99.99 Save $50.00 (50%)
In Stock & Ready to Ship
Free Shipping Get it between Wed, Dec 11 – Wed, Dec 18

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Overview

Product Information

Model: PR/14-4/50/SPOOL | UPC: 704537463252

Specifications

What's In The Box

Product Information

Model: PR/14-4/50/SPOOL | UPC: 704537463252
This high-quality 14-Gauge Oxygen-Free Copper Wire, Lead-Free PVC jacketed speaker cable may be used to connect speakers to any receiver or amplifier and is rated for in-wall use.

Product Details

  • 14AWG x 4 Conductor
  • Color: White
  • Put-Up: 50 Feet

Cable Technologies

  • 14-Gauge Oxygen-Free Copper wire
  • Round jackets
  • Ripcord
  • Lead-Free PVC

Certifications

  • UL CL3-rated for in-wall use
  • FT4
  • RoHS

Specifications

  • Style: 75ºC, 300 V Speaker Cable
  • Size: 14 AWG x 4 Conductor
  • Construction:
    • Conductor
      • Size: 14 AWG x 4 Conductor
      • Conductor Material: Annealed Copper Stranded
      • Conductor Construction (mm): 41/0.251 ± 0.003
      • Approximate Outside Diameter (mm): 1.86
    • Insulation
      • Average Thickness (mm): 0.45 ± 0.08
      • Minimum Thickness at any point (mm): 0.36
      • Diameter (mm): 2.70 ± 0.2
      • Material: Lead-Free PVC
      • Color: Core 1 = Red, Core 2 = Black, Core 3 = White, Core 4 = Green
      • Ripcord: Nylon (1000D)
    • Jacket
      • Nominal Thickness (mm): 0.55 ± 0.08
      • Minimal Thickness at any point (mm): 0.38
      • Diameter (mm): 7.60 ± 0.30
      • Material: Lead-Free PVC
      • Color: White
  • Electrical & Physical Properties
    • Item: 14 AWG x 4 Conductor
    • Rating Temp & Voltage: 75ºC, 300 V
    • Conductor Resistance (Ohm/Km/20°C Max): 8.60
    • Insulation Resistance: 100 Mega Ohm/Km at 20ºC (Minimum)
    • Dielectric Strength (Underwater): 500 V/1 Minute (No broken)
    • Spark Test: 2.5 KV for 0.15 seconds (No broken)
    • Insulation
      • Unaged
        • Tensile Strength: 13.8 Mpa (1.41 Kg/mm²) (Minimum)
        • Elongation: 100% (Minimum)
      • Aged
        • Tensile Strength: Unaged Min. 70% (100±1ºC x 240 Hrs)
        • Elongation: Unaged Min. 65% (100±1ºC x 240 Hrs)
    • Jacket
      • Unaged
        • Tensile Strength: 13.8 Mpa (1.41 Kg/mm²) (Minimum)
        • Elongation: 100% (Minimum)
      • Aged
        • Tensile Strength: Unaged Min. 70% (100±1ºC x 240 Hrs)
        • Elongation: Unaged Min. 65% (100±1ºC x 240 Hrs)
    • Minimum Bending Radius: 15 * Φ (Minimum)
    • Bonding Force of Insulation: 3.40 (+10%, -30%) (Kgf)
    • Cold Bend Test: -20±1ºC x 4 Hrs (No crack)

What's In The Box

  • 14-Gauge, 4-Conductor Copper Speaker Wire - 50 Feet
