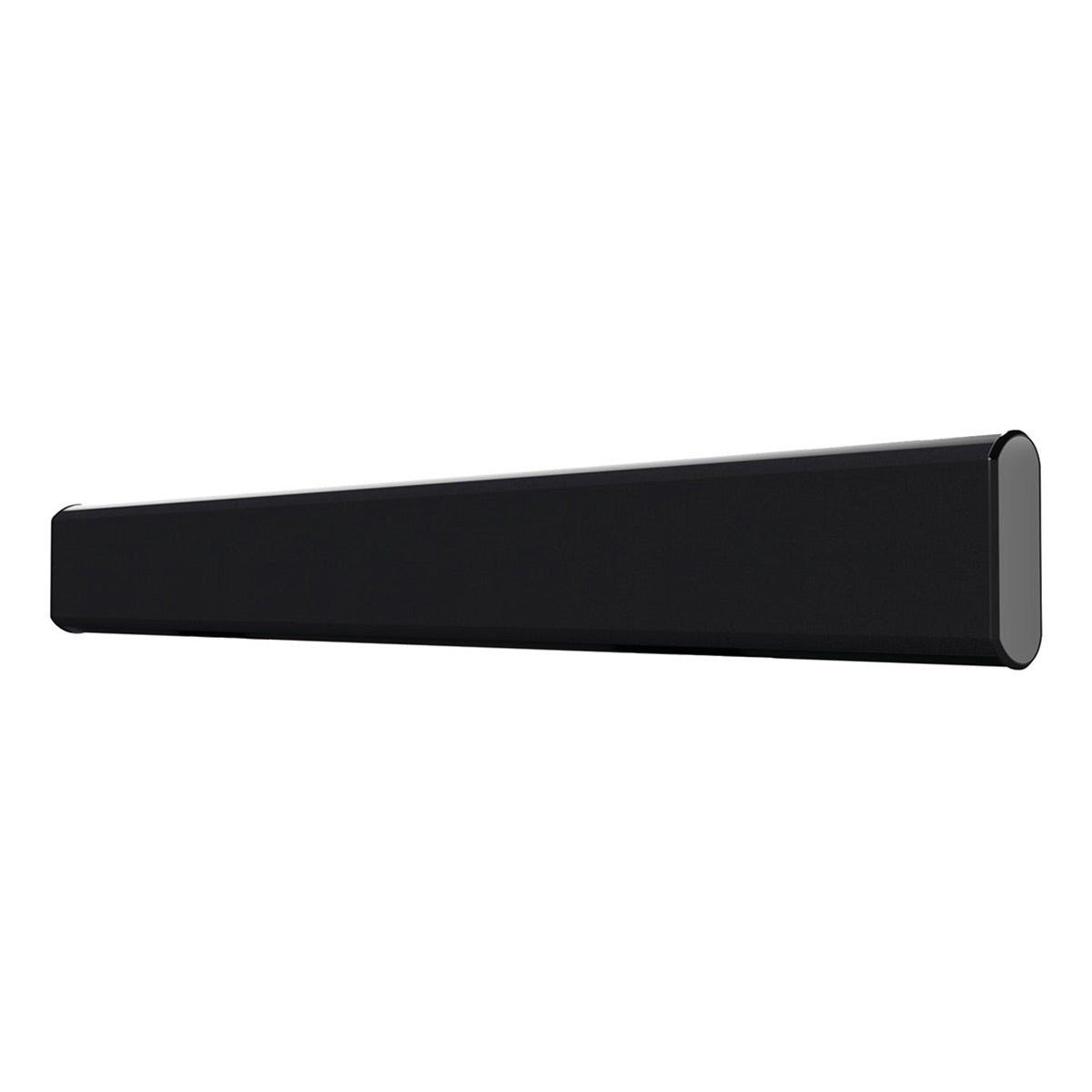

Theory Audio Design sb85 3-Channel Passive Soundbar

Regular price $2,950.00
Sale price $2,950.00 Regular price
Save $-2,950.00 (%)
This item is only available in our showroom. Call 215-368-8343 for details.

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Overview

Product Information

Model: SB85-BK | UPC: 850014164065

Specifications

What's In The Box

Product Information

Model: SB85-BK | UPC: 850014164065

The sb85 is designed to match the width of 85” TVs for an integrated look and offers the widest bandwidth and highest output available in its class. No other soundbar can come close to Theory's soundbar performance.

Features

  • Fits Seamlessly Wall Mounted Under 85" TVs
  • 5" Theory Carbon Fiber Low Frequency Drivers
  • 1.4" Theory AdvancedPoly High Frequency Compression Drivers
  • Ultra-Wide 125° Conical Coverage (160°@10kHz, -12dB)
  • Extruded and Machined Aluminum Construction

Design

The extruded aluminum construction and tuned ports allow the sb85 to achieve true full-range performance and high-output in a package that is only 3.8" deep (3.93" wall mounted including brackets).

Versatility

With its Z-clips (included) and optional sb Table Top Stands, the sb85 can mount on the wall or sit on a piece of furniture. Its slender enclosure, clean fabric grille, premium finish and gentle sculpted curves allow it to "disappear" into the architectural background, but look surprisingly handsome in environments where it's easily seen.

Specifications

  • Description: High Output Three-Channel Soundbar for 85" TVs
  • Operation
    • Passive, Requires 3 Theory Loudspeaker Controller Amp Channels
    • 3 Separate Ported Enclosures
  • DSP Requirements: Requires Model-Specific Theory-Certified DSP Loudspeaker Processing
  • Drivers
    • 6 x 5" Theory Carbon Fiber Low Frequency Drivers
    • 3 x 1.4" Theory Advanced Polymer High Frequency Compression Drivers
  • Enclosure: Powder Coated and Anodized Extruded and Machined Aluminum, Fabric Grille
  • Terminals: Twin Spring-Loaded Push Terminals
  • Outdoor Capability: Indoor Use Only
  • Mounting Points: Two Theory VersaSlot T-Slots Running Full Height with 4 x M5 Captive Nuts
  • Bandwidth
    • 54Hz -23kHz, -6dB;
    • 46Hz-24kHz, -10dB
  • Coverage
    • 125 Degrees Conical
    • 160 Degrees Conical (-12dB @ 10kHz)
  • Sensitivity: 94dB (LF); 108dB (HF) SPL/2.83V/1m
  • Power Handling
    • 200W (AES);
    • 400W (Continuous);
    • 800W (Peak)
  • Minimum Recommended Power: 50W rms
  • Maximum Output
    • 117dB SPL / 1m per Channel;
    • >124dB Three Channels Driven
  • Nominal Impedance: 4-ohms
  • Dimensions (W x H x D): 75.2" x 9.5" x 3.8"
  • Total Installed Depth (Z-clip Mount): 3.93" Including Z-Clip Mounting Brackets
  • Net Weight: 72 lbs.

What's In The Box

  • sb85 3-Channel Passive Soundbar
  • Z-Clip Mounting Brackets (Flat Surface Mounting)
  • Manual

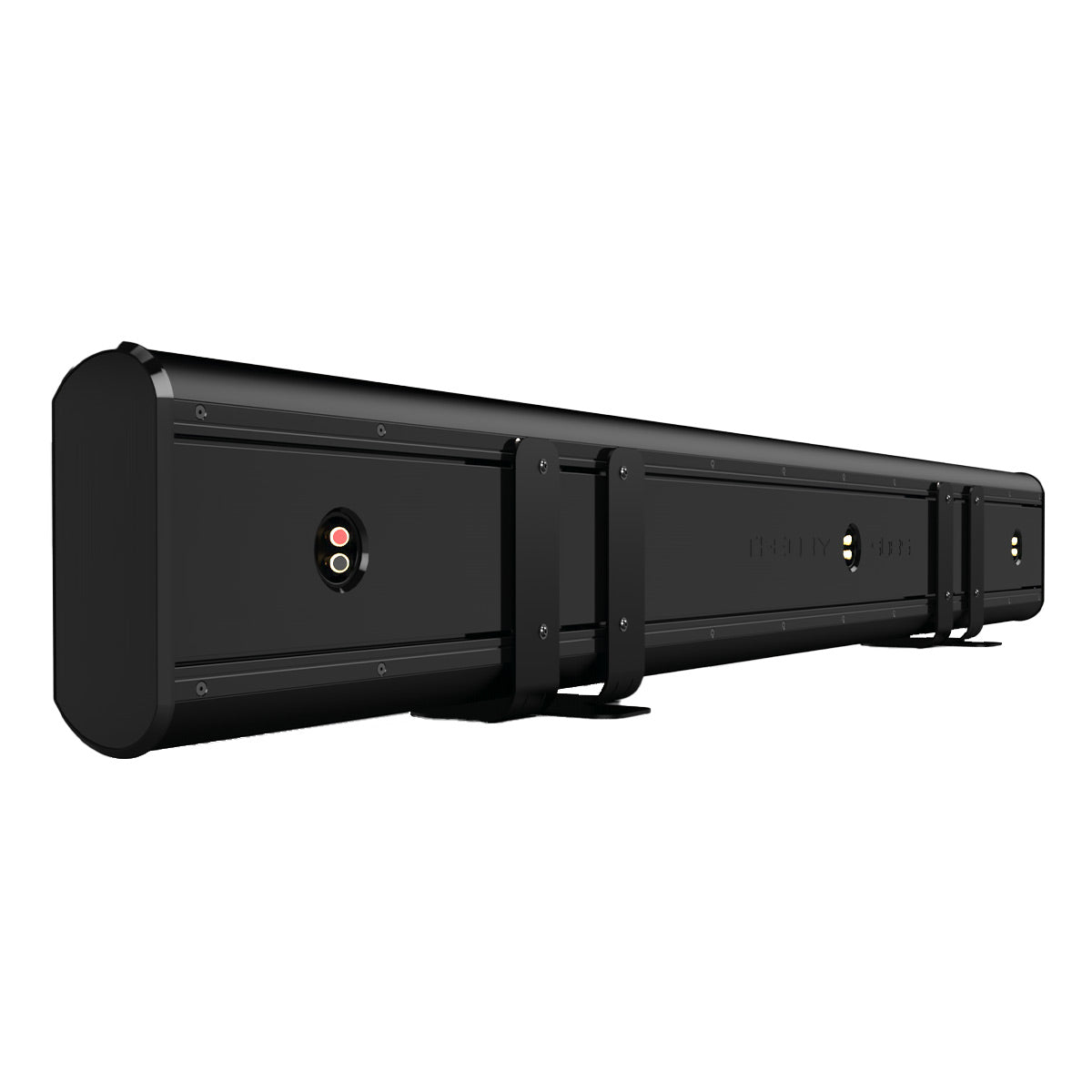

Please Note: The sb85 is shown with optional sb Tabletop Stand. Sb Tabletop stand is sold separately.
