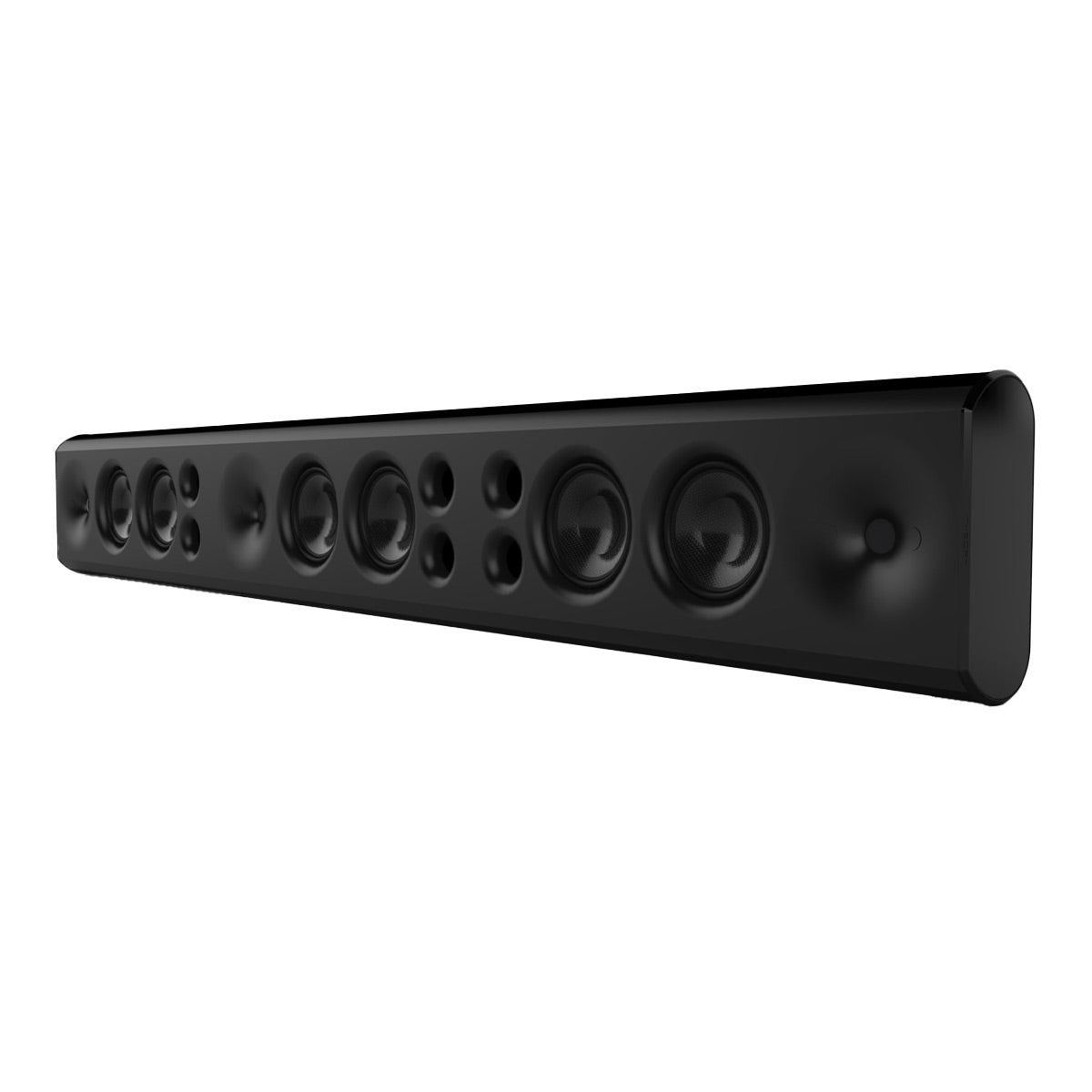

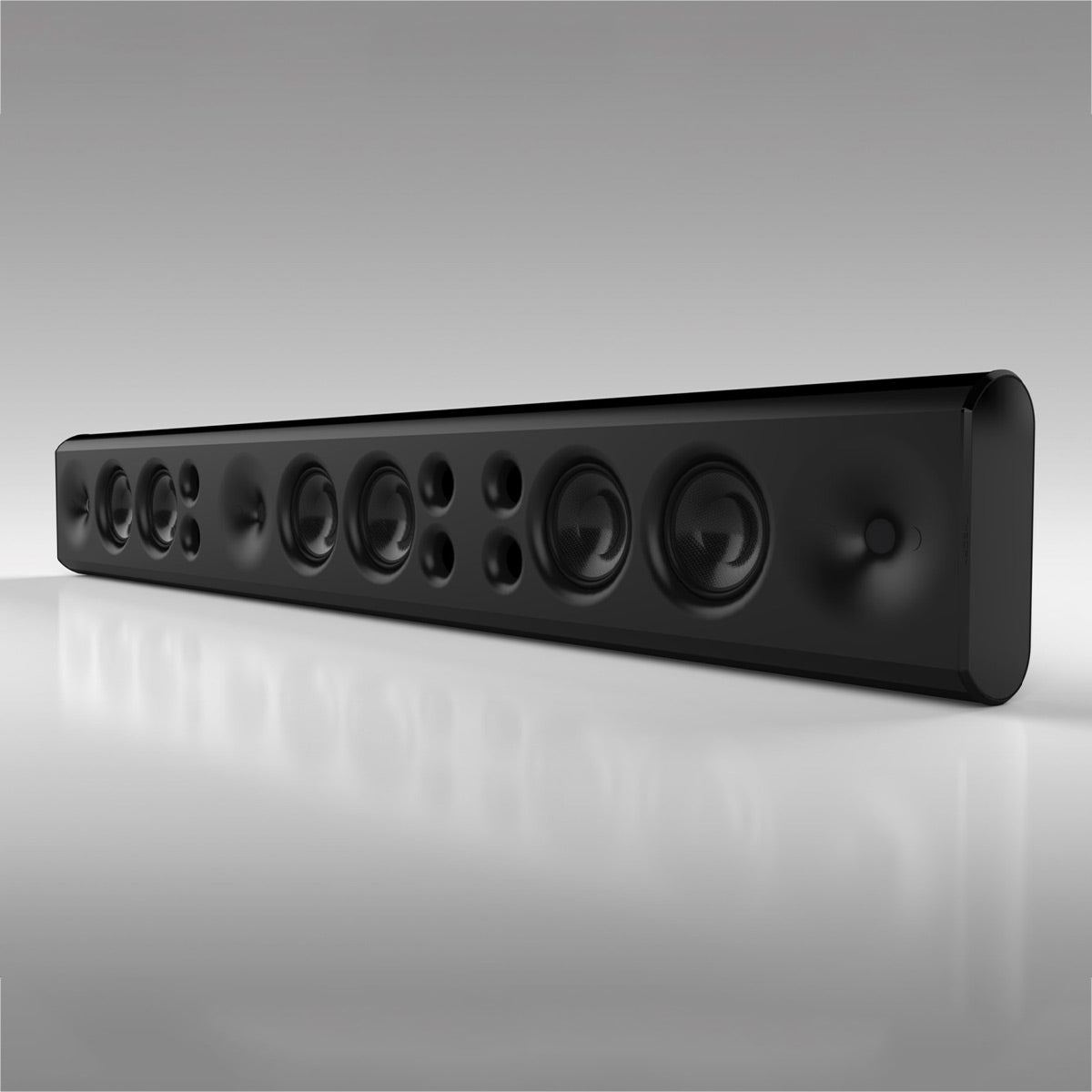

Theory Audio Design sb75 3-Channel Passive Soundbar for 75" TVs

Regular price $2,800.00
Sale price $2,800.00 Regular price
Save $-2,800.00 (%)
This item is only available in our showroom. Call 215-368-8343 for details.

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Theory sb75-BK Overview

Product Information

Model: SB75-BK | UPC: 850014164041

Specifications

What's In The Box

Product Information

Model: SB75-BK | UPC: 850014164041

Elevate your home entertainment with the Theory sb75 Soundbar, a high-performance audio solution meticulously crafted to complement 75-inch televisions. Delivering exceptional clarity and dynamic range, the sb75 transforms your TV viewing into an immersive auditory experience.

Features

  • Optimized for 75" TVs
  • Exceptional Audio Clarity and Power
  • Precision-Tuned Frequency Range
  • Durable and Elegant Design
  • Flexible Installation Options

Designed for Seamless Integration

The sb75 is engineered to align perfectly with 75-inch displays, offering a cohesive and stylish addition to your home theater setup. Its sleek design ensures it not only enhances your audio experience but also complements your living space aesthetically.

Unmatched Audio Performance

Equipped with six 5-inch carbon fiber low-frequency drivers and three 1.4-inch advanced polymer high-frequency compression drivers, the sb75 delivers powerful and precise sound across all frequencies. This configuration ensures that every note and sound effect is rendered with stunning accuracy.

Robust Construction for Superior Sound

Constructed from powder-coated and anodized extruded aluminum, the sb75 boasts a durable yet elegant enclosure. The inclusion of three separate ported chambers within the soundbar enhances its acoustic performance, providing a rich and immersive soundstage.

Installation Versatility

The sb75 offers flexible installation options to suit your preferences. It comes with Theory Z-Clip mounting brackets for easy wall mounting, ensuring a clean and unobtrusive look. For those who prefer placement on furniture, an optional tabletop stand is available, allowing the soundbar to stand securely on flat surfaces such as TV consoles or bookshelves.

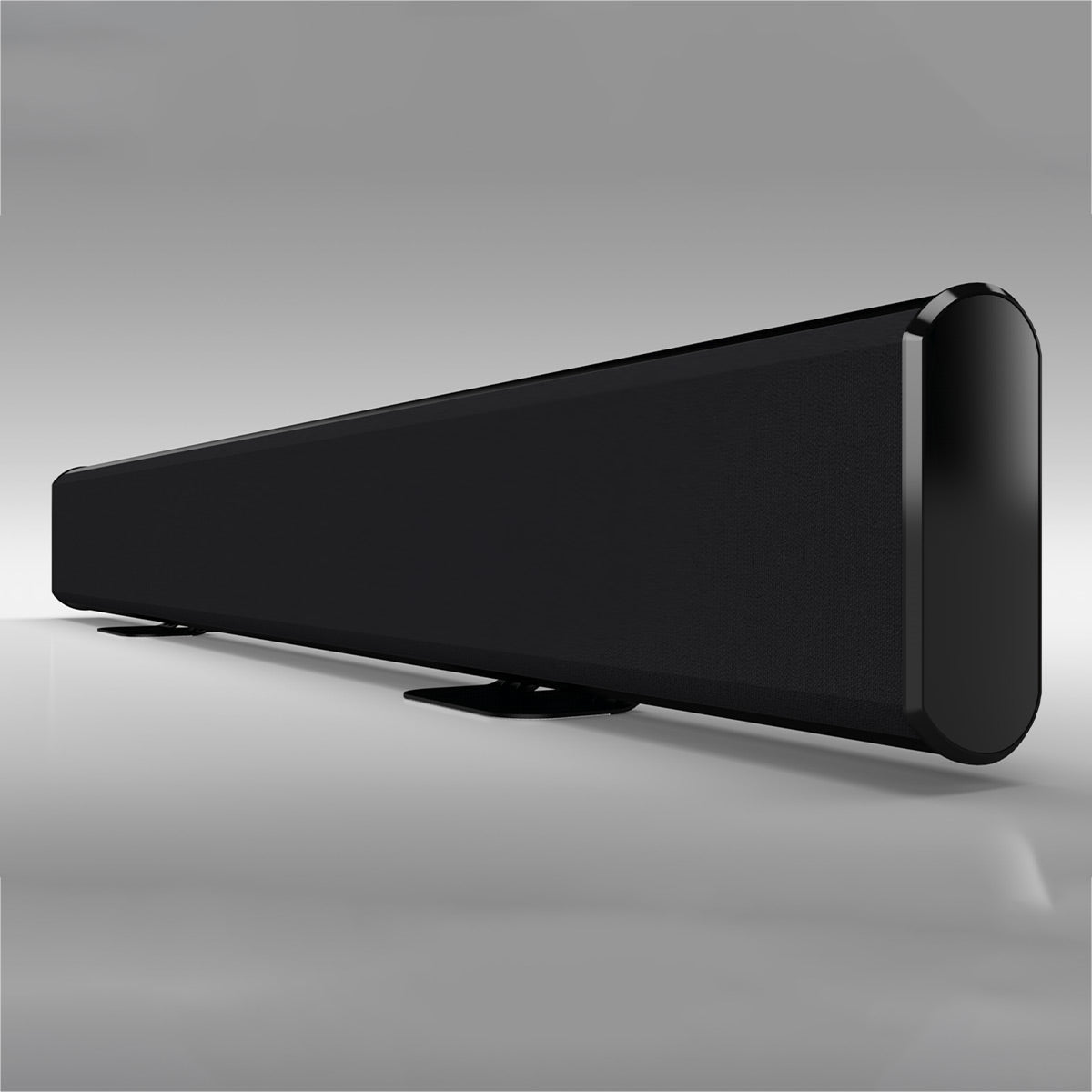

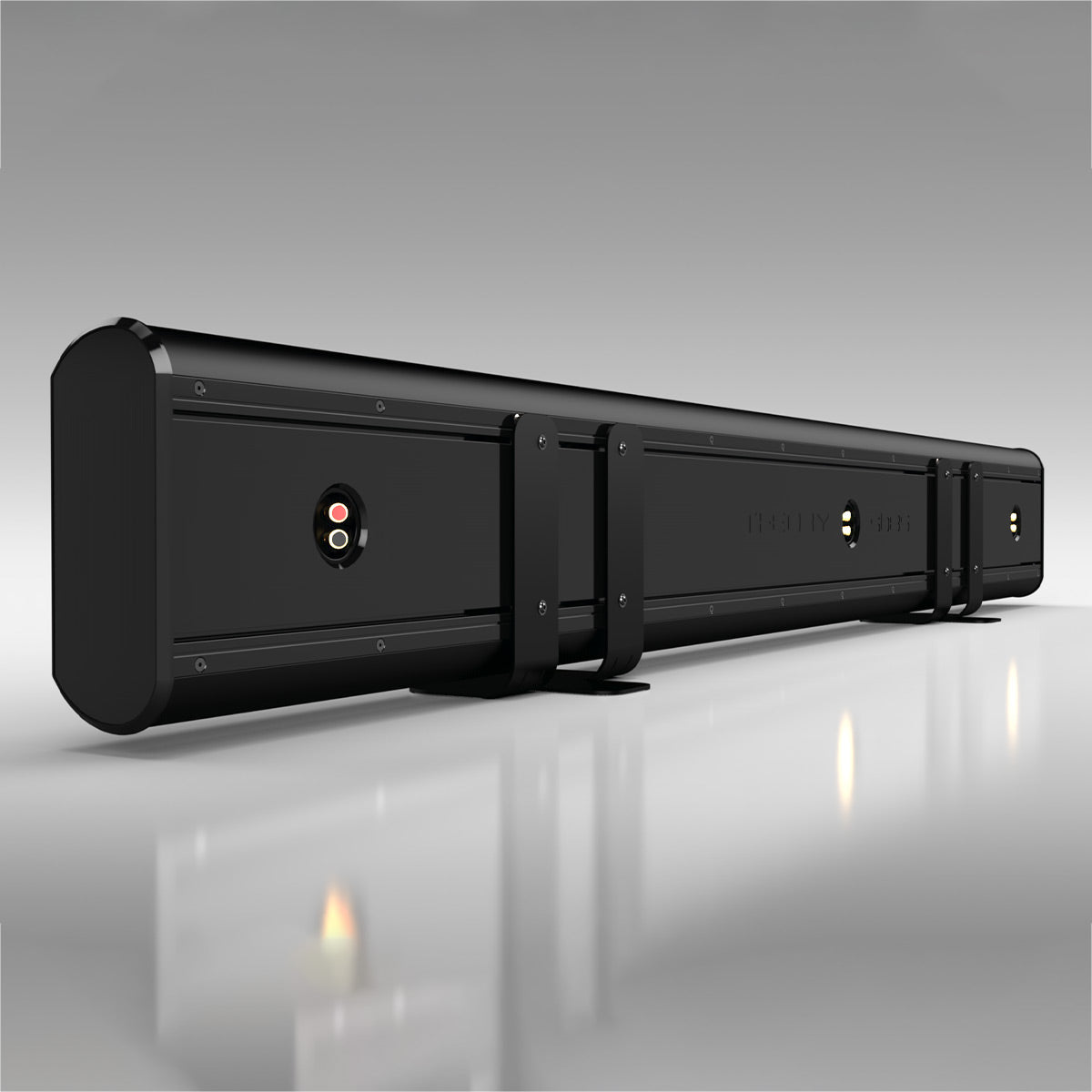

Please Note: Shown with the sb-STAND stand accessory. sb-STAND sold separately.

Specifications

  • Description: High Output Three-Channel Soundbar for 75" TVs
  • Operation
    • Passive, Requires 3 Theory Loudspeaker Controller Amp Channels
    • 3 Separate Ported Enclosures
  • DSP Requirements: Requires Model-Specific Theory-Certified DSP Loudspeaker Processing
  • Drivers
    • 6 x 5" Theory Carbon Fiber Low Frequency Drivers
    • 3 x 1.4" Theory Advanced Polymer High Frequency Compression Drivers
  • Enclosure: Powder Coated and Anodized Extruded and Machined Aluminum, Fabric Grille
  • Terminals: Twin Spring-Loaded Push Terminals
  • Outdoor Capability: Indoor Use Only
  • Mounting Points: Two Theory VersaSlotTM T-Slots Running Full Height with 4 x M5 Captive Nuts
  • Bandwidth
    • 54Hz -23kHz, -6dB;
    • 46Hz-24kHz, -10dB
  • Coverage
    • 125 Degrees Conical
    • 160 Degrees Conical (-12dB @ 10kHz)
  • Sensitivity: 94dB (LF); 108dB (HF) SPL/2.83V/1m
  • Power Handling (per chan.)
    • 200W (AES)
    • 400W (Continuous)
    • 800W (Peak)
  • Minimum Recommended Power: 50W rms
  • Maximum Output
    • 117dB SPL / 1m per Channel;
    • >124dB Three Channels Driven
  • Nominal Impedance: 4-ohms
  • Colors: Black
  • Dimensions (W x H x D): 66.0" x 9.5" x 3.8"
  • Total Installed Depth (Z-clip Mount): 3.93" D
  • Net Weight: 68 lbs.

What's In The Box

  • sb75 3-Channel Passive Soundbar for 75" TVs
  • Theory Z-Clip Mounting Brackets for Flat Surface Mounting
  • Manual

Please Note: Shown with the sb-STAND stand accessory. sb-STAND sold separately.
