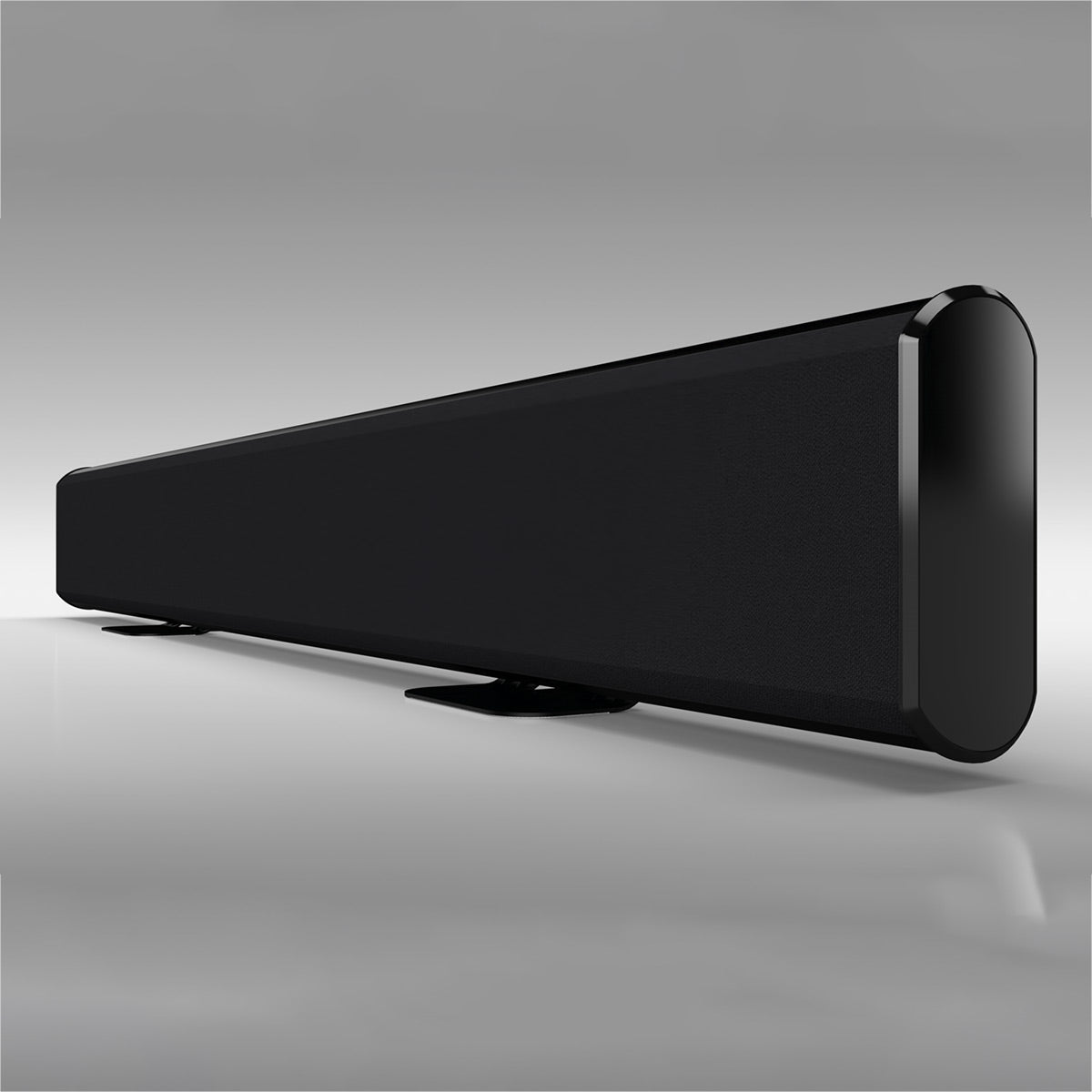

Theory Audio Design sb65 3-Channel Passive Soundbar for 65" TVs

Regular price $2,650.00
Sale price $2,650.00 Regular price
Save $-2,650.00 (%)
This item is only available in our showroom. Call 215-368-8343 for details.

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Theory sb65-BK Overview

Product Information

Model: SB65-BK | UPC: 850014164027

Specifications

What's In The Box

Product Information

Model: SB65-BK | UPC: 850014164027

Elevate your home entertainment with the Theory sb65 Soundbar, meticulously crafted to complement 65-inch televisions. This high-performance, three-channel passive soundbar delivers an immersive audio experience, transforming your living space into a personal theater.

Features

  • Fits Seamlessly Under 65" TVs
  • Cinematic Sound Quality
  • Powerful Performance
  • Advanced Audio Components
  • Sleek, Durable Design
  • Versatile Installation Options

Unmatched Audio Performance

Unlike conventional soundbars, the sb65 produces expansive, theater-quality sound that fills the room, providing clear and dynamic audio that seems to emanate beyond the device itself. This design ensures that your audio experience is both powerful and enveloping.

Precision Engineering for Superior Sound

The sb65 features six 5-inch carbon fiber low-frequency drivers and three 1.4-inch advanced polymer high-frequency compression drivers. These components work in harmony to deliver a broad frequency range from 75Hz to 23kHz, ensuring both deep bass and crisp highs.

Sleek Design with Versatile Mounting Options

Constructed from powder-coated and anodized extruded aluminum, the sb65 boasts a sleek, durable design. Measuring 57 inches in width, 3.8 inches in depth, and 9.5 inches in height, it aligns perfectly with 65-inch TVs. The included Z-Clip mounting brackets allow for easy wall installation, and an optional tabletop stand provides additional placement flexibility.

Please Note: Shown with the sb-STAND stand accessory. sb-STAND sold separately.

Specifications

  • Description: High Output Three-Channel Passive Soundbar for 65" TVs
  • Operation
    • Passive, Requires 3 Theory Loudspeaker Controller Amp Channels
    • 3 Separate Sealed Enclosures
  • DSP Requirements: Requires Model-Specific Theory-Certified DSP Loudspeaker Processing
  • Drivers
    • 6 x 5" Theory Carbon Fiber Low Frequency Drivers
    • 3 x 1.4" Theory Advanced Polymer High Frequency Compression Drivers
  • Enclosure: Powder Coated and Anodized Extruded and Machined Aluminum, Fabric Grille
  • Terminals: Twin Spring-Loaded Push Terminals
  • Outdoor Capability: Indoor Use Only
  • Mounting Points: Two Theory VersaSlotTM T-Slots Running Full Height with 4 x M5 Captive Nuts
  • Bandwidth
    • 75Hz -23kHz, -6dB;
    • 65Hz - 25kHz, -10dB
  • Coverage: 125 Degrees Conical
  • 160 Degrees Conical (-12dB @ 10kHz)
  • Sensitivity: 94dB (LF); 108dB (HF) SPL/2.83V/1m
  • Power Handling (per chan.)
    • 200W (AES)
    • 400W (Continuous)
    • 800W (Peak)
  • Minimum Recommended Power: 50W RMS
  • Maximum Output
    • 117dB SPL / 1m per Channel Driven
    • >124dB Three Channels Driven
  • Nominal Impedance: 4-ohms
  • Colors: Black
  • Dimensions (W x H x D): 57.0"  x 9.5" x 3.8"
  • Total Installed Depth (Z-clip Mount): 3.93"
  • Net Weight: 62.5 lbs.

What's In The Box

  • sb65 3-Channel Passive Soundbar for 65" TVs
  • Theory Z-Clip Mounting Brackets for Flat Surface Mounting
  • Manual

Please Note: Shown with the sb-STAND stand accessory. sb-STAND sold separately.
