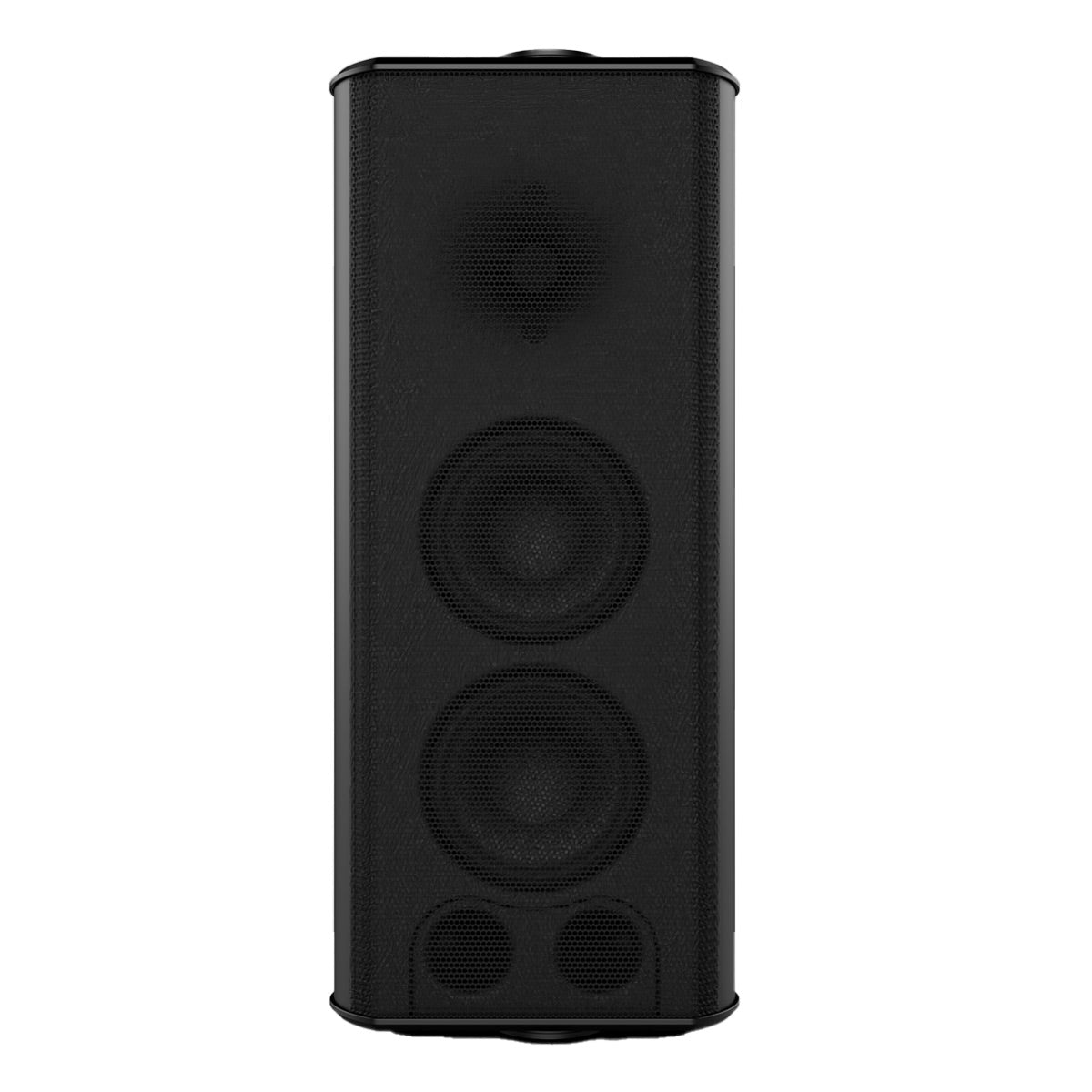

Theory Audio Design sb25aw High-Output All-Weather Loudspeaker (Black)

Regular price $1,395.00
Sale price $1,395.00 Regular price
Save $-1,395.00 (%)
This item is only available in our showroom. Call 215-368-8343 for details.
Other Options

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Theory sb25-aw Overview

Product Information

Model: SB25-AW-BK | UPC: 850014164355

Specifications

What's In The Box

Product Information

Model: SB25-AW-BK | UPC: 850014164355

The sb25aw by Theory Professional is a versatile, high-performance loudspeaker designed to deliver exceptional audio quality in any environment. Whether you're outfitting a restaurant, bar, hotel, retail space, or house of worship, the sb25aw ensures high-fidelity sound that enhances any setting.

Features

  • All-Weather Durability
  • Exceptional Sound Quality
  • Versatile Operating Modes
  • Wide Coverage with Compact Design
  • Flexible Mounting Options

Engineered for Any Environment

Building upon the acclaimed sb25 indoor model, the sb25aw is tailored for both indoor and outdoor use. Its robust construction features a perforated stainless steel grille and a water-tight wire entry point, ensuring durability and reliable performance regardless of weather conditions. The speaker offers selectable 4-ohm or 70V/100V operating modes, providing flexibility to suit various audio system requirements.

Compact Design, Powerful Performance

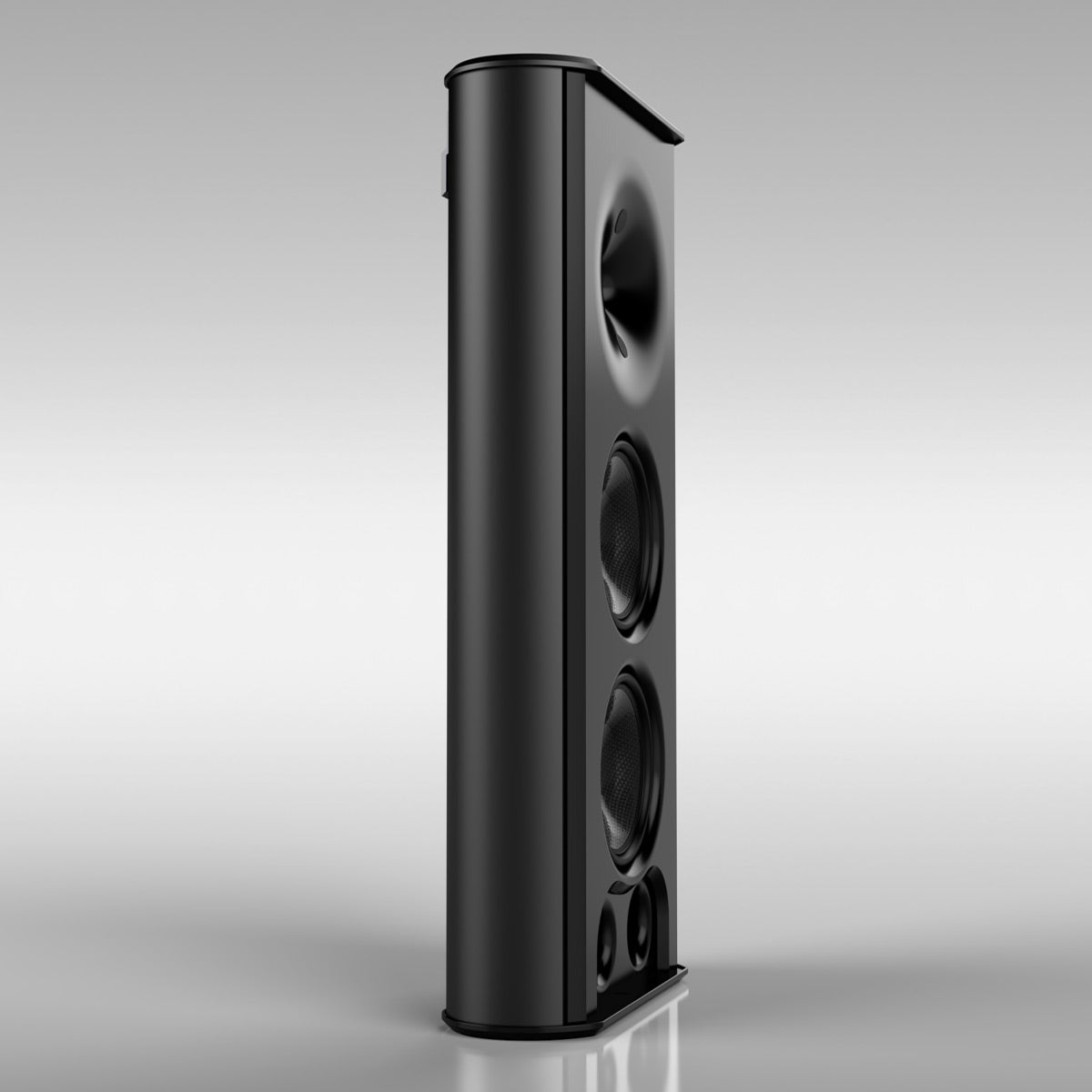

Despite its slim 3.8-inch depth, the sb25aw houses dual 5-inch carbon fiber low-frequency drivers and a 1.4-inch advanced polymer high-frequency compression driver. This configuration delivers a wide frequency range from 54Hz to 23kHz, ensuring clear and dynamic sound reproduction. With a conical coverage pattern of 125 degrees, the sb25aw provides broad and uniform sound dispersion, making it ideal for both background and foreground music applications.

Versatile Mounting Options

The sb25aw comes with Theory's Z-Clip mounting brackets for straightforward flat surface installation. For more customized setups, optional accessories such as a yoke bracket, universal mount adapter, and table-top stand are available, allowing for flexible placement and aiming to suit your specific needs.

Unmatched Audio Clarity

Designed for high-resolution audio, the sb25aw's flat frequency response ensures accurate sound reproduction with exceptional detail and coherence. Its wide and uniform dispersion means every listener experiences consistent, high-quality sound, regardless of their position in the space.

Specifications

  • Description: High-Output Weather Resistant Surface Mount Loudspeaker
  • Operation
    • Passive, Requires 1 Theory Loudspeaker Controller Amp Channel
    • 4-ohm or 70V/100V Operation, Selectable
  • DSP Requirements: Requires Model-Specific Theory-Certified DSP Loudspeaker Processing
  • Drivers
    • 2 x 5" Theory Carbon Fiber Low Frequency Drivers
    • 1 x 1.4" Theory Advanced Polymer High Frequency Compression Driver
  • Enclosure: Powder Coated and Anodized Extruded and Machined Aluminum, Perforated Aluminum Grille
  • Terminals: Euroblock Connector with Parallel Output
  • Outdoor Capability: Indoor and Outdoor Use

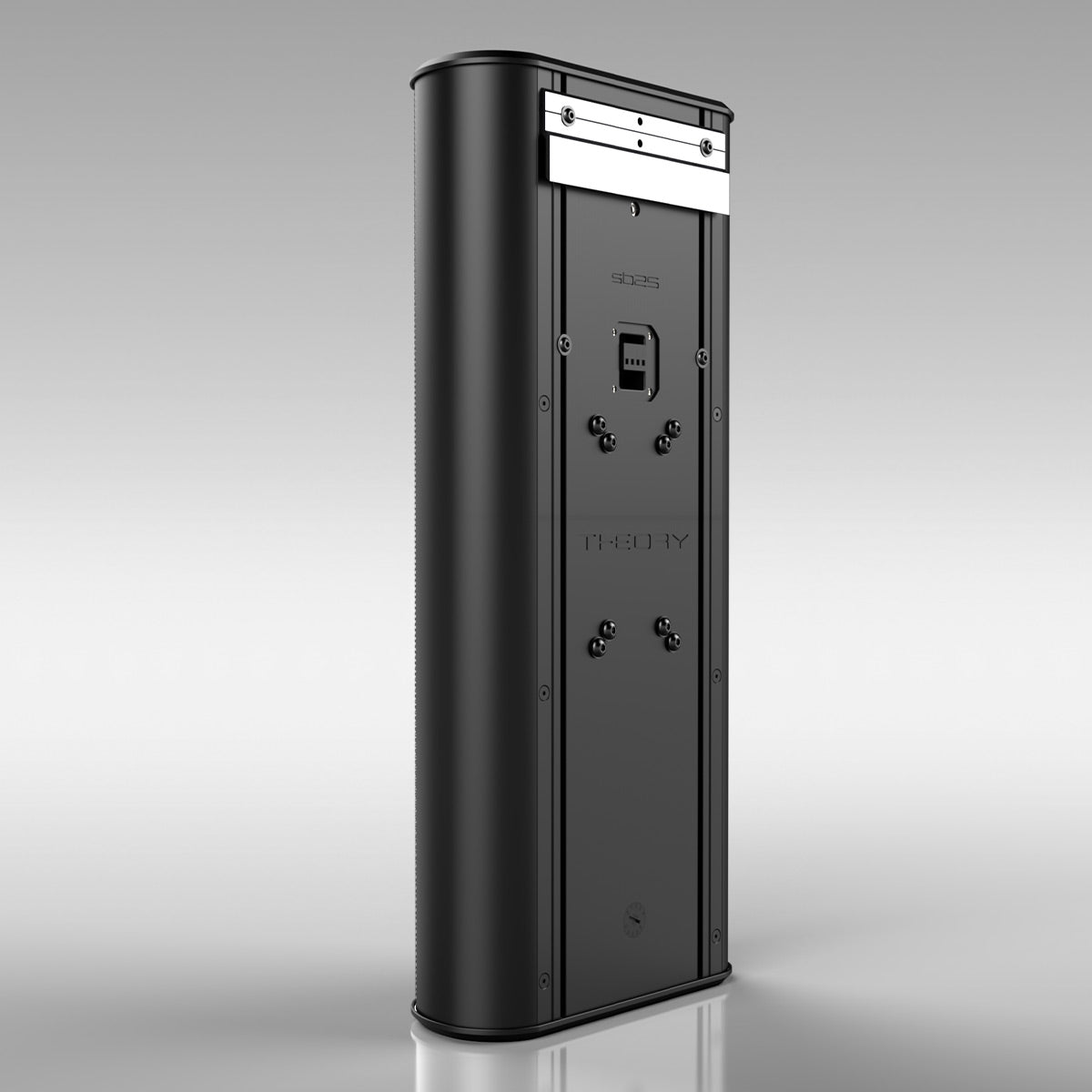

  • Mounting Points: Two Theory VersaSlotTM T-Slots Running Full Height with 4 x M5 Captive Nuts & Included Z-Clips
  • Optional: Yoke Bracket, Universal Mount Adapter, and Tabletop Stand
  • Bandwidth
    • 54Hz -23kHz, -6dB;
    • 46Hz-24kHz, -10dB
  • Coverage
    • 125 Degrees Conical
    • 160 Degrees Conical (-12dB @ 10kHz)
  • Sensitivity: 94dB (LF); 108dB (HF) SPL/2.83V/1m
  • Power Handling
    • 200W (AES)
    • 400W (Continuous)
    • 800W (Peak)
  • Minimum Recommended Power: 50W rms
  • Maximum Output
    • 117dB / 1m (based on AES power rating)
    • 123dB SPL / 1m (peak)
  • Nominal Impedance: 4-ohms; Hi-Z (70V/100V) Selectable
  • Transformer Taps: 60W, 30W, 15W, (7.5W, 70V)
  • Colors: Black, White
  • Dimensions: 9.5" x 21.5" x 3.8"
  • Total Installed Depth (Z-clip Mount): 3.93"
  • Net Weight: 24.5 lbs.

What's In The Box

  • sb25aw High-Output All-Weather Loudspeaker
  • Z-Clip Mounting Brackets for Flat Surface Mounting
  • Waterproof Terminal Cover
  • Manual
