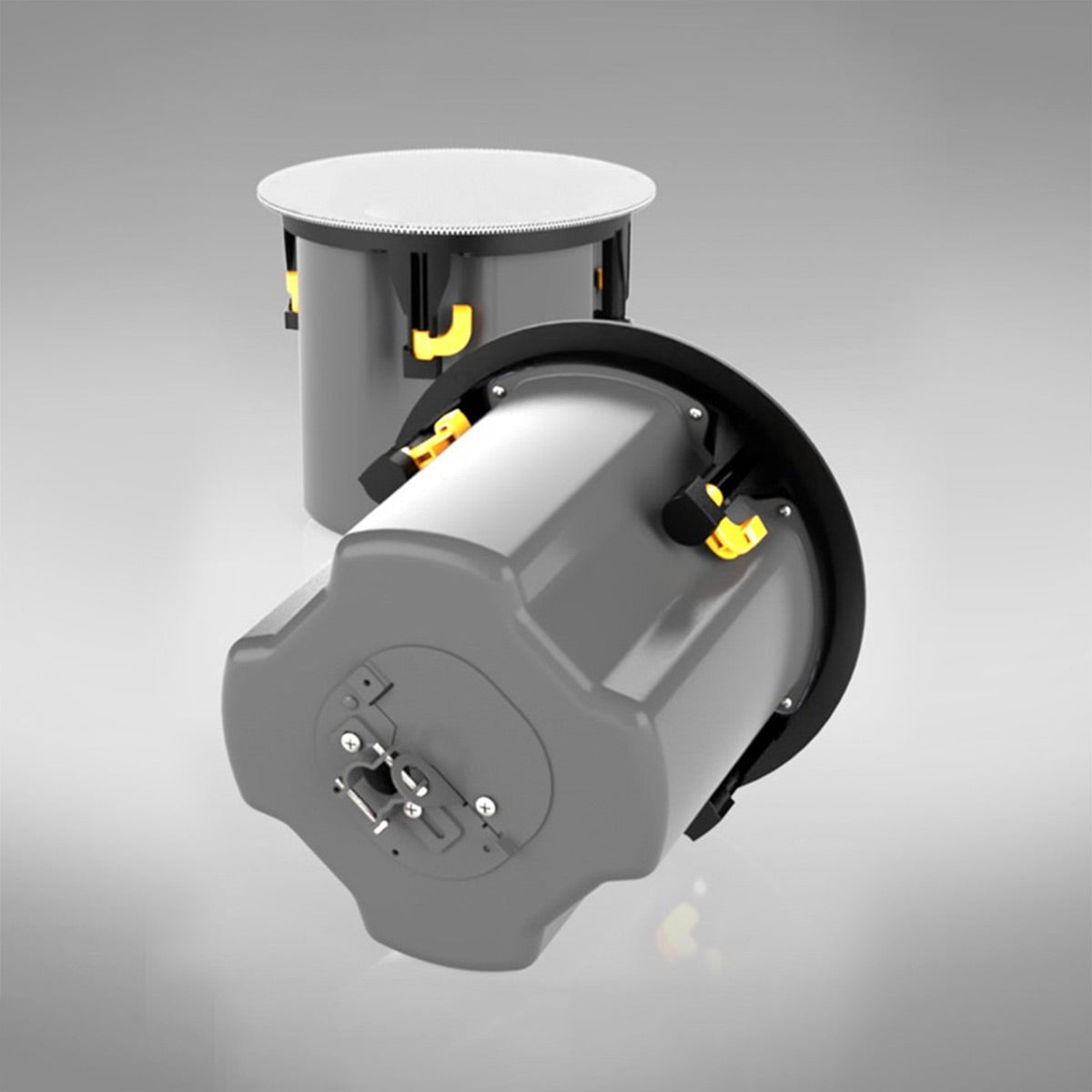

Theory Audio Design ic6 6" In-Ceiling Loudspeaker - Each

Regular price $695.00
Sale price $695.00 Regular price
Save $-695.00 (%)
This item is only available in our showroom. Call 215-368-8343 for details.

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Overview

Product Information

Model: IC-6 | UPC: 850014164164

Specifications

What's In The Box

Product Information

Model: IC-6 | UPC: 850014164164

The Theory ic6 high-output in-ceiling loudspeaker will change your expectations of small-format, high-efficiency in-ceiling loudspeakers. Via careful processing and computer-optimized tuned ports, the ic6 delivers exceptional low-frequency bandwidth, punch and resolution. Even when used in foreground music applications - no subwoofer is necessary. But that’s not all. The ic6 offers extremely wide dispersion to highest frequencies (refer to the ic6 Pendant measurements for data), so the coverage area is massive, even when installed in low ceilings.

Features

  • High-Output Weather Resistant In-Ceiling Loudspeaker
  • 6.5" Carbon Fiber Coaxial Driver
  • 1.4" AdvancedPoly Compression Tweeter
  • Round and Square White Paintable Grilles Included
  • Maximum 112dB/1m from an Architectural Loudspeaker
  • Ultra-Wide125° Conical Coverage (170°@10kHz, -12dB)
  • UL-2043, CAN/ULC S142 Safety Certifications

Specifications

  • Operation
    • Passive, Requires 1 Theory Loudspeaker Controller Amp Channel
    • 16-ohms or 70V/100V Operation, Selectable
  • DSP Requirements: Requires Model-Specific Theory-Certified DSP Loudspeaker Processing
  • Drivers
    • 6.5” Carbon Fiber Low Frequency Driver
    • 1.4" THEORY AdvancedPoly™ Compression Driver
  • Enclosure: Molded ABS Frame with Powder Coated Steel Integral Back Can
  • Terminals: Euroblock Connector with Parallel Output
  • Outdoor Capability: Indoor and Outdoor Use (when used with optional ic6 all-weather grille)
  • Mounting Points: 4 x Retractable Dog Ears
  • Bandwidth
    • 68Hz -23kHz, -6dB;
    • 58Hz - 25kHz, -10dB
  • Coverage
    • 125 Degrees Conical (-6dB @ 10kHz)
    • 172 Degrees Conical (-12dB @ 9.8kHz)
  • Sensitivity: 92dB (LF); 106dB (HF) SPL/2.83V/1m
  • Power Handling
    • 100W (AES)
    • 200W (Continuous)
    • 400W (Peak)
  • Minimum Recommended Power: 50W rms
  • Maximum Output
    • 112dB SPL / 1m (based on AES power rating)
    • 118dB SPL / 1m (peak)
  • Nominal Impedance: 16-ohms; Hi-Z (70V/100V) Selectable
  • Transformer Taps: 60W, 30W, 15W, (7.5W, 70V)
  • Dimensions
    • Speaker: 9.2" x 8.6” Diameter
    • Round Grille: 9.4” x 0.16” Diameter
    • Square Grille: 9.4” SQ. x 0.16”
    • Cutout: 8-9/16” Diameter
  • Total Installed Depth: 8.5"
  • Maximum Wall Thickness: 1.5"
  • Net Weight: 12.5 lbs.
  • Safety Certifications
    • UL-2043, CAN/ULC S142
    • Safe for use in air handling spaces

What's In The Box

  • ic6 6" In-Ceiling Loudspeaker
  • White Paintable Round Indoor Grille
  • White Paintable Square Indoor Grille
  • Cutout Template
  • Manual
