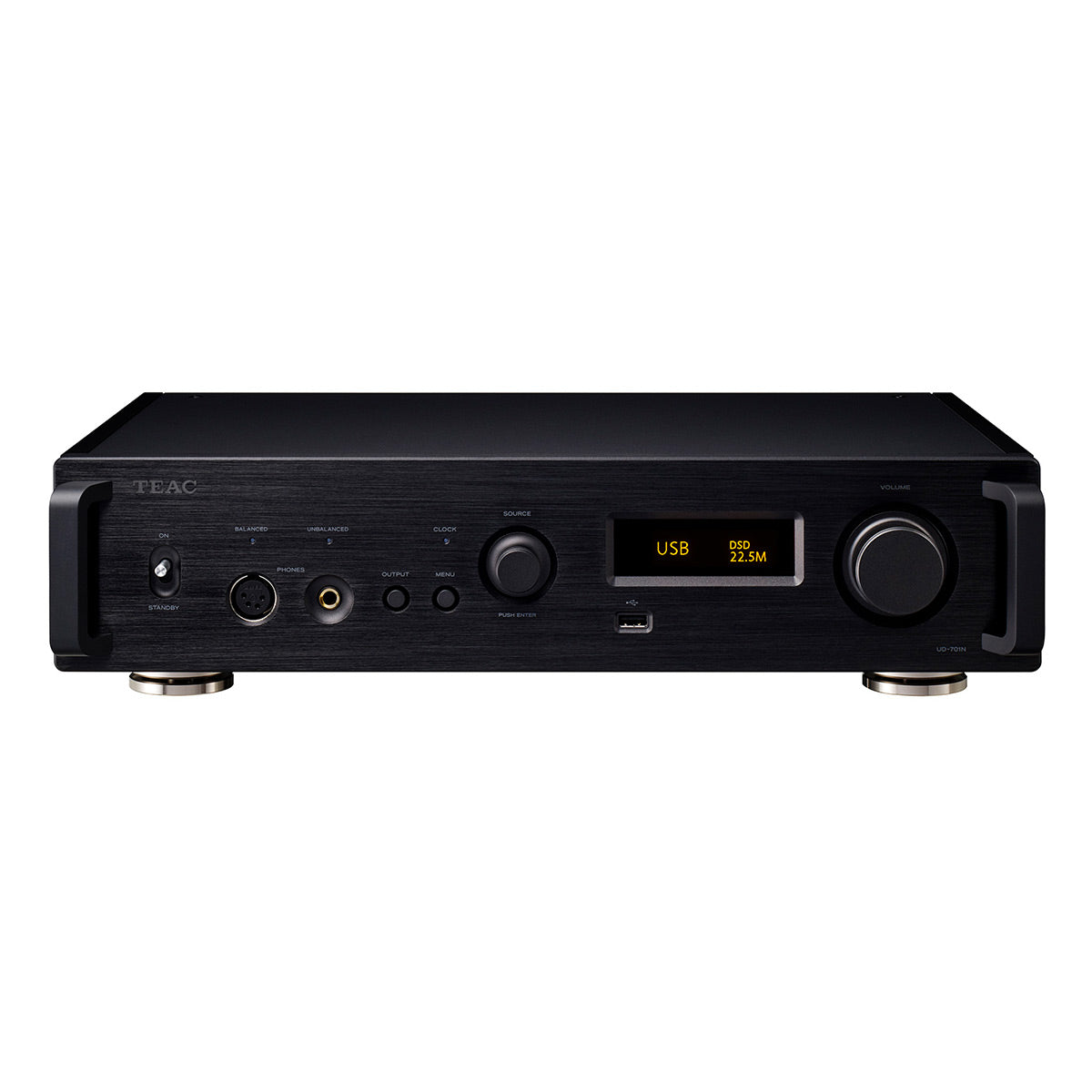

TEAC UD-701N Dual-Mono Fully-Balanced Network Player with Built-In Preamplifier and USB DAC

Regular price $4,299.99
Sale price $4,299.99 Regular price
Save $-4,299.99 (%)
OR

In Stock & Ready to Ship
Free Shipping Get it between Tue, Apr 16 – Tue, Apr 23

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Overview

Product Information

Model: UD701NB | UPC: 043774035076

Specifications

What's In The Box

Product Information

Model: UD701NB | UPC: 043774035076

With a revamped discrete DAC, this advanced all-around unit serves as the core of your high-performance audio system.

Features

  • Newly-developed TEAC ΔΣ (Delta Sigma) discrete DAC
  • Dual mono, fully-balanced circuit structure realizes outstanding channel separation
  • Playback of 22.5MHz DSD and 384kHz/32-bit PCM is possible as a USB DAC and network player
  • Preamp function with four digital inputs and two pairs of RCA/XLR line inputs
  • 4-pin XLR headphone amplifier that can be switched between balanced and active ground
  • MQA full decoder function that also supports digital inputs of CD Player
  • Upconversion to 2/4/8× sampling frequencies using RDOT-NEO
  • Bluetooth receiver supports LDAC, aptX™ HD, and other high-resolution codecs
  • Conforms to OpenHome standards and supports Roon Ready
  • Supports Spotify Connect, Tidal, Qobuz, and TuneIn (Internet radio)
  • Unique TEAC-HCLD2 enhanced-current output buffer circuits
  • Analog preamp circuits with high resolution using TEAC-QVCS

Newly-Developed TEAC Delta Sigma Discrete DAC

Instead of using a generic DAC IC, TEAC incorporated a newly-developed TEAC ΔΣ (Delta Sigma) discrete DAC comprised of discrete circuitry that uses FPGA incorporating their original algorithms. Analog signals are output with high audio quality. DSD signals are transmitted as is, while PCM signals are transmitted after passing through a ΔΣ modulator and conversion to either 1-bit or multi-bit signals; according to the end users choosing.

Dual Mono Structure

TEAC has incorporated a best-in-class dual mono structure throughout the unit, from the power circuit with independent left and right toroidal core transformers to the D/A converter section and analog output stage. This dual model structure, which has complete mono circuits for each of the two channels, prevents interference between the left and right channels, enabling the realization of rich musical expression that reproduces the sense of space and dimension.

Fully Balanced Transmission at Every Stage

The fully balanced transmission of both the left and right analog output signals from after D/A conversion through the final output stage improves the signal-to-noise ratio and the dynamic range. This conveys signals in a purer state without losing the sense of air that high-resolution audio sources have.

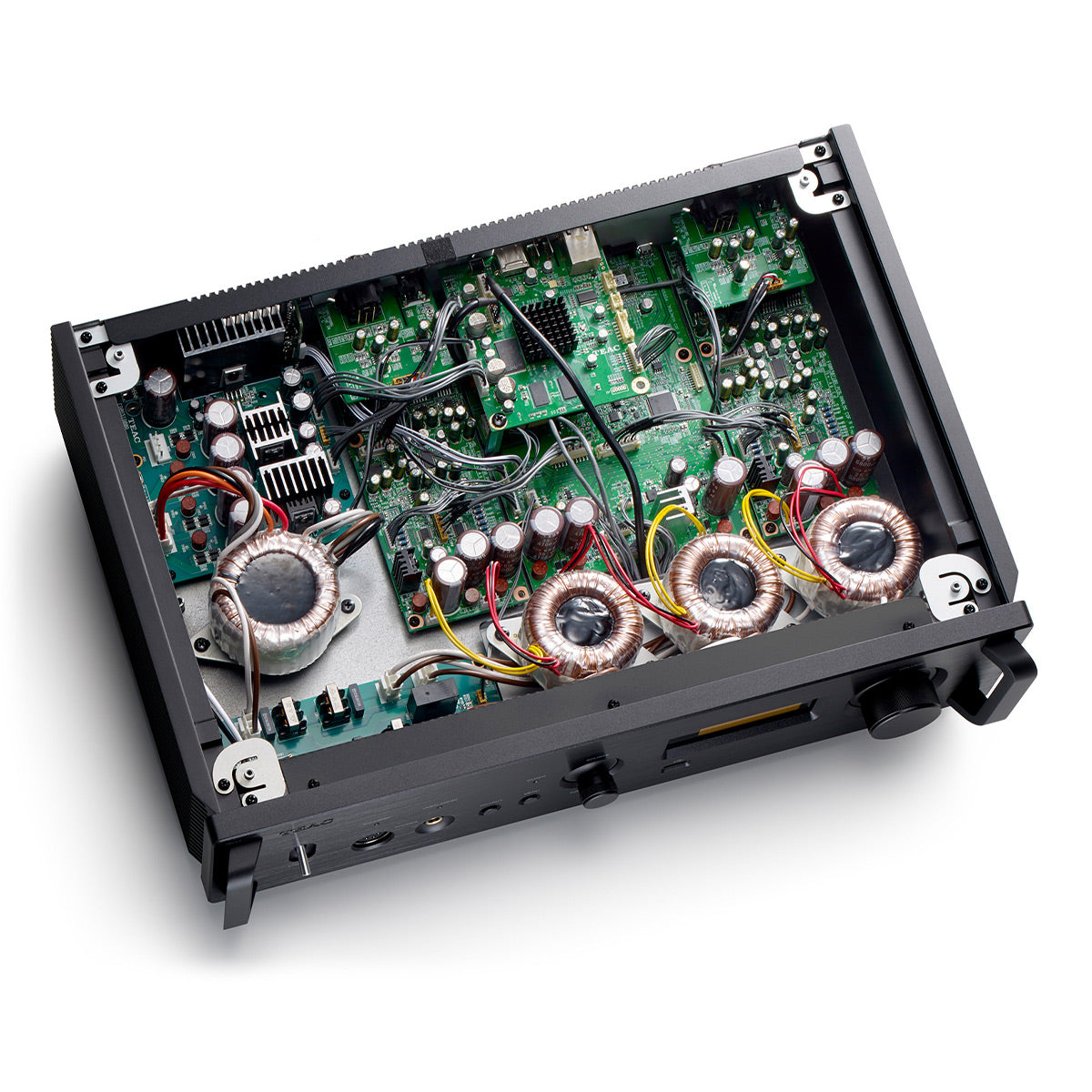

Four High-Capacity Toroidal Core Transformers

In addition to the 2 toroidal core transformers for the independent left and right analog signals, separate toroidal core transformers are also used in both the network module and digital control sections. In particular, stable electricity is supplied to the network module, which requires advanced processing, by strengthening the power supply for the network module section with linear power.

Analog Preamplifier Function With 2 Line Inputs Via RCA/XLR And 4 Digital Inputs

Not only as a USB DAC/Network player that employs two sets of coaxial and optical digital inputs, but the UD-701N also works as a high-quality analog preamplifier by employing additional analog audio inputs via RCA and XLR connectors that allow users to connect conventional audio sources.

Quad Volume Control System

TEAC's QVCS (Quad Volume Control System) is a variable gain amp volume control with four independent circuits for left, right, positive, and negative (L+, L−, R+, and R−). Placing this in the audio signal route makes it as short as possible, preventing the degradation of audio signals caused by drawing them through signal lines. Moreover, since the volume can be adjusted in extremely fine 0.5dB intervals, you can achieve the ideal volume for the audio system or headphones that you are using.

Improved TEAC-HCLD2 Enhanced-Current Output Buffer Circuits

TEAC used TEAC-HCLD2 circuits, which are improved versions of their TEAC-HCLD (TEAC High Current Line Driver) enhanced-current output buffer circuits. These raise the current transmission capabilities that are important in analog output circuits. Each channel has a positive and negative two-circuit structure with diamond buffer amplifiers, which have high current transmission capabilities, used as line drivers. Drive is differential for balanced output and parallel for unbalanced output. By increasing the current supply ability, transmitting the dynamism of audio signals without loss becomes possible.

4-pin XLR Headphone Amplifier That Can Be Switched Between Balanced and Active Ground

A total of four diamond buffers, one in each of the left, right, positive and negative circuits, are used in the dedicated headphone amplifier, enabling the connection of balanced drive headphones. Moreover, even during single-end use, by driving these amps in parallel, they can provide a stronger drive than ordinary single-end headphone amplifiers. This enables the potential of many types of headphones, including 600Ω high-impedance headphones, to be realized.

MQA Full Decoder That Also Supports Digital Inputs

MQA (Master Quality Authenticated) is a high-quality audio codec that enables playback at the same quality level as studio masters. The UD-701N has an MQA decoder that controls D/A-converted waveforms with precision as fine as 5 ms in order to achieve analog waveforms that are true to the original recordings. Playback sound that seems like the original to the human ear can be achieved by greatly reducing the “sound blurring” that occurs easily when sounds start suddenly and at other times when sound pressure differences are extreme. Since a full decoder is included, in addition to file and network playback, MQA data from digital inputs can also be decoded. Playback of MQA CDs is possible by connecting the digital output of a CD player to the UD-701N.

Upconversion

The upconversion function uses RDOT-NEO (Refined Digital Output Technology NEO) to smoothly augment PCM digital audio signals and upconvert their sampling frequencies 2, 4, or 8 times (384kHz maximum). RDOT, which applies an analogous interpolation method using fluency logic, is a technology that was developed to enable reproduction and playback of frequencies higher than 20 kHz that are lost by 44.1kHz/48kHz digital signals. Based on the information read, analogous data is generated between the waveform samples, which also results in data above 20 kHz.

Bluetooth® Receiver Supports LDAC, aptX™ HD, and Other High-Resolution Transmission Formats

In addition to the LDAC™ and LHDC codecs, which can transmit audio data with quality that is considered high resolution (96kHz/24-bit), it also supports Qualcomm® aptX™ HD, which is capable of 48kHz/24-bit transmission. Of course, the popular AAC, Qualcomm® aptX™, and SBC codecs are also supported, so you can easily enjoy high-quality wireless playback from smartphones and digital audio players.

Support For Popular and Convenient Network Functions, Including Openhome and Roon Ready

Smart Home apps can be used with the UD-701N, which also supports this platform. Moreover, playlists on the UD-701N can be managed using TEAC HR Streamer and other control apps that support OpenHome. Gapless playback is also supported. With support for Roon Ready, functions provided by RAAT (Roon Advanced Audio Transport), including high-quality audio playback, easy and convenient operation using apps, and multi-room synchronized playback can be used without limits.

Spotify Connect, Tidal, Qobuz, and TuneIn (Internet Radio)

Along with Spotify Connect, this model also supports Tidal and Qobuz, which are subscription music streaming services that enable listening to lossless CD-quality (44.1kHz/16-bit) recordings.

Bulk Pet USB Transfer Technology Enables Stable Data Transmission

When transmitting large amounts of digital data by USB cable from high-resolution audio sources, large inconsistencies arise in the processing loads of both the sending computer and the receiving USB DAC, and audio dropouts and other problems can occur. Using the Bulk Pet USB transfer technology, however, the same amount of data is transmitted at a steady rate, leveling the processing loads of both sides and realizing stable data transmission. Since changes in computer load conditions can also affect audio quality, you can select from four preset transmission modes to choose your preferred audio quality.

Design Features to Prevent Vibration

A floating structure is utilized to keep transformers, which can easily cause vibrations, isolated from the bottom panel. The lengths of all the side fins, which are for heat dispersion, have also been adjusted to prevent sympathetic vibrations. In addition to using the minimum number of circuit board attachment screws, TEAC original pinpoint feet that utilize a new mechanism to provide play where they contact the bottom panel is used to thoroughly suppress vibrations that affect audio quality.

Specifications

  • Analog audio outputs
    • Connectors: XLR 1 pair (L/R), RCA 1 pair (L/R)
    • Output impedance: XLR: 188 Ω, RCA: 150 Ω
    • Maximum output level (1 kHz, full-scale, 10kΩ load)
      • FIXED 0: dB XLR/RCA: 2.0 Vrms
      • FIXED +6: dB XLR/RCA: 4.0 Vrms
      • VARIABLE XLR: 12 Vrms, RCA: 6 Vrms
    • Frequency response: 5 Hz – 80 kHz (+1 dB/−5 dB)
    • S/N ratio: 110 dB (A-weighted, 1 kHz)
    • Distortion: 0.0015% (1 kHz, LPF: 20 Hz – 20 kHz)
  • Headphone output
    • Connector: 6.3mm Stereo jack (x1), 4-pin XLR jack (x1)
    • Maximum output power
      • Unbalanced 500mW + 500mW (32Ω loaded, THD 0.1%)
      • Balanced 700mW + 700mW (32Ω loaded)
    • Supported impedance: 16 to 600Ω
  • Digital audio inputs
    • COAXIAL digital: RCA jack (1)
    • OPTICAL digital: Rectangular connectors (2)
    • USB drive ports (Type A): Front (1), rear (1), USB 2.0 compliant
      • Maximum current supply 0.5 A
      • Formats FAT32, exFAT, NTFS
    • USB port (Type B): Rear (1), USB 2.0 compliant
      • Maximum current supply 0.5 A
    • LAN: 1000BASE-T8
    • Supported formats
      • USB Input
        • PCM 16/24/32bit: 44.1/48/88.2/96/176.4/192/352.8/384kHz (32/44.1/48/88.2/96/176.4/192/352.8 /384kHz for a USB drive)
        • DSD: 2.8/5.6/11.2/22.5MHz
      • Coaxial Input
        • PCM (16/24bit): 32/44.1/48/88.2/96/176.4/192kHz
        • DSD: 2.8MHz
      • Optical Input
        • PCM (16/24bit): 32/44.1/48/88.2/96/176.4/192kHz
        • DSD: 2.8MHz (Supported with 176.4kHz/24-bit DoP format)
      • Network
        • PCM (16/24/32bit): 32/44.1/48/88.2/96/176.4/192/352.8 /384kHz
        • DSD: 2.8/5.6/11.2/22.5MHz
  • Bluetooth section
    • Bluetooth version: 4.0
    • Output class: Class 2 (About 10m unobstructed transmission range)
    • Supported profiles: A2DP, AVRCP
    • Supported A2DP codecs: LDAC, LHDC, AAC, SBC, Qualcomm® aptX™ audio/HD audio
    • A2DP content protection: SCMS-T
    • Number of saved pairings: 8 maximum
  • External clock input
    • Connector: BNC (x1)
    • Input frequency: 10MHz
    • Input impedance: 50Ω
    • Input level
      • Rectangle wave: equivalent to TTL levels
      • Sine wave: 0.5 to 1.0 Vrms
  • External control
    • Trigger input (12V TRIGGER IN): 1 (3.5mm mono mini jack)
    • Input level: 12 V, 1 mA
    • Trigger output (12V TRIGGER THRU): 1 (3.5mm mono mini jack)
  • General
    • Power
      • AC120V 50Hz/60Hz (US/Canada)
      • AC230V, 50Hz/60Hz (UK/Europe)
    • Power Consumption: 20W (0.4W in standby)
    • Overall dimensions (WxHxD, including protrusions): 17.48” x 4.37” x 13.14”
    • Weight 26.01 lbs
    • Operating Temperature: +39.2 degree F to +65 degree F
    • Operating Humidity Range: 5% to 85% (no condensation)
    • Storage Temperature Range: -4 degree F to +131 degree F

What's In The Box

  • UD-701N Dual-Mono Fully-Balanced Network Player with Built-In Preamplifier and USB DAC
  • Power cord
  • Remote control (RC-1330)
  • Owner's manual
