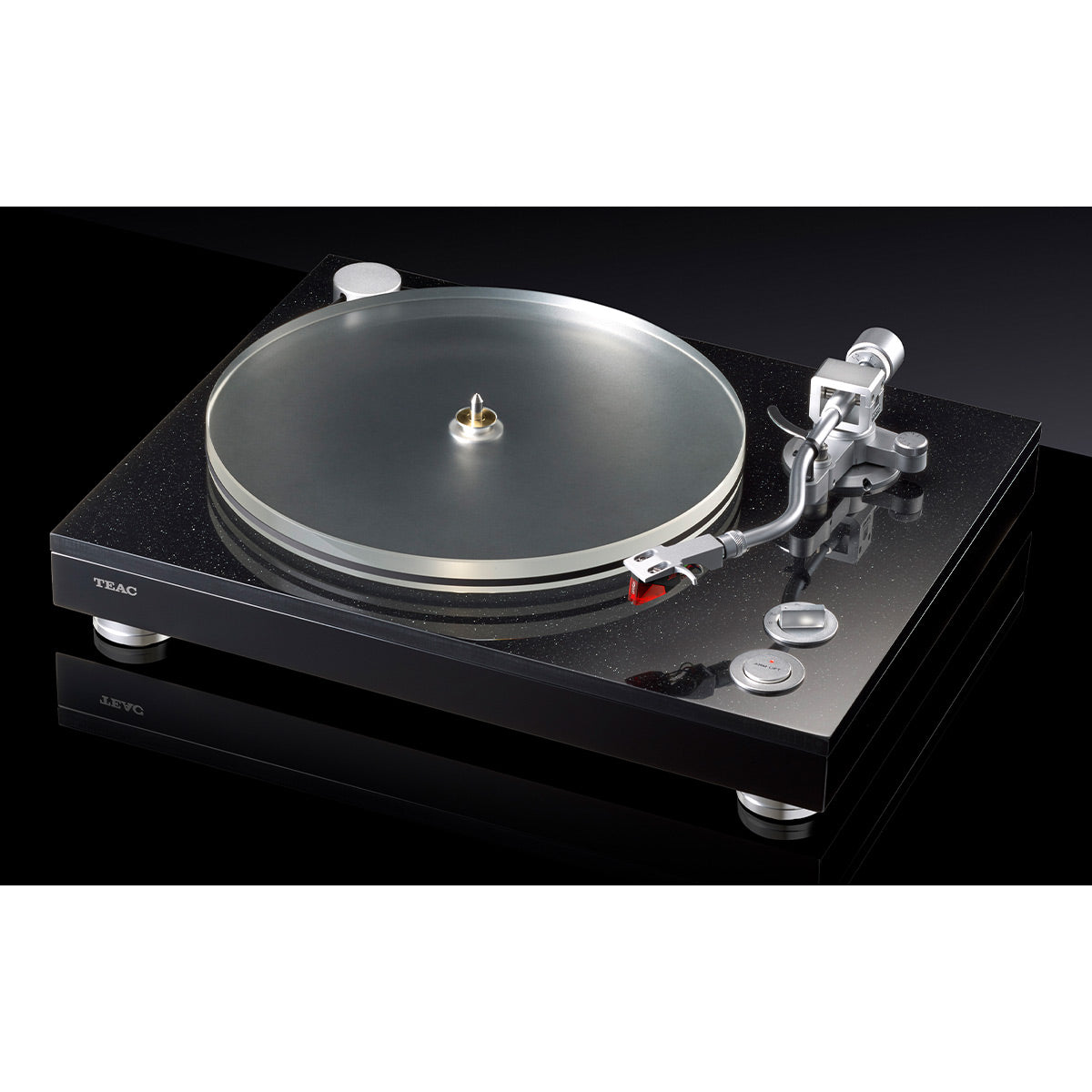

TEAC TN-5BB Balanced Belt-Drive Turntable with Pre-Installed Ortofon 2M Red MM Cartridge

Regular price $1,799.99
Sale price $1,799.99 Regular price
Save $-1,799.99 (%)
OR

In Stock & Ready to Ship
Free Shipping Get it between Wed, Dec 11 – Wed, Dec 18

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Overview

Product Information

Model: TN5BBMB | UPC: 043774034550

Specifications

What's In The Box

Product Information

Model: TN5BBMB | UPC: 043774034550

A high-performance belt-drive analog turntable with XLR outputs, the TEAC TN-5BB turntable delivers precision sound for your favorite records.

Features

  • Hybrid chassis
  • Knife-edge tonearm is an SAEC x TEAC collaboration
  • XLR balanced output
  • PRS3 belt drive structure supports accurate and stable rotation
  • Automatic arm lift function
  • Ortofon 2M Red MM cartridge included

Hybrid Chassis with Multi-Material Makeup Suppresses Unwanted Vibrations

The chassis has a multilayer structure combining a heavy 36mm MDF baseplate with high internal loss and a 12mm synthetic marble with outstanding rigidity. (The weight of the cabinet is 8.8kg.) Great feedback resistance has been realized with this excellent rigidity and vibration suppression. The tonearm and platter are mounted on the synthetic marble top plate while the motor, which causes vibration, is mounted to the MDF base plate. These separate structures using these materials as dampers isolate the tonearm and motor from each other. An overall structure with outstanding stillness has been realized that reduces the transmission of vibrations from the motor to the tonearm.

PRS3 Belt Drive Structure Supports Accurate and Stable Platter Rotation

Ideally, once started, platter rotation would continue by its own weight and inertia, but this is impossible, of course. The TN-5BB uses the belt drive method with a flat belt that transmits the power of the DC motor to the outer circumference of the platter. An optical sensor in the bottom of the platter detects the platter rotation speed, and an automatic rotation adjustment mechanism applies a servo to the motor in response. This Platter Rotation Sensing Servo System (PRS3) realizes high rotation precision that would be difficult to achieve with just inertia and a motor. Supporting three speeds, 33-1/3, 45, and 78 rpm, this turntable can playback old records as well as 78rpm records with high audio quality.

20mm Thick Acrylic Platter

Acrylic with excellent levelness and internal loss is used for the platter. The 20mm-thick acrylic has 1.7kg weight and realizes high inertial momentum. The polyvinyl material used in records easily takes on negative electrical charges. Acrylic has this same property, but these materials are relatively close in triboelectric series*. This provides the advantage of making electrification difficult even if they directly rub against each other. Records can be placed directly on the platter without using a turntable sheet, allowing enjoyment of their clear sound.

Reliable Tracking Realized with Knife-Edge Tonearm

This knife-edge tonearm was created in collaboration with SAEC, a Japanese brand with 40 years of tonearm design experience. Using a stainless-steel knife-edge bearing for the vertical movable part, we have revolutionized record tracking so your sound experience is clearer. Furthermore, for the lateral movable part, a conventional structure that has a ball bearing at one point for support has been replaced with a structure that uses Japanese-made high-precision ball bearings at two points for support. The height of the tonearm base can be adjusted. The Vertical Tracking Angle (VTA) can be adjusted in a 6mm range and optimized for cartridges of various heights. The tonearm geometry adheres to the Baerwald alignment recommended by the IEC.

Automatic Arm Lifting When Playback Ends

Using a powered arm lifter enables raising and lowering the arm with a single button and also employs a function that automatically lifts the arm by a contact-less optical sensor after playback ends. The automatic arm lifting function can be canceled when playing records that do not conform to standards.

Arm Lead Wire Uses PC-Triple C Material Made by SAEC

Lead wire that uses PC-Triple C conductor made by SAEC is employed for the wiring inside the tone arm. With outstanding conductive performance, this conductor transmits even weak signals from analog records.

Ortofon 2M Red Included as Standard MM Cartridge

Ortofon 2M RED MM cartridges included with this model have an established reputation. Since it is already installed and aligned with the head-shell, records can be enjoyed soon after getting the turntable out and setting it up.

XLR Balanced Output Connectors

In addition to ordinary RCA connectors, XLR connectors are also available for analog output. A variety of commercially available cables can be used to connect with a PE-505 or other external phono equalizer that supports balanced XLR input.

Attractive Design - Pearl Black and Piano Black With Silver Parts

The fundamental theme of this design is the contrast between black and silver. The MDF used in the cabinet has a piano black finish with a beautiful luster. In addition, the synthetic marble that comprises the top panel appears to be jet black when viewed from a distance, but it sparkles at points in pearl black when seen closer up. This appearance also changes depending on the viewing angle. Although simple, this design inspires aesthetic joy to the eye. Moreover, we incorporated extruded aluminum components with a luxurious feel for the operation knobs and the arm lift switch, as well as the feet.

Specifications

  • Turntable (platter)
    • Drive system: Rotation-detection-type high-precision control belt drive
    • Motor: DC motor
    • Rotation speed: 33 1/3 rpm, 45 rpm, 78 rpm
    • Wow and flutter: 0.1% or less
    • Turntable (platter): Acrylic, 30cm diameter
  • Cartridge
    • Type: MM
    • Output voltage: 5.5 mV (1 kHz, 5 cm/s)
    • Tracking force: 1.8 g
    • Cartridge weight: 7.2 g
    • Included head-shell weight: 10 g (including screws, nuts and wires)
    • Replacement record stylus model: Ortofon 2M Red
  • Tone arm
    • Arm type: Static-balanced S-shaped tone arm
    • Effective arm length: 223 mm
    • Suitable cartridge weight: 4.0–13 g (14–23 g including head-shell)
    • Overhang: 18 mm
    • Arm height adjustment range: about 6 mm
  • General
    • Power AC Adapter
    • Input : AC 100V-AC 240V 50/60Hz
    • Output : DC 12.0V, 1.0A, 12.0W max
    • Power Consumption < 2.0W (0.3W at Standby)
    • Weight Approx.: 23.14 lbs
  • Dimensions (W × H × D) (including protrusions)
    • With dust cover closed:  17.1" × 5.8" × 13.8"
    • With dust cover open: 17.1" × 16.5" × 16.1"
    • With dust cover removed (when arm holder at highest position): 17.1" × 5.3" × 13.8"

* Performance data is specified at 20 degree C.

What's In The Box

  • TN-5BB Balanced Belt-Drive Turntable with Pre-Installed Ortofon 2M Red MM Cartridge
  • 45RPM Adapter
  • Counter Weight
  • Head-shell (Ortofon 2M Red installed)
  • Platter
  • Flat Belt
  • Pulley Cover
  • Dust Cover
  • (2) Hinge
  • (4) Foot Height Adjustment Washers
  • Arm Height Adjustment Hex Wrench
  • RCA Audio Cable
  • Ground Wire
  • AC Adapter (GPE018S-120100-Z)
  • Cartridge Alignment Gauge
  • User Manual

*Please Note: This turntable must be connected to an amplifier/receiver and speakers, or a pair of self-powered speakers, sold separately.
