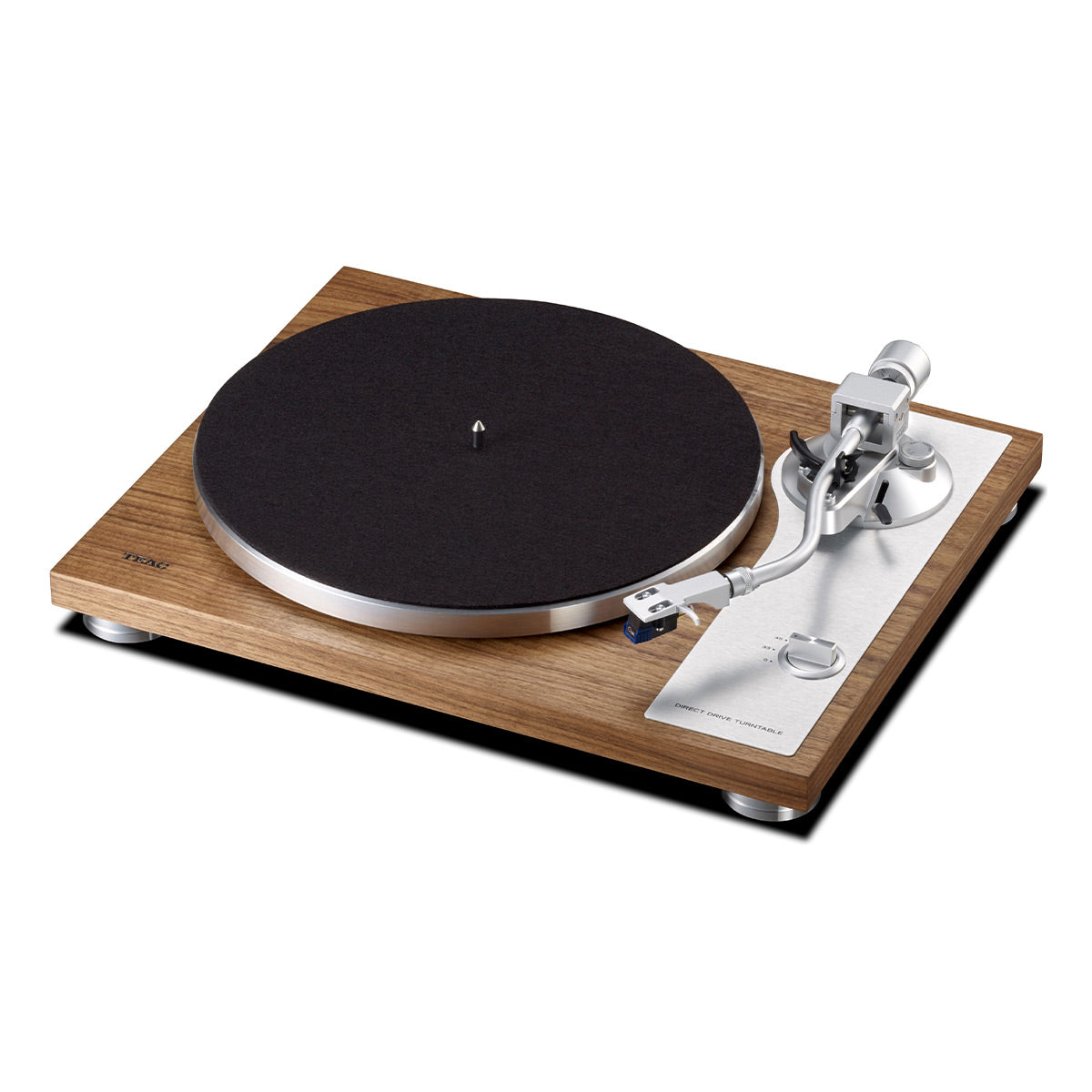

TEAC TN-4D-SE Direct-Drive Turntable with SAEC Tonearm, Built-In Phono Amp, Anti-Skate, and Pre-Installed Sumiko MM Cartridge (Walnut)

Regular price $749.99
Sale price $749.99 Regular price
Save $-749.99 (%)
OR

In Stock & Ready to Ship
Free Shipping Get it between Tue, Apr 23 – Tue, Apr 30
Other Options

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Overview

Product Information

Model: TN4DSEWA | UPC: 043774035410

Specifications

What's In The Box

Product Information

Model: TN4DSEWA | UPC: 043774035410

Crystal-Clear Sound

The TN-4D-SE is a direct-drive, analog turntable with an elegant, low-profile design, made possible by the use of a newly-developed brushless DC servo motor.

Features

  • Direct-drive analog turntable
  • Crystal-locked speed stability, thanks to a new brushless DC motor with feedback control
  • Die-cast aluminum platter
  • Knife-edge, pivot-point tonearm bearings, designed by high-end tonearm manufacturer SAEC
  • Multi-layer Piano Black or natural Walnut veneer finish
  • Built-in PHONO EQ amplifier for high-quality sound (PHONO/LINE switchable)
  • 2-speed drive for 33-1/3 and 45 rpm
  • Gold-plated output connectors to resist oxidation
  • Acclaimed Oyster MM cartridge by SUMIKO

A sleek motor developed exclusively for direct-drive turntables

The TN-4D-SE uses a sleek, brushless DC motor, offering crystal-locked speed accuracy, regulated by a computer-controlled feedback circuit and achieving low wow-and-flutter levels for a direct drive turntable, especially one with such a stylish, low-profile design.

Knife-edge, pivot-point tone-arm bearings

The TN-4D-SE's tonearm employs a knife-edge, pivot-point bearing. Unlike the case for tonearms with conventional bearings, any fine vertical movements encountered by this tonearm actually help in delivering a more dynamic sound with excellent resolution. The S-shaped tonearm also employs a universal headshell fitting, allowing users to quickly and easily swap cartridges/headshells, and supports a wide range of cartridge weights (from 14 - 23g / 0.5 - 0.8 oz.)

Precision anti-skating and stylus-pressure adjustment

As you might expect, the tonearm is equipped with a counterweight, for precise stylus-pressure adjustment, and an anti-skating mechanism.

Pre-installed Oyster cartridge by SUMIKO

The TN-4D-SE comes with a well-regarded Oyster MM cartridge from SUMIKO – a legendary American cartridge manufacturer. The Oyster cartridge delivers a powerful soundstage, regardless of what music you pick.

Built-in PHONO EQ amplifier supporting MM cartridges

The TN-4D-SE comes with a built-in PHONO EQ amplifier that allows you to directly connect the turntable to the line-level inputs of your existing hi-fi system. The NJM8080 IC from New Japan Radio Corporation is employed for op-amp duties, bringing up the level of the tiny signals received via the cartridge up to LINE level strength without any loss of quality.

Die-cast aluminum platter

In conjunction with the newly-developed motor, the high inertia, die-cast aluminum platter helps to achieve better speed stability.

Insulating feet with excellent shock absorption

The insulating feet comprise a machined aluminum shell topped with a rubber cushion that is fixed to the high-density MDF plinth. Thanks to their excellent shock absorption characteristics the TN-4D is very resistant to acoustic feedback.

2-speed turntable for 33-1/3 and 45 rpm

The TN-4D-SE supports 33-1/3 and 45 rpm for LP and EP records. Our insistence on quality engineering can even be seen in the construction of the rotary control for start-up/speed selection, formed of machined aluminum.

Specifications

  • Turntable
    • Type: Direct Drive
    • Motor: Brush-less DC Motor
    • Rotation Speeds: 33-? rpm, 45 rpm
    • Wow-and-Flutters: 0.1%
    • S/N Ratio: 67dB or higher (A-weighted, 20kHz LPF)
    • Turntable (Platter)
    • Material: Aluminum Die-cast
    • Diameter: 30cm
  • Tone-arm
    • Type: S-shaped, Static-balanced
    • Effective Length: 223mm
    • Needle Pressure Range: 0g to 5.0g
    • Compatible: 4.0g to 13.0g
    • Cartridge Weight: 14g to 23g (including Head-shell)
  • Head-shell and Cartridge
    • Type: MM-type (SUMIKO Oyster factory installed)
    • Output Voltage: 4.0mV (1kHz)
    • Needle Pressure: 1.5 to 2.5g (appropriate value: 2.3g)
    • Weight: 5.3g
    • Head-shell weight: 10g (including nuts, screws, and wires)
    • Compatible Stylus: Styluses for SUMIKO Oyster
  • Analog Outputs
    • Connector: RCA Pin jack × 1 pair (PHONO/LINE switchable)
    • Output Voltage
      • PHONO: 4.0mV (1kHz)
      • LINE: 224mV (–13dBV)
  • General
    • Operating Power: AC 100 to 240V, 50/60Hz
    • Power Consumption: 2W
    • Standby Power: 0.5W or less
    • Overall Dimensions (W × H × D): 16.5" × 4.6" × 14.0"
    • Weight  Approx.: 13.5 lbs.

What's In The Box

  • TN-4D-SE Direct-Drive Turntable with SAEC Tonearm, Built-In Phono Amp, Anti-Skate, and Pre-Installed Sumiko MM Cartridge
  • Felt Mat
  • EP Adapter
  • Counter Weight
  • Head-shell (SUMIKO Oyster installed)
  • Platter
  • Dust Cover
  • (2) Hinges
  • RCA Audio cable with GND terminal
  • AC Adapter (GPE036W-24015)
  • Owner's Manual

*Please Note: This turntable must be connected to an amplifier/receiver and speakers, or a pair of self-powered speakers, sold separately.
