TEAC TN-400BT-X Belt-Drive Turntable with Bluetooth, Built-In Phono Amp, Anti-Skate, and Pre-Installed Audio-Technica MM Cartridge (Walnut)

Regular price $499.99
Sale price $499.99 Regular price
$549.99 Save $50.00 (9%)
OR

Limited time offer! Sale ends 6/16/2024.
In Stock & Ready to Ship
Free Shipping Get it between Wed, May 22 – Wed, May 29

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Overview

Product Information

Model: TN400BTXWA | UPC: 043774035366

Specifications

What's In The Box

Product Information

Model: TN400BTXWA | UPC: 043774035366

Enjoy Your Vinyl and Cut The Cord

The TN-400BT-SE is an analog turntable with Bluetooth® built-in so you can enjoy your favorites using wireless headphones & speakers. A die-cast aluminum platter provides accurate rotational speed while an S-shaped static-balanced aluminum tone-arm provides accurate tracking. The built-in Phono EQ amplifier enables the TN-400BT-SE to be connected to a conventional hi-fi amplifier or a micro hi-fi, while a universal-type headshell allows users to change cartridges with ease.

Features

  • High-quality Bluetooth® Qualcomm® aptXTM Adaptive wireless audio transmission
  • Available in a selection of contemporary matt finishes or a natural walnut veneer
  • 3-speed (including 78rpm) belt-drive mechanism with aluminum die-cast platter
  • Low-friction spindle for stable rotational speed
  • Static-balanced S-shaped tonearm with universal headshell
  • Fitted Audio-Technica MM-type cartridge (AT95E)
  • Gold-plated RCA Jacks for LINE/PHONO output

Aluminum Die-Cast Platter with 3-Speed Belt-Drive

A die-cast, high-inertia aluminum platter is driven by a high-torque DC motor via a durable rubber flat-belt, giving immensely stable playback at 33-1/3, 45 and 78 rpm speeds.

New low-resistance spindle

A precisely-machined stainless steel spindle and durable brass bearing maintain accurate rotational speed, thanks to reduced friction.

Natural walnut veneer finish with laser-engraved logo

The TN-400BT-SE is available in a natural varnished walnut veneer finish with a laser-engraved TEAC logo.

Built-in Phono EQ amplifier

The TN-400BT-SE has an onboard Phono EQ amplifier that supports MM-type cartridges, allowing the deck to be connected to conventional amplifiers/microsystems that lack a dedicated turntable input. The Phono EQ amplifier employs a hi-fi quality NJM8080 op-amp chip (designed by JRC) which amplifies the tiny audio signal from the stylus with the minimum of distortion.

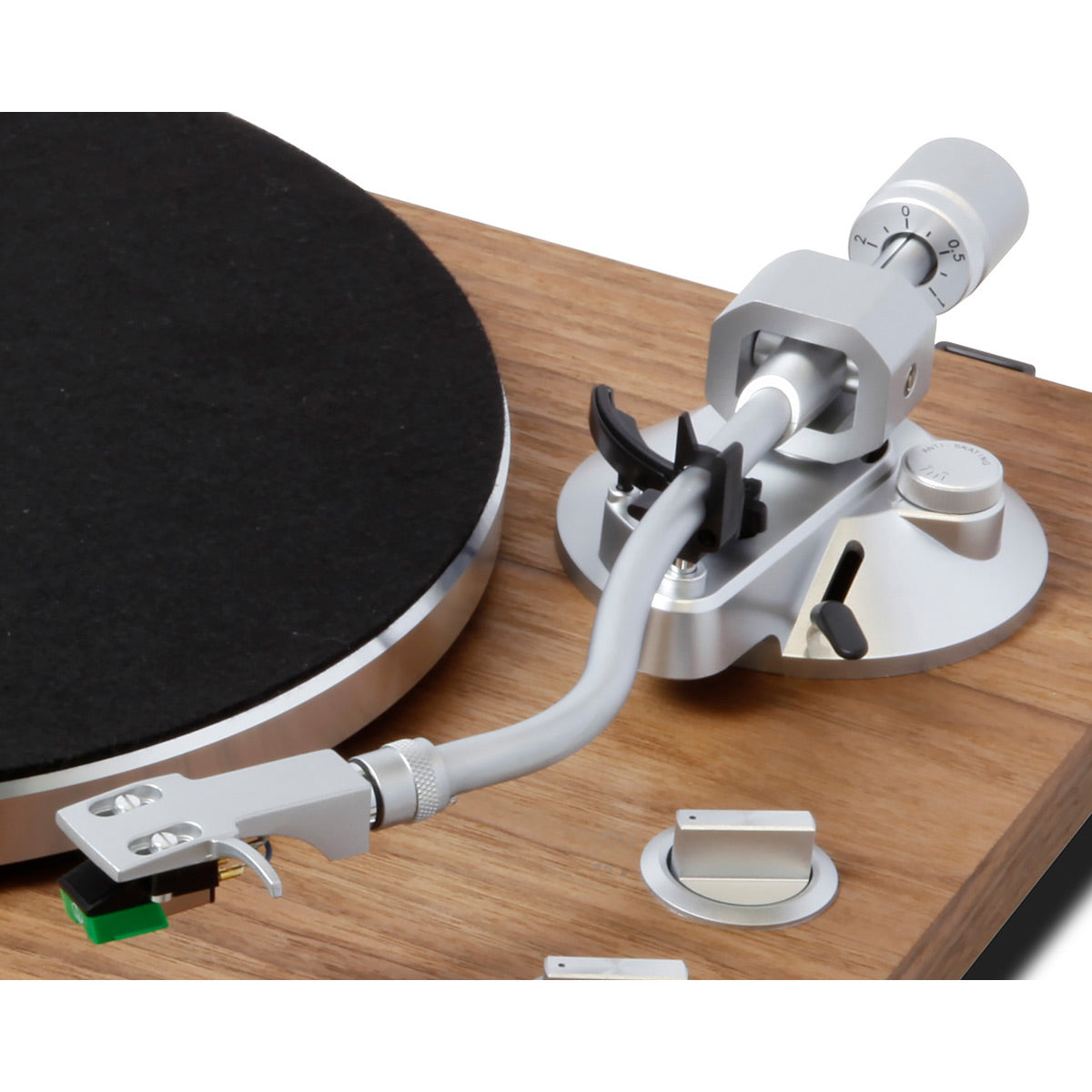

S-shaped static-balanced tone-arm

The S-shaped, static-balanced aluminum tone-arm is equipped with a counterweight and anti-skating mechanism that allow an exact setting of balance as well as tracking pressure, ensuring accurate tracking during playback. A tone-arm lifter is also fitted for smooth lowering of the tone-arm onto records. The tone-arm takes universal-type headshells so users can change cartridges with relative ease. In order to reduce signal losses between the tone-arm and the headshell, gold-plated contact points are employed, to help deliver an uncorrupted audio signal.

Bluetooth® wireless audio streaming with Qualcomm® aptX™ codec

The TN-400BT-SE's Bluetooth® wireless transmission system supports the higher quality Qualcomm® aptX™ and AAC codecs, as well as the conventional SBC codec. This means that even if users don't have a hi-fi system, you can still enjoy truly high-quality vinyl replay via Bluetooth®-equipped headphones or speakers. Connecting the TN-400BT-SE to Bluetooth® headphones or speakers is achieved very simply, at the touch of a button. A single-function pairing key and an associated LED indicator provide simple and clear confirmation of the connection status.

Beautifully detailed

The TN-400BT-SE brings elegance to the process of playing a record. The machined aluminum operation knobs ooze quality while the aluminum feet are attached to high-density MDF chassis via shock-absorbing rubber, providing high feedback resistance.

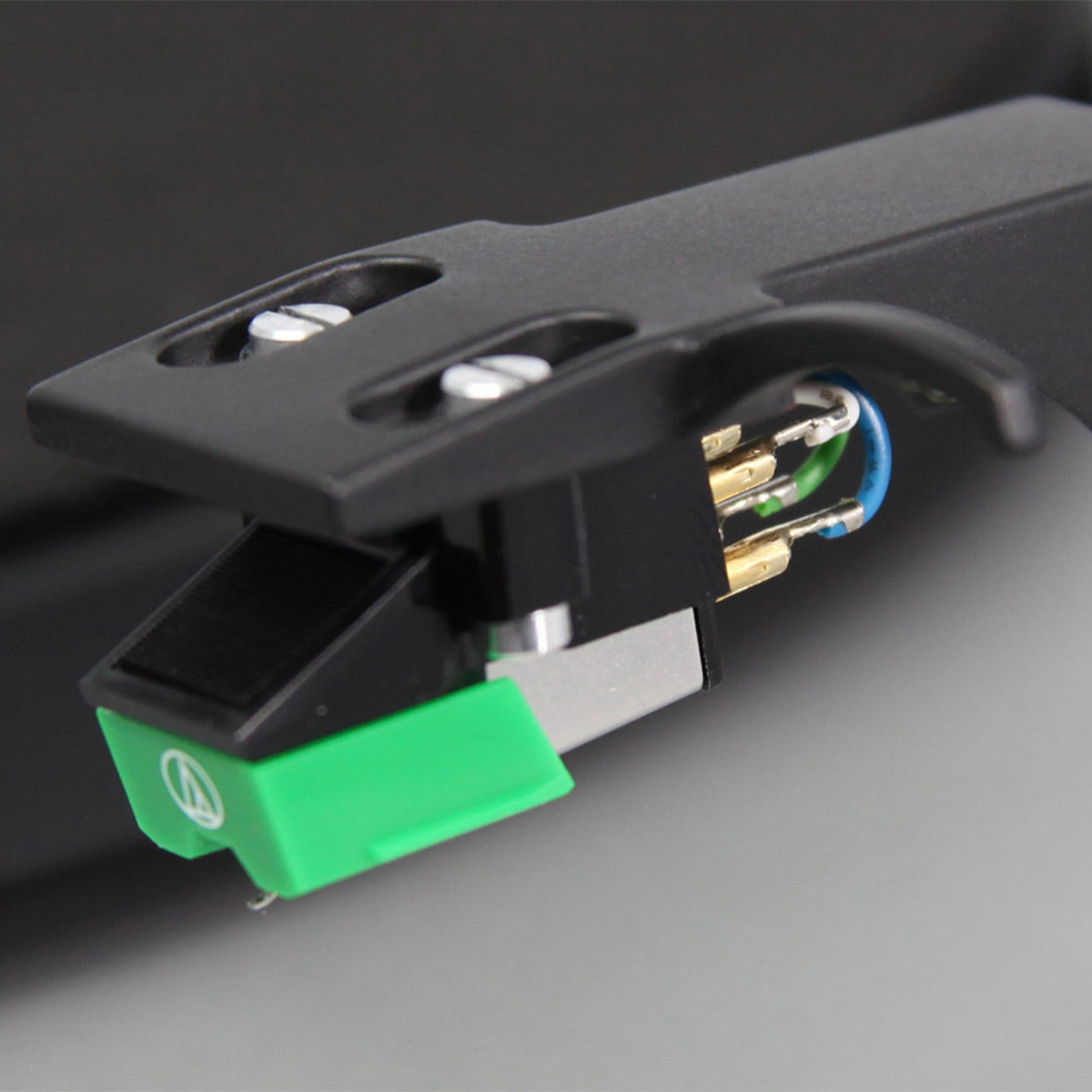

MM-type Cartridge from Audio-Technica

The deck comes with an excellent, all-purpose MM cartridge, employing a lightweight aluminum cantilever, which helps deliver an accurate, highly musical standard of playback.

Specifications

  • Turntable
    • Type: Belt Drive
    • Motor: DC Motor
    • Rotation Speeds: 33-?, 45, 78 rpm
    • Wow-and-Flutters: 0.2%
    • S/N Ratio
    • more than 67dB (A-weighted)
    • 60dB (unweighted, 20kHz, LPF)
  • Turntable (Platter)
    • Material: Aluminum Die-cast
    • Diameter: 30cm
  • Tone-arm
    • Type: S-shaped, Static-balanced
    • Effective Length: 223mm
    • Needle Pressure Range: 0g to 5g
    • Compatible Cartridge Weight: 4g to 8g (14g to 18g including Head-shell)
  • Head-shell and Cartridge
    • Model of Cartridge: Audio-Technica AT95E
    • Type of Cartridge: MM-type (VM-type)
    • Frequency Response: 20Hz to 20,000Hz
    • Output Voltage: 3.5mV (1kHz, 5cm/sec.)
    • Channel Separation: 20dB (1kHz)
    • Output Balance: 2.0 dB (1kHz)
    • Needle Pressure: 1.5g to 2.5g (appropriate value: 2.0g)
    • Needle Life: approx. 300 hours (depends on conditions)
    • Coil Impedance: 2.8kohms (1kHz)
    • DC Resistance: 410ohms
    • Loading Resistance: 47kohms
    • Loading Capacity: 100 to 200pF
    • Coil Inductance: 400mH (1kHz)
    • Static Compliance: 20 × 10-6cm/dyne
    • Dynamic Compliance: 6.5 × 10-6cm/dyne (100Hz)
    • Needle Shape: Joint-oval 0.3 × 0.7mil
    • Cantilever: Aluminum Pipe
    • Vertical Tracking Degree: 20 degrees
    • Overall Dimensions (W x H x D): .66” × .67” × 1.2”
    • Weight: 5.7 g
    • Head-shell Weight: 10g (including nuts, screws, and wires)
  • Analog Output
    • Connectors: RCA jack × 1 pair (Gold-plated)
    • Output Voltage
      • PHONO: 3.5mV +/-3dB
      • LINE: 155mV (-16dBV)
  • Bluetooth®
    • Bluetooth version: 4.0 (DUAL MODE)
    • Output class: Class 2
    • Codecs: SBC, AAC, Qualcomm® aptX™
    • Maximum number of stored pairings: 8 devices
  • Operation
    • AC Adapter Input: AC 100 - 240V, 50/60Hz
    • AC Adapter Output: DC 12V 500mA
    • Power Consumption: 1.5W or less
    • Standby Power: 0.5W or less
    • Dimensions (W x H x D) (including protrusions): 16.5" × 4.6" × 14.0"
    • Weight: 10.8lbs
    • Operating temperature range: 5°C to 35°C

What's In The Box

  • TN-400BT-X Belt-Drive Turntable with Bluetooth, Built-In Phono Amp, Anti-Skate, and Pre-Installed Audio-Technica MM Cartridge (Walnut)
  • Accessories Felt Mat
  • EP Adapter
  • Counter Weight
  • Headshell (audio-Technica AT95E installed)
  • Platter, Dust Cover
  • (2) Dust Cover Hinges
  • RCA Audio Cable with GND wiring
  • AC Adapter (GPE053A-V120050-Z)
  • Owner's Manual

*Please Note: Speakers sold separately
