TEAC TN-3B-SE Manual Belt-Drive Turntable with SAEC Tonearm, Built-In Phono Amp, Anti-Skate, and Pre-Installed Audio-Technica MM Cartridge (Black)
Overview
Product Information
Specifications
What's In The Box
Product Information
A new, high-performance standard for belt-drive analog turntables
The TN-3B-SE is a stylish, sleek-looking belt-driven turntable with a built-in MM-type PHONO EQ amplifier. It delivers natural and well-balanced sound quality and is quick and easy to set up and start enjoying. TEAC believes it sets a new standard that will satisfy the needs of both audiophiles and ardent record collectors.
Features
- 2-speed, belt-drive turntable offering 33-1/3 and 45 rpm speeds
- Knife-edge, pivot-point tonearm designed by high-end tonearm manufacturer SAEC
- Static-balanced, S-shaped tone-arm with pre-installed audio-technica AT-VM95E MM cartridge
- Die-cast aluminum platter
- PHONO/LINE analog outputs (switchable)
- Built-in PHONO EQ amplifier, compatible with MM-type cartridges
- Hi-fi grade NJM8080 op-amp used in PHONO EQ stage

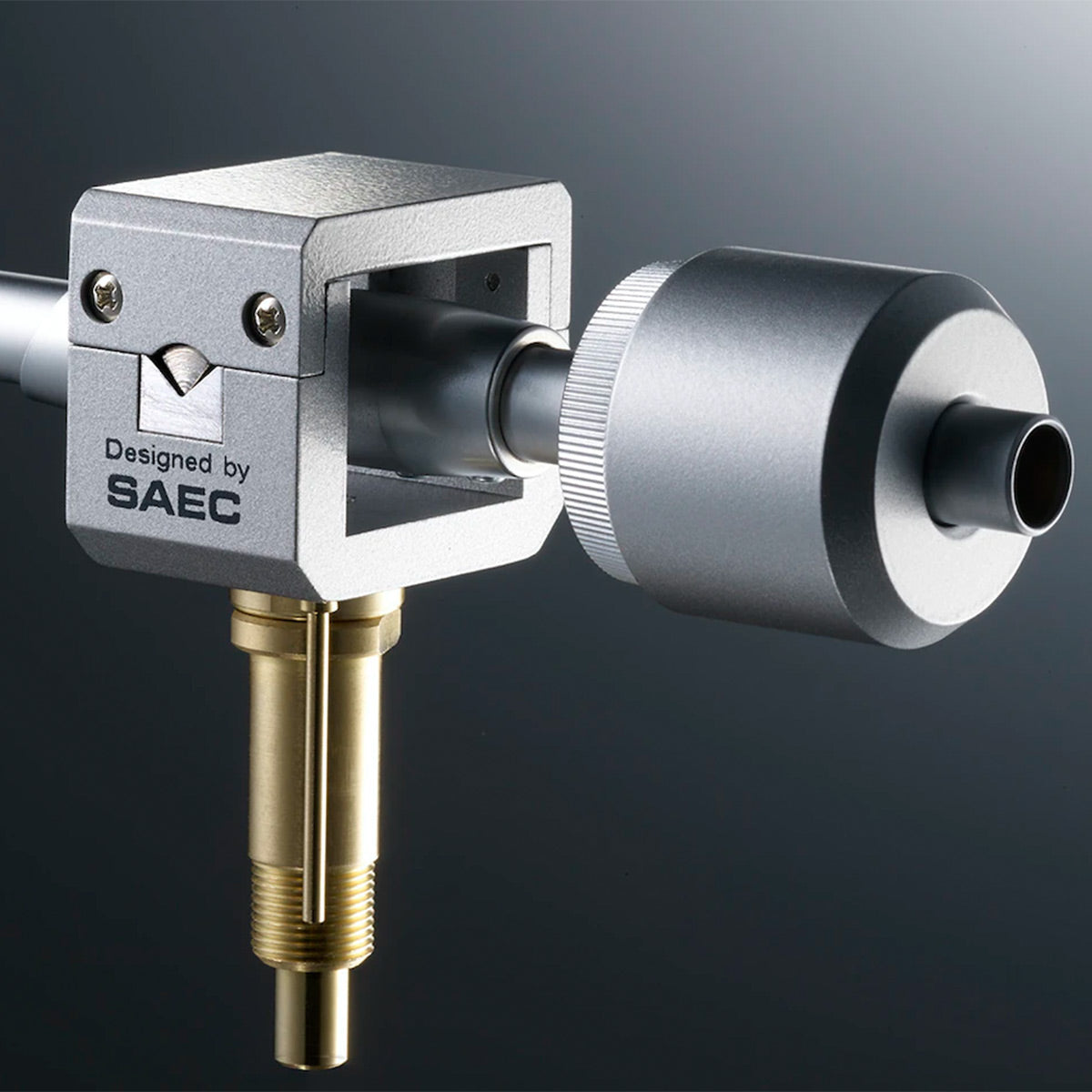

Knife-edge, pivot-point tone-arm bearings
The TN-3B-SE's tone-arm from SAEC employs a knife-edge, pivot-point bearing. Unlike the case for tonearms with conventional bearings, any fine vertical movements that take place in this tone-arm actually help in delivering a more dynamic sound with excellent resolution. The S-shaped tone-arm also employs a universal head-shell fitting, allowing users to quickly and easily swap cartridges/head-shells, and supports a wide range of cartridge weights (from 14 - 23g / 0.5 - 0.8 oz.).
Precision anti-skating and stylus-pressure adjustment
The static-balanced, S-shape tone-arm is equipped with a counterweight for precise stylus-pressure adjustment, as well as an anti-skating mechanism for accurate tracking force adjustment, allowing the cartridge to accurately play any quality vinyl disc.
Pre-installed VM-series cartridge
A VM-type cartridge the AT-VM95E manufactured by audio-Technica with an elliptical-shaped stylus tip comes pre-installed on the head-shell for convenience. After you’ve opened the box, set up the platter, and mounted the head-shell on the tonearm, you'll be ready to enjoy your records.
Built-in MM-type phono EQ amplifier
The TN-3B-SE incorporates an MM-type phono EQ amplifier, allowing you to connect the turntable to a conventional amplifier/hi-fi system that lacks a PHONO input. A low distortion, hi-fi-grade op-amp, the NJM8080, is employed to boost the low-level signals from the phono cartridge up to LINE level.
External belt-drive with an aluminum die-cast platter
A belt-drive arrangement is employed in order to minimize any motor cogging effects by driving the outer rim of the platter (which has a larger diameter, mass, and surface area).
Luxurious, multi-layer lacquer paint finish
All internal components are mounted on a robust and high-density MDF plinth for rigidity and vibration-deadening. Thanks to its sleek and stylish design, the TN-3B-SE looks at home in most domestic environments, creating the perfect setting for listening to vinyl records.
2-speed turntable for 33-1/3 and 45 rpm
The TN-3B-SE supports 33-1/3 and 45 rpm for LP and EP records. Our insistence on quality engineering can even be seen in the construction of the rotary control for start-up/speed selection, formed of machined aluminum.
Insulating feet with excellent shock absorption
The insulating feet comprise a machined aluminum shell, topped with a rubber cushion that is fixed to the high-density MDF plinth. Thanks to their excellent shock absorption characteristics, the TN-3B-SE is very resistant to acoustic feedback.
Honeycomb patterned bottom panel
In order to achieve a sleek cabinet design without compromising rigidity, the bottom panel is imprinted with a honeycomb pattern that minimizes unwanted vibrations.
Specifications
- Turntable
- Type: Belt-drive (External drive)
- Motor: DC Motor
- Rotation Speeds: 33-1/3 rpm, 45 rpm
- Wow-and-Flutters: 0.1% or less
- S/N Ratio: 67dB (A-weighted, 20kHz LPF)
- Turntable (Platter)
- Material: Aluminum Die-cast
- Diameter: 30cm
- Tone-arm
- Type: S-shape, Static-balanced
- Effective Length: 223mm
- Needle Pressure Range: 0g to 5.0g
- Compatible: 3.0g to 12.0g
- Cartridge Weight: 14g to 23g including Head-shell
- Cartridge section
- Type: MM-type
- Output Voltage: 4.0mV (1kHz, 5cm/sec.)
- Needle Pressure: 1.8 to 2.2g (2.0g recommended)
- Weight: 6.1g
- Head-shell weight: 11g (including screws, nuts, and wires)
- Compatible Stylus: AT-VMN95E * Average stylus life: approx. 300 hours.
- Analog Outputs
- Connector: RCA Pin jack × 1 pair (Gold-plated)
- Output Voltage
- PHONO: 4.0mV (1kHz)
- LINE: 224mV (–13dBV)
- Audio Format: PCM, 8k/11.025k/16k/22.5k/32k/44.1k/48kHz, 16bit
- General
- Operating Power: AC 100 to 240V, 50/60Hz
- Power Consumption: 1.5W
- Standby Power: 0.5W
- Overall Dimensions (W × H × D): 16.5" × 4.6" × 14.0" (including protrusions)
- Weight approx.: 11.0 lbs.
What's In The Box
- TN-3B-SE Manual Belt-Drive Turntable with SAEC Tonearm, Built-In Phono Amp, Anti-Skate, and Pre-Installed Audio-Technica MM Cartridge
- Felt Mat
- EP Adapter
- Counter Weight
- Head-shell (AT-VM95E installed)
- Platter
- Dust Cover
- (2) Hinges
- RCA Audio cable with GND terminal
- AC Adapter (GPE053A-V120050)
- Owner's Manual
*Please Note: This turntable must be connected to an amplifier/receiver and speakers, or a pair of self-powered speakers, sold separately.
