TEAC TN-180BT-A3 Belt-Drive Turntable with Bluetooth, Built-In Phono Amp, & Pre-Installed Audio-Technica MM Cartridge

Regular price $219.99
Sale price $219.99 Regular price
Save $-219.99 (%)
OR

In Stock & Ready to Ship
Free Shipping Get it between Tue, May 21 – Tue, May 28

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Overview

Product Information

Model: TN180BTA3B | UPC: 043774034826

Specifications

What's In The Box

Product Information

Model: TN180BTA3B | UPC: 043774034826

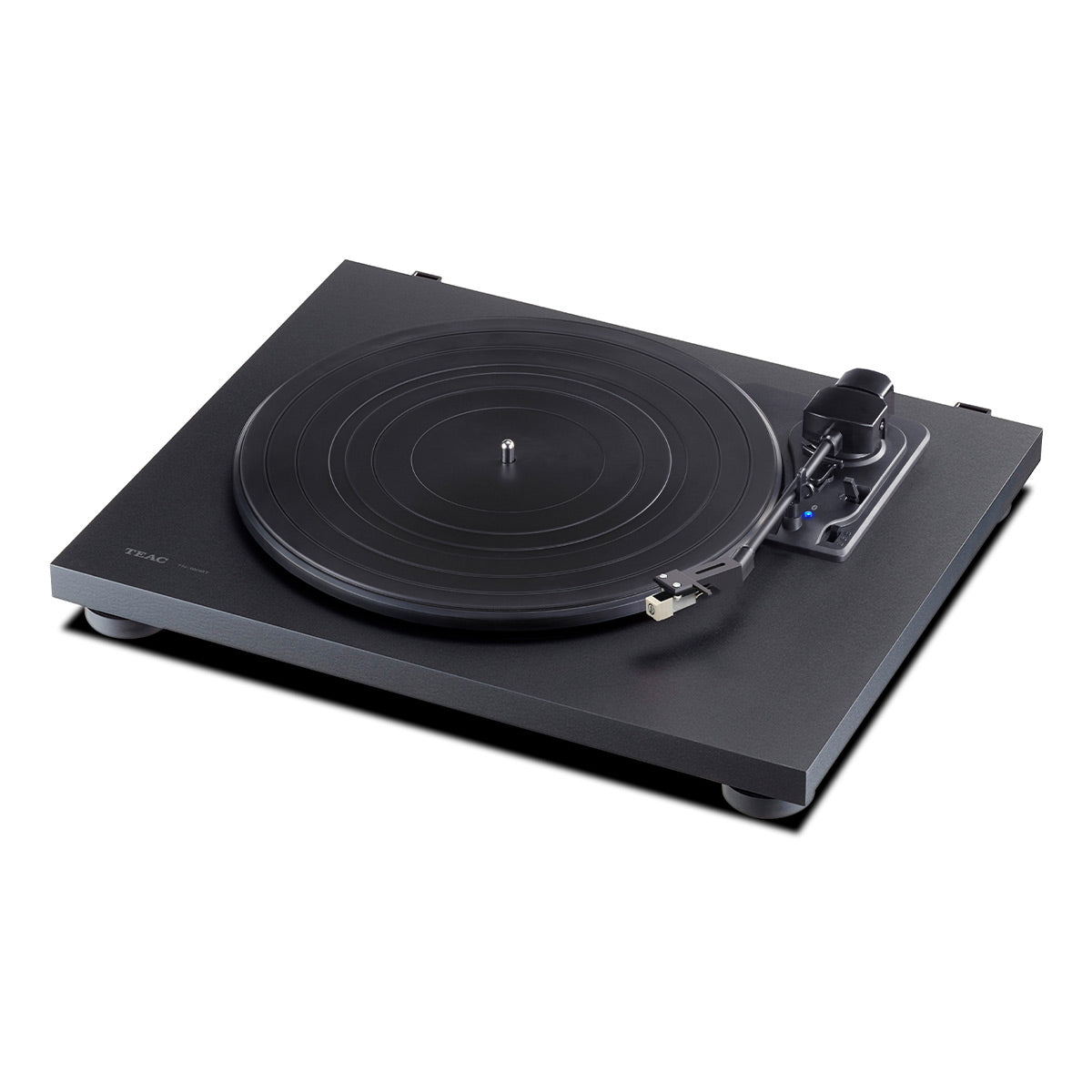

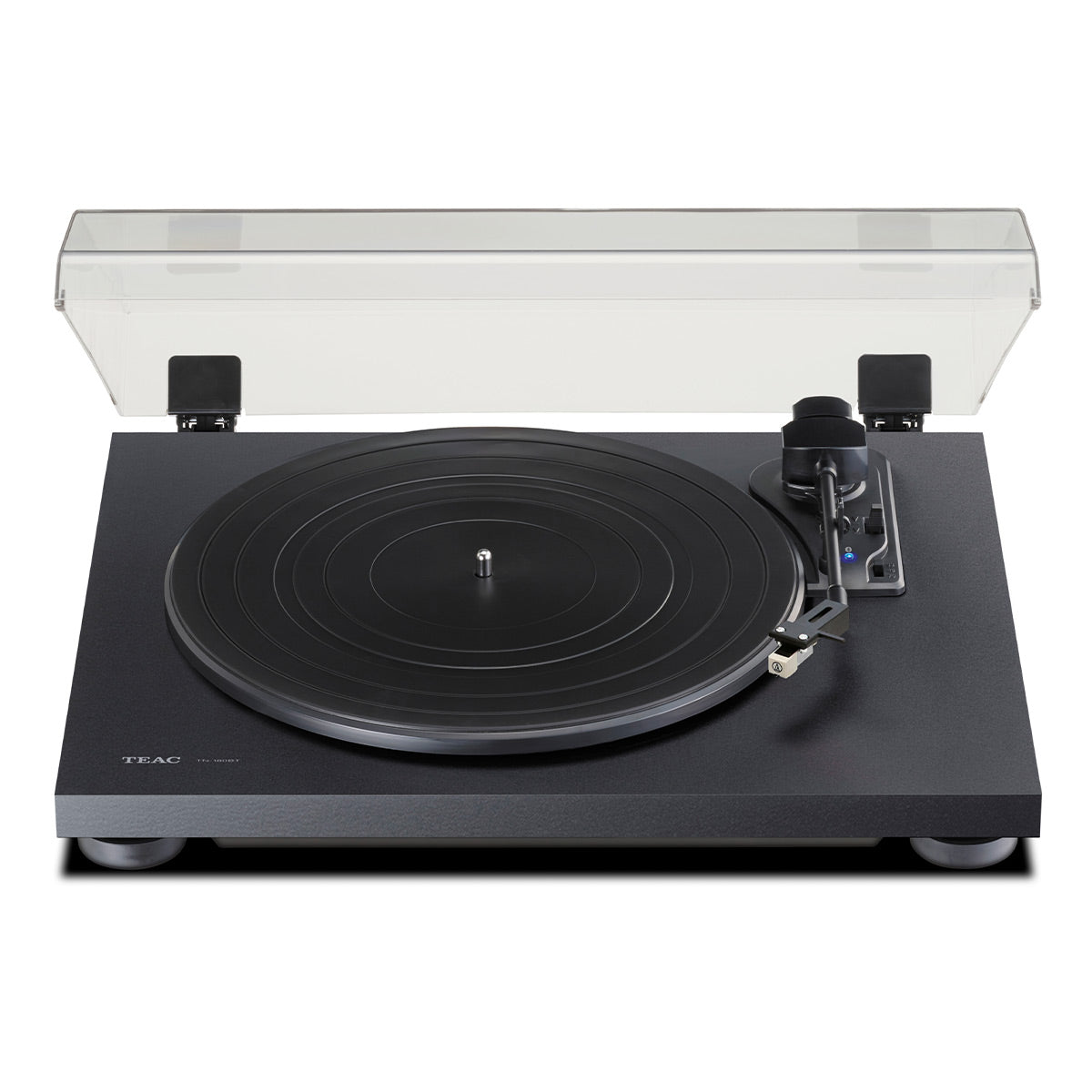

The Simplest Way To Enjoy Vinyl

The TN-180BT-A3 brings you a totally new way of listening to vinyl records with its Bluetooth® capability. No extra cost for hi-fi components or complicated wiring is required. Only Bluetooth® speakers or headphones you might have for smartphones/tablets are required to enjoy the world of vinyl records. Designed for music enthusiasts, the belt-drive motor ensures a clearer sound than direct-drive DJ players, while selectable outputs, Phono, Line or Bluetooth allow you to connect any type of amplifiers, powered speakers or Bluetooth devices. For music lovers who have been collecting vinyl records for decades or those just starting out, TEAC’s TN-180BT-A3 delivers the true sound of vinyl records.

Features

  • 3-Speed belt-drive turntable supporting 33/45/78 rpm
  • Built-in Bluetooth transmitter to BT speakers or headphones
  • Built-in Phono equalizing amplifier and Phono and Line outputs
  • VM (equivalent to MM) cartridge AT3600L by Audio-Technica pre-installed
  • High-density MDF cabinet for improved resonance reduction
  • Auto-return and manual arm lifter

Easy Listening

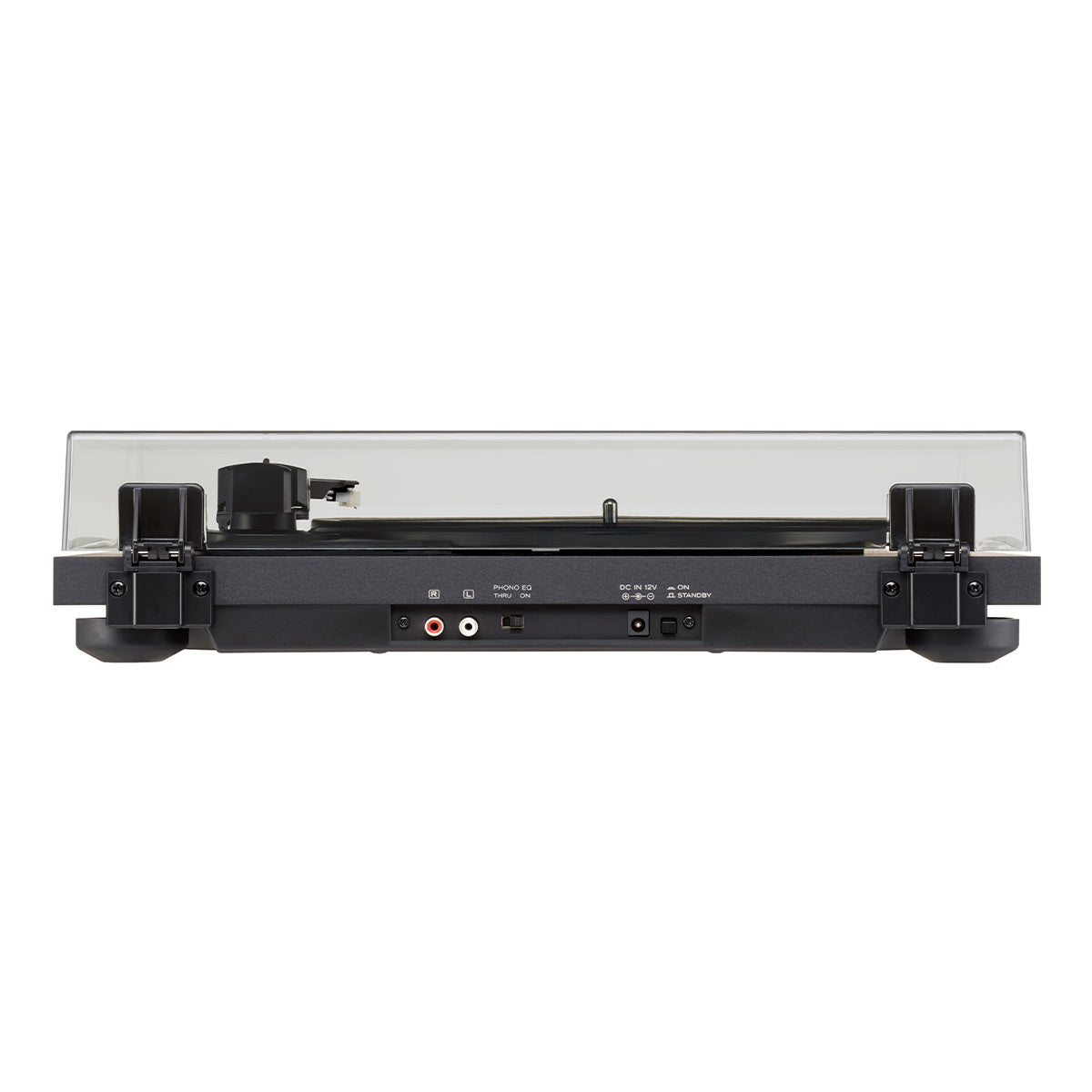

The TN-180BT-A3 delivers the sound wirelessly via a built-in Bluetooth® transmitter, in addition to conventional RCA output in analog Line or Phono format. The pairing button is located at the tone-arm base, which illuminates when the connection with BT speakers or the headphones is made successfully. If you already have a Bluetooth-enabled speaker or headphones for your iPhone/Android phone, all you have to do is to install the TN-180BT-A3 in your room – no pricy hi-fi system and complicated wiring are required. The connection is as simple as ABC, just press the BT pairing button when the Bluetooth® speakers/headphones are ready for the pairing, and once the connection is established, you don't need to repeat the same process every time you listening to vinyl records. The TN-180BT-A3 also provides conventional ways of connecting to your hi-fi system with or without the PHONO input via cable or an RCA audio cable.

Authentic 3-Speed Turntable

The TN-180BT-A3 plays LP, EP, and SP records from your library. The tone-arm automatically returns to the original position when playback is done.

Pre-Installed Cartridge

A VM-type (equivalent to MM-type) cartridge AT3600L by Audio-Technica is already installed to the straight-type tone-arm at the factory, so you can start playing records as soon as you open the box. The authentic belt-drive turntable is driven by a high torque DC motor, while a precision stainless steel spindle and durable brass spindle holder maintain accurate rotation speed.

Real Wood Construction

Unlike others with plastic chassis, a single wooden board with high-density MDF minimizes vibrations and resonance to playback of your vinyl record library with clearer sound.

Built-In Phono EQ Amplifier

Enjoy vinyl playback with any amplifier regardless type of inputs. The TN-180BT-A3 supports both PHONO and LINE outputs that allow you to play vinyl with or without Phono equalizer.

Specifications

  • Turntable
    • Type: Belt Drive
    • Motor: DC Motor
    • Rotation Speeds: 33-1/3, 45, 78 rpm
    • Deviation of Speed: +/-2%
    • Wow-and-Flutters: 0.25%
    • Signal-to-Noise Ratio: more than 64 dB (A-weighted, 20kHz, LPF)
    • Turntable (Platter)
    • Material: Plastic
    • Diameter: 30 cm
  • Tone-arm
    • Type: Straight, Static-balanced
    • Effective Arm Length: 200mm
  • Head-shell and Cartridge
    • Type: VM-type (equivalent to MM type)
    • Output Voltage: 3.5mV (1 kHz, 5cm/s)
    • Cartridge: AT3600L by Audio-Technica
  • Analog Output
    • Connectors: RCA Pin Jack x 1 pair (Chrome-plated)
    • Output Voltage
    • PHONO: 2.4 mV (+/-3dB)
    • LINE: 149 mV (-16.5dBV)
  • Bluetooth
    • Range: Approx. 10m
    • Supported Codec: SBC
  • General
    • Operation Power: AC Adapter
    • Input: AC 100-240V, 50/60Hz
    • Output: DC 12V 500mA
    • Power Consumption: 1.5 Watts or less
    • Standby Power: 0.2 Watts or less
    • Dimensions (W x H x D): 16.5” x 4.1” x 14.0”
    • Weight (Net): 10.8 lbs.
    • Operating Temperature: +5°C to +35°C

What's In The Box

  • TN-180BT-A3 Belt-Drive Turntable with Bluetooth, Built-In Phono Amp, and Pre-Installed Audio-Technica MM Cartridge
  • Rubber Mat
  • EP Adapter
  • Dust Cover
  • (2) Dust Cover Hinges
  • RCA Audio Cable
  • AC Adapter (GPE053A-V120050-Z)
  • Owner’s Manual

*Please Note: Speakers sold separately
