TEAC

TEAC AD-850-SE Cassette Deck and CD Player with Microphone Input and Digital Recording Capability

Regular price $549.99
Sale price $549.99 Regular price
Save $-549.99 (%)
OR

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Overview

Product Information

Model: AD850SEB | UPC: 043774035663

Specifications

What's In The Box

Product Information

Model: AD850SEB | UPC: 043774035663

A cassette deck and CD player in a single unit is here. This combined cassette deck and CD player, which can also record to USB flash drives, includes a microphone jack with an echo function that can be used for karaoke.

USB Recording + Playback

In addition to recording from CDs, cassette tapes and external input devices to USB flash drives (as MP3 files), CDs, MP3 files on USB flash drives and external input devices can also be recorded to cassette tapes. Recorded files will be saved to automatically generated folders according to the source (CD, LINE or TAPE) on USB flash drives, enabling easy digital to analog conversion without a computer.

Microphone Input

A mic input jack is built into the front of the unit. You can record a mic connected to this unit by itself, of course. You can also mix in the mic signal when playing back and recording CDs, cassettes and USB flash drives.
Please Note: The mic sound cannot be recorded when recording from a CD to a USB flash drive.

Echo Effect

Echo can be added to the sound from the mic connected to this unit. The front panel switch can be used to set the effect to two levels or turn it off. With the AD-850 and a mic, you can easily enjoy karaoke.

Key Functions

The cassette deck uses a two-head one-way design for recording and playback. It supports cassette tape that use normal, chrome and metal (playback only) formulations/positions. This model provides all key functionality, including pitch control with a +/-10% adjustment range and timer recording and playback.

CD-R/RW + MP3 Playback

In addition to audio CDs, the CD player can play CD-R/RW discs containing MP3 files. During MP3 playback, information including ID3 tags and file names* is shown. Various playback modes include program, shuffle and repeat (one track, all tracks or program).

USB Recording + Playback

The repeat playback function can be used together with various other playback modes, including continuous, shuffle and program. The synchronized start function, which automatically starts playback of the sound source (CD or TAPE), makes recording to USB flash drives much more straightforward.

Specifications

  • Cassette tape
    • Track system: 4-track 2-channel stereo
    • Head construction: Recording/playback head × 1, Erase head × 1
    • Tape type: C-46/C-60/C-90
    • Tape speed: 4.76cm/sec
    • Motor: DC servo motor × 1
    • Pitch control: About +/-10% (playback only)
    • Wow and flutter: 0.25% (W.RMS)
    • Frequency response (overall)
    • Chrome: 50 to 12,000Hz +/-3dB
    • Normal: 50 to 12,000Hz +/-3dB
    • S/N ratio (overall): 59dB (3%THD level WTD)
    • Winding time: About 120 seconds (C-60 tape)
    • Line input (RCA): 462mV (50kΩ or higher input impedance)
    • Line output (RCA): 462mV (50kΩ or higher impedance load)
  • CD player
    • Pickup: 3-beam semiconductor laser
    • Digital filter: 8 x oversampling digital filter
    • Frequency response: 20Hz to 20kHz +/-2dB
    • Total harmonic distortion: 0.02% or less (1kHz)
    • S/N ratio: 87dB or more (IHF-A)
    • Analog output (RCA): 2.0V
  • USB
    • Interface: USB 1.1 FULL SPEED (12Mbps)
    • Playback Format: MP3
    • Frequency response: 20Hz to 20,000Hz(+/-2dB)
    • S/N ratio: 85dB or less
    • Playback bit rate: 8k to 320k bps
    • Recording Format: MP3
    • Frequency response
    • CD → USB: 20Hz to 15,000Hz(+/-3dB)
    • LINE IN → USB: 100Hz to 15,000Hz(+/-3dB)
    • S/N ratio: 85dB or more
    • Bit rate: 128kbps
  • Microphone input
    • Connector: 6.3mm(1/4") mono phone jack
    • Nominal input level: 0.78mV (−60dBm)
    • Input impedance: 47kΩ or more
    • Power supply function: None
  • Other
    • Power: AC 120V, 60Hz
    • Power Consumption: 13W
    • Dimensions (W x H x D): 17.12” × 5.70" × 11.33”
    • Weight (Net): 10.62 lb
    • Operating temperature: 5 to 35°C
    • Operating humidity: 5 to 85% (no condensation)
    • Storage temperature: -20 to 55°C

What's In The Box

  • AD-850-SE Cassette Deck and CD Player with Microphone Input and Digital Recording Capability

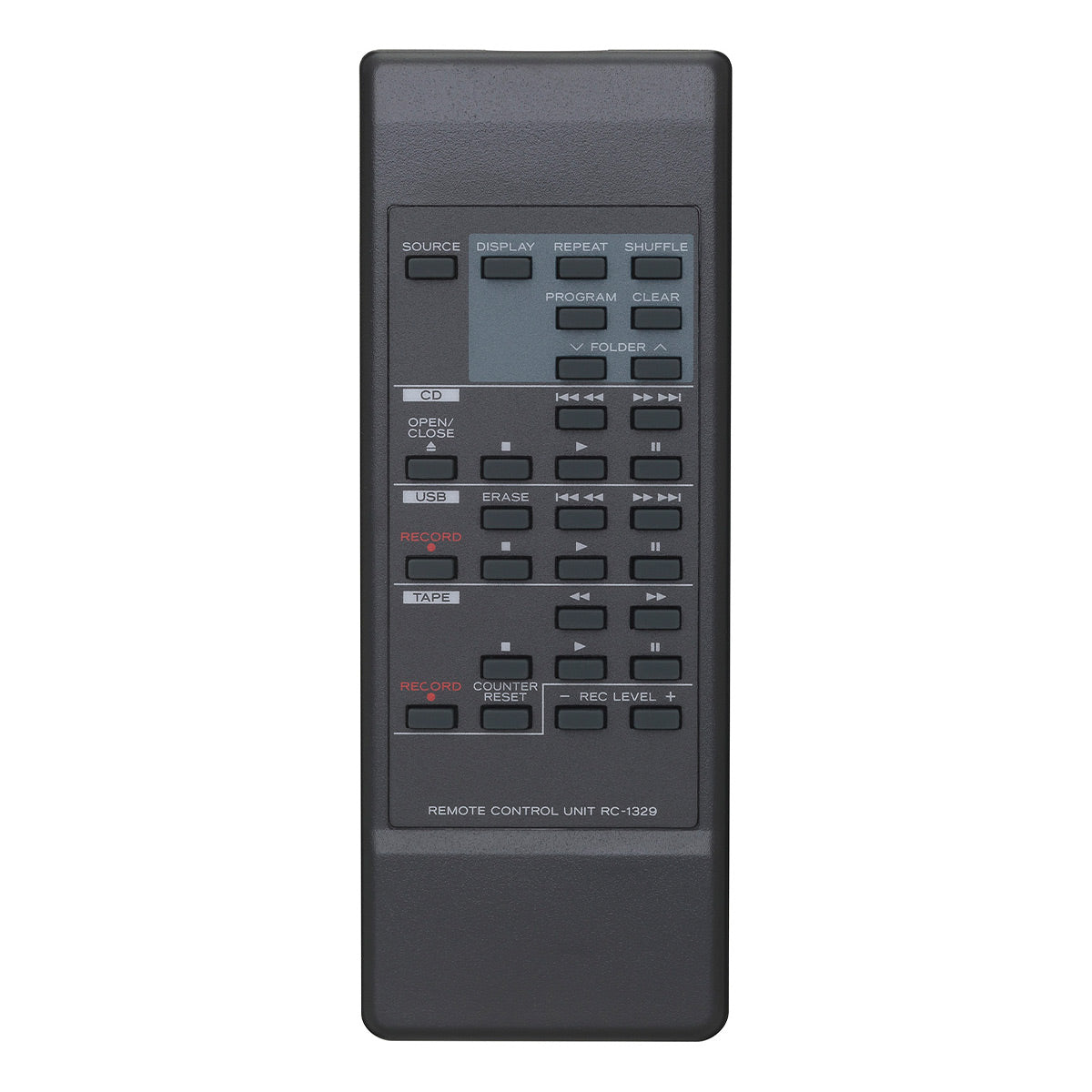

  • Remote Control (RC-1329)
  • (2) Rack RCA Audio Cables
  • Owner’s Manual
  • Recording Quick Start Guide
