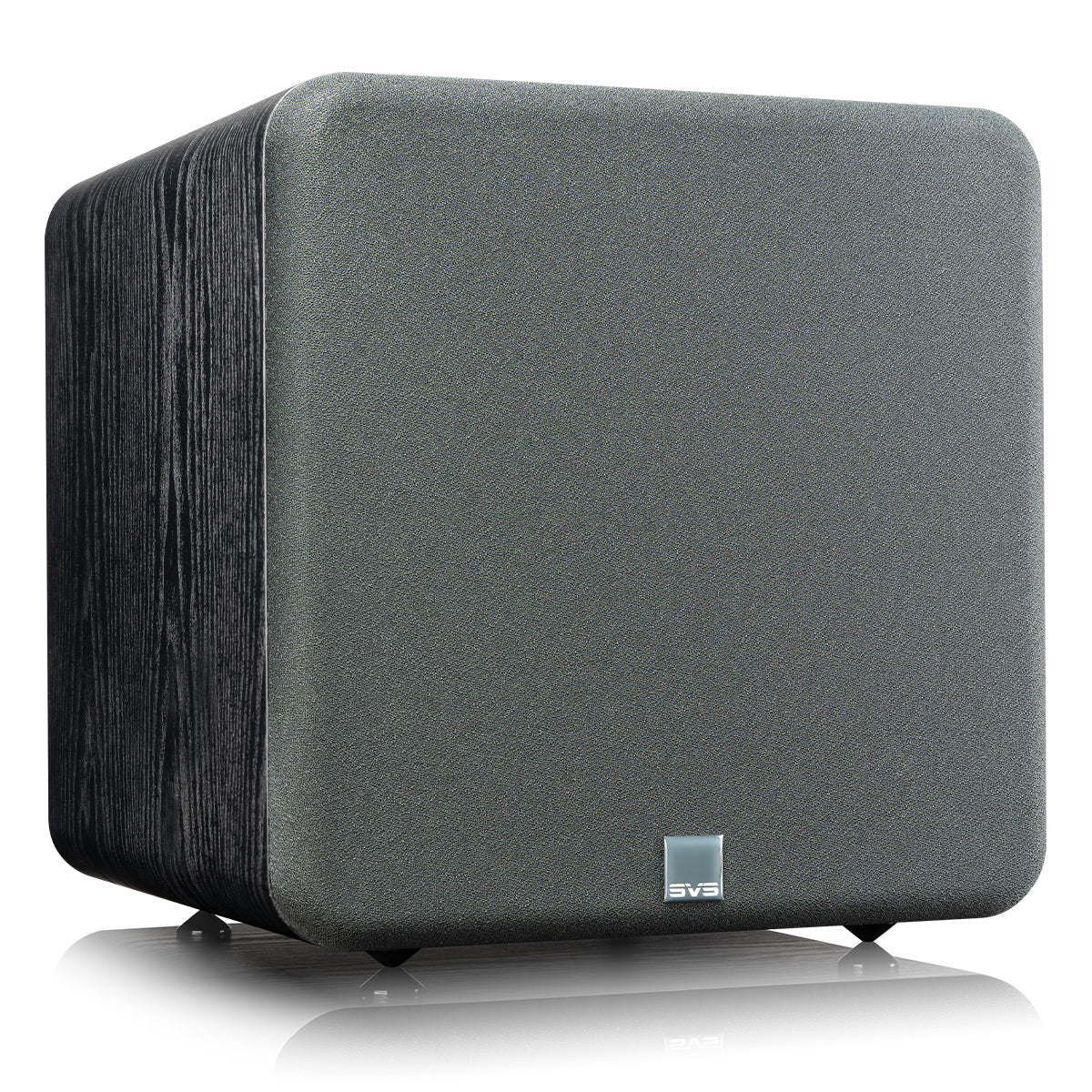

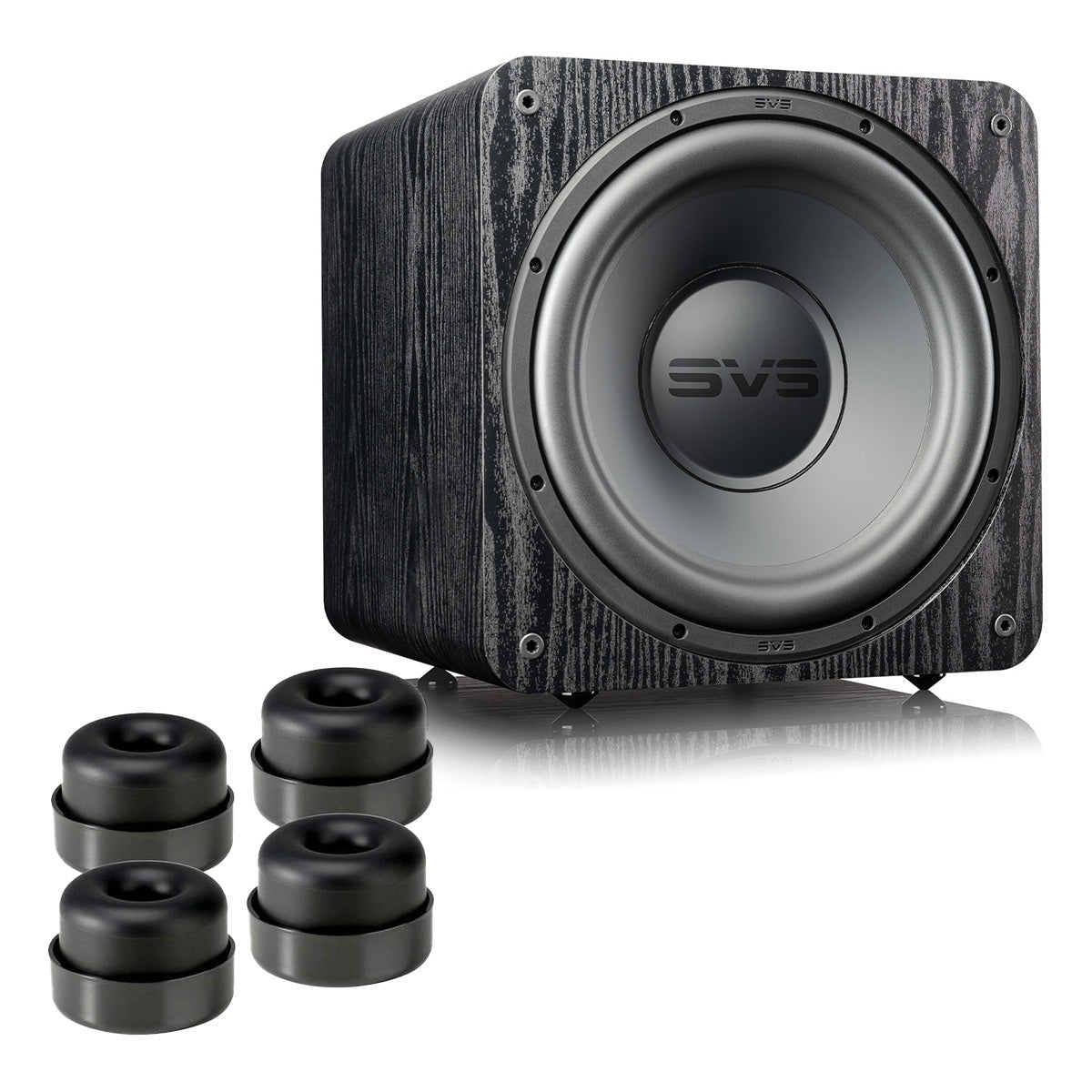

SVS SB-1000 Pro Sealed Subwoofer with SoundPath Isolation System (Black Ash)

Regular price $648.00
Sale price $648.00 Regular price
$0.00 Save $-648.00 (%)
OR

In Stock & Ready to Ship
Free Shipping Get it between Wed, Dec 10 – Wed, Dec 17

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Overview

Product Information

Model: SB-1000PRO-BLACKASH+SP4SUB | UPC: 632665615949

Specifications

What's In The Box

Product Information

Model: SB-1000PRO-BLACKASH+SP4SUB | UPC: 632665615949

This Package Includes

SB-1000 Pro Sealed Subwoofer

Jaw-Dropping Bass Performance

Experience deep bass extension down to 20Hz with massive output and stunning musicality that will delight both audiophiles and home theater fans. Reference subwoofer performance has never been available near this price from a cabinet of this size. The SVS SB-1000 Pro is a true breakthrough subwoofer in every way.

Features

  • 12" High-Excursion Driver
  • 325W RMS Amplifier
  • 20Hz Extension
  • App Control
  • Sealed Compact Cabinet
  • MOSFET Output Stage

Sledge STA-325D Subwoofer Amplifier

The 1000 Pro Sledge STA-325D Amplifier with fully discrete MOSFET output generates massive on-demand current to fully maximize on the potential of the high-excursion 12-inch driver. The high efficiency Class-D topology with 34 Amp 120 Volt MOSFET’s deliver effortless on-demand power while wielding pinpoint control. The result is astonishing output levels with pristine clarity.

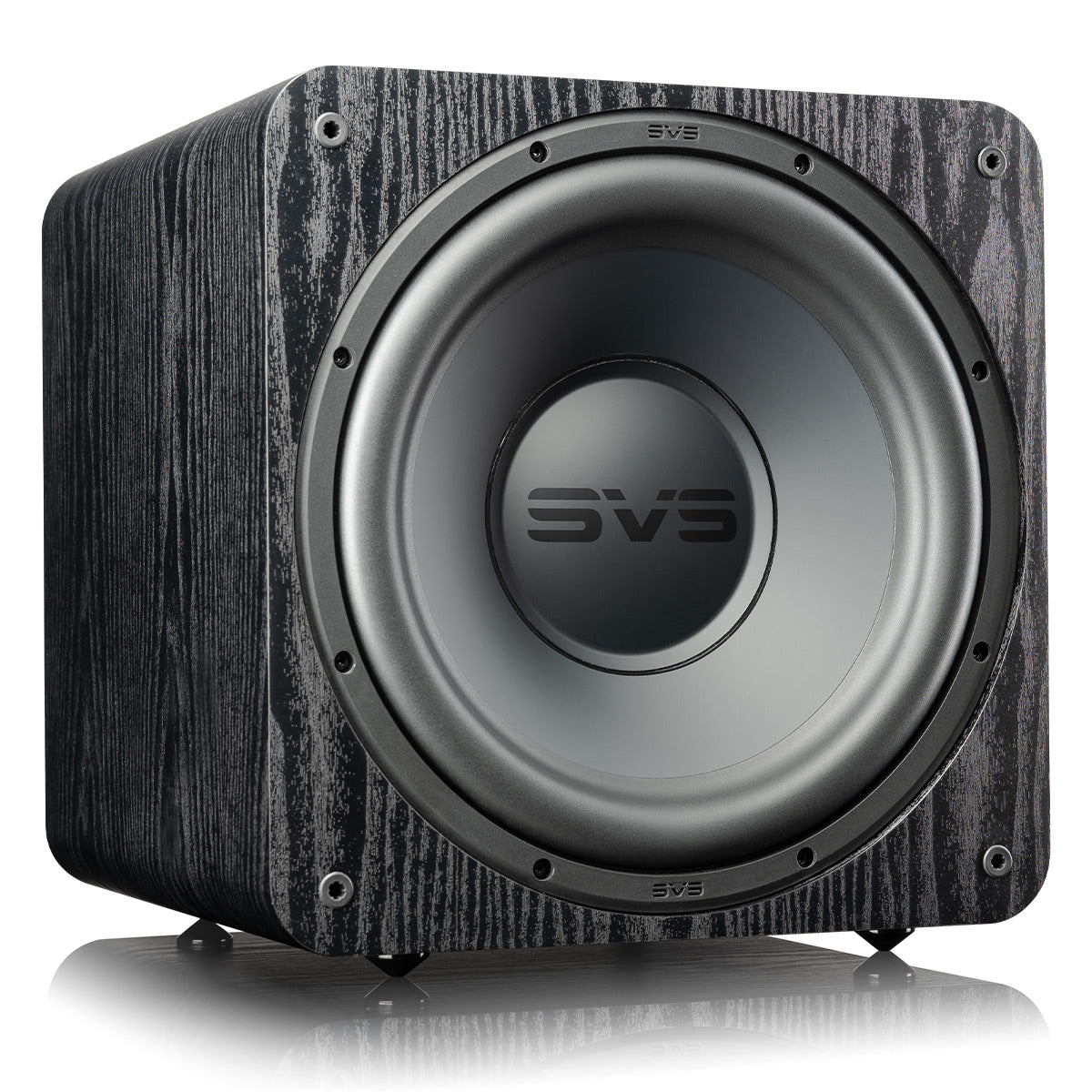

High-Excursion 12" SVS Driver

12-inch SVS subwoofer drivers in the 1000 Pro subwoofers are completely new designs and built for serious output as well as finesse and accuracy. The proprietary SVS design features a dual ferrite magnet motor assembly with long-throw parabolic surround for extreme excursion with room-pressurizing SPLs. A lightweight and rigid vented cone with composite fiber dustcap moves immense amounts of air to create tactile sonic energy without losing control. The result is precise and accurate response, even at the most intense listening levels.

50 MHz Analog Devices Audio DSP

The most advanced processor ever used in a consumer subwoofer, 50 MHz High Resolution Analog Devices Audio DSP with precision 56-bit filtering, allows the 1000 Pro Series to blend with any speakers and maintain pristine sound quality through advanced in-room tuning, optimized frequency response curves, powerful DSP controls and more.

Rear Panel Intelligent Control Interface (ICI)

An SVS first, the new Intelligent Control Interface (ICI) rear amplifier panel with touch buttons and an LED bar interface makes DSP adjustments of volume, low pass frequency, phase and more both seamless and simple.

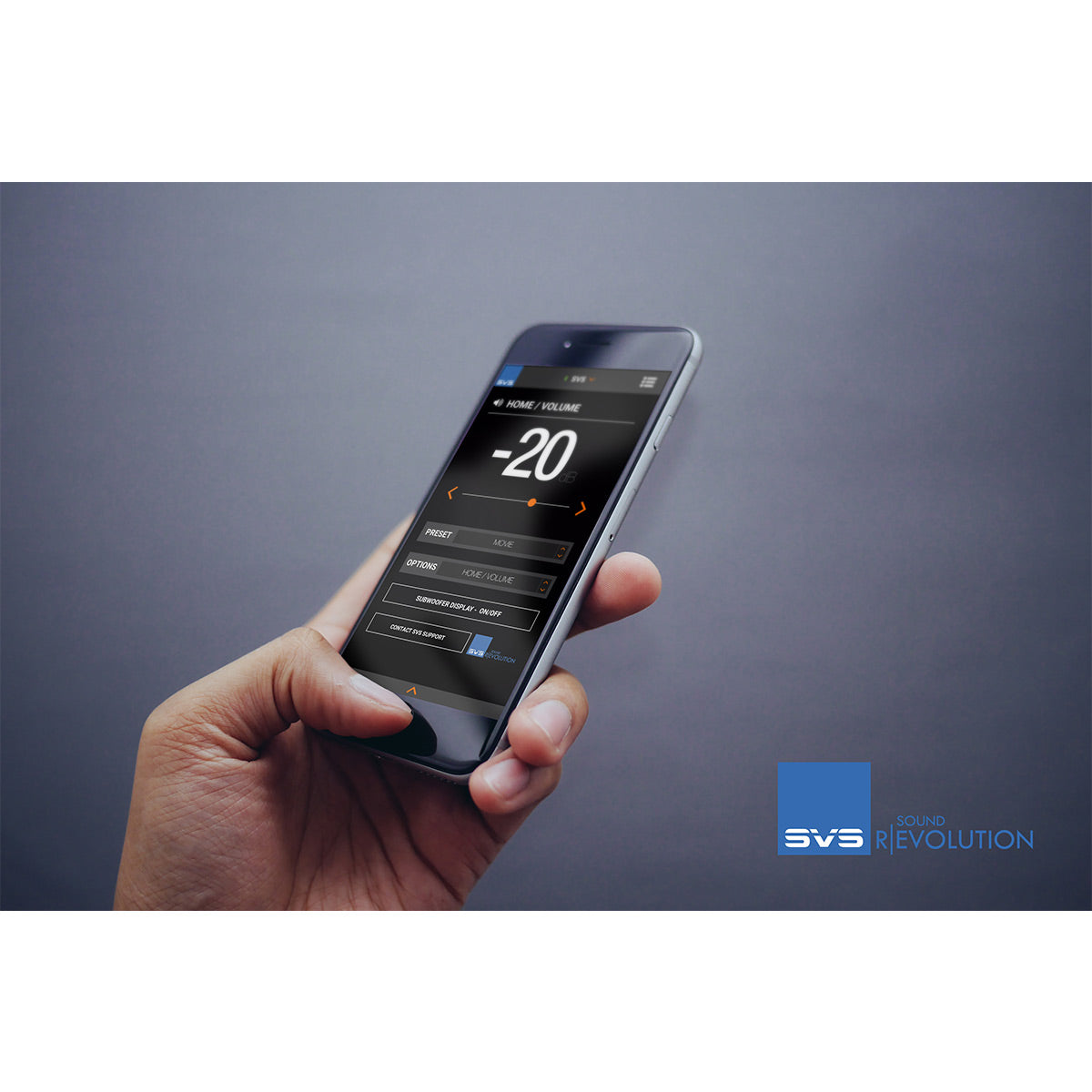

SVS Subwoofer Smartphone App

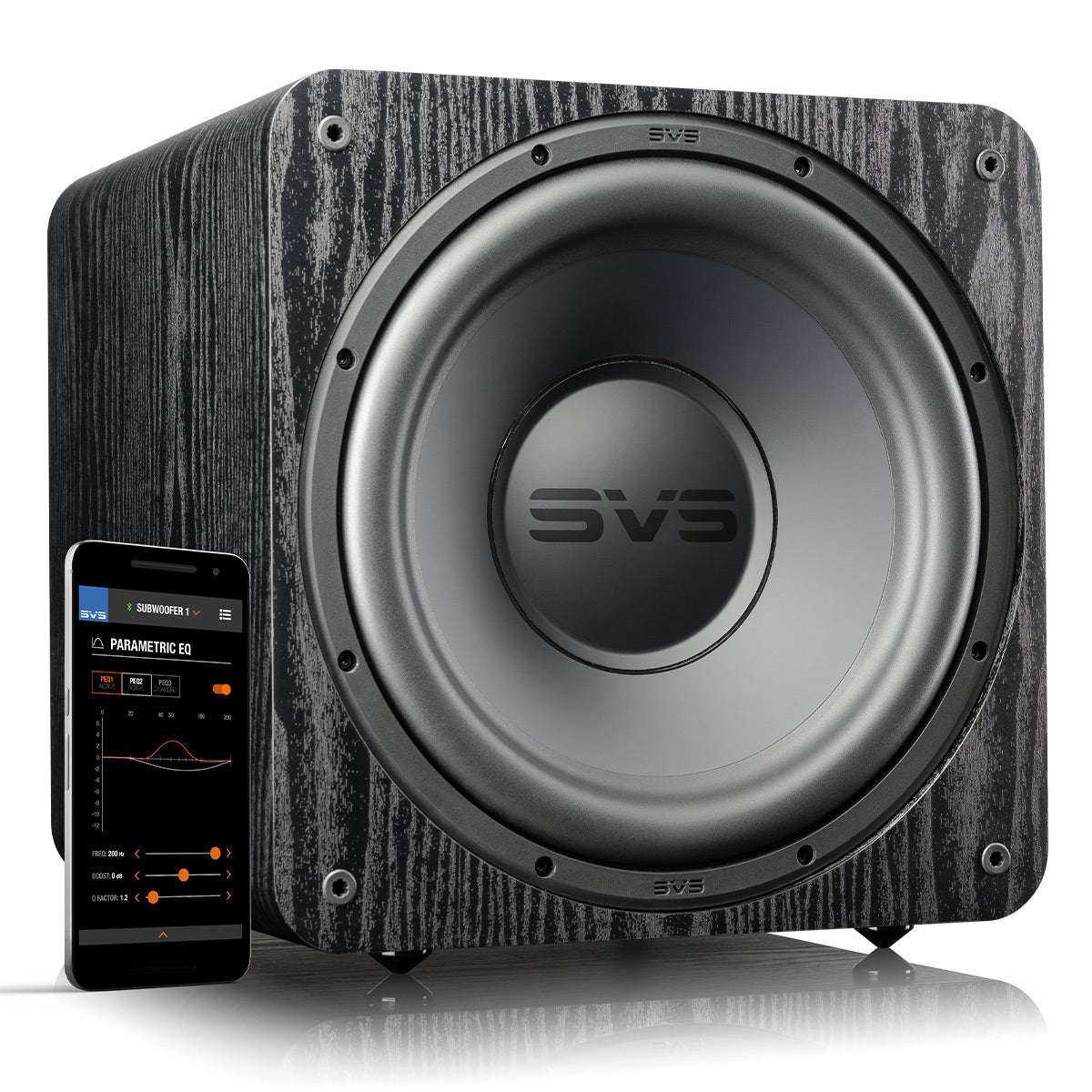

Groundbreaking SVS Subwoofer Smartphone App is the easiest way ever to control your subwoofer’s volume and manage custom presets for one-touch tuning for movies, music and more. The app works with Apple iOS® and Android® devices to unleash the full force of the 1000 Pro Series subwoofers by controlling all DSP functions, including: volume, 3-band parametric EQ, low pass filter, phase, polarity, room gain, port tuning (PB-1000 Pro only) and system settings, even when subwoofer is out of sight.

Acoustically Inert Cabinet Tuned for Uncompromised Sound

Double-thick MDF and extensive internal bracing in the acoustically optimized SVS 1000 Pro Series cabinet designs produce a resonance-free environment that serves as a blank canvas for uncompromised subwoofer performance.

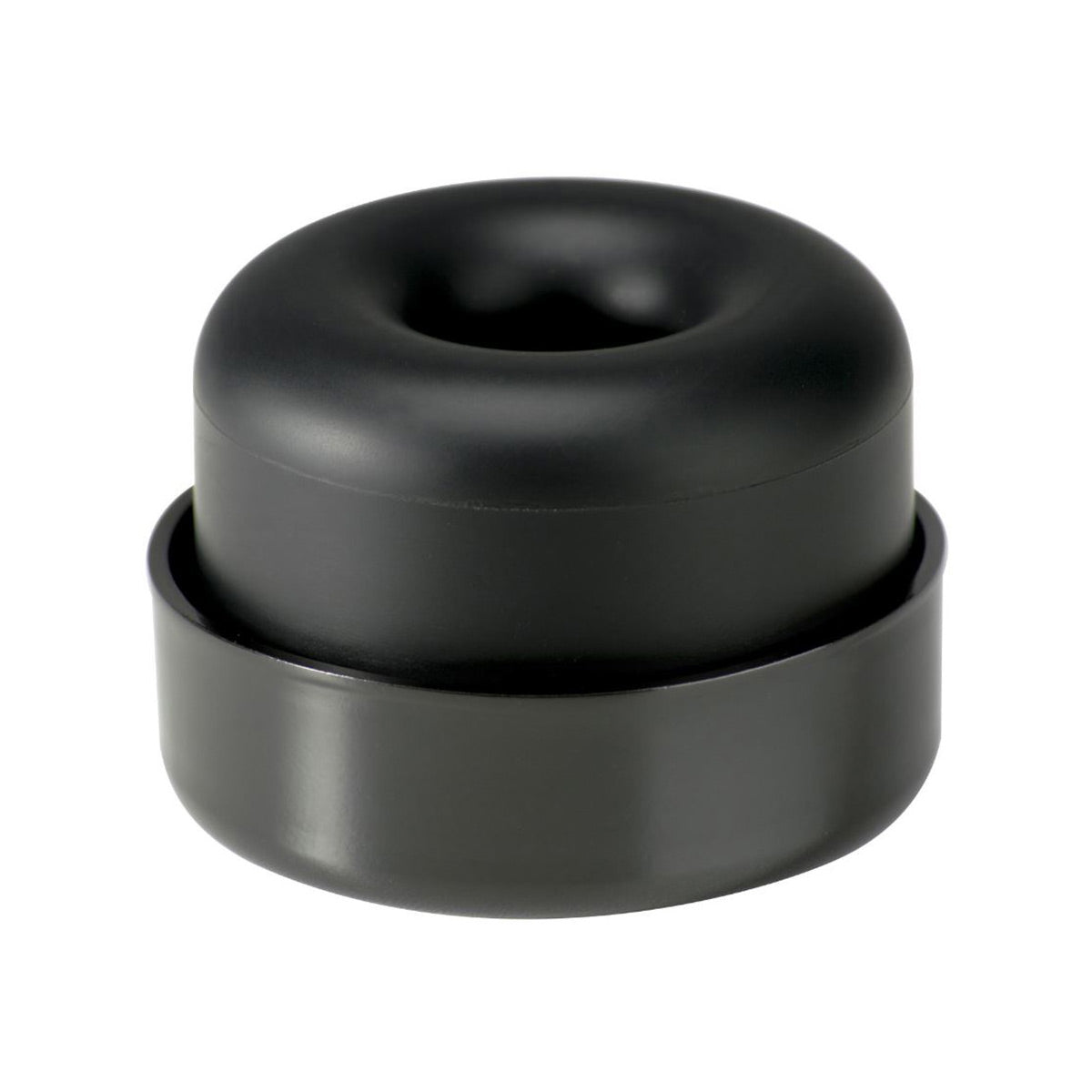

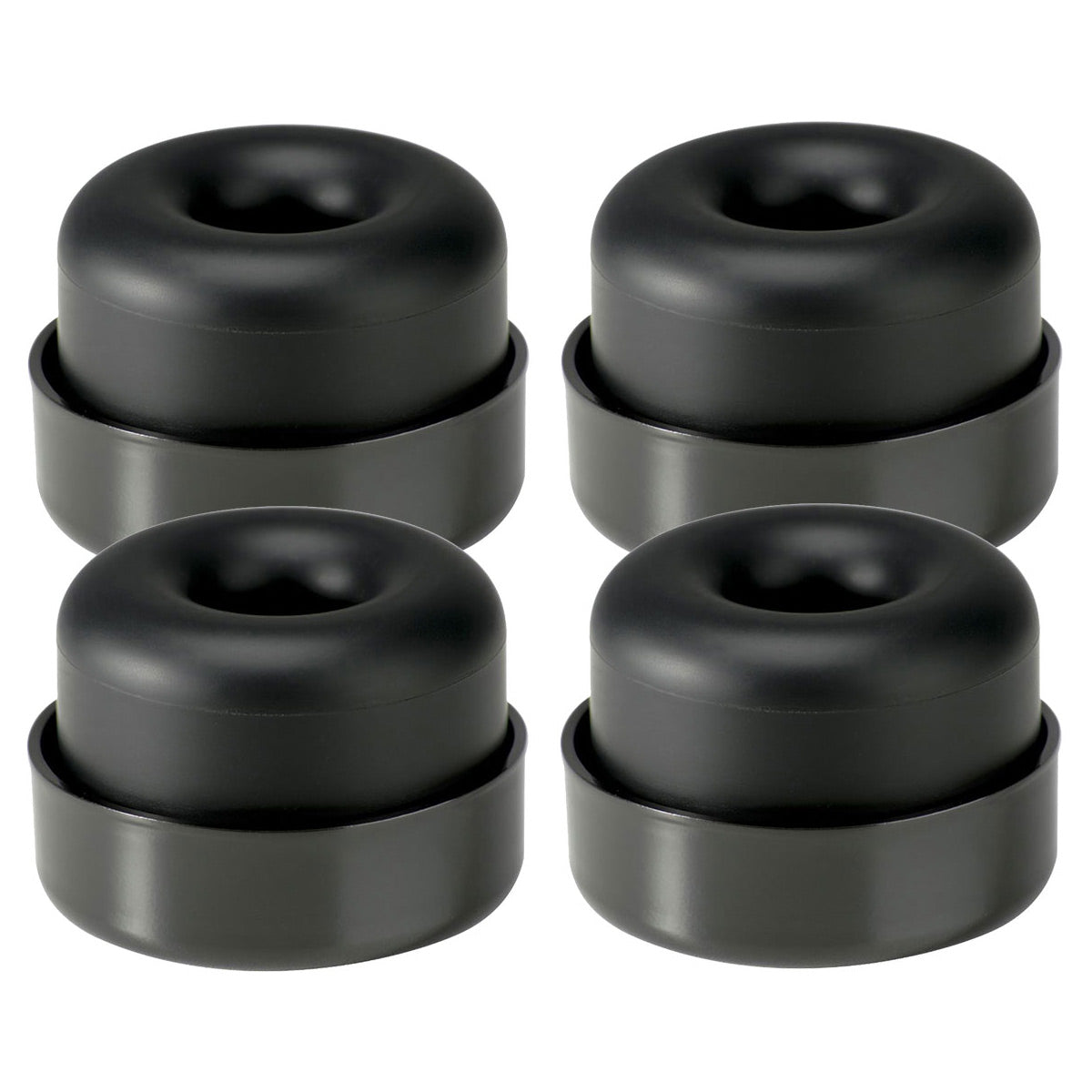

SoundPath Subwoofer Isolation System (4-Pack)

Improve Subwoofer Performance and Eliminate Room Rattle

The SVS SoundPath Subwoofer Isolation System works with nearly every subwoofer brand and model to improve bass performance, while reducing floor and wall vibrations, noise artifacts, and complaints from neighbors or roommates. Decoupling a subwoofer from the floor results in inherently tighter and cleaner sounding bass. It's also the next best thing to sound-proofing and ideal for carpeted rooms, hardwood floors, or any space where room rattles, buzzes, or vibrations are present.

How Does Decoupling Improve Performance?

Decoupling is making the interaction between a subwoofer and floor so weak that virtually no energy is transferred between them. The SVS SoundPath Subwoofer Isolation System features rigorously tested optimized durometer elastomer feet that significantly reduce the transmission of subwoofer energy through your floor and walls. This allows low frequency effects to be transferred through the air where they can be felt, resulting in tighter and cleaner sounding bass, no more distracting buzz or rattle from the room, and better sonic clarity and dynamics.

Be a Better Neighbor

Infrasonic jolts and subterranean levels of bass bring our entertainment to life, but they can also disturb neighbors and roommates because the longer low frequency sound waves travel through walls and floors more effortlessly than midrange and high frequency waves. The SVS SoundPath Isolation System drastically reduces the bass notes and low frequency vibrations your neighbors and roommates will notice.

A Discreet, Affordable Alternative to Subwoofer Platforms and Risers

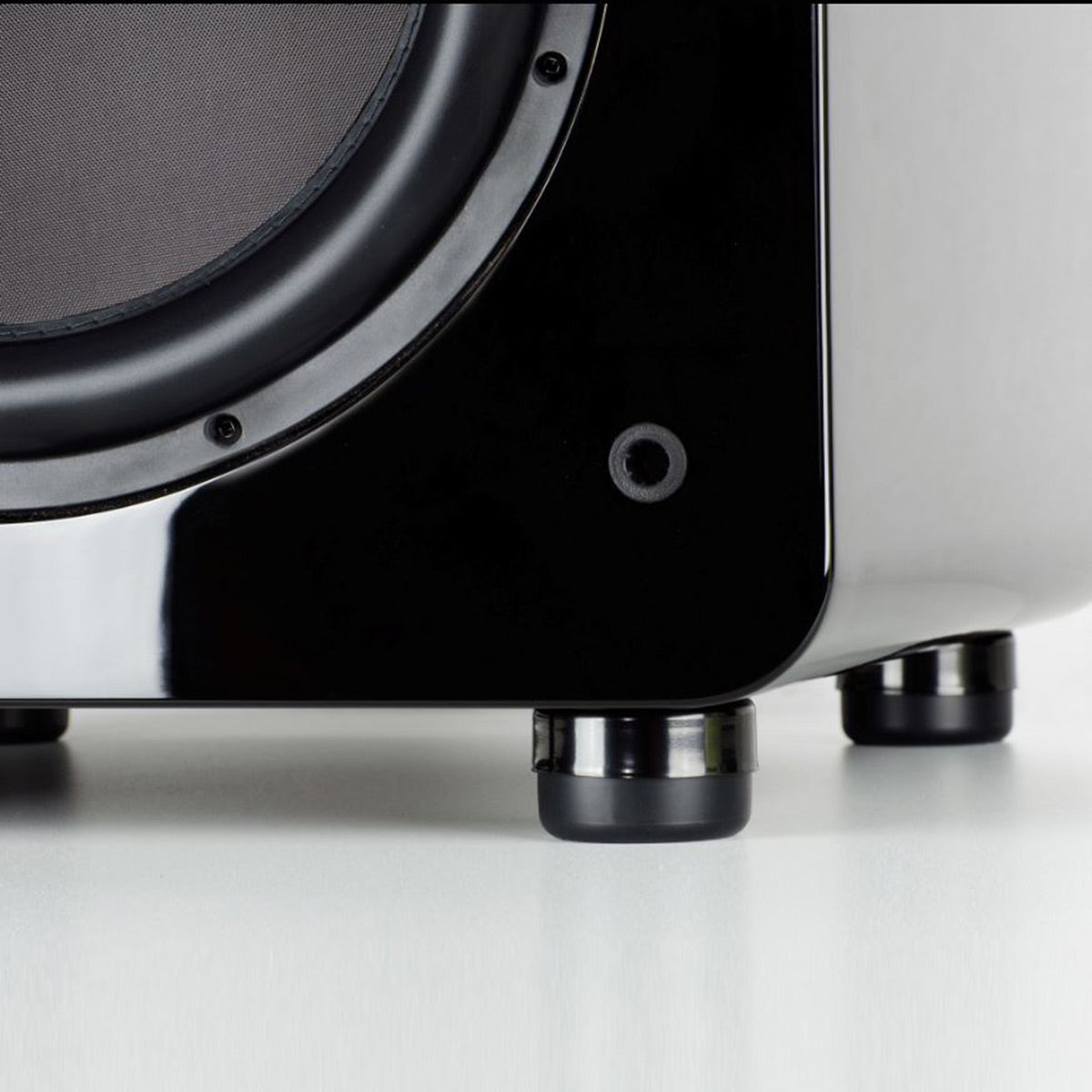

The SVS SoundPath Subwoofer Isolation System feet come in a variety of thread sizes that easily screw into any subwoofer's existing threaded inserts and subtly elevate the sub enclosure on a cushion of elastomer encased in stainless steel. The understated feet are a stylish, more effective alternative to bulky risers and platforms at a fraction of the cost, and they also work with some other turntables and components.

Specifications

SB-1000 Pro Sealed Subwoofer

  • Driver: 12”
  • Amplifier: 325 watts RMS (820 watts peak), Class D
  • Frequency Response:
    • 20Hz to 270Hz (+/-3dB)
    • In-Room Low Freq – 18Hz
  • Dimensions (W x H x D):
    • With Grille: 13" x 13.5” x 14.76”
    • Without Grille: 13" x 13.5” x 13.9”
  • Weight: 26.1lbs
  • Subwoofer Specs
    • Protective non-resonant extra-thick ABS fabric mesh grill
    • Iso-elastomer feet included
    • Extra heavy-duty, high current power cord 6'
    • Quick Start Guide
    • Unbalanced stereo input/output
    • Speaker Level Stereo Input
    • Auto/On and Trigger options through app, 3-12V AC/DC trigger
    • RoHS compliant, lead-free construction, world-wide safety certifications
    • Green 0.5-watt low standby power consumption
  • Driver Specs
    • All-new proprietary 12-inch long-throw driver with high-precision tuned overhung motor configuration.
    • 33lb (3.78kg) pound Woofer with 5.73lb (2.6kg) pounds motor
    • 3mm Xmax, 26.9mm Xmech precision aligned excursion
    • 5” diameter Voice Coil with high current 6-layer high-purity copper wire windings
    • Premium high-purity copper voice coil winding design minimizes distortion and power compression with maximum heat dissipation, linearity, and tuned magnetics for high excursion
    • Two-piece high grade oversized Y30 Ferrite magnet motor
    • High-Temperature 3003-H18 aluminum former/bobbing
    • 6” composite cotton-poly extreme excursion linear spider
    • Dual 24-strand copper-alloy high-temperature leads
    • Proprietary injection molded gasket and NBR extreme-excursion surround
    • Lightweight treated Fiber Composite cone for enhanced sensitivity and transient response
    • Top plate assembly with low carbon 1010 steel for optimal magnetics
    • Oversized low carbon 1008 steel T-yoke with integrated pole piece extension for maximum cooling and electromagnetics
    • 12” premium powder-coated basket with FEA optimized analysis for maximum rigidity, tensile strength, and energy transference
    • Oversized motor system for driving full excursion and industry best SPL, with pinpoint transient speed
    • Precision machining for motor and narrow tolerance suspension parts ensure flawless linearity at full range of excursion
  • Amplifier Specs
    • 325 watts RMS, 820+ watts peak power output Class D design
    • 50Mhz Analog Devices Audio DSP, high-resolution double precision 56bit filtering
    • Wide input voltage bandwidth compliant for consumer and pro audio up to 4V line-level input.
    • High efficiency LLC resonant SMPS with 17A 650V MOSFET, resonant switching results in lower EMI and highest efficiency.
    • Cool-running Class D amplifier switching topology with massive 34A 120V MOSFET’s
    • SVS BLE control app for iOS and Android
      • 3 complete User presets – name-able, customizable
      • iOS (iphone5 or newer) or Android (4.42 or newer)
      • 3 PEQ’s per preset
      • Adjustable low pass, phase, polarity, 3 PEQs, room gain compensation, control for best alignment with speakers
    • Customer EQ and DSP limiter settings specifically for the 1000 Pro
    • Input impedance 16kohm (unbalance RCA)
    • Input impedance 20kohm (speaker level)
    • New Intelligent Feature control (IFC) user interface on the amplifier with bright blue 11 LED bar display and easy push-button controls.

SoundPath Subwoofer Isolation System (4-Pack)

  • Dimensions
    • Overall height: 40mm
    • Shell diameter: 58mm
    • Foot diameter: 53mm
    • Screw engagement depth: 9mm (applies to 16mm length screws)
  • SVS Subwoofer Compatibility
    • SB-1000
    • SB-1000 Pro
    • SB12-NSD
    • SB-2000
    • SB-2000 Pro
    • SB-3000
    • SB13-Ultra
    • SB-4000
    • SB16-Ultra
    • PB-1000
    • PB-1000 Pro
    • PB12-NSD
    • PB-2000
    • PB-2000 Pro
    • PB-3000
    • All cylinder models

What's In The Box

SB-1000 Pro Sealed Subwoofer

  • SB-1000 Pro Sealed Subwoofer
  • Grille
  • Power Cord
  • Manual

SoundPath Subwoofer Isolation System (4-Pack)

  • (4) SoundPath Isolation Elastomer Feet
  • (4) 1/4-20 x 16mm Screws
