Reference Subwoofer Performance Just Went Micro
Drawing from the flagship SVS subwoofer platform, 3000 Micro R|Evolution represents a complete reimagining of compact subwoofer design—delivering deeper extension, greater output, and dramatically improved musicality from a beautifully compact enclosure. Owing to the advancements in driver, amplifier, and DSP technology, the 3000 Micro R|Evolution energizes a room with authority while preserving the nuance, texture, and tonal accuracy demanded by serious music listeners and home theater fans. All while providing advanced tuning options and an unrivaled user experience.
Features
- Force-Balanced Dual Opposing Active 9-inch Drivers
- 1,200 Watts Power with 4,000+ Watts Peak
- STA-1200D2M MOSFET Amplifier
- Premium Grade 56bit Digital Audio Processing
- 295 MHz Analog Devices DSP
- Rigidly Braced Sealed Cabinet Design
- SVS Subwoofer Control Smartphone App

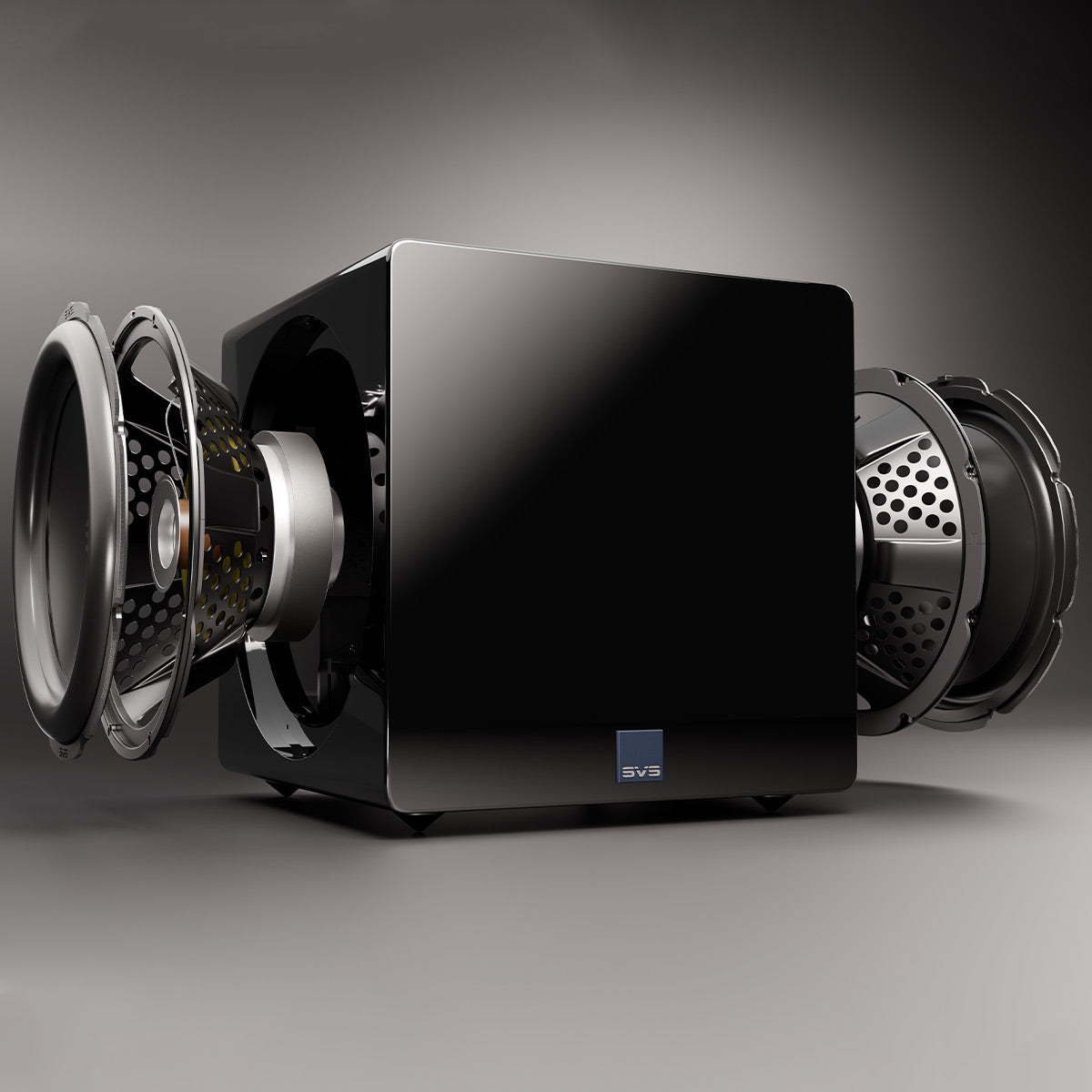

Force-Balanced Dual Opposing Active 9-inch Drivers
The beating heart of the 3000 Micro R|Evolution is a pair of active, side-firing 9-inch high-excursion drivers that operate in perfect unison, acoustically and electrically in parallel to generate powerful, controlled low frequencies.
By firing in opposite directions, the mechanical forces cancel, creating a sonically inert cabinet and eliminating unwanted vibration—one of the biggest limitations of compact subwoofers. Each high-excursion active 9-inch driver employs a progressive inverted surround to ensure maximum linear displacement. This is imperative for moving massive amounts of air and generating sound pressure levels you can feel at the deepest frequencies from such a small enclosure.
Power with Control
Conservatively rated at 1,200 watts Continuous and 4,000+ watts peak power, the STA-1200D2 amplifier maximizes the dual 9-inch active drivers full potential with effortless power and absolute control. The pioneering design combines the efficiency of a Class D amplifier with the ability to move massive current through fully discrete MOSFETs, delivering outstanding real-world subwoofer performance at all drive levels.
High Current MOSFET Output
High current MOSFET output with Class-D efficiency allows the STA-1200D2 amplifier to move massive amounts of current through the fully discrete MOSFETs, enabling the dual active 9” drivers to fully maximize on their potential with reference output, while maintaining control and accuracy.
Performance Enhancing SVS Switch Mode Power Supply
SVS Switch Mode Power Supply maximizes system performance under all operating conditions by ensuring a consistent 160V rail voltage for the amplifier. Digital monitoring of the AC input mains voltage tunes the power supply for optimal performance in any environment.
The Brains Behind the Brawn
Orchestrating the cutting-edge amplifier, motor, and driver ecosystem is the most sophisticated DSP ever deployed in a home audio subwoofer, with five times the processing power of previous generations. DSP plays a role in all aspects of performance, user control, tuning, and in making the 3000 Micro R|Evolution subwoofer sound bigger than it is. SVS engineers painstakingly crafted an in-room frequency response curve that fully maximizes the potential of a room’s boundaries to produce greater output and deeper bass extension without distortion or boominess.
SVS Subwoofer Control Smartphone App
Controls for volume, low pass filter, phase, polarity, six parametric equalizers, room gain compensation, tuning modes, power management settings, and more.
Acoustically Inert, Rigidly Braced Sealed Cabinet Design
Handsomely styled to complement the finest home theater and HiFi systems, yet compact enough to place out of sight, the acoustically optimized 3000 Micro R|Evolution sealed cabinet is designed for both performance and aesthetics.
- Rigid MDF front baffle and internal support massive drive unit and ensure an acoustically inert environment.
- Highly reinforced internal design and acoustic insulation eliminate all coloration or resonance from the cabinet at all playback levels
- Protective non-resonant perforated metal grilles shield drivers to prevent damage while ensuring longevity
- Custom elastomer feet reduce noise artifacts within a room.

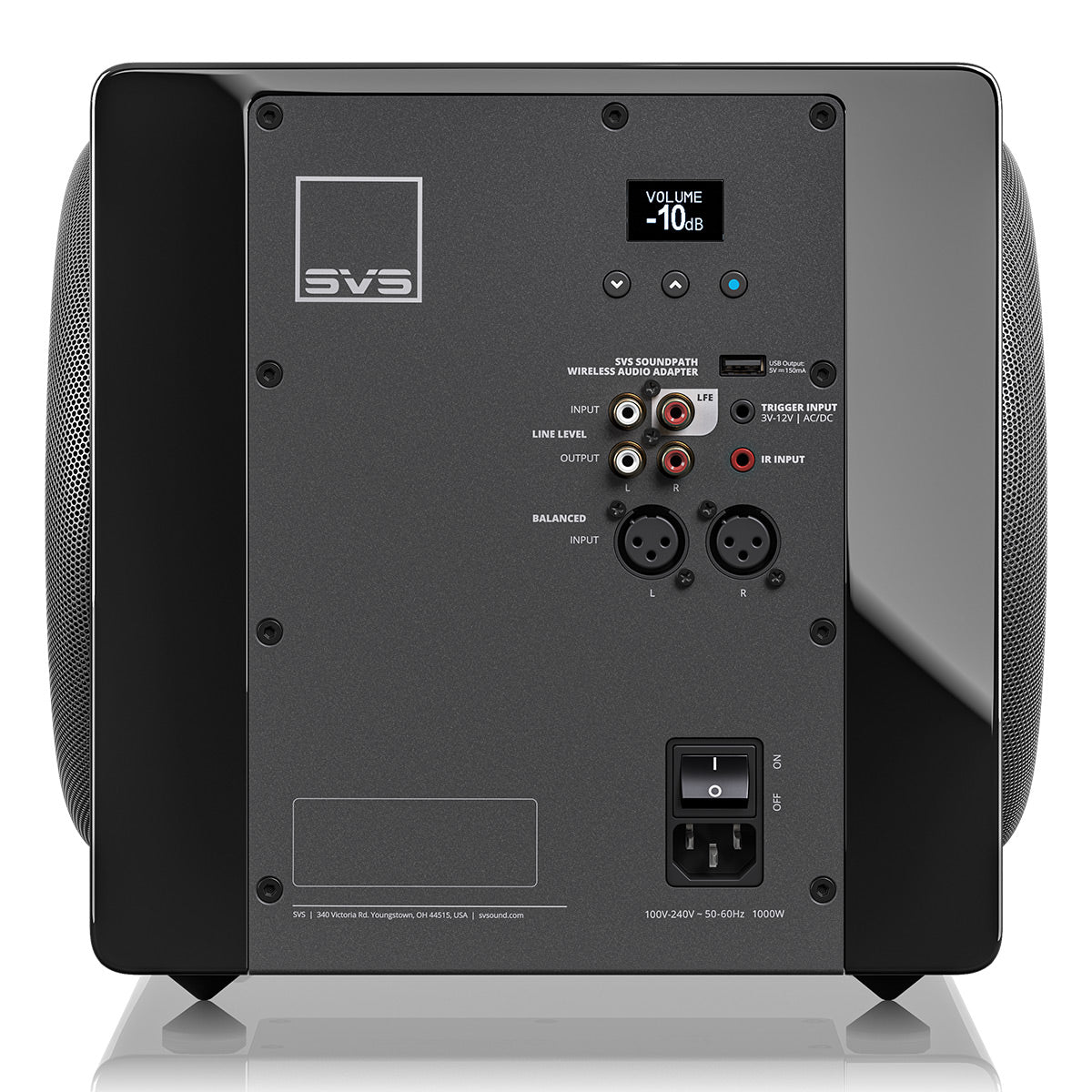

- Rear Panel OLED and Control Interface provide fast and direct control of the most important features.
