SVS 3000 In-Wall Single Sealed Subwoofer System with Sledge STA-800D2C Amplifier- Each

Regular price $1,999.99
Sale price $1,999.99 Regular price
Save $-1,999.99 (%)
This item is only available in our showroom. Call 215-368-8343 for details.

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live


Product Information

Model: 3000IWSBK | UPC: 850029050261


What's In The Box

Product Documents

Product Information

Model: 3000IWSBK | UPC: 850029050261

Massive Cinematic Bass, No Floorspace Required.

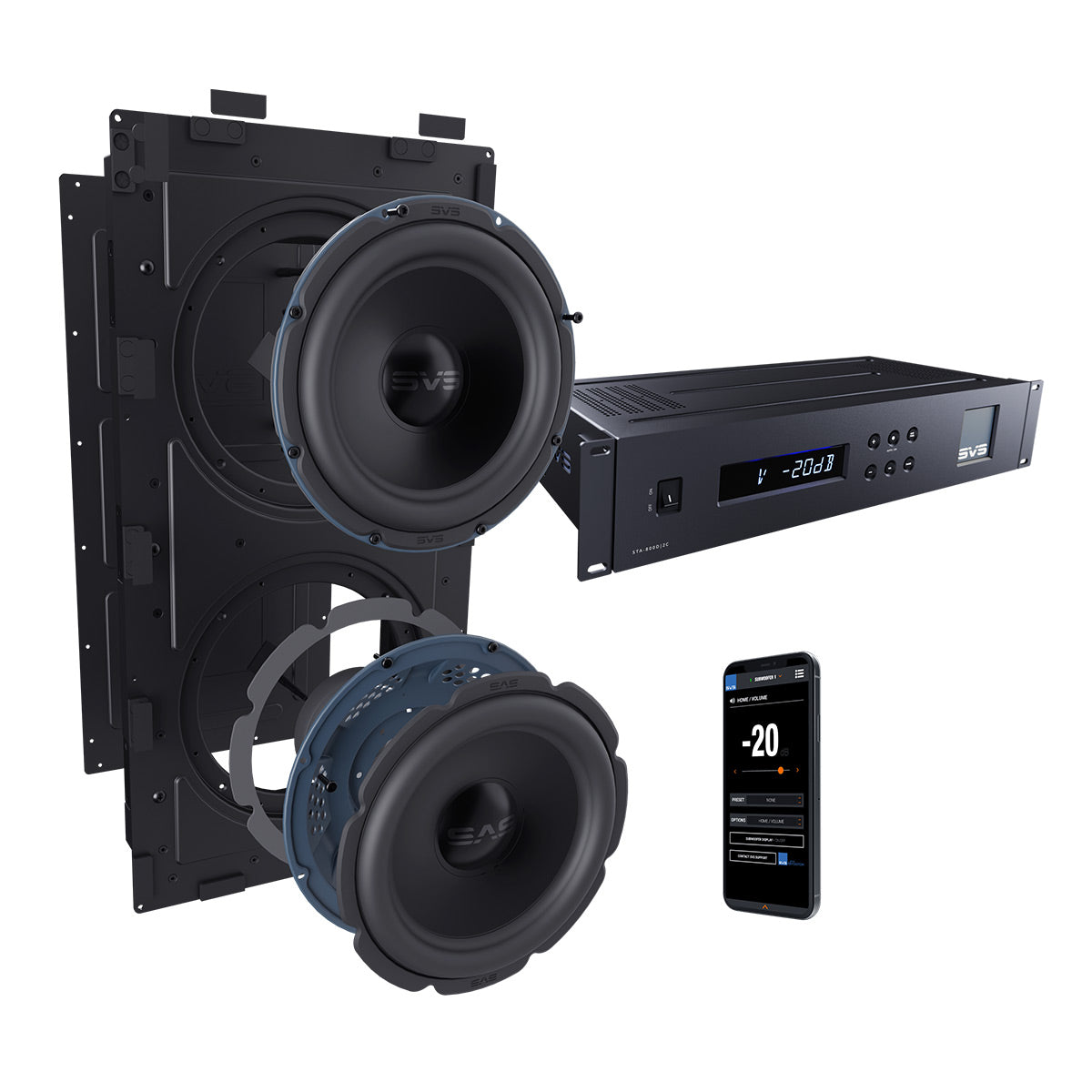

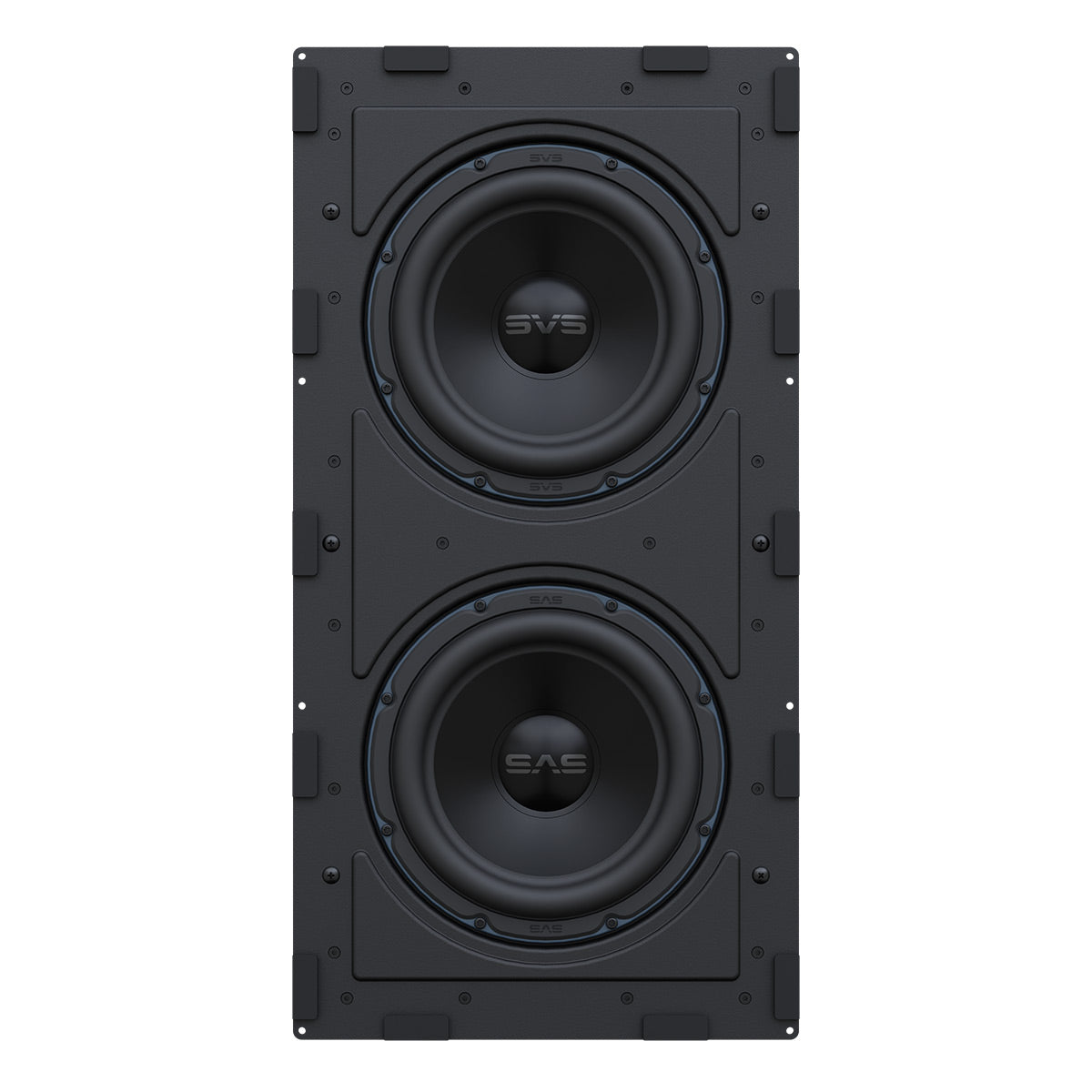

Immersive, cinematic bass from an architectural subwoofer for the first time. SVS 3000 In-Wall subwoofer is primed for easy retrofit installation or new construction and features dual active 9-inch high-excursion drivers powered by an 800 watt RMS, 2,500+ watts peak amplifier with discrete MOSFET output.

Dual Active 9-in Drivers

Lightweight, yet rigid in design, the custom motor and driver design ensure massive output and deep bass extension without a hint of distortion.

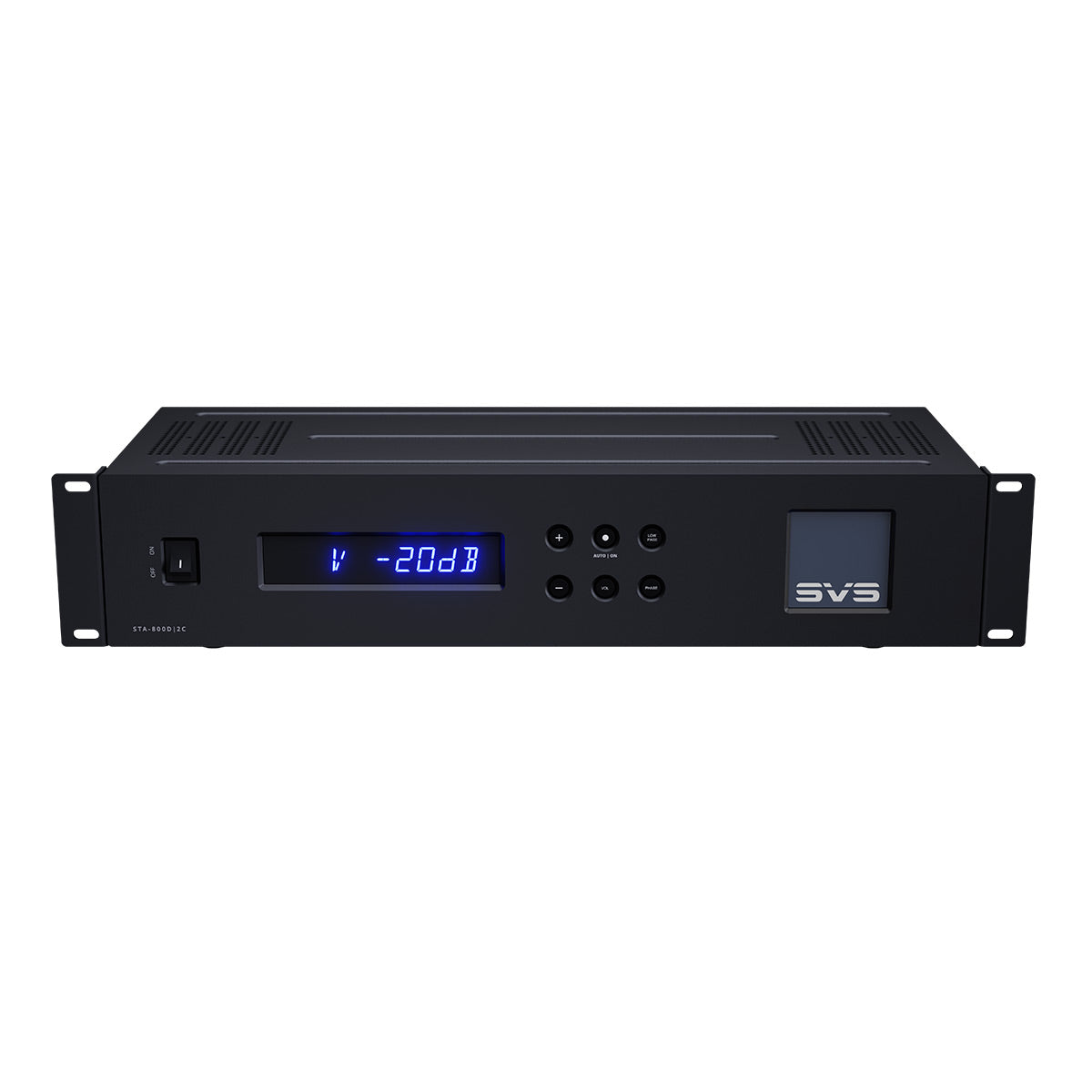

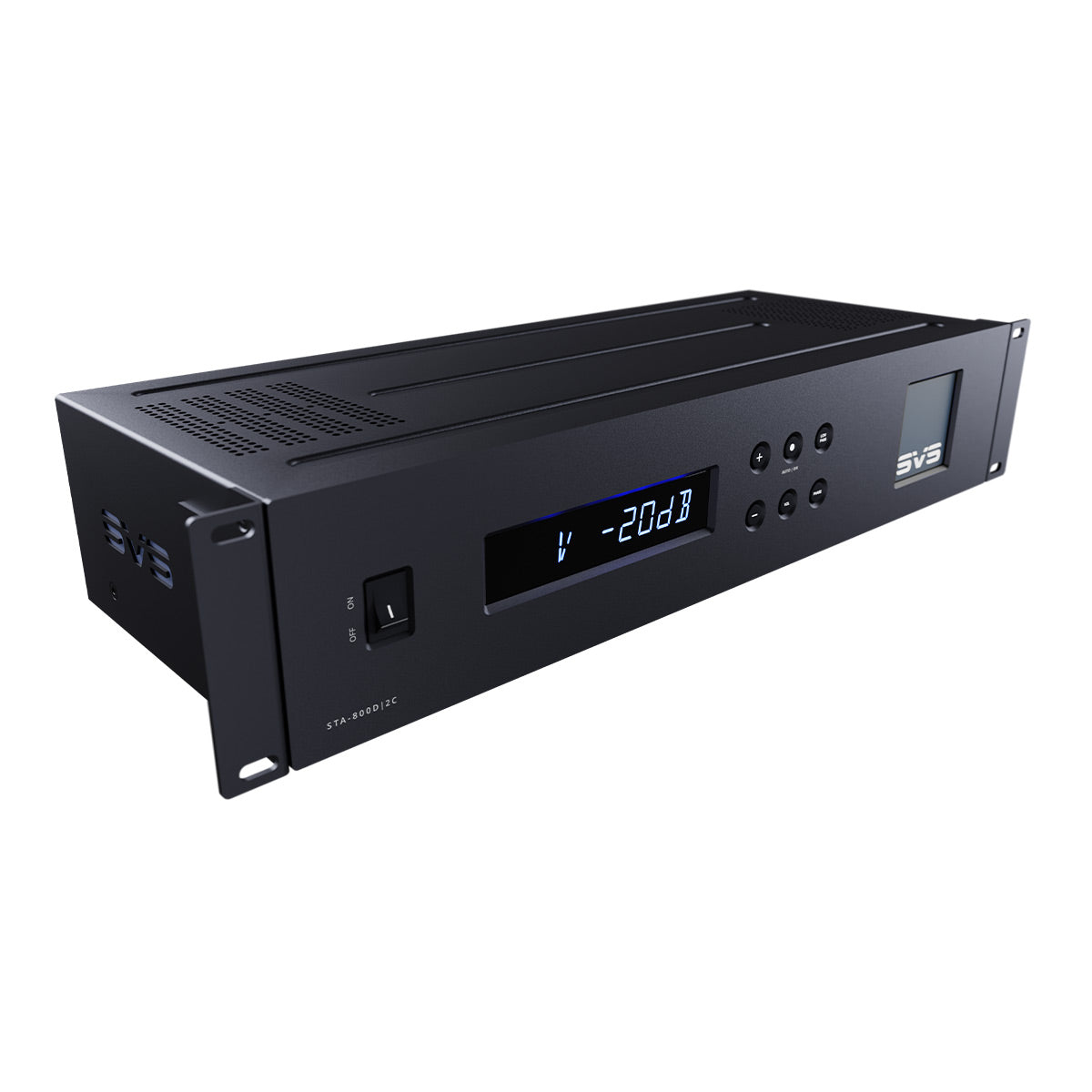

Sledge STA-800D2C Amplifier

Rated conservatively at 800 watts RMS, 1,500 watts peak power, produces effortless power on demand with discrete MOSFET output and Class D efficiency to fully maximize on the dual driver’s potential.

50 MHz Analog Devices Audio DSP

Powerful processor with precision 56-bit filtering enable seamless blending with all types of loudspeakers, optimized frequency response curves to maximize room gain, and advanced DSP controls not available from other subwoofer.

Custom Formed Aluminum Baffles

Front and rear baffles are custom formed aluminum to ensure sonically inert cabinet with no resonance for pristine low frequency playback.

SVS Subwoofer Control Smartphone App

Most convenient way ever to control subwoofer volume, access multiple DSP functions, and program custom preset tuning profiles optimized for music, movies, gaming, and more.

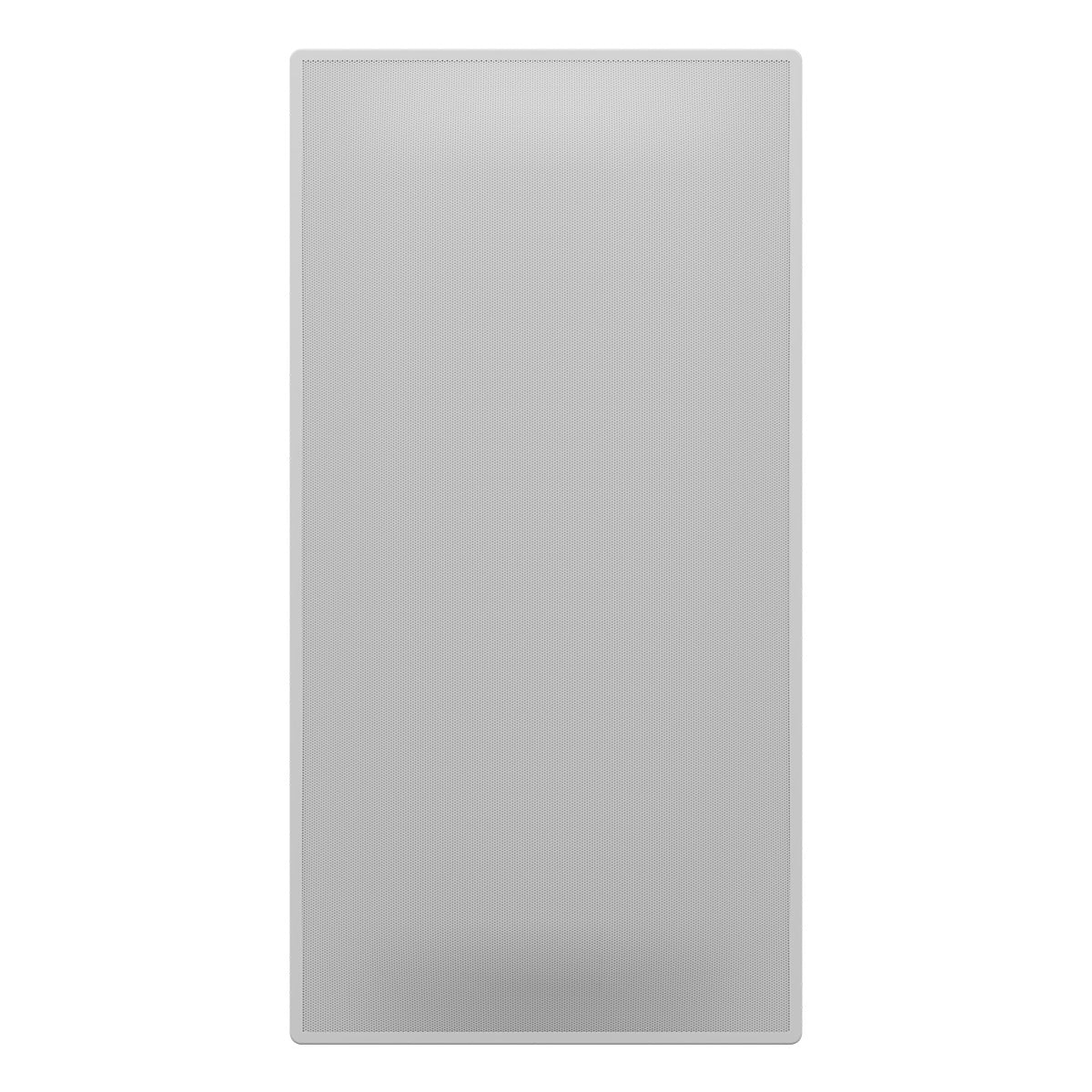

Acoustically Transparent Grille Cover

Magnetic grille protects drivers and is paintable to blend with any room décor.

Subwoofer Control Smartphone App

The most convenient way ever to control volume, access multiple DSP functions, and program custom preset tuning profiles optimized for music, movies, gaming, and more. All accessible with a single touch. Adjust crossover frequencies, a three-band parametric EQ, polarity, room gain and more, all from your favorite seat.

Easy Install for Retrofit and New Build Construction

3000 In-Wall Subwoofer installation is by way of dog-leg mounting, or direct-to-stud screw down points within standard 16-in stud spacing. Connection options are available for single LFE channel or stereo left/right with dedicated speaker cable banana terminals for easy connections between the source, amplifier, and subwoofer. Pre-construction kit, mounting templates and set up guide are also available.


  • Frequency Response / Acoustic Data
    • Frequency Response: +/-3dB 22Hz to 250Hz
    • In Room Low Freq: 19Hz
    • Max Output @ 32Hz 1/8 space 1m: 107.6dB
  • Subwoofer

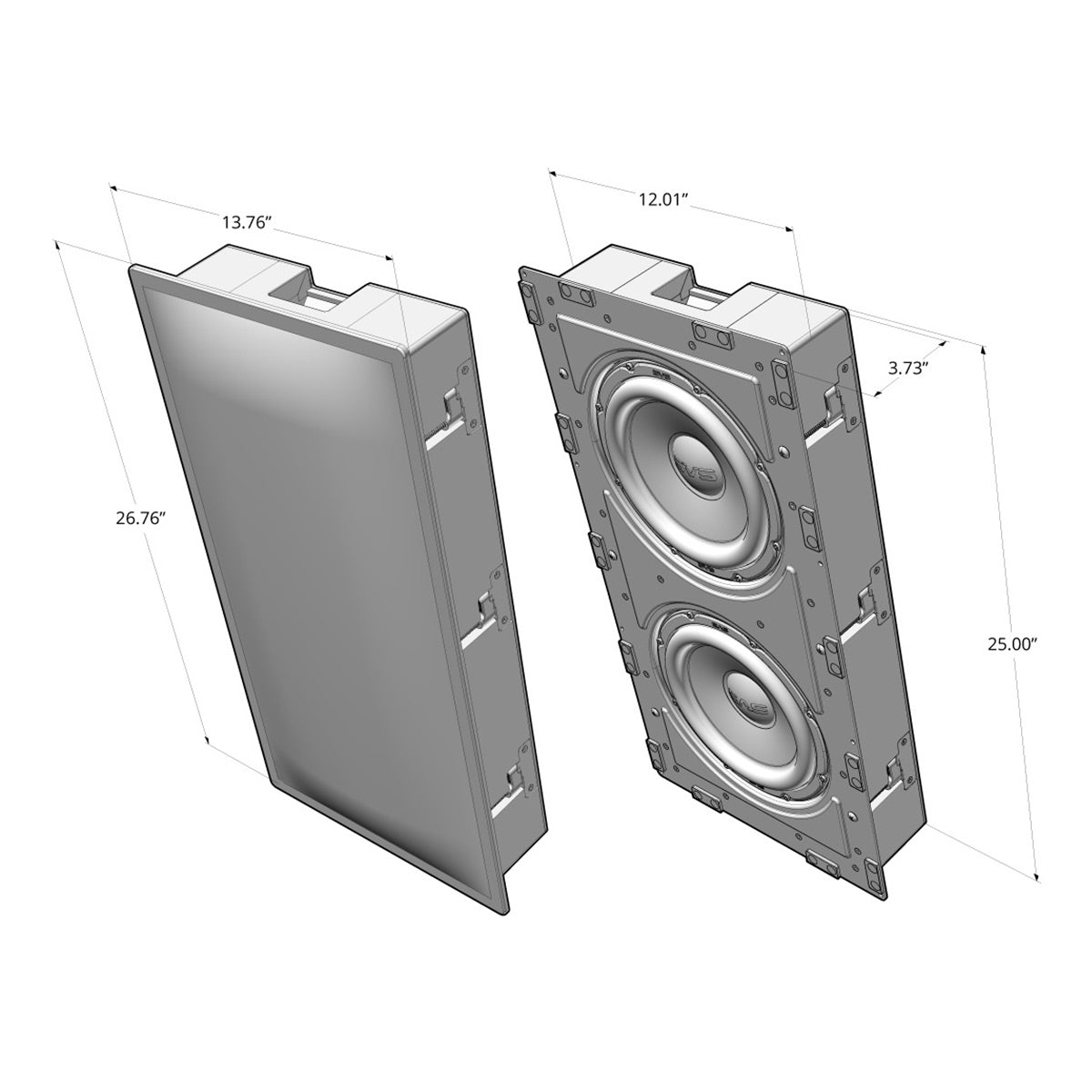

    • Weight & Dimensions (W x H x D)
      • Subwoofer Exterior (with Grill): 13.76”x 26.76” x 1.34”
      • Subwoofer Exterior (without Grill): 13.58” x 26.57” x 0.35”
      • Subwoofer In-wall Cabinet Only dimensions: 12”  x 25” x 3.74”
      • Subwoofer Weight (with grill): 25.5lbs
      • Subwoofer Weight (without grill): 23lbs
      • Drivers: Dual 9-inch active high-excursion
      • Materials: Ultra-Rigid Aluminum and MDF cabinet design
      • Grill: Paintable, magnetically attached
    • Drivers: Dual 9-inch active high-excursion
    • Cone: Vented, rigid aluminum
    • Surround: Proprietary injection-molded, long throw
    • Total Excursion (each driver): 23.4mm Xmax, 29mm Xmech
    • Voice Coil: High-current 4-layer copper voice coil
    • Dustcap: 1100 Aluminum custom low-profile cone
    • Driver Baskets:  9-inch
    • Former/bobbing:High temperature 3003-H18 aluminum
    • Linear Spider: 5.6-inch
    • Leads: Dual 24-strand plated copper
    • Motor: High-performance oversized Y30 Ferrite magnet motor
  • Sledge STA-800D2C Amplifier
    • Wattage: 800-watt RMS, 2,500-watt peak
    • MOSFET output: Fully discrete MOSFET output
    • Class: High-efficiency Class-D
    • DSP: High-resolution 50MHz
    • User adjustable settings: Low pass filter, phase, polarity, room gain, and three parametric equalizers
    • App: Bluetooth BLE smartphone control app for iOS, Android and Amazon devices

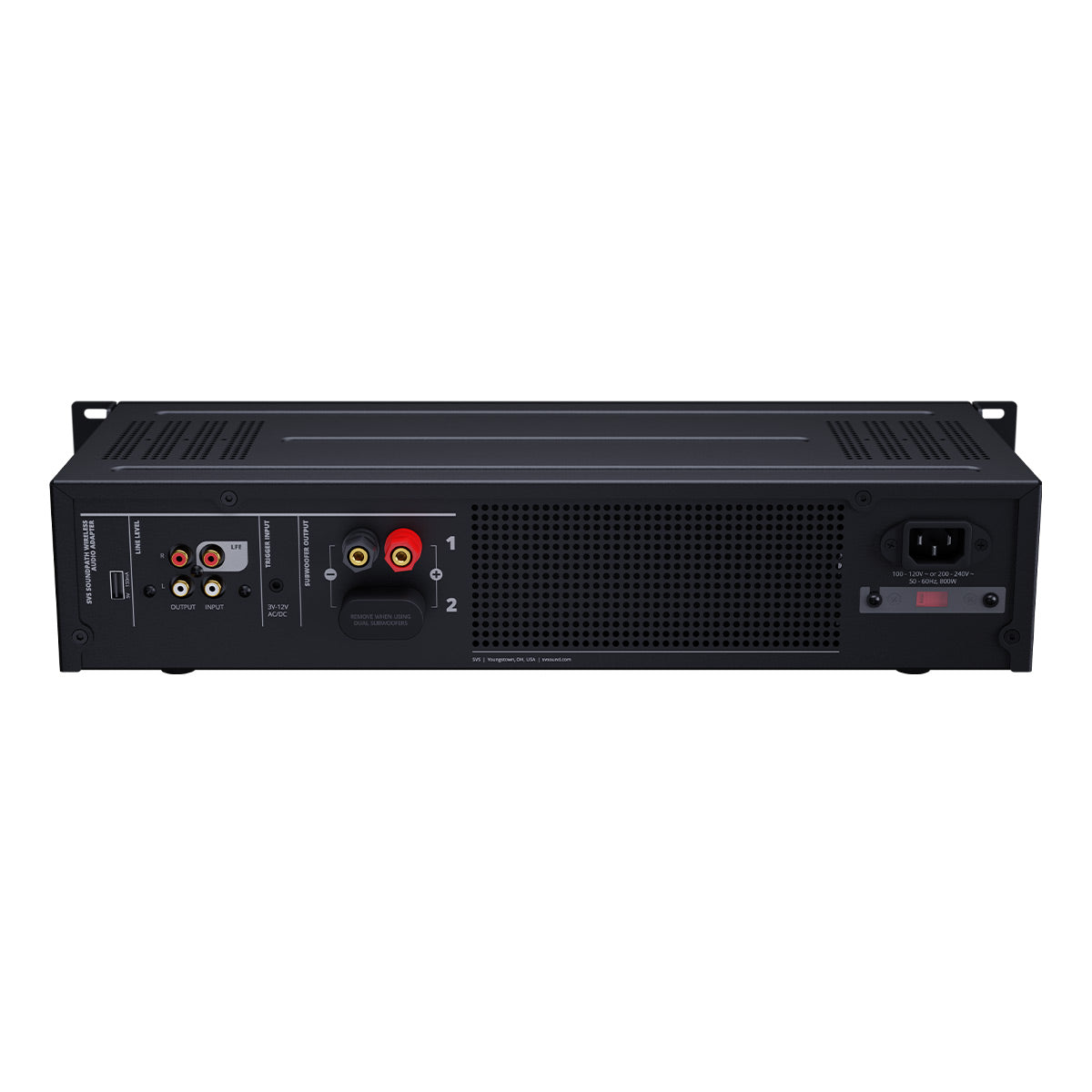

    • RCA Input/Output: Yes / Yes
    • Wide input voltage bandwidth: Compliant up to 4V line level input

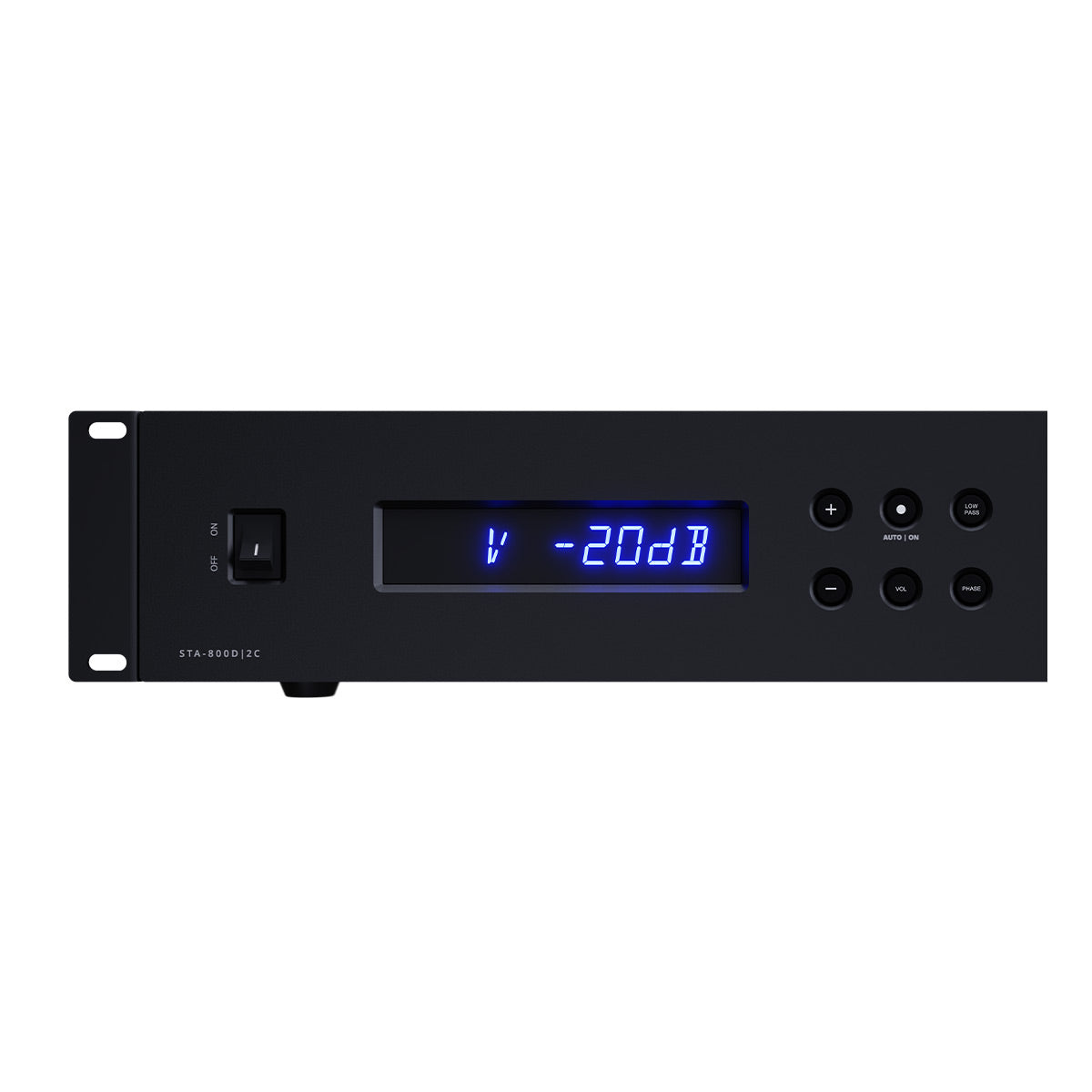

    • Intelligent Control Interface (ICI): 8-character blue-LED
    • Auto/On: Yes
    • 3-12V AC/DC trigger: Yes
    • Input impedance: 16 k? (unbalanced RCA)
    • Rack-mount kit: Included
    • Power Cord: Detachable high-current power cord
    • Low-standby-power consumption: 0.5-watt low-standby-power consumption
    • Certifications: RoHS compliant, lead-free construction, world-wide safety certifications
    • Dimensions and Weight
    • Dimensions (W x H x D) (without rack kit, including feet and terminals): 17.26” x 3.73” x 7.67”
    • Weight (without rack kit): 10.1lbs
  • SVS App
    • Works with iOS, Android, and Amazon operating systems
    • Adjust: Crossover frequencies, parametric EQ, polarity, room gain and all other bass-management functions
    • Custom presets: 3
    • Bidirectional feedback shows adjustments: Real time on both app and subwoofer

What's In The Box

  • 3000 In-Wall Single Sealed Subwoofer System with Sledge STA-800D2C Amplifier
    • (1) 3000 In-Wall Subwoofer
    • (1) Sledge STA-800D2C Amplifier
  • Non-resonant paintable magnetically attached steel mesh grill
  • Dedicated Banana speaker wire plugs
  • Installation and Setup Guides
  • Extra heavy-duty, high-current 6’ power cord
  • Amplifier Rack-mount kit
