Stewart Luxus Electric Retractable Below Ceiling 120" HDTV Projector Screen (StudioTek 130 G4)

Regular price $5,150.51
Sale price $5,150.51 Regular price
Save $-5,150.51 (%)

In Stock & Ready to Ship
Free Scheduled Delivery Ships within 3-4 weeks

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live


Product Information

Model: LUXG2120HST13G4SBB-12-2-5 | UPC: 877254005286


What's In The Box

Product Information

Model: LUXG2120HST13G4SBB-12-2-5 | UPC: 877254005286

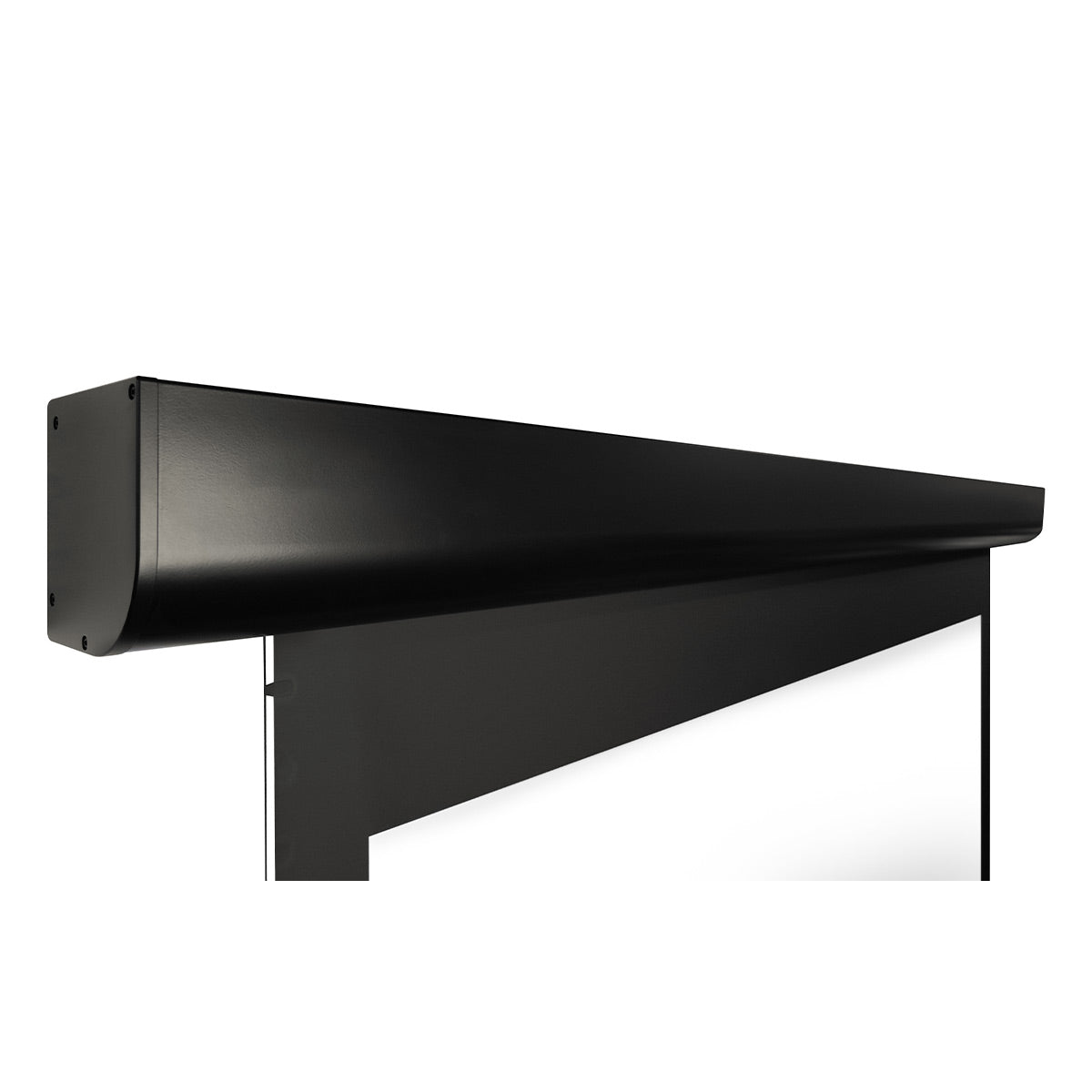

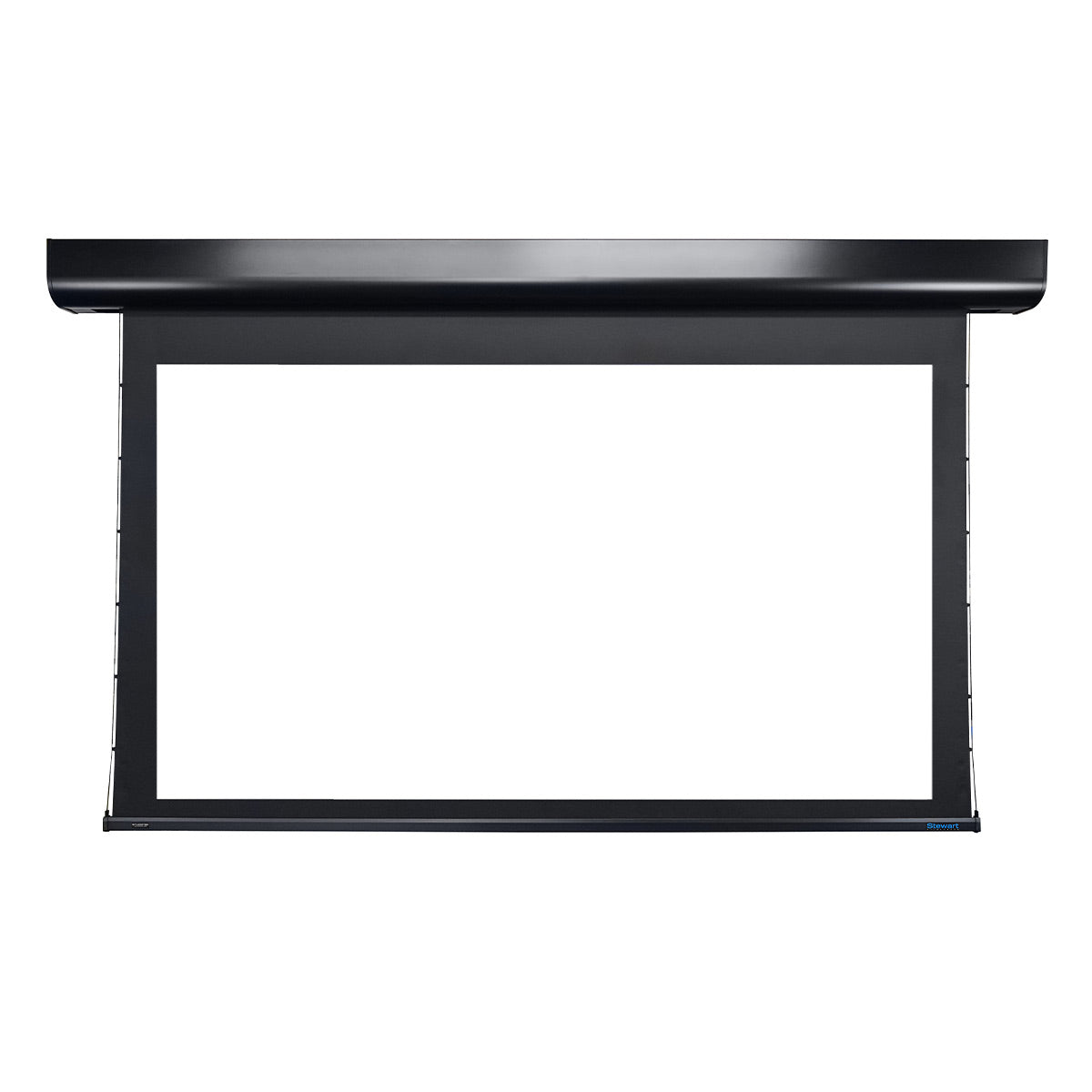

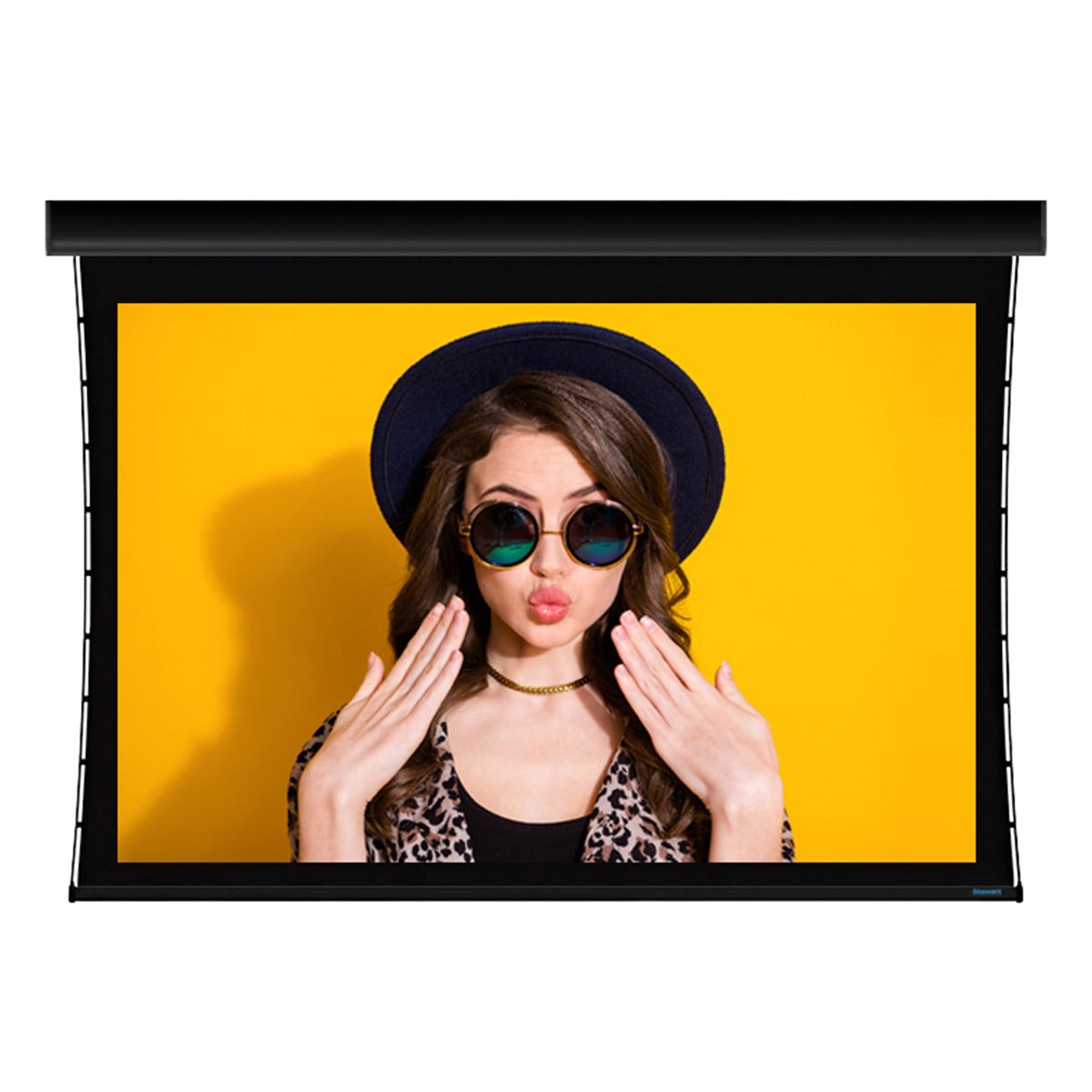

Retractable, Below Ceiling Screen System

Ideal for residential or commercial multipurpose applications

The new Luxus is an appealing compact, below ceiling retractable screen system that is ideal for image widths up to 15 feet 2 inches. Scaling up to 209 inches in diagonal in 16:9 format with a 12-inch black drop, the new Luxus is ¾ of an inch smaller in circumference and features a mounting bracket that allows the screen case to slide horizontally for proper centering on the wall or ceiling. With built-in controls and a removable case bonnet, the new Luxus continues to be a well-proven screen with a time-tested following.

More style. More convenience. More affordable

Beyond stunning, Stewart’s all-new Luxus retractable screen system now brings the next level of industry-leading innovation to the two-piece projection screen market.

Way cool mounting bracket

Installation is easier, faster, and more convenient. The new Luxus uses a sliding mounting bracket that runs along both the top and back of the case for a perfect wall or ceiling fit. The new Luxus is also ¾ of an inch smaller in circumference, making the screen case more compact.

New multi-platform controller that speaks IR, Serial, RF, IP, Trigger, and Dry Contact

The Intelligent Motor Control (IMC) 100 is a highly reliable multi-platform friendly solution that is fully hidden and integrated into the screen case. Access to the screen assembly, motor, and control is now easier with the removable case bonnet.

Built to impress

The end caps come standard in black or white to match the screen case or, you can choose optional hand-polished brushed aluminum end caps to take the screen to a whole new level of sophistication.

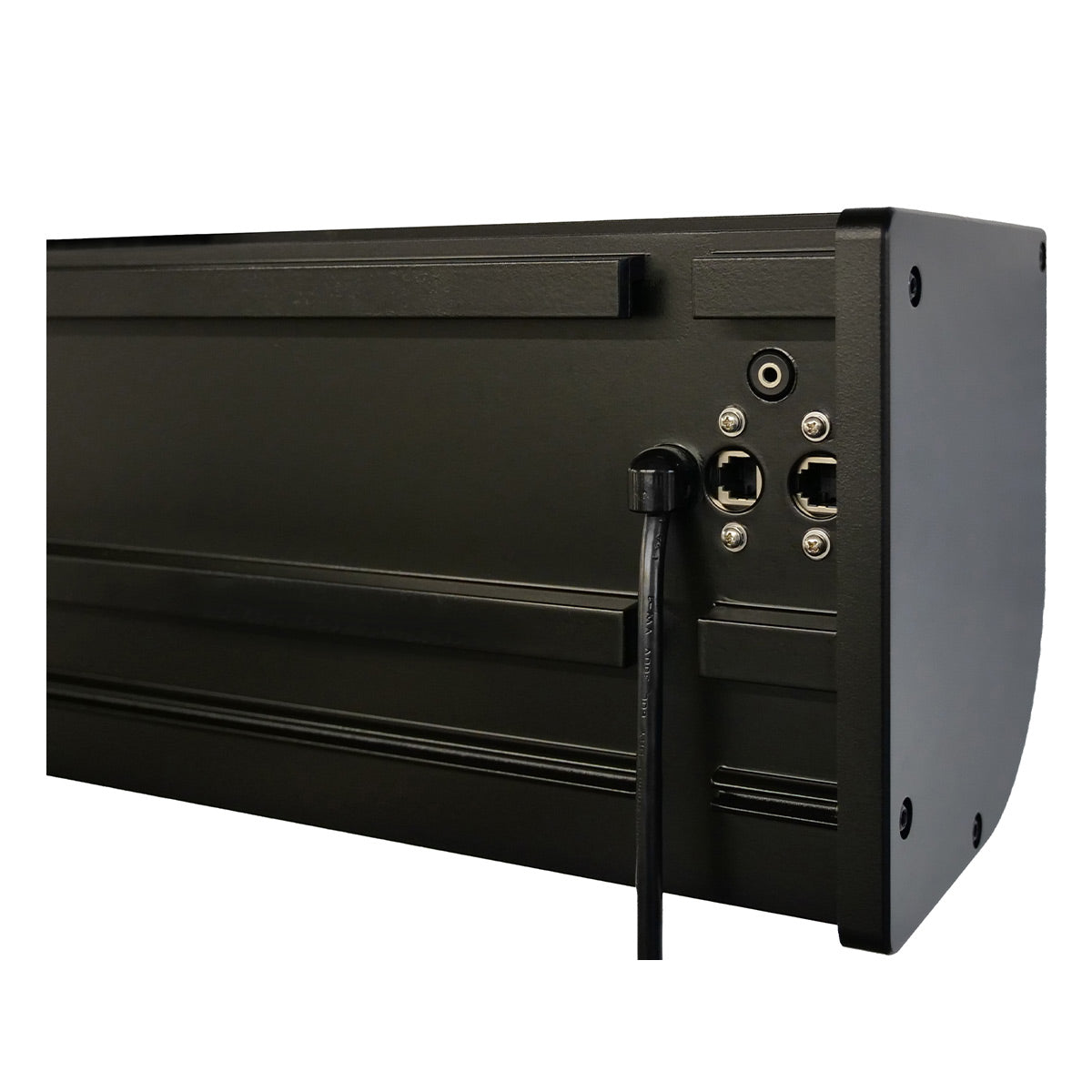

Plug and Play Access

The new Luxus provides easy and direct access to power and control outputs via the back of the case. The Smart Port allows access to IR, Serial, and more.

Venue specific fabrics

Plenty of screen manufacturers make a small, wall-mounted retractable screen. None, however, can furnish in one of Stewart's application-driven 16K+ front or rear projection fabrics.

StudioTek 130

StudioTek 130 is a flexible, front projection, screen material that is formulated to provide optimized white field uniformity unmatched by competing gain screens. StudioTek 130 is over 30% brighter than a matte-white screen surface. Certified by THX, StudioTek 130 is the reference standard projection material within the AV industry.

  • Over 30% brighter than matte-white material
  • Studio industry's standard reference screen
  • Re-formulated optical coating allows for enhanced focusing capabilities
  • Superb color and white field uniformity
  • Certified by THX
  • Certified by the Imaging Science Foundation (ISF)



  • Supported Resolution: 4K, 8K, 16K
  • Surface Color: Gray
  • Screen Type: Electric
  • Mount Type: Wall and Ceiling
  • Format: HDTV (16:9)
  • Viewable Diagonal Inch: 120
  • Viewable Width Inch: 104.5
  • Viewable Height Inch: 58.75
  • Gain: 1.1
  • Case Color: Black
  • Product Line: Luxus
  • Front/Rear Projection: Front
  • Projection Surface: StudioTek 130
    • Peak Gain: 1.3
    • Half Gain: 80 Degrees
    • Ambient Light Rejection Value: 17%
    • Ambient Light Resistance: N/A
    • Minimum Throw Distance: 1.3 x Image Width
    • Edge Blending Properties: Fair
    • Passive 3D Use: No
    • Lay Flat Quality: Excellent
    • Flame Resistance: Yes


What's In The Box

  • 1x Infrared Remote Control
  • 1x Infrared Receiver
  • 2x Male Mono 3.5 Auxiliary Plugs
