Sony Mobile

Sony Mobile XS-AW8 8 in. Compact Powered Under Seat Subwoofer with Remote Volume Control

Regular price $298.00
Sale price $298.00 Regular price
Save $-298.00 (%)
OR

In Stock & Ready to Ship
Free Shipping Get it between Fri, Apr 19 – Fri, Apr 26

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Overview

Product Information

Model: XS-AW8 | UPC: 027242920415

Specifications

What's In The Box

Product Information

Model: XS-AW8 | UPC: 027242920415

Ultra-sleek, shallow subwoofer

No space for a big subwoofer enclosure? At only 3 1/8" deep, the XS-AW8 powered subwoofer fits in tight spaces in your vehicle for powerful bass sound throughout the car.

Features

  • Easy installation
  • Power output of 160 W (max)/75 W (RMS) with supply voltage of 14.4 V
  • Adoption of a high rigidity aluminum die-cast box
  • Remote gain (volume) controller included
  • Mounting hardware included

Optimally designed driver unit and low-resonance cast-aluminum enclosure

To reproduce powerful bass sound from its compact dimensions, the slim enclosure is paired with a unique rigid subwoofer diaphragm. The built-in amplifier also integrates a sturdy heat-sink to protect the driver unit and amp without introducing unwanted vibrations and harmonic distortion.

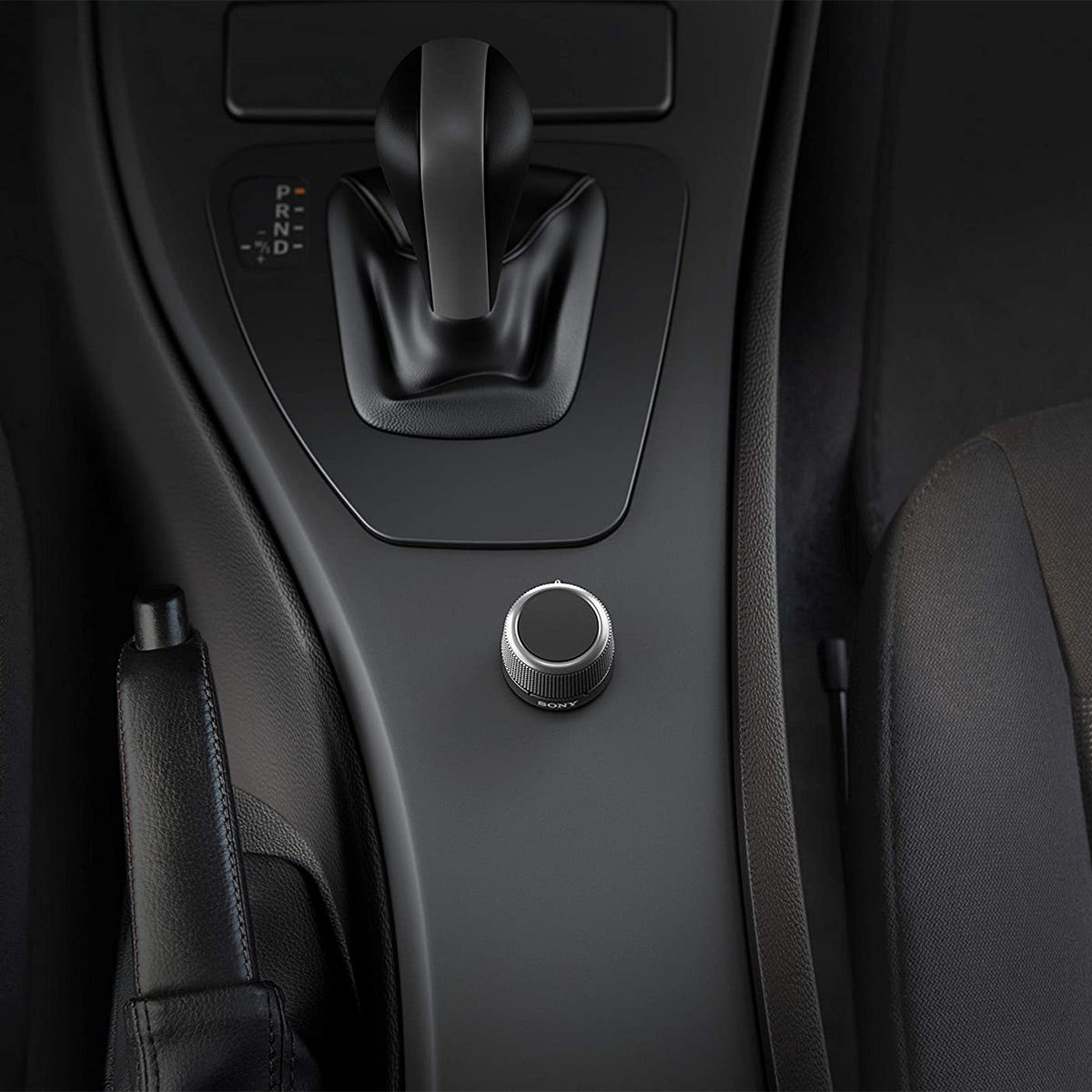

Supplied wired remote commander

A supplied wired remote commander allows you to adjust the subwoofer volume from the driver's seat.

High level input/Audio line input

What if you're using a factory radio that doesn't have pre-amp outputs? Simply connect the speaker outputs of your receiver to the high-level inputs. When pre-out audio signals are available from the receiver, connect them to the CH1(R) and CH2(L) terminals. Compatibility with up to 5-V pre-outs means you can utilize higher voltage audio input for a clean audio signal and less external noise.



Specifications

  • Built-in Amplifier
    • Low-Pass Filter: 50 Hz–150 Hz
    • Low-Pass Filter Slope: 12 dB/oct
    • Maximum Output Power (14.4 V) At 2 Ohms: 160 W
    • (RMS) Power requirement: 12 V DC car battery (negative ground (earth))
    • Rated current: 8 A
    • Rated Output Power/THD (14.4 V, 20 Hz – 20 kHz) At 2 Ohms: 75 W/1.0%
  • General Features
    • Diaphragm Material: Paper
    • Effective Frequency Range: 20 Hz–200 Hz
    • Impedance (ohms): 2 ohms + 2 ohms
    • Magnet Material: Ferrite
    • Surround Material: Rubber
  • Size & Weight
    • Dimensions (W x H x D): 13.54" x 3.07" x 9.84"
    • Weight: 10.71 lbs
    • Speaker System
    • Configuration: DVC
    • Size: 8"

What's In The Box

  • XS-AW8 8 in. Compact Powered Under Seat Subwoofer with Remote Volume Control
  • Power supply lead
  • (4) Mounting brackets
  • Mounting hardware
  • Double Sided Tape
