Sony Mobile XAV-AX3700 6.95" Digital Multimedia Receiver with Carplay

Regular price $398.00
Sale price $398.00 Regular price
Save $-398.00 (%)
OR

In Stock & Ready to Ship
Free Shipping Get it between Fri, May 24 – Fri, May 31

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

XAVAX3700 6.95" Digital Multimedia Receiver Overview

Product Information

Model: XAVAX3700 | UPC: 027242929340

Specifications

What's In The Box

Product Information

Model: XAVAX3700 | UPC: 027242929340

Enjoy smooth and simple control for every journey. An anti-glare 6.95 inch touchscreen and interface are designed to give you intuitive control over music, communications and more. With LDAC™ high quality Bluetooth® connectivity, plus time alignment and a 14-band EQ, it allows for even more personalization and provides the perfect in-car audio experience.

Features

  • Anti-Glare Touch Screen
  • Apple CarPlay (Wired)
  • USB Type-C® Compatible
  • Rear View Camera Ready
  • iDatalink® Maestro® Compatible

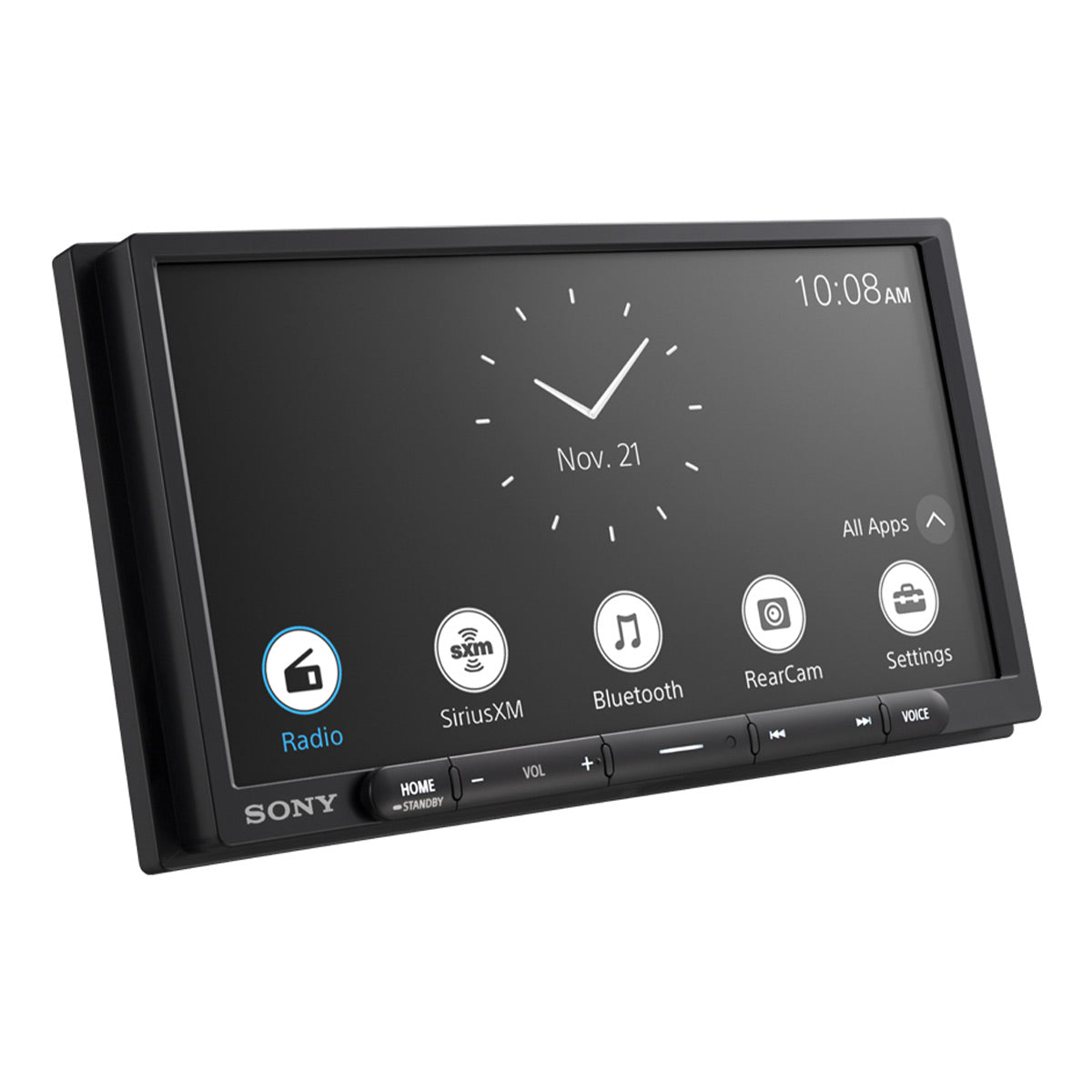

6.95” Anti-Glare Sleek Touchscreen

The anti-glare 6.95 inch (17.6 cm) touchscreen and clean interface design ensure a stylish and efficient user experience.

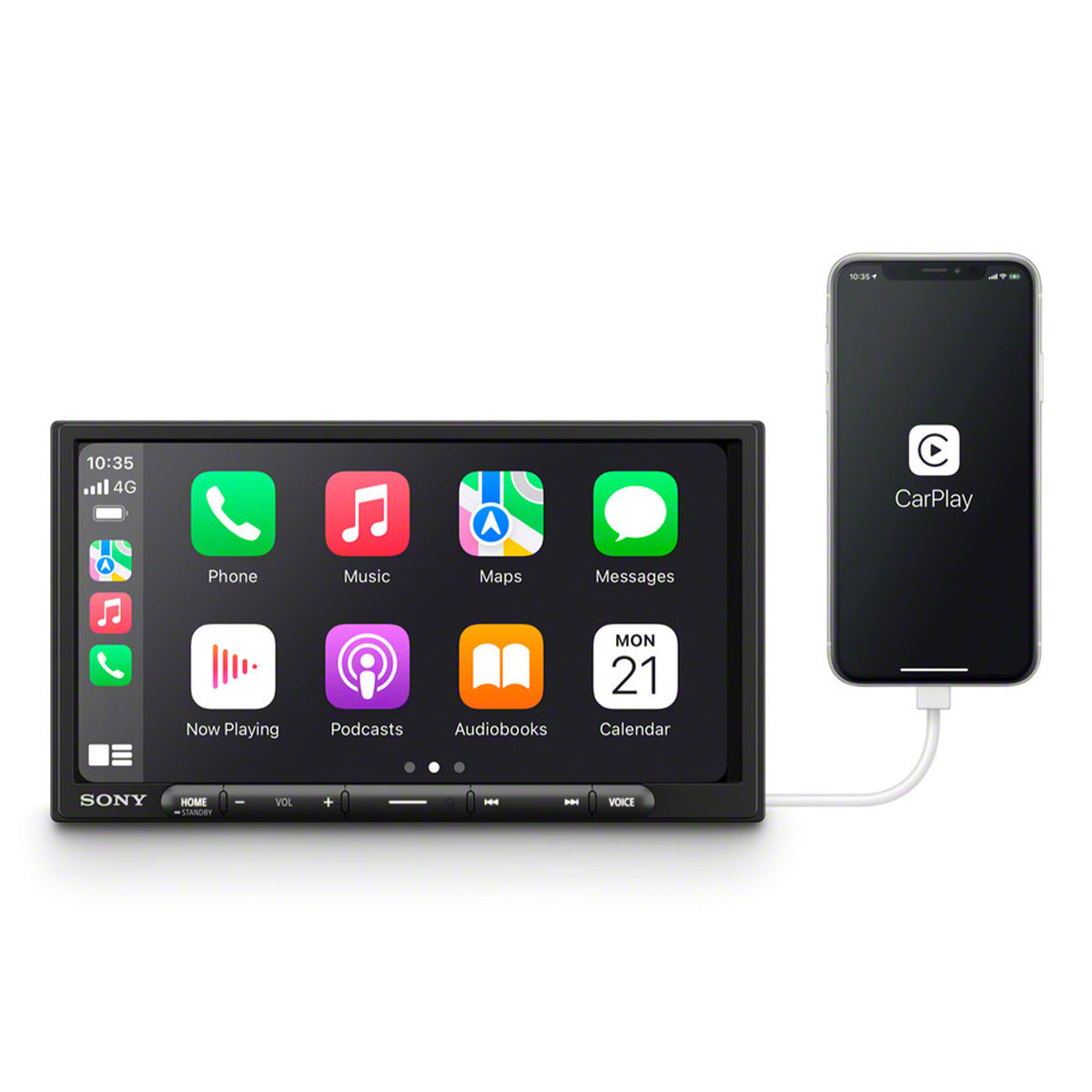

Apple CarPlay®

Connect your iPhone® for hands-free calling, music listening and messaging thanks to CarPlay. You can also use voice commands for navigation – including via third-party apps – and view traffic conditions right on the dashboard, all whilst staying safely focused on the road.

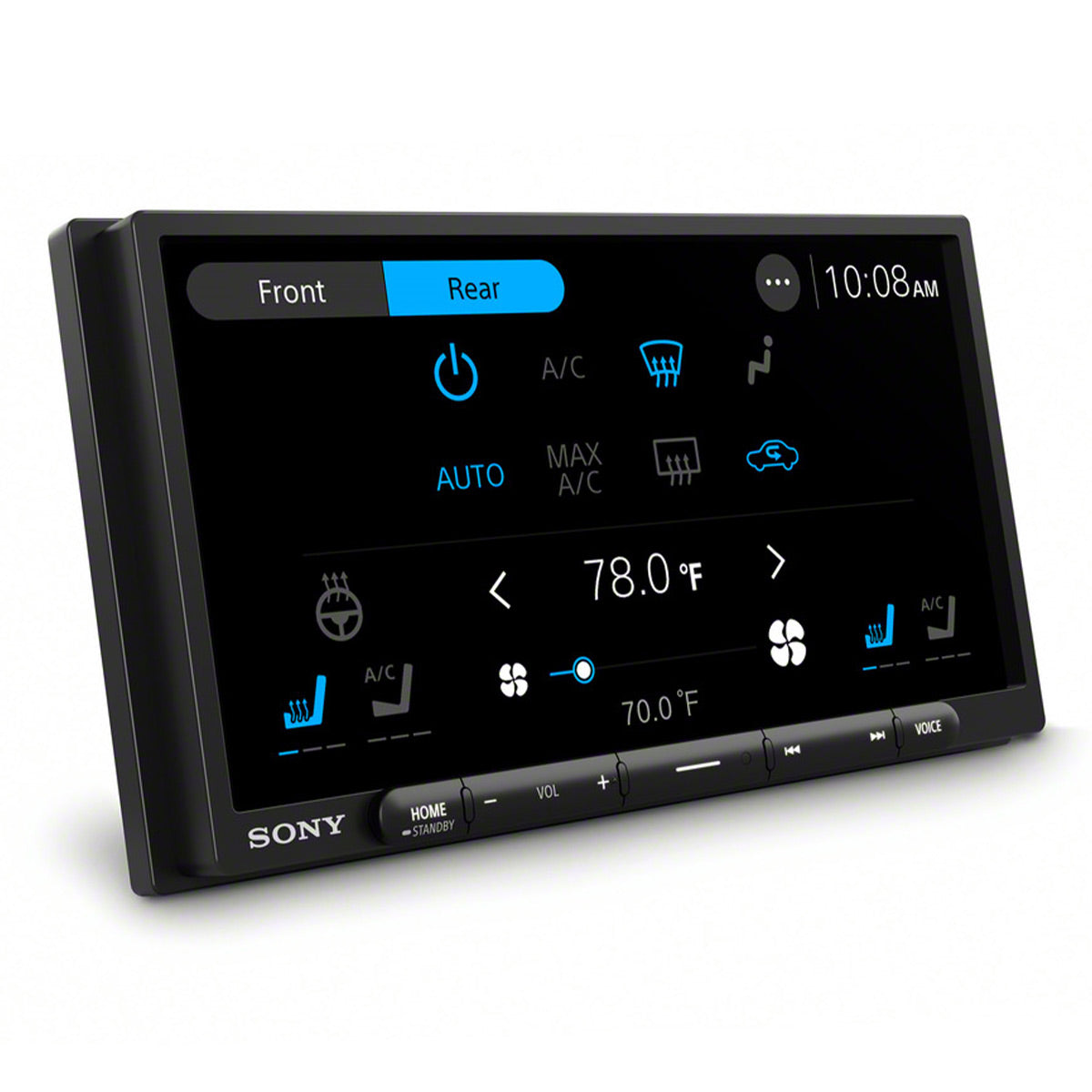

Connected To Your Car

iDatalink® Maestro® connects your vehicle’s onboard computer with car audio, making it work as a customized display for your car’s factory-equipped functions and features. It provides a seamless interface with factory infotainment and vehicle information, such as air conditioning, performance and safety. Simply connect an iDatalink® Maestro® RR/RR2 by Automotive Data Solutions. It’s a new way to connect car audio to your vehicle while retaining and improving the functions of the original equipment.

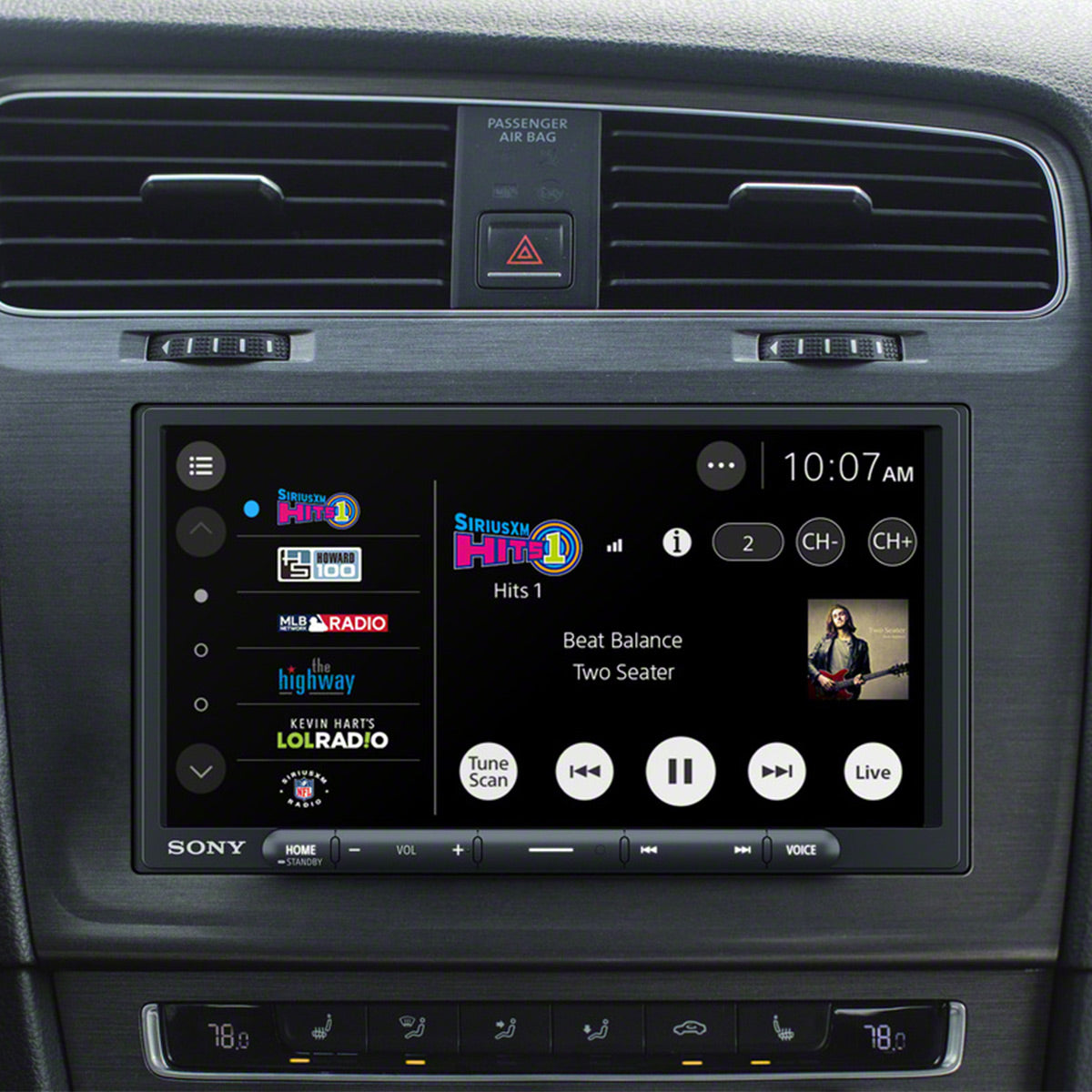

SiriusXM Radio Ready

Connect your SiriusXM® Radio satellite tuner (not supplied) to enjoy commercial-free music, sports, news and entertainment.

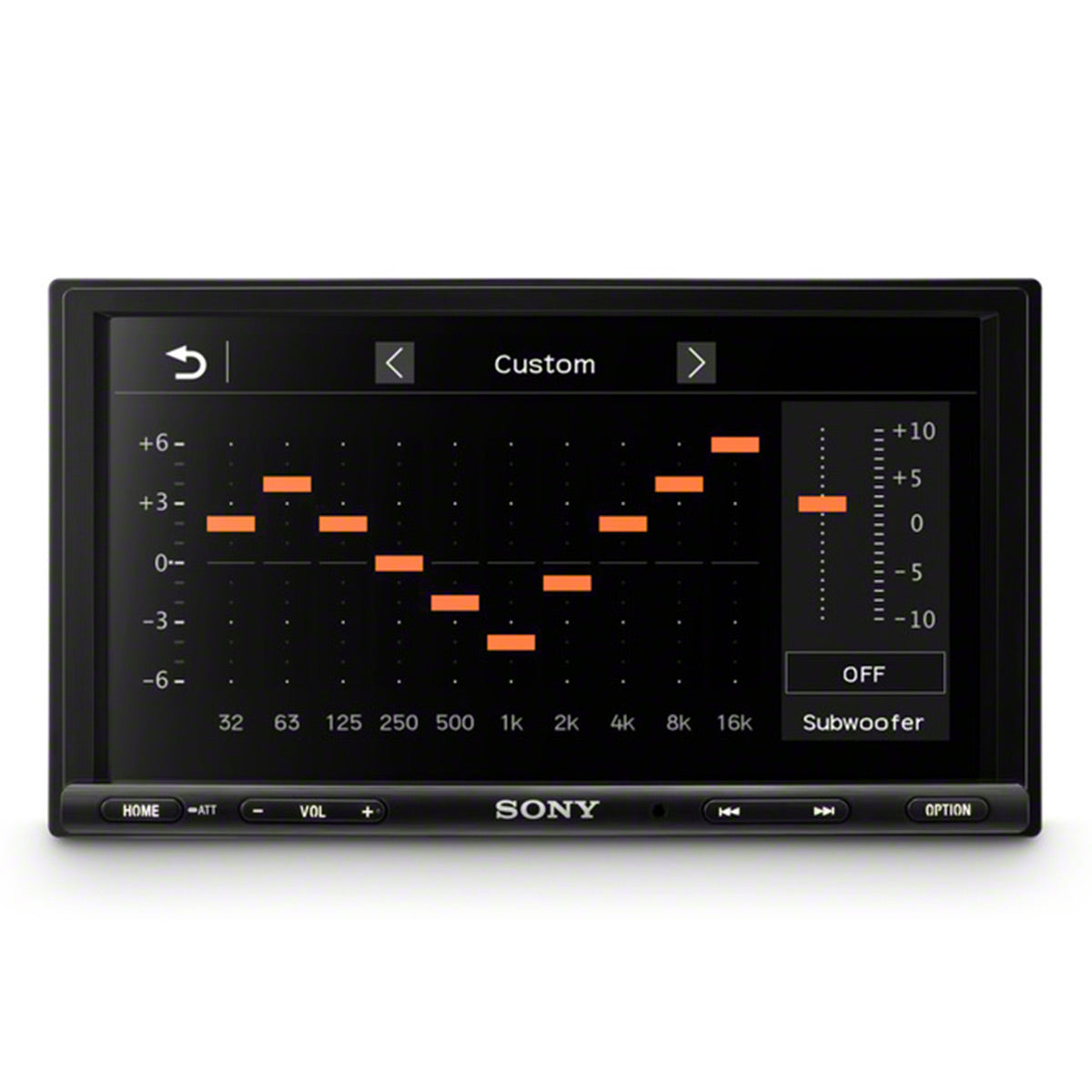

Sound Customization

The built-in DSP offers sound processing and time alignment – down to a remarkable 1 cm for each of the five addressable channels (four speakers and subwoofer via pre-out). A 14-band EQ lets you adjust the overall sound to your music or taste. Together with the three-zone crossover, you can arrange the perfect match of front, rear and subwoofers.

LDAC™ For Exceptional Sound Quality

Enjoy the convenience of Bluetooth® wireless audio and exceptional sound quality, thanks to LDAC. Connect compatible devices to stream audio at 96 kHz / 24-bit with bitrates up to 3x higher (990 kbps) than conventional Bluetooth®.

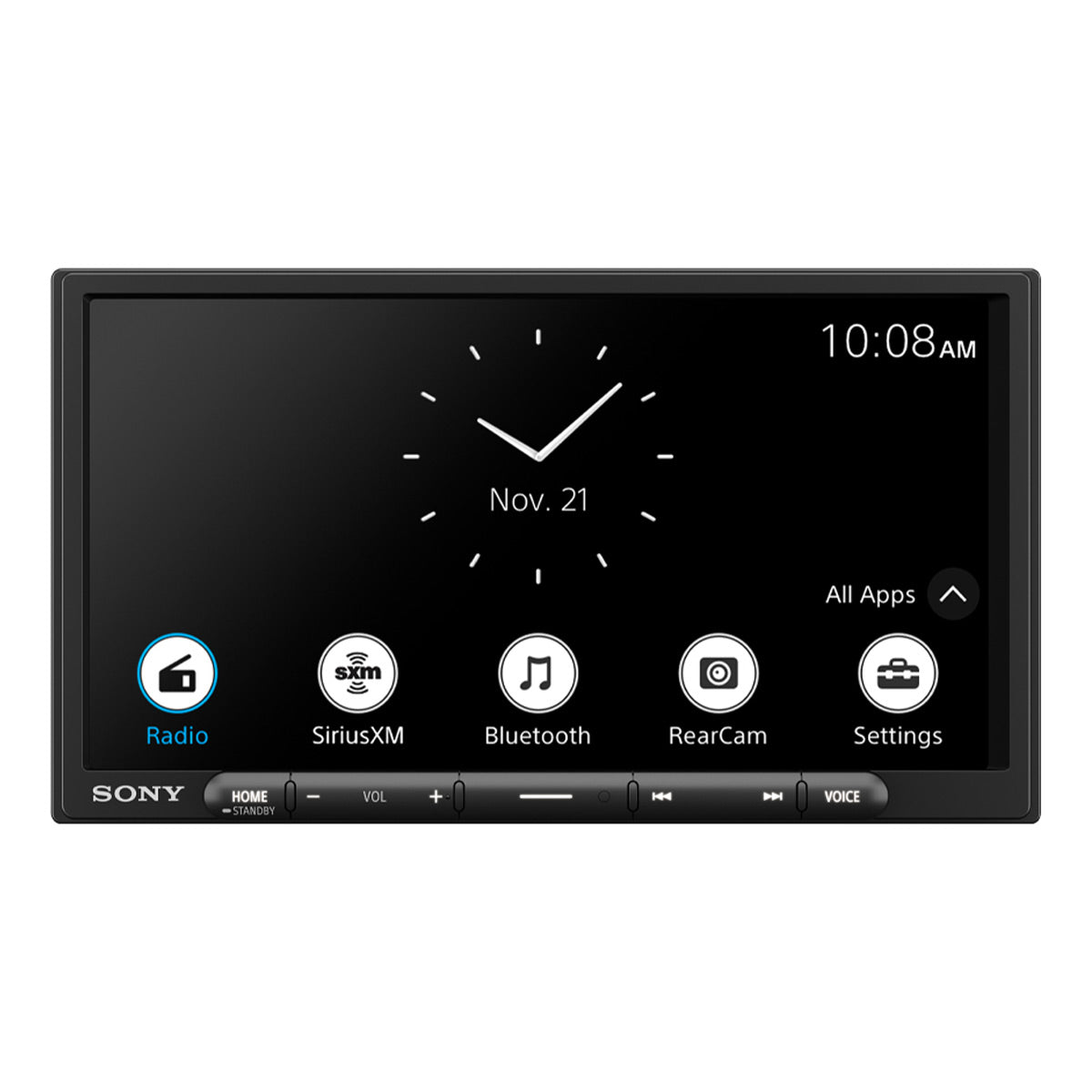

Simple Button Controls with Intuitive Design

The new button design features large keys to seamlessly fit with the sleek display. Access volume, source, sound settings and voice control, for safe and easy operation on the road.

Rear-View Camera-Ready

Got a rear camera installed? You can view its feed through the screen, along with customizable guidelines to help you reverse safely.

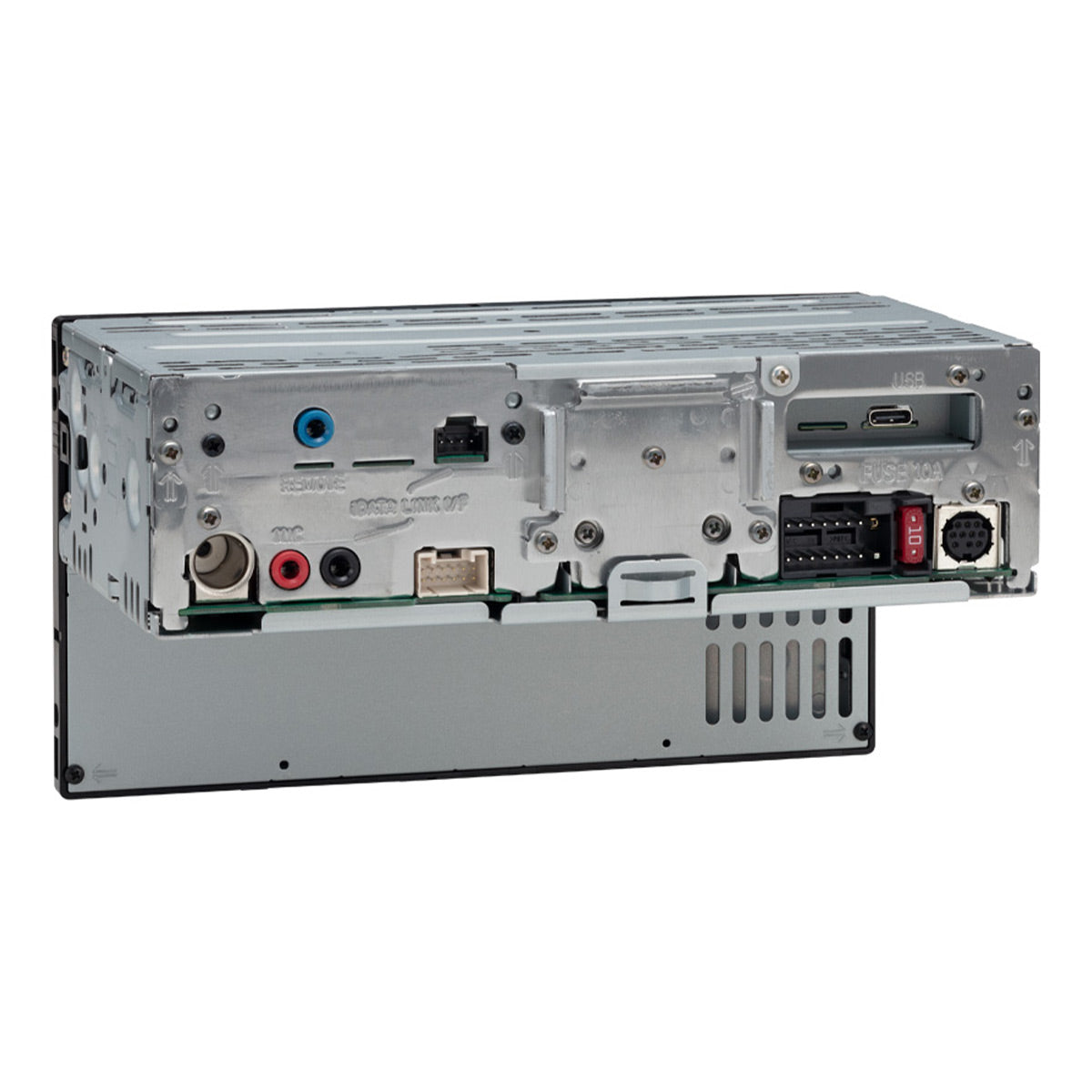

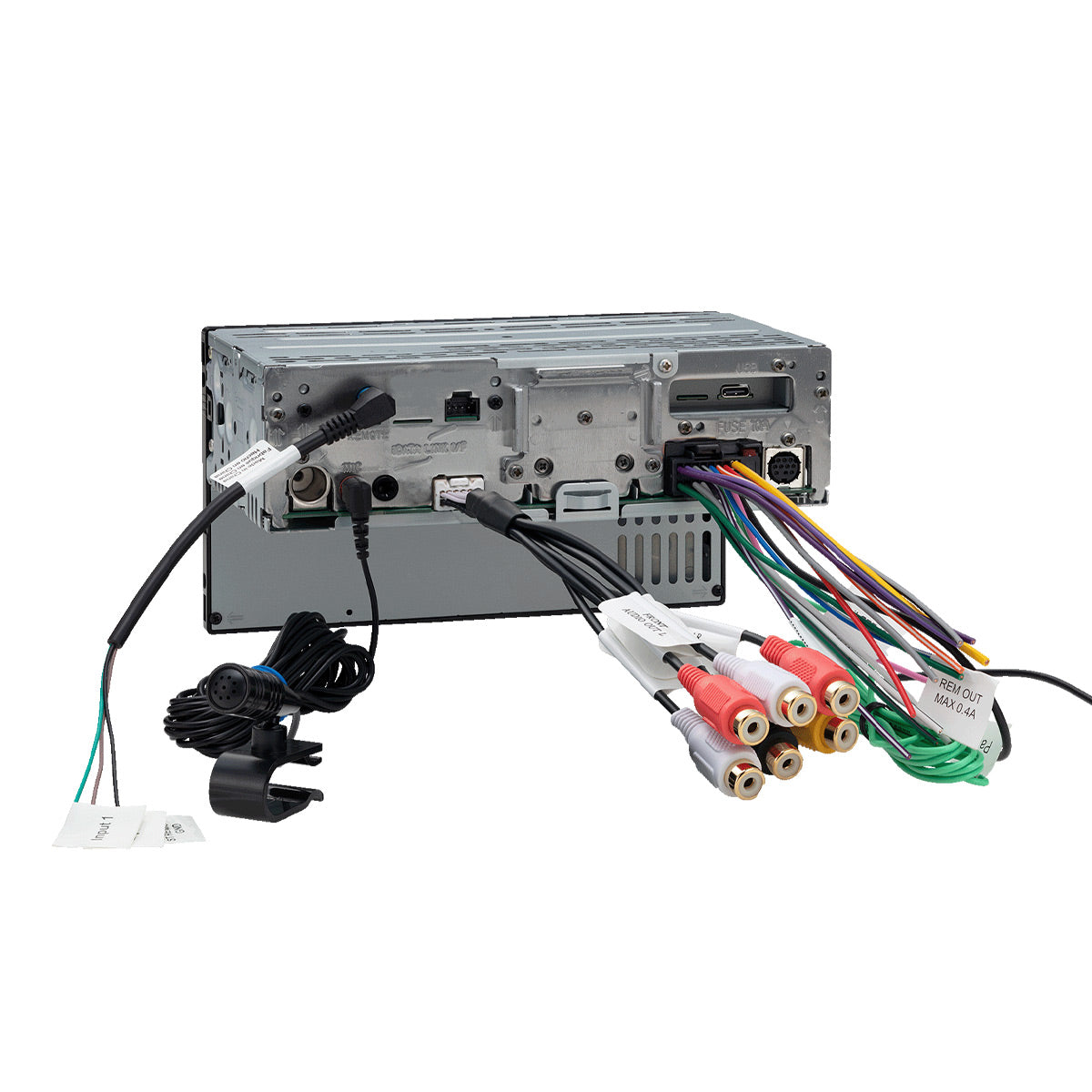

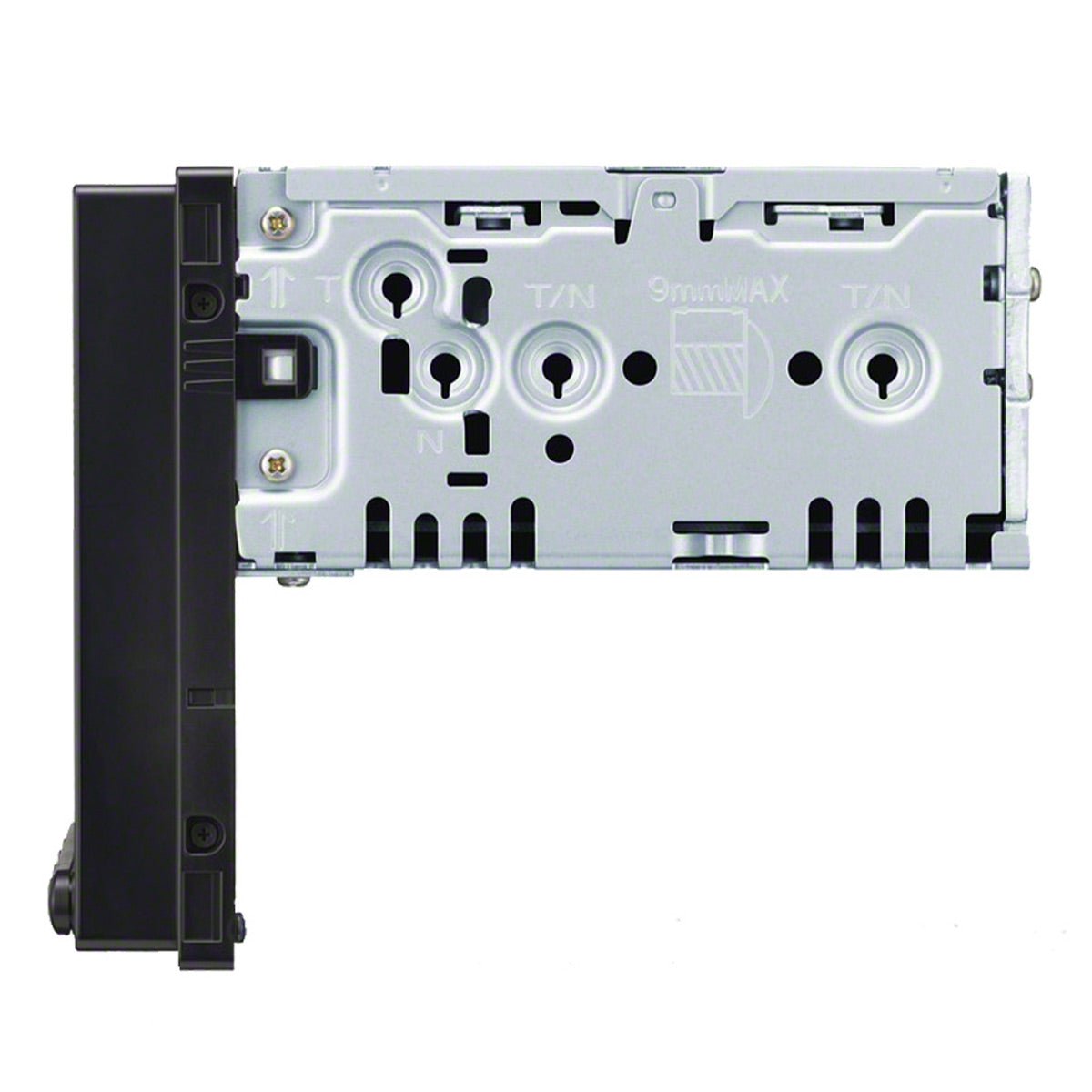

Easy Installation, With A Compact Rear Chassis

Despite its double-DIN display, the rear chassis is far smaller than conventional double-DIN units. This makes for much easier installation and leaves plenty of room for cables and other accessories in the space behind the display.

Environment In Mind

Sony's products are not only designed to be stylish but also with the environment in mind. For the individual packaging of the XAV-AX3700, up to 90% of the cushions are made of paper materials, and compared to the prior model, printed information has been carefully considered for simplicity and length to reduce printer ink usage by approximately 80%, reflecting Sony's commitment to reducing environmental impact.

Specifications

  • BT Audio
    • Audio Codec: SBC/AAC/LDAC
    • PAUSE: Yes
    • CUE/REV: Yes
    • TRACK +/-: Yes
    • Folder +/-: Yes
    • Audio Level Adjustment: Yes (-6dB to +6dB)
    • Repeat Control: Yes
    • Shuffle Control: Yes
    • Meta Data Indication: Yes
  • BT Phone
    • Speed dial: Yes (6 memories)
    • Recent calls (No.of): Yes
    • Last dialed call: Yes(select from the dialed call history)
    • Phonebook(Built in): No
    • Phonebook code: UTF8
    • Phonebook Access via PBAP: Yes
    • Alphabetical Phonebook Sorting (Built-in): No
    • Alphabetical Phonebook Sorting (PBAP): Yes
    • Phone data password lock: No
    • Display for connecting list: No
    • No. of records connected: 9
    • Any Key Answer: No
    • Auto Answer: No
    • DTMF: No
    • Iinternal ringtone: 1(2016 Sony Mobile Ringtone)
    • Noise canceller: Yes
    • Echo canceller: Yes
    • Ring alert (Internal/Cellular): No
    • Ring volume level control: Yes
    • Call volume level control: Yes
    • MIC GAIN Adjustment: Low/Mid/High
    • TEL out channel: Front
    • Voice Dial Activation: No
    • Battery remainder indication: Yes
    • Signal strength indication: Yes
  • Bluetooth
    • Bluetooth Version: Bluetooth Version 5.0
    • HFP: Yes (1.7.1)
    • HSP: No
    • A2DP: Yes (1.3.1)
    • OPP: No
    • DUN: No
    • SPP: No
    • AVRCP: Yes (1.6.1)
    • AVRCP (MTE): No
    • PBAP: Yes (1.1)
    • SAP: No
    • VDP: No
    • BIP: No
    • RF ON/OFF: Yes
    • Device Name: XAV-AX3700
  • DVD/CD
    • DVD/CD Playback: No
  • Display
    • Touch screen: Resistive + AG
    • LCD Type: Transmissive, TN Type
    • Screen Aspect Ratio: 16:9
    • Screen Size Diagonal (inch/mm): 6.95 inch
    • Screen Size (WxH mm): 167.0 X 93.0 (mm)
    • Resolution (DOT): 800 X 480
    • Brightness: Typ: 600 cd/m2
    • Viewing Angle (Contrast Ratio 10-1): 60/65/70/70 (U/D/L/R)
  • Expandability
    • Pre-out: 3 Pre (Front LR / Rear LR / Sub x 1)
    • Pre-out output level (V): 2Vrms
    • AUX IN: No
    • A/V IN: No
    • USB: Yes (Type-C x 1, REAR)
    • Bluetooth: Yes
    • SiriusXM Ready: Yes
    • HDMI IN: No
    • Wi-Fi: No
    • Built-in Microphone: No
    • External Microphone: Supplied
    • Rear View Camera Input: Rear
    • Steering Wheel Remote Input: Yes
    • Maestro RR: Yes
    • Video Out: No
  • General
    • Maximum output power (4ohms_1kHz_16V) (W): 55W
    • Speaker impedance (ohms): 4-8Ω
    • CTA2006 output power (W): 20W
    • CTA2006 S/N (dBA): 80dBA
    • Clock: 12H
    • Demo Mode: Yes
    • Display off mode: Yes
    • Dimmer: Yes
    • Dimmer Area: Display Monitor and Key
    • Dimmer Method: Auto/Manual select
    • Dimmer Adjust: Yes
    • Color System: NTSC/PAL
    • Color System Auto switch: Yes
    • Aspect: No
    • Picture EQ: No
    • Wallpaper initial: Black
    • Wallpaper customization: Yes
    • Parking Control: Yes
    • Rear View Camera-In Marker Setting: Yes
    • Firmware upgradability: Yes (by USB flash drive or Smartphone USB tethering)
    • Accessibility: Closed Caption / TTS: No support
    • Power connector type: 16P
    • ANT connector type: JASO
    • POP: No
  • Multi-Language
    • Menu: English/Spanish/French/German/Italian/Russian/Portuguese/Simplified Chinese/Traditional Chinese/Dutch
    • Caution: English/Spanish/French/German/Italian/Russian/Portuguese/Simplified Chinese/Traditional Chinese/Dutch
    • Menu/Caution initial: English
    • Meta Data Indication: English/Spanish/French/German/Italian/Russian/Portuguese/Simplified Chinese/Traditional Chinese/Dutch
  • Panel Design
    • Panel Surface Finish Color: Black
    • Key Illumination: Yes (White)
    • Panel Detachability: No
  • Smartphone Linkage
    • Apple CarPlay (for Promo): Yes
    • Apple CarPlay (for Design): Yes
    • Android Auto (for Promo): No
    • Android Auto (for Design): No
    • WebLink: No
    • Voice Command (Smartphone Function) Activate: Yes (only CP)
  • Sound Adjustment
    • EQ Bands: 14 Band Graphic Equalizer
    • EXTRA BASS: No
    • Parametric Equalizer (PEQ): No
    • Dynamic Stage Organizer (DSO): No
    • Time Alignment: Yes
    • High Pass Filter: Yes (50Hz to 250Hz)
    • Low Pass Filter: Yes (50Hz to 250Hz)
  • Supplied Accessories
    • Fitting Frame: No
    • Trim Ring (Collar): No
    • Power Connector (Normal): Yes
    • Power Connector (ISO): No
    • Maruti Connector Cable: No
    • External Microphone: Yes
    • Remote Commander: No
    • Steering Remote Control cable: Yes
    • Ninja Cover: No
    • GPS Antenna: No
    • USB Extension Cable: Yes
    • RCA Cable: No
    • HDMI Cable: No
    • Warranty card: Yes(1 year)
    • Sensormatic Tag for Walmart: No
    • MRP Sticker for 'IN' version (India): No
    • Maruti-CDO Stickers (MGA/Packing List/PartsNo.): No
    • SNI (Standard National Indonesia) Label on Individual Carton: No
  • Tuner
    • FM Tuning range (MHz): 87.5-107.9
    • Selectable FM Step Frequency: No
    • FM (Tuning range/step/de-emphasis) : 87.5-108MHz/50kHz/50us: No
    • FM (Tuning range/step/de-emphasis) : 87.5-107.9MHz/200kHz/75us: Yes
    • FM (Tuning range/step/de-emphasis) : 87.5-108MHz/100kHz/75us: No
    • MW Tuning range (kHz): 530-1710
    • Selectable AM Step Frequency: No
    • MW (Tuning range/step) : 531-1602kHz/9kHz: No
    • MW (Tuning range/step) : 530-1710kHz/10kHz: Yes
    • LW Tuning range (kHz): No
    • LW (Tuning range/step) : 153-279kHz/Seek 9kHz, Manual 1kHz: No
    • SW (Tuning range/step) : 5950-6205kHz/5kHz: No
    • RDS/EON: Yes (RBDS)
    • Preset: FM18/AM12
    • Auto Memory: BTM
    • DAB: No
    • HD Radio embedded: No
  • USB
    • USB Version: USB 2.0 (Type-C)
    • USB Charging Spec. (Max current/Voltage): Yes (3A)
    • Mass Storage Class (MSC): Yes
    • Media Transfer Protocol (MTP): No
    • File System: exFAT, FAT12/16/32
    • Max Layer/Folder/File number: TBD
    • Plug and Play: No
    • List Function: Yes
    • Pause: Yes
    • CUE/REV: Yes
    • Resume: Yes
    • Repeat: TRACK/FOLDER/DRIVE
    • Repeat initial: All
    • Shuffle: OFF/FOLDER/DEVICE
    • Shuffle initial: Off
    • Audio Codec: MP3/WMA/WAV/AAC/FLAC/ALAC/DSF/DSDIFF
    • Audio Playable File Extension: .mp3/.wma/.wav/.m4a/.mp4/.flac/.m4a/.mp4/.dsf/.dff
    • Video Codec: MPEG4/H.264/H.265/VC-1
    • Video Playable File Extension: .asf/.wmv/.avi/.mkv/.mp4
    • Album artwork Indication: Yes
    • Meta Data Indication: Yes

What's In The Box

  • XAV-AX3700 6.95" Digital Multimedia Receiver with Carplay
  • Wiring Harness
  • Installation Hardware
  • Manual
