Sony Mobile XAV-9000ES Mobile ES 6.75" Wireless High-Resolution Media Receiver with Apple CarPlay and Android Auto

Regular price $798.00
Sale price $798.00 Regular price
Save $-798.00 (%)
This item is only available in our showroom. Call 215-368-8343 for details.

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Overview

Product Information

Model: XAV9000ES | UPC: 027242920200

Specifications

What's In The Box

Product Information

Model: XAV9000ES | UPC: 027242920200

Treat your dashboard and your senses

Enjoy pure detail in everything you listen to with the XAV-9000ES, Sony’s premium Mobile ES™ 2-DIN media receiver. A new 6.75 in (17.1 cm) capacitive HD touchscreen lets you customize audio and visuals easily, and a full suite of connectivity for your smartphone includes LDAC to wirelessly stream High-Resolution Audio with exceptional sound quality.

Features

  • Bezel-less 6.75 inch (17.1 cm) HD (1280 x 720) capacitive touchscreen
  • LDAC™ High-Resolution Audio wireless streaming
  • Time alignment and 14-band EQ for pitch-perfect sound customization
  • Native 192 kHz / 24-bit WAV, FLAC, ALAC audio playback, and DSD file playback via 192 kHz / 24-bit PCM conversion
  • USB Type-C® for compatible smartphone

Flush Surface 6.75-Inch HD1280x720 Capacitive Touchscreen

Sony’s first double-DIN Mobile ES™ media receiver features a new 6.75 inch (17.1 cm) capacitive touchscreen with 1280 x 720-pixel resolution. It offers crisp detail, higher brightness and contrast for a superior in-car experience.

High-Resolution Audio Compatible

Enjoy the subtle nuances of studio-quality sound. The XAV-9000ES supports a variety of high-resolution audio codecs including native 192 kHz / 24-bit WAV, FLAC, ALAC audio files, and DSD (22.4MHz) files via 192 kHz / 24-bit PCM conversion. LDAC enables Bluetooth® streaming of all these codecs with exceptional sound quality.

ESS Digital-to-Analog Converter

Experience the same caliber of sound usually reserved for high-end home audio products, thanks to the ESS DAC chip – a premium converter that provides optimum quality, from all your digital music files. With high performance 32-bit processing and eliminated timing jitter, this D/A converter delivers an unprecedented dynamic range and low harmonic distortion.

Premium 4-ch Class A/B Amplifier

Giving unmatched audio quality to the built-in amplifier, a dedicated power circuit is designed for each of the left and right channels, while an overall amplifier block includes updated circuit configurations, patterns, and choices of components, minimizing interference. Furthermore, the volume control circuit utilizes a select audio IC with less distortion and noise. The results are smooth highs, tight bass, wide dynamic range, and a more accurate soundstage.

Choices for Optimum Performance

Carefully selected components ensure superb sound quality. The dedicated choke coil features powerful bass while filtering unwanted frequencies, for controlled and dynamic audio reproduction. Audiophile-grade capacitors deliver effortless power for clear and tight bass, while multi-layer polymer capacitors help ensure low overall harmonic distortion and natural sound character.

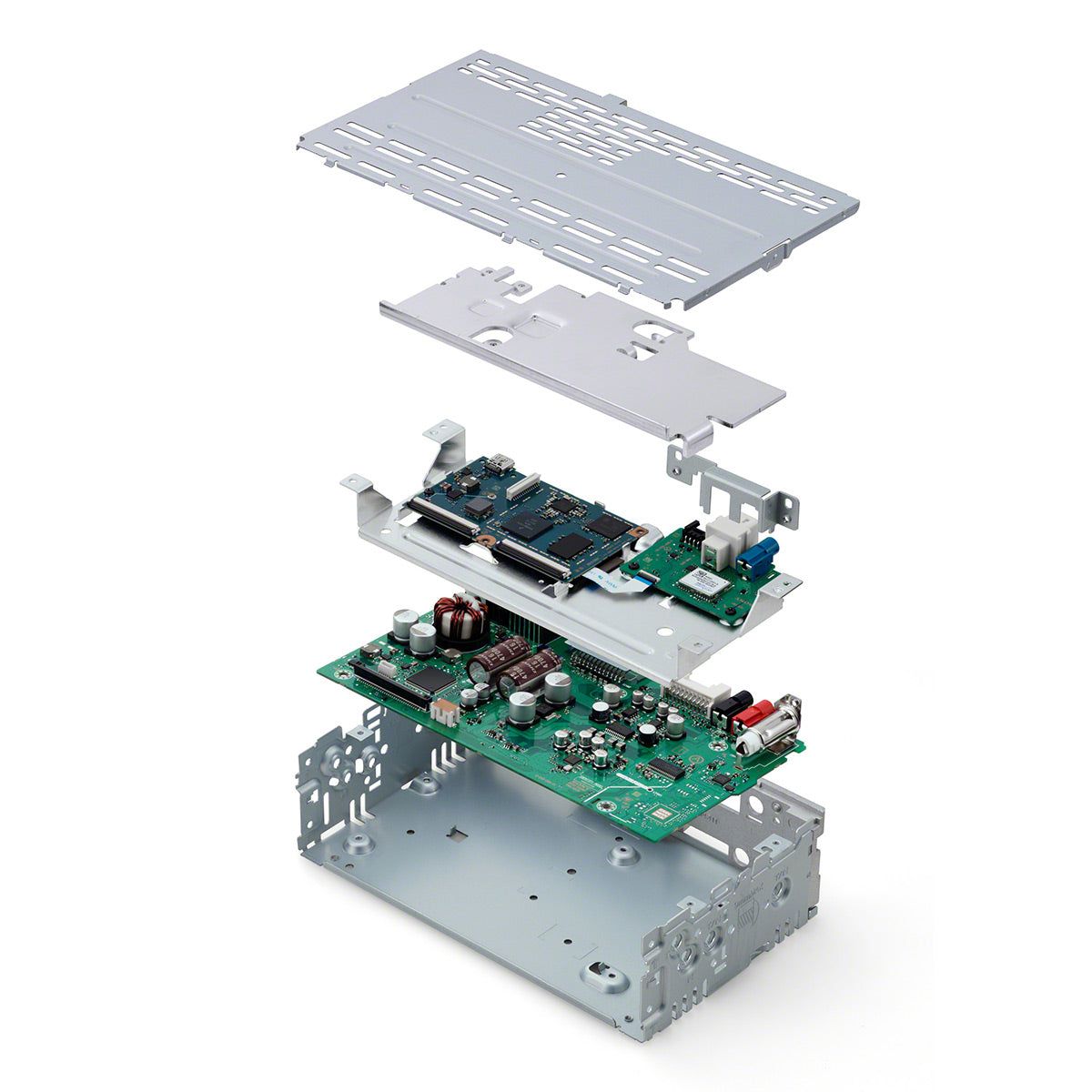

Anti-Resonance Dual-Layer Chassis

The dual-layer design of the chassis separates analogue and digital circuitry, preventing electromagnetic interference for uncompromised sound quality.

Sound Customization

The 192 kHz / 24-bit DSP offers pristine sound processing and time alignment, 14-band equalizer, and 8-band parametric equalizer. Together with the updated 3-zone crossover, which enables bi-amp front 2-way speaker drive settings, you can dial in the perfect combination of front, rear and subwoofers.

Bi-Amp Front 2-Way Speaker Drive Settings

Designed for front component speaker configurations, this setting lets you apply independent crossover, PEQ and even time-alignment settings to individual drivers in bi-amp front speakers. Now you can customize sound for each component speaker using the same detailed control normally reserved for front and rear speaker groups.

3-Camera Trigger Inputs

Drivers can see the images of up to three connected cameras when shifting the vehicle’s transmission lever to the reverse position or tap the dedicated icons on the home screen. By utilizing the supplied trigger wires, each camera image can be switched on and off, or from one to another automatically by detecting the vehicle’s turn signals or sensing compatible signals such as that for a connected front camera. An adjustable parking guide is also available for reverse gear.

Wire-Free Smartphone Connectivity

Thanks to built-in Wi-Fi and the supplied GPS antenna, users can leave their smartphone in their pocket and still access full device integration.

Wireless Apple CarPlay®

iPhone users will be able to make phone calls, listen to music, send and receive messages, access their favorite apps, get directions with real-time traffic conditions — including third party navigation apps — and so much more directly from the dashboard, all while allowing the driver to stay focused on the road.

Wireless Android Auto™

Designed with safety and convenience in mind, Android Auto is a simpler way to use a smartphone with the car's display. Drivers can talk to Google on Android Auto and stay connected, entertained and informed while keeping their eyes on the road. Just say "Hey Google" or press the voice control button on the 9000ES to get started.

USB Type-C® Compatible Rear Connection Terminals

USB Type-C terminal is available for any compatible device, allowing high-current charge up to 3A.

Quick Wake Up

With the quick wake up feature, customers are ready to go right after turning on the ignition.

Simple Button Controls

The button design features large keys to seamlessly fit with the sleek display. Access volume, source, sound settings and voice control, for safe and easy operation on the road.

iDatalink® Maestro® Compatible

iDatalink® Maestro® compatibility connects the 9000ES to the vehicle's onboard computer, turning it into a customized display for factory-equipped functions and features. Users can interact with vehicle infotainment and information directly on the 6.75" touchscreen.

Enhanced 5V 3-pre Out Connectivity

For future expandability, the 5V 3-pre out connectivity allows customers to build a full acoustic system, including a newly available stereo subwoofer connection, and a 4-channel stereo amplification for even louder and more powerful sound reproduction.

HD Graphical User Interface

Enhanced for safety and ease of use, it features a high-contrast Mobile ES™ color scheme while customizable wallpaper suits your vehicle and style.

Specifications

  • Display
    • Touch screen: Yes / Capacitive with AG (Not Multi Touch Compatible)
    • LCD Type: TFT Active Matrix
    • Screen Aspect Ratio: 17:9
    • Screen Size Diagonal: 6.75”
    • Resolution (DOT): 1280 X 720
    • Brightness: 425 cd/m2
    • Viewing Angle (Contrast Ratio 10-1): 85/85/85/85 (L/R/U/D)
  • Panel Design
    • Panel Surface Finish Color: Black
    • Key Illumination: Yes (White)
    • Panel Detachability: No
  • Multi-Language
    • Menu: English/Spanish/French/German/Italian/Russian/Portuguese/Simplified Chinese/Traditional Chinese/Korean/Dutch
    • Caution: English/Spanish/French/German/Italian/Russian/Portuguese/Simplified Chinese/Traditional Chinese/Korean/Dutch
    • Menu/Caution initial: English
    • Meta Data Indication: English/Spanish/French/German/Italian/Russian/Portuguese/Simplified Chinese/Traditional Chinese/Korean/Dutch
  • Expandability
    • Pre-out: 3 Pre (Front LR / Rear LR / Sub LR)
    • Pre-out output level (V): 5Vrms
    • AUX IN: No
    • A/V IN: No
    • USB: Yes (Type-C x 1, REAR)
    • Bluetooth: Yes
    • SiriusXM Ready: Yes
    • HDMI IN: No
    • Wi-Fi: Yes
    • Built-in Microphone: No
    • External Microphone: Supplied
    • Rear View Camera Input: Rear/Input 1/Input 2
    • Steering Wheel Remote Input: Yes
    • Maestro RR: Yes
    • Video Out: No
  • Smartphone Linkage
    • Apple CarPlay (for Promo): Yes(Wireless)
    • Apple CarPlay (for Design): Yes (Wireless)
    • Android Auto (for Promo): Yes (USB/Wireless)
    • Android Auto (for Design): Yes (USB/Wireless)
    • WebLink: No
    • Voice Command (Smartphone Function) Activate: Yes (only CPAA)
  • Hi-Res
    • Supported Formats: WAV/FLAC/ALAC
    • WAV format: 8k–768kHz / 16, 24, 32bits
    • FLAC format: 8k–384kHz / 16, 24bits
    • ALAC format: 8k–384kHz / 16, 24bits
    • Native DSD playback: No
    • Compatible native DSD files: Yes (.dsf/.dff)
    • DSD file clock: 2.8M, 5.6M, 11.2M, 22.4MHz
  • Tuner
    • FM Tuning range (MHz): 87.5-107.9MHz
    • Selectable FM Step Frequency: No (200kHz)
    • FM (Tuning range/step/de-emphasis) : 65-74MHz/30kHz/50us (OIRT): No
    • FM (Tuning range/step/de-emphasis) : 87.5-108MHz/50kHz/50us: No
    • FM (Tuning range/step/de-emphasis) : 87.5-108MHz/100kHz/50us: No
    • FM (Tuning range/step/de-emphasis) : 87.5-107.9MHz/200kHz/75us: Yes
    • FM (Tuning range/step/de-emphasis) : 87.5-108MHz/100kHz/75us: No
    • MW Tuning range (kHz): 530-1710kHz
    • Selectable AM Step Frequency: No (10kHz)
    • MW (Tuning range/step) : 531-1602kHz/9kHz: No
    • MW (Tuning range/step) : 530-1710kHz/10kHz: Yes
    • LW Tuning range (kHz): No
    • LW (Tuning range/step) : 153-279kHz/Seek 9kHz, Manual 1kHz: No
    • SW (Tuning range/step) : 5950-6205kHz/5kHz: No
    • RDS/EON: Yes (RBDS)
    • Preset: FM18/AM12
    • Auto Memory: BTM
    • AF: Yes
    • AF initial: Off
    • FM S/N ratio (mono) (dB): 70dB
    • FM Channel separation (dB): 45dB
    • FM Frequency response (Hz): 20-15,000Hz
    • MW/LW/SW Sensitivity (75 Ω) MW/LW/SW (μV): 32dB
    • DAB: No
    • HD Radio embedded: No
    • TA: No
    • FM Usable sensitivity (75 Ω)(dBf): 7dB
    • FM Selectivity (400 kHz) (dB): 75dB
  • DVD/CD
    • DVD/CD Playback: No
  • USB
    • USB Version: USB 2.0 (Type-C)
    • USB Charging Spec. (Max current/Voltage): Yes (3A)
    • Mass Storage Class (MSC): Yes
    • Media Transfer Protocol (MTP): No
    • File System: exFAT, FAT12/16/32
    • Max Layer/Folder/File number: 25,000 files
    • Plug and Play: No
    • List Function: Yes
    • Pause: Yes
    • CUE/REV: Yes
    • Resume: Yes
    • Repeat: TRACK/FOLDER/DRIVE
    • Repeat initial: All
    • Shuffle: OFF/FOLDER/DEVICE
    • Shuffle initial: Off
    • Audio Codec: MP3/WMA/WAV/AAC/FLAC/ALAC/DSF/DSDIFF
    • Audio Playable File Extension: .mp3/.wma/.wav/.m4a/.mp4/.flac/.m4a/.mp4/.dsf/.dff
    • Video Codec: ASF/WMV/AVI/MKV/MPEG-4
    • Video Playable File Extension: .asf/.wmv/.avi/.mkv/.mp4
    • Album artwork Indication: Yes
    • Meta Data Indication: Yes
  • Bluetooth
    • Bluetooth Version: Bluetooth Version 5.0
    • HFP: Yes (1.7.1)
    • HSP: No
    • A2DP: Yes (1.3.1)
    • OPP: No
    • DUN: No
    • SPP: No
    • AVRCP: Yes (1.6.1)
    • AVRCP (MTE): No
    • PBAP: Yes (1.1)
    • SAP: No
    • VDP: No
    • BIP: No
    • RF ON/OFF: Yes
    • RF ON/OFF initial: On
    • Device Name: XAV-9000ES
  • BT Audio
    • Audio Codec: SBC/AAC/LDAC
    • PAUSE: Yes
    • CUE/REV: Yes
    • TRACK +/-: Yes
    • Folder +/-: Yes
    • Audio Level Adjustment: Yes (-6dB to +6dB)
    • Audio Level Adjustment initial: 0dB
    • Repeat Control: Yes
    • Shuffle Control: Yes
    • Meta Data Indication: Yes
  • BT Phone
    • Speed dial: Yes (6 memories)
    • Recent calls (No.of): Yes
    • Last dialed call: Yes (select from the dialed call history)
    • Phonebook(Built in): No
    • Phonebook code: UTF8
    • Phonebook Access via PBAP: Yes
    • Alphabetical Phonebook Sorting (Built-in): No
    • Alphabetical Phonebook Sorting (PBAP): Yes
    • Phone data password lock: No
    • Connection status (maximum No.): [1HFP/PBAP+1Audio]
    • Display for connecting list: No
    • No. of records connected: 9
    • Any Key Answer: No
    • Auto Answer: No
    • DTMF: No
    • Iinternal ringtone: 1 (2016 Sony Mobile Ringtone)
    • Noise canceller: Yes
    • Noise canceller initial: Medium Cabin
    • Echo canceller: Yes
    • Echo canceller initial: Medium Cabin
    • Ring alert (Internal/Cellular): No
    • Ring volume level control: Yes
    • Ring volume level control initial: 14
    • Call volume level control: Yes
    • Call volume level control initial: 14
    • MIC GAIN Adjustment: Low/Mid/High
    • MIC GAIN Adjustment initial: Mid
    • TEL out channel: Front/Rear
    • TEL out channel initial: Front
    • Voice Dial Activation: No
    • Battery remainder indication: Yes
    • Signal strength indication: Yes
  • HDMI
    • HDMI Version: No
    • HDCP Version: No
  • Sound Adjustment
    • EQ Bands: 14 Band Graphic Equalizer
    • EXTRA BASS: No
    • Parametric Equalizer (PEQ): Yes
    • PEQ initial: Off
    • Dynamic Stage Organizer (DSO): No
    • Time Alignment: Yes
    • Balance: Yes (+15 to -15)
    • Balance initial: 0
    • Fader: Yes (+15 to -15)
    • Fader initial: 0
    • Listening Position: Yes
    • High Pass Filter: Yes (50Hz to 250Hz)
    • High Pass Filter initial: Off
    • Low Pass Filter: Yes (50Hz to 250Hz)
    • Low Pass Filter initial: Off
    • Subwoofer Phase: Normal/Reverse
    • Subwoofer Phase initial: Normal
    • Subwoofer Adjust: Yes (50Hz to 250Hz)
    • Subwoofer Adjust initial: 250Hz
  • General
    • Maximum output power (4ohms_1kHz_16V) (W): 55W
    • Speaker impedance (ohms): 4-8Ω
    • CTA2006 output power (W): 20W
    • CTA2006 S/N (dBA): 86dBA
    • Backup Memory: Yes
    • Source Sound Memory (SSM): No
    • Clock: 12H
    • Beep initial: On
    • Steering Wheel Remote initial: Preset
    • Demo Mode: Yes
    • Display off mode: Yes
    • Dimmer: Yes
    • Dimmer Area: Display Monitor and Key
    • Dimmer Method: Auto/Manual select
    • Dimmer Adjust: Yes
    • Dimmer Adjust initial: 6
    • Color System: NTSC/PAL
    • Color System Auto switch: Yes
    • Aspect: No
    • Picture EQ: No
    • Wallpaper preset quantity: 4
    • Wallpaper initial: Black
    • Wallpaper customization: Yes (Custom 2)
    • Splash screen: No
    • Parking Control: Yes
    • Speed pulse Control: Yes (for GPS)
    • Rear View Camera-In Marker Setting: Yes
    • Firmware upgradability: Yes (by USB flash drive or Smartphone USB tethering)
    • Accessibility: Closed Caption / TTS: No support
    • Power connector type: 16P
    • ANT connector type: JASO
    • Dimensions (WxHxD): 7” x 3.93” x 5.39”
    • Mounting dimensions (WxHxD): 7.16” x 4.37” x 4.72”
    • Weight: 2.20 lbs
    • POP: mobile ES logo, Sirius XM Ready

What's In The Box

  • XAV-9000ES Mobile ES 6.75" Wireless High-Resolution Media Receiver with Apple CarPlay and Android Auto
  • External Microphone
  • Steering Remote Control Cable
  • GPS Antenna
  • USB Extension Cable
  • RCA Cable
  • Warranty Card
  • Manual
