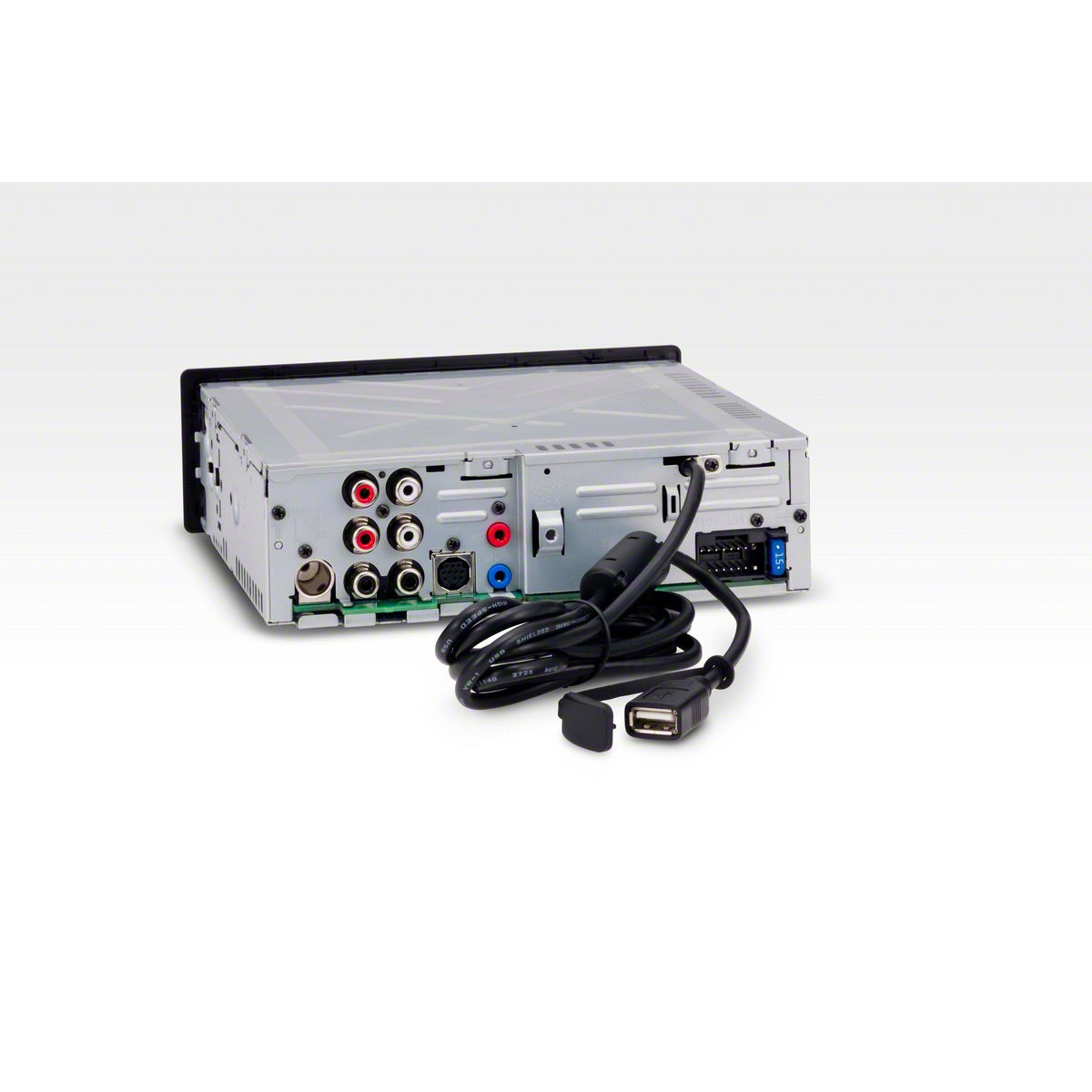

Sony Mobile DSX-M80 180W RMS 1-DIN Marine Digital Media Receiver

$268.00 OR

In Stock

More Product Details

Our product experts are here to help

Questions? We're here to help.

Model: DSX-M80 UPC: 027242917361 Item: 177660

Product Information

Features:

  • 4 x 100 W Max. (45 W RMS) power output with 2-ohm speaker load option
  • Back-up memory saves your customized settings when there is no continuous power supply
  • Dual Bluetooth® connectivity lets you connect two smartphones simultaneously
  • Voice control with Siri Eyes Free and Android™
  • Dual USB ports let you connect your smartphone and USB device simultaneously

Built-In 4x45W RMS Amplifier

By incorporating a highly efficient Class-D amplifier into the receiver, the DSX-M80 is able to produce outstanding output power from a compact body. The amp also minimizes the electromagnetic interference that can generate a hiss as volume levels increase, leaving you free to enjoy enhanced sound quality at any volume.

Connect two smartphones, with Dual Bluetooth

Pair your first phone using Bluetooth for full access to navigation, music playback, and communication features. A second phone can be connected simultaneously for making and receiving hands-free calls.

Expand your sound system

When you’re ready to expand your system, the receiver delivers strong 5 volt RCA pre-amp outputs for external front, rear, and subwoofer amplifiers. Sony’s high voltage pre-out gives you a much clearer sound with less distortion when connected to the power amplifier. You can also expect less external noise.

SiriusXM Ready

Get over 140 channels, including commercial-free music plus the best sports and live events, comedy, news, exclusive talk, and entertainment. SiriusXM programming is received through the SiriusXM Connect Vehicle Tuner (included, SiriusXM subscription required).

Conformal Circuit board coating

Conformal coated circuit boards protect the electronic assembly from damage due to contamination, salt spray, moisture, fungus, dust, and corrosion caused by harsh or extreme environments.

Take control with Sony | Music Center

Available for both AndroidTM and compatible iOS devices. The Sony | Music Center app lets you use your smartphone or tablet as a convenient system remote. It can even access, select, and playback the music files stored on your compatible device. Got an Android phone? Use Sony | Music Center to manage music playback, read messages, and control apps, by voice.

Subwoofer Direct Connection with 2-ohm Option

Just connect a subwoofer to either side of the rear channel speaker output. When using this function, as well as front L/R, DSP settings for the subwoofer are available and can be handled on the MENU display. With the newly introduced 2-ohm load feature, you can utilize multiple speakers per channel, realizing a 4.1-ch bass-driven system so easily with no external amplifier.

Adjust the sound to your seated position

Wherever you sit in your car, you’re always closer to some speakers than others, and this affects how the music sounds. Intelligent Time Alignment re-calibrates the signal so that you’re always in the center of the sound field, for a more natural listening experience.

Choose your colors

Browse 35,000 colors to match the two-zone illumination with your car interior. With selectable Sound Synchronization, the timing of the color change is synchronized with the audio source.

UV Resistant Coating

UV Resistant front panel coating protects the faceplate to help prevent discoloration from the sun. Meets the standard for ASTM G154 for UV resistance.

Specifications

Specifications

  • General
    • Chassis: 1 DIN
    • Display Color: Variable
    • Button Color: Variable
    • Dual Illumination: Yes
    • High Contrast LCD: Yes
    • Memory Backup: Yes
  • Outputs
    • CEA2006 Power Output: 45W x 4
    • Preouts: Front (2), Rear (2), Sub (2)
    • Preout Voltage: 5V
  • Connectivity
    • Sony | Music Center: Yes
    • Dual Bluetooth: Yes
    • Bluetooth Version: 3.0
    • Bluetooth Profiles: A2DP/AVRCP/HFP/PBAP
    • Max # of paired devices: 9
    • NFC: No
    • AOA 2.0: Yes
    • SiriusXM Ready: Yes
    • HD Radio: No
  • Inputs
    • AUX Input: Front
    • USB Input: Front/Rear
    • USB Audio File Playback: WAV/MP3/WMA/AAC/FLAC
    • Steering Control Input: Yes
    • Custom SWC Compatible: No
  • Sound
    • Advanced Sound Engine: Yes
    • EQ: 10 Band - 32Hz, 63Hz, 125Hz, 250Hz, 500Hz, 1khz, 2khz, 4khz, 8khz, 16khz
    • Extra Bass: Yes (off, 1, 2)
    • DSD: Yes (off, Low, Middle, High)
    • HPF: 50Hz, 60Hz, 80Hz, 100Hz, 120Hz
    • LPF: 50Hz, 60Hz, 80Hz, 100Hz, 120Hz
    • Clearaudio+: Yes
    • DSEE: Yes
    • Time Alignment: Yes
    • Hi-Res Music Capability: FLAC 24/48
    • Subwoofer Direct Mode: Yes

Reviews

We'd love to hear your thoughts! Please leave a review.

Customer Reviews for Sony Mobile DSX-M80 180W RMS 1-DIN Marine Digital Media Receiver

5.0 / 5.0
1 Review
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
1
0
0
0
0
Rated 5 out of 5
Don’t buy speaker! Get this radio first!
I replaced my 5 year old Sony on my boat with the Sony DSX M80 and was blown away by the sound difference coming out of my speakers! It was like I had invested in new high dollar speakers but I just changed out the radio. All other features are fantastic as well. Bluetooth connection is easy and controlled by my phone all over the boat, even with the radio being in the head. I’ve never written a review before but had to for this Sony!
July 20, 2020
Originally posted at
Sony

Q&A

Customer Q & A

Have a functionality, compatibility, or otherwise product-specific question about this product? Ask it here! If you have a customer service or shipping question, please direct it to our customer service department

Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 3 questions Browse 3 questions and 3 answers
Why did you choose this?
World Wide Stereo Store
To replace a Sony marine unit already in boat.
Michael P on Apr 18, 2023
To replace a Sony marine unit already in boat.
Michael P on Apr 18, 2023
Is this radio plug and play for my 2012 ultra classic Harley Davidson?
A shopper on May 15, 2023
  Thanks for your inquiry. Our mobile audio experts can be reached at 215-368-8343 and are happy to answer questions regarding car fit and compatibility.
What is the physical size of this unit? I hate that hardly any manufacturer or website that sells head units cant put that into the specifications since clearly thats a specification and not all head unit sizing is the same when it comes to the width or depth of a single din
General A on Oct 10, 2022
  Thanks for your inquiry. In-dash units are typically designated as Single DIN, 2x7or Double DIN, 4x7. (Depth is not specified.)
