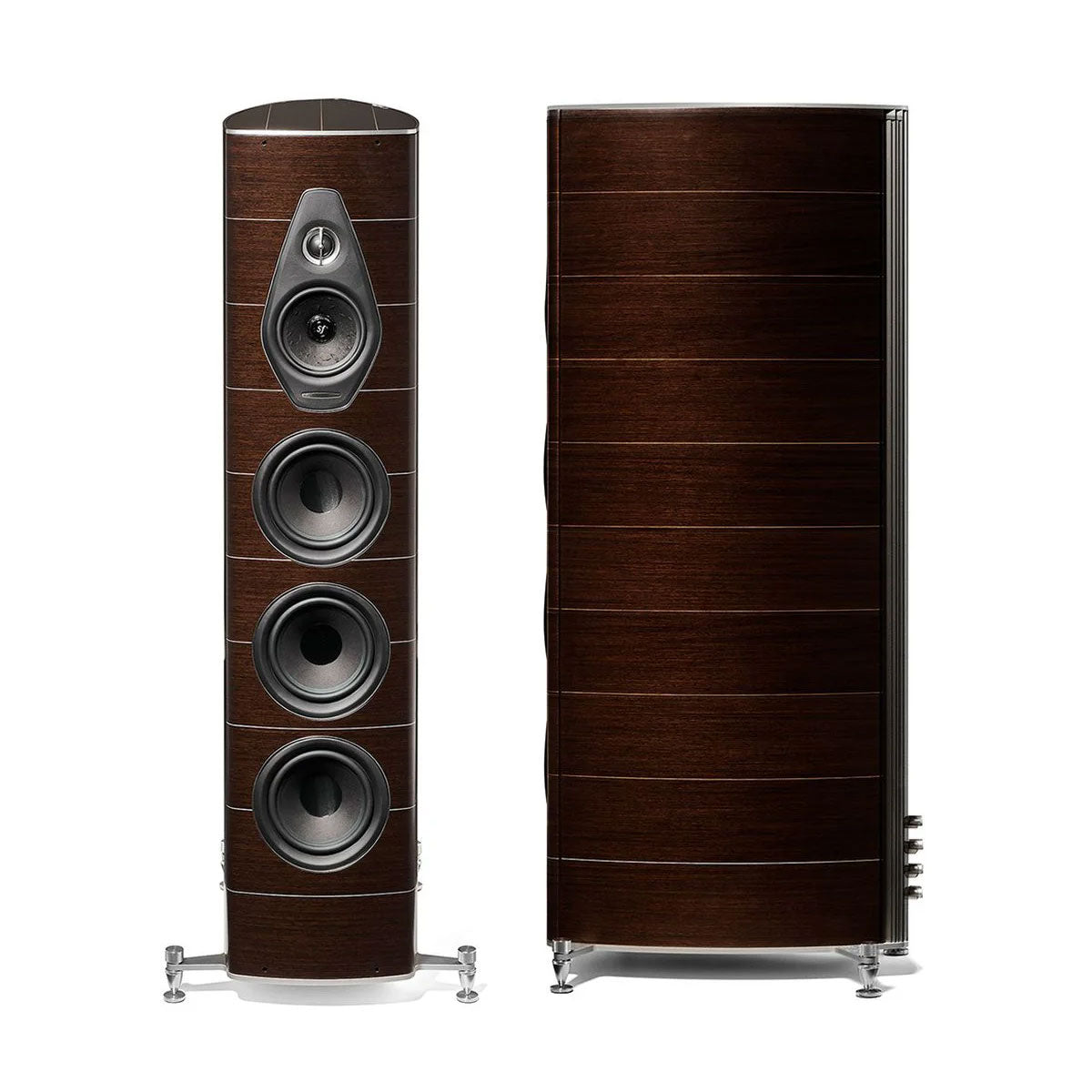

Sonus faber Olympica Nova V Floorstanding Speakers - Pair (Wenge)

Regular price $18,000.00
Sale price $18,000.00 Regular price
Save $-18,000.00 (%)
This item is only available in our showroom. Call 215-368-8343 for details.

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Sonus Faber Olympica Nova V Overview

Product Information

Model: DIF305EFI | UPC: 8056684712823

Specifications

What's In The Box

Product Information

Model: DIF305EFI | UPC: 8056684712823

Pure & Pristine Sound

The Flagship of the Olympica Nova Collection and a true expression of Sonus faber’s Natural Sound signature.

A Sonic Marvel

Olympica Nova V boasts three woofers for powerful low frequencies. Combined with mid-high frequencies, it delivers detailed, warm, and enchanting sound. The asymmetrical lute-shaped cabinet minimizes internal resonances for pure sound.

Elegance In Simplicity

Olympica Nova V is more than just a speaker; it embodies contemporary Italian woodwork, gracefully blending with your listening environment to add a touch of elegance.

The Evolution of Design

The Olympica Nova V features a 3-way ported tower design with a striking combination of wood veneer and aluminum accents. The front baffle, like the cabinet sides, are made in walnut or wenge hand-finished natural wood and set in a solid die-cast aluminum plate. Italian leather encircles the rings around the woofers, applied by hand in Sonus faber’s factory in Vicenza, Italy.

Warm & Engaging Sound

Sonus faber’s core technologies fuse with signature design queues in a clean silhouette to deliver uncompromising Natural Sound.

Damped Apex Dome Tweeter

The 28 mm silk soft dome tweeter utilizes Damped Apex Dome (D.A.D.) technology, which refines high-frequency playback by adding localized dampening to the dome's apex, known for causing anti-phase behavior in soft dome diaphragms. In Olympica Nova V, the D.A.D. structure is now a single piece of die-cast aluminum, enhancing both the strength and precision of the system.

Midrange

Our midrange is a product of Sonus faber's in-house laboratories. Crafted from a blend of air-dried cellulose pulp and other natural fibers, the cone boasts a unique texture with varying density. This design minimizes cone resonance, resulting in a natural sound that offers enhanced transparency and finer detail.

Made In Italy Woofer

Our Italian-made woofer cone utilizes an exclusive sandwich construction, combining two sheets of cellulose pulp with a hi-tech foam layer in between. This unique design ensures swift and powerful sound reproduction while maintaining coherence with the mid-high units.

Reflex Port

The solid extruded aluminum piece, part of the Stealth Ultrafle system, minimizes turbulence, enhancing airflow through the duct to reduce distortion.

Crossover

The Crossover network implements Paracross Topology, making the crossover less sensitive to radio-frequency interference, improving transient response and lowering noise floor. The filtering topology features new exclusive Clarity Cap capacitors, customized specifically for Sonus faber.

Structural Rigidity

Olympica Nova V features eight layers of curved wood in its walls, enhancing cabinet rigidity for reduced interference. Internal structural ribs further reduce vibration and support the transducers' power.

Specifications

  • System: 3-way, full para-aperiodic vented box “Stealth Ultraflex”, floorstanding loudspeaker system.
  • Loudspeakers
    • Tw: 28 mm, H28 XTR3, Neodymium “cup design” motor system with High Definition DAD™ driver, Soft dome.
    • Md: 150 mm, MW15 XTR2-04, CCAW wire on a “eddy current free” voice coil
    • W: 3x180 mm, W18XTR2-12
  • Crossover Points: 250, 2500 Hz.
  • Frequency response: 32 Hz – 35000 Hz
  • Sensitivity: 90 db SPL (2.83V/1 m)
  • Nominal impedance: 4 Ohm
  • Recommended power amplifier: 60W - 400W, undistorted signal
  • Connectivity: 4 connectors binding post: Mid-Hi, Low
  • Decoupling Systems: Stainless steel spikes
  • Product dimensions (W x H x D): 16.7” x 46.3” x 20.8” / each
  • Weight: 97 lbs. /each

What's In The Box

  • Olympica Nova V Floorstanding Speakers - Pair
  • Manual
