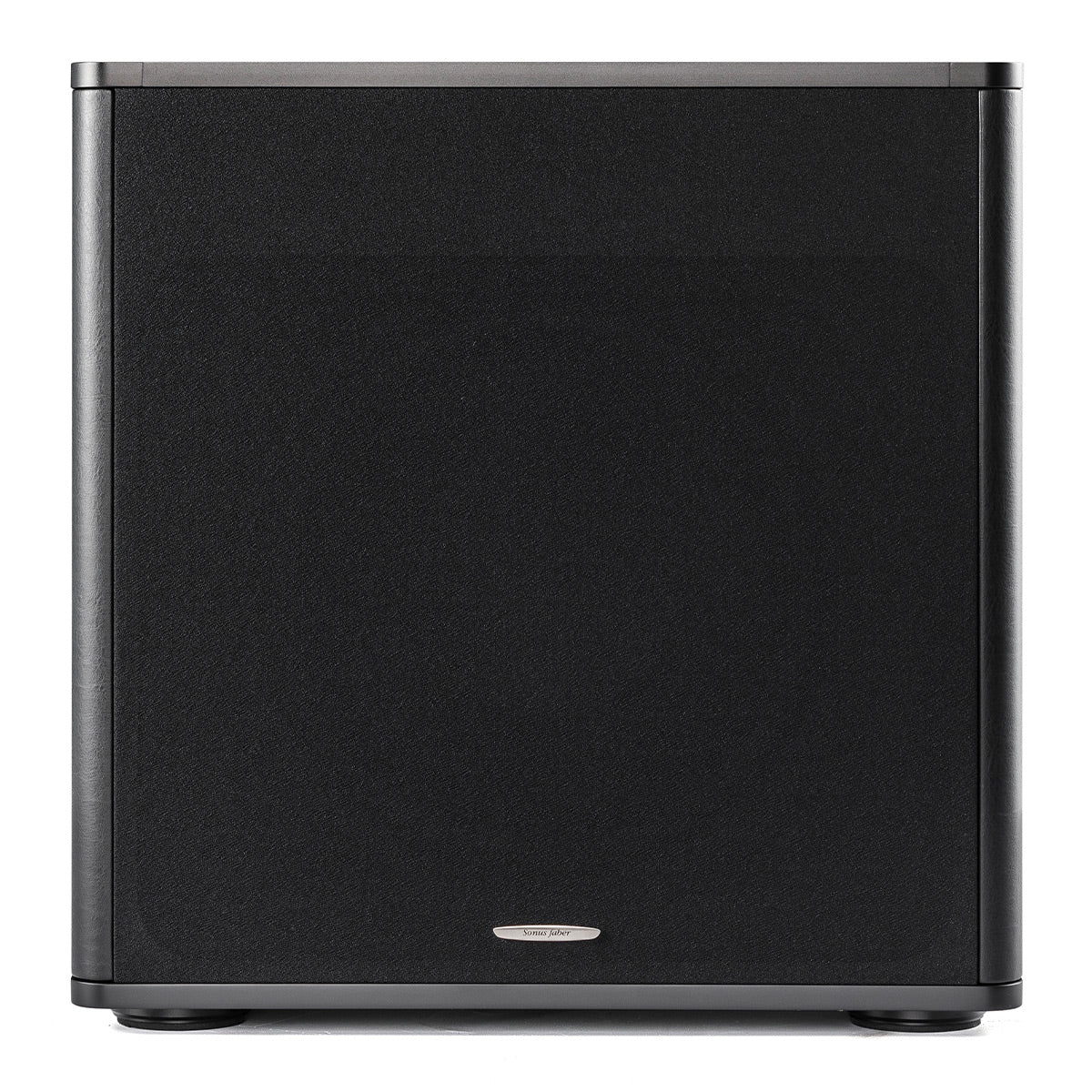

Sonus faber Gravis V Active Subwoofer - Each (Red)

Regular price $5,500.00
Sale price $5,500.00 Regular price
Save $-5,500.00 (%)
This item is only available in our showroom. Call 215-368-8343 for details.

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Sonus Faber Gravis V Overview

Product Information

Model: SBWU21RFI | UPC: 8056684714773

Specifications

What's In The Box

Product Information

Model: SBWU21RFI | UPC: 8056684714773

Natural Sound with Power & Depth

The Gravis V is an active subwoofer meticulously crafted by Sonus faber to deliver powerful and precise bass, embodying the brand's signature Natural Sound. Designed to seamlessly integrate with various audio systems, it particularly complements the Sonus faber Homage collection in both acoustics and aesthetics.

Features

  • Powerful Acoustic Performance
  • High-Performance Amplification
  • Flexible Connectivity Options
  • Elegant Craftsmanship
  • User-Friendly App Control

Exquisite Craftsmanship

Each Gravis V subwoofer features an artisan-crafted wooden or lacquered top, enhancing its visual appeal. The sleek, unembellished cabinet design exudes purity and sophistication, further enriched by Sonus faber's signature leather finishes on the sides.

Advanced Acoustic Engineering

At its core, the Gravis V houses a potent 12-inch (320 mm) long-throw driver with a trilaminated sandwich cone diaphragm. This diaphragm comprises two layers of woven synthetic fibers (fiberglass) with a Nomex honeycomb core, allowing precise control over driver excursion and resistance to flexing. This design ensures substantial air movement and accurate bass articulation.

Versatile Connectivity

The Gravis V accommodates both high-level and low-level inputs. The high-level input utilizes a Speakon© 4-pin connector, while line-level signals can be connected via balanced (XLR) or unbalanced (RCA) cables, offering flexibility for various audio setups.

User-Friendly Control

For seamless integration and control, the Gravis V is fully manageable through a dedicated, user-friendly app available for iOS and Android systems. This application simplifies configuration and customization, allowing users to tailor the subwoofer's performance to their preferences.

Specifications

  • System: Sealed box loading, single driver, active subwoofer
  • Loudspeakers: Ø 320 mm, long throw, sandwich honeycomb cone, wide rubber surround LF unit
  • Frequency response: @ - 6dB acoustic Linkwitz 4th order roll-on, default setting from 20 Hz to Fc (user  continuously adjustable)
  • On board amplifiers: High performance Class AB
  • Power consumption
    • < 2 W (Stand-by)
    • 1000 W (Rated power)
  • Audio Input / Output
    • High performance Class AB
    • 2x LINE (unbalanced), Left and Right/LFE - RCA plugs
    • 2x LINE (balanced) - XLR plug
    • HIGH LEVEL Neutrik 4-pole Speakon© plug
  • Decoupling Systems: Rubber pad
  • Product dimensions (W x H x D): 17.9” x 17.6” x 17.6”
  • Weight: 70.5 lbs.

What's In The Box

  • Gravis V Active Subwoofer - Each
  • Power Cord
  • Manual
