Features
- Up to 4 Zones
- 8 x 125W per Output at 8Ω
- GaN-Powered with PFFB Technology
- Convection Cooled
- ProTune Manual EQ, Delay, & Gain
- 2U Rack Mount (Sold Separately)
- Ethernet and WiFi 6 Connectivity
- Supports Apple AirPlay 2 & Spotify Connect
Overview
Product Information
Specifications
What's In The Box
Product Information
Specifications

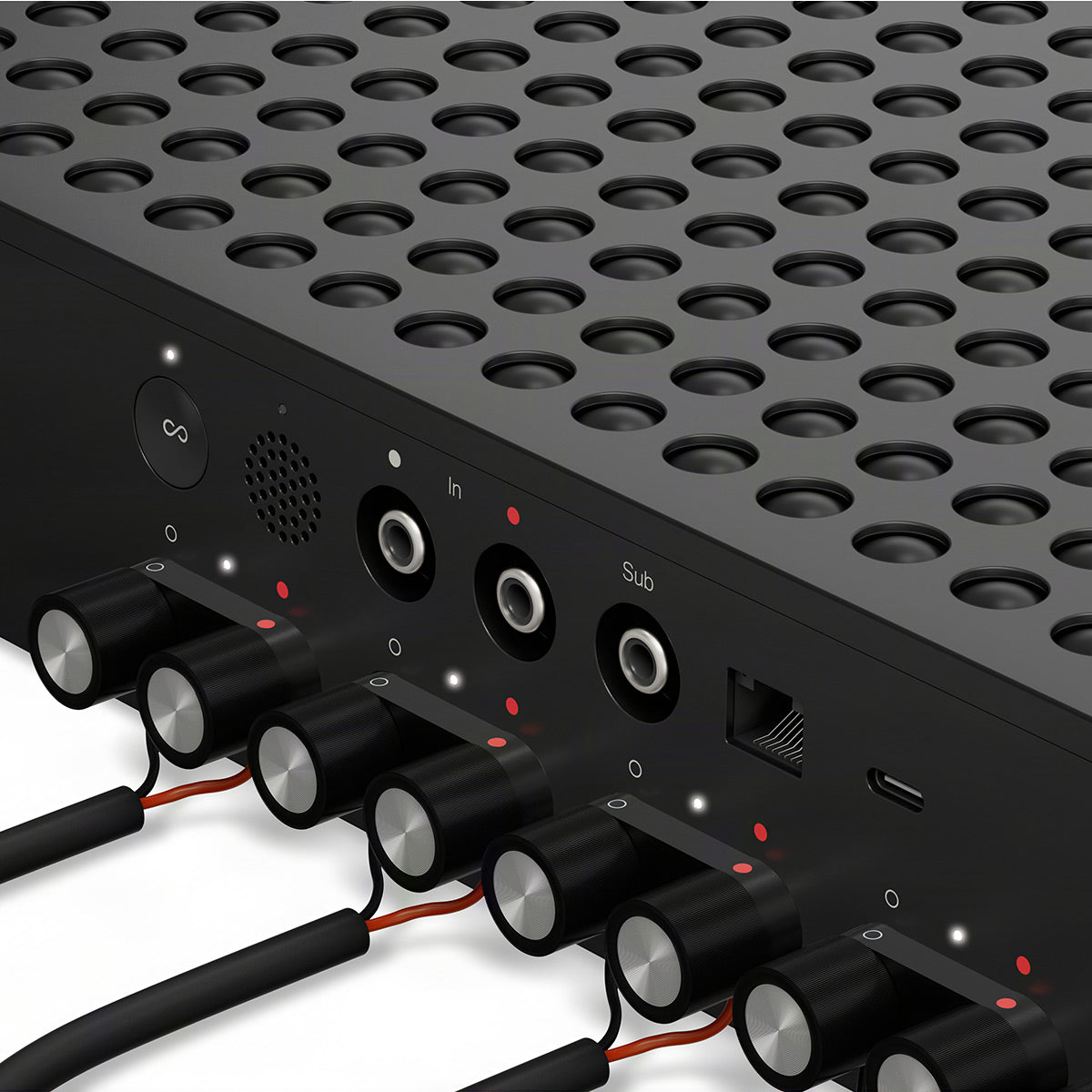

- Speaker Outputs: 8 amplified outputs each independently configurable for stereo or mono
- FTC Power Output Rating: 125 W per channel @ 8Ω (all channels driven)
- Minimum Impedance: 2.67Ω with Sonos Architectural speakers
- Analog Audio Input: 2 x RCA inputs -10dB (into any zone)
- USB-C Analog Audio Input: 44.1 kHz / 16 bit (stereo into any zone) Requires Sonos Line-In Adapter
- Subwoofer Connections: 1 x RCA output -10dB (configurable to output from one zone), and 1x Sonos Sub per zone
- Damping Factor: >400 (ref. 8 ohms, 20 Hz to 1 kHz)
- Amplifier Technology: Class D with GaN and PFFB
- Total Harmonic Distortion: 0.005% at 2.83Vrms-15Vrms
- Frequency Response: 15 Hz - 20 kHz, ±0.5 dB
- Channel Separation (Crosstalk)
- -100dB at 1 kHz 2.83Vrms
- -80dB at 10 kHz 2.83Vrms
- Signal-to-Noise Ratio: 114dB ref 125W into 8-Ohm
- CPU Quad Core: 4xA55 1.9GHz
- ProTune Signal Processing
- 10-band parametric EQ with ±15dB gain, Q, and frequency control.
- Option for high-shelf, low-shelf, and bell filter types.
- Gain trim: -15 to +5 dB
- Delay: 0 - 50ms
- Highpass: 15-100Hz
- All available on per channel basis
- Power: Auto-switching 100-240V 50/60 Hz 10A AC universal input
- Power Consumption
- 15.4 W (idle, with WiFi disabled)
- 80 W (all channels driven at 1/8 output power, 8 Ohms)
- Operating Temperature: 32° to 95° F (0 to 35° C)
- Humidity Range Non condensing: 10%-85%

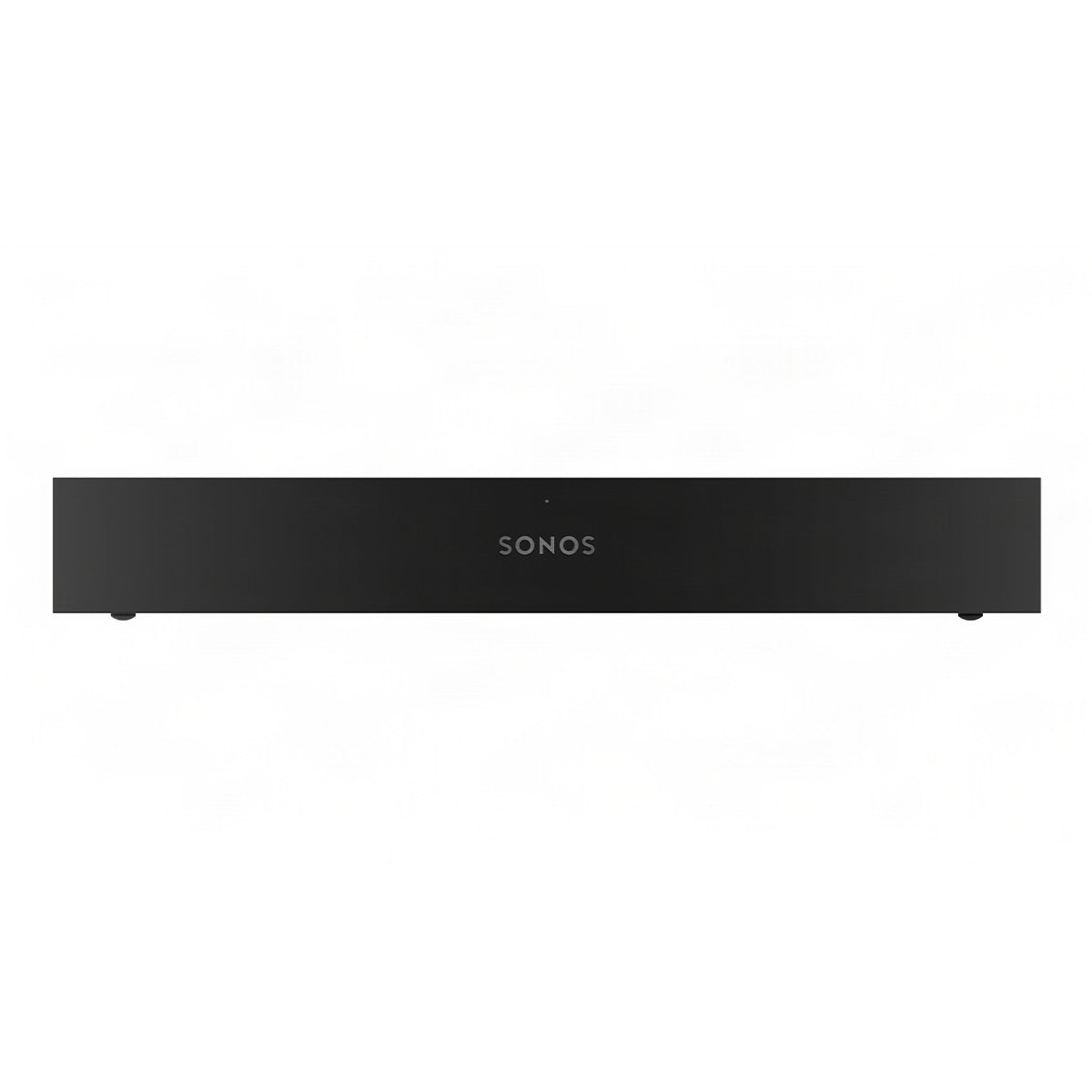

- LEDs Front: Device status

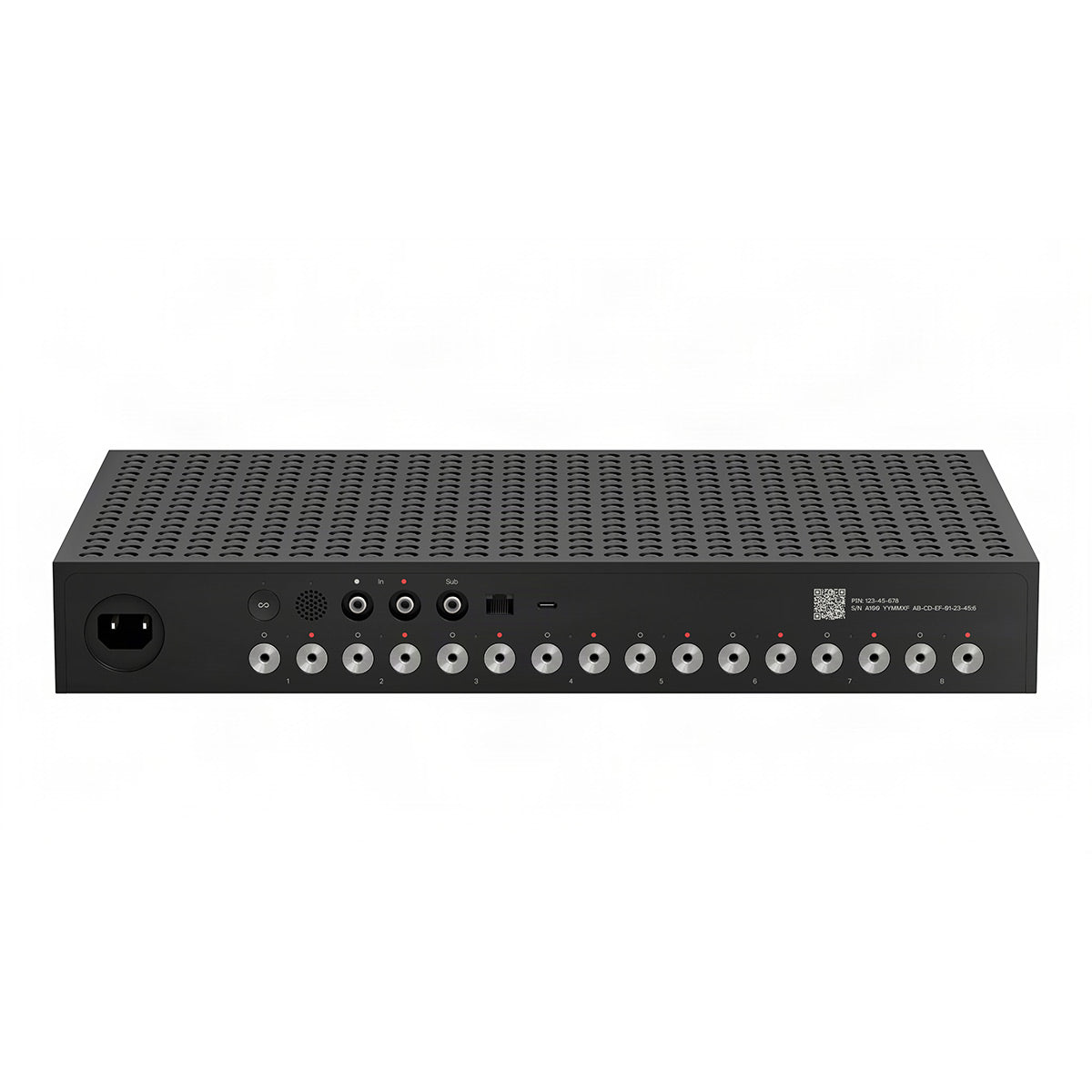

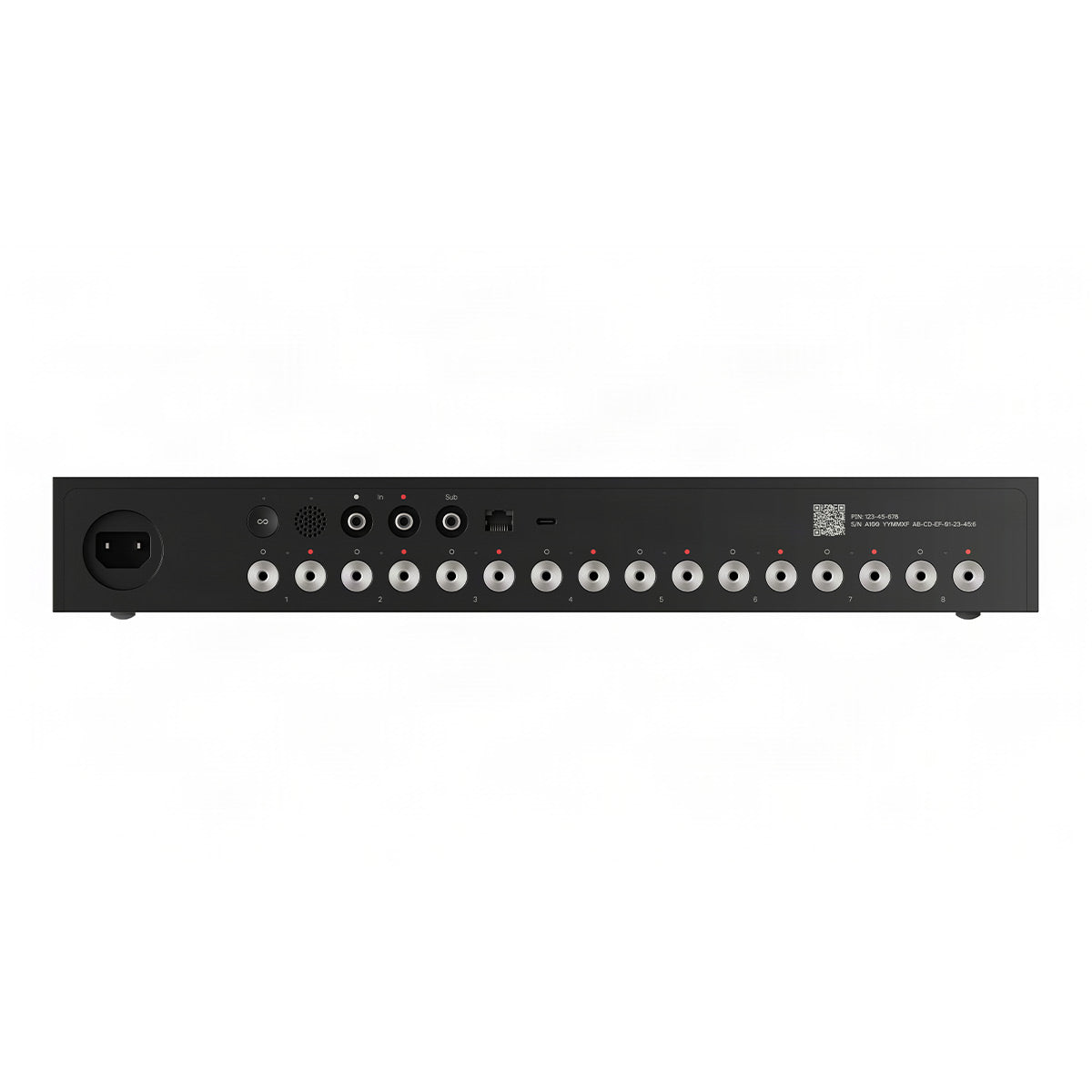

- Rear: Device status, output status (x8), RJ45 status light
- Product Dimensions (W x H X D) 17.2 x 2.52 x 10.44”
- Net Weight 11.17 lbs.
- Shipping Weight 16.56 lbs.
- Wired Networking Interface 100BaseTX, Ethernet RJ45
What's In The Box

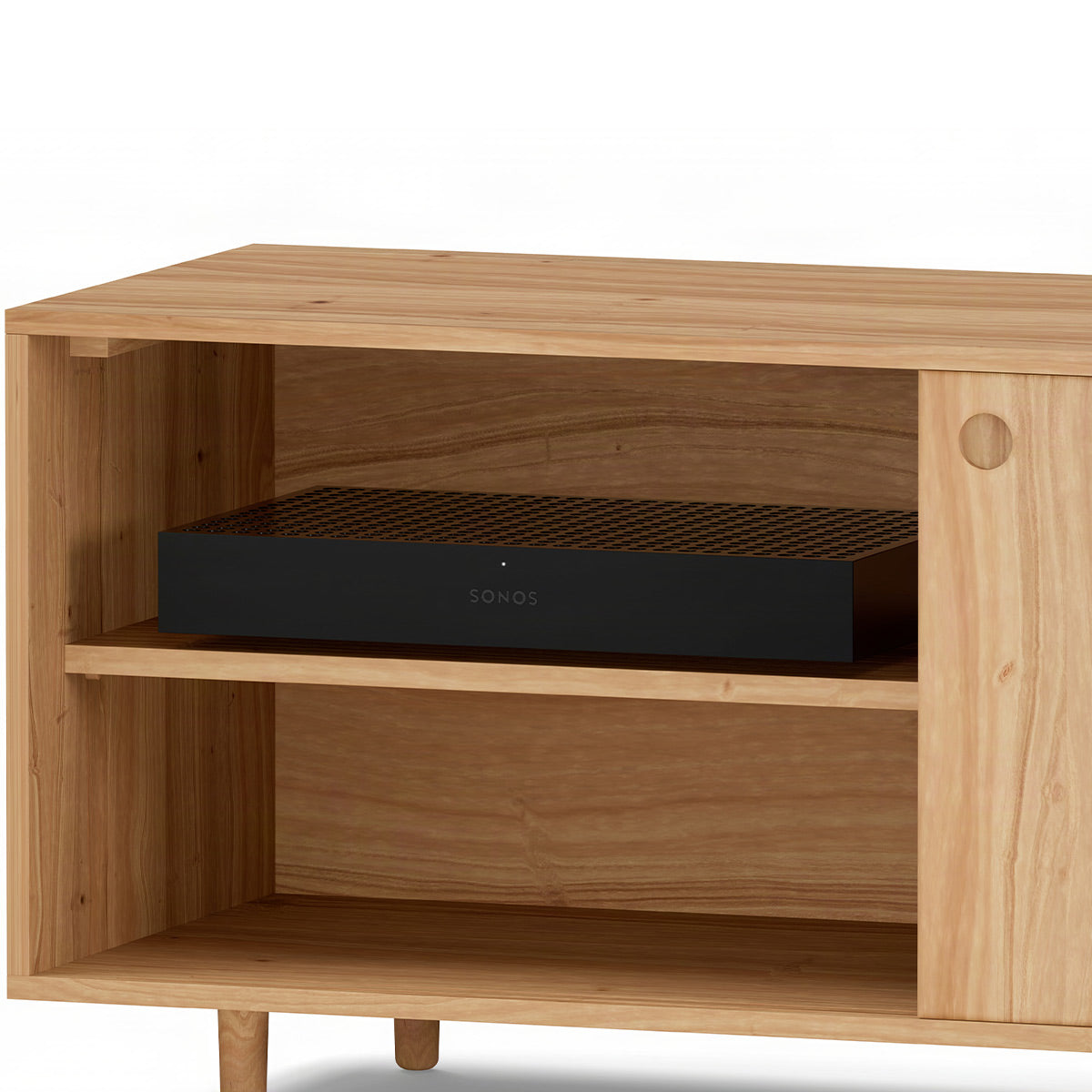

- Amp Multi 8 Channel Amplifier
- (8) Banana Plugs
- Power Cord
- Manual
