Shure

Shure GLXD14+-Z3 Dual Band Wireless System with GLXD4+ Tabletop Receiver, GLXD1+ Bodypack Transmitter, & WA302 Guitar Cable

Regular price $499.00
Sale price $499.00 Regular price
Save $-499.00 (%)
OR

In Stock & Ready to Ship
Free Shipping Get it between Tue, Apr 30 – Tue, May 7

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Overview

Product Information

Model: GLXD14+-Z3 | UPC: 042406695503

Specifications

What's In The Box

WARNING: California Residents - Proposition 65. This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Product Information

Model: GLXD14+-Z3 | UPC: 042406695503

Ready-to-go. Every time. Automatically.

GLX-D+ Dual Band Digital Wireless is the perfect solution for musicians and presenters who want to go wireless with confidence, and without complexity. With new Dual Band Wireless Technology, GLX-D+ can operate in both 2.4 and 5.8GHz, more than doubling the available bandwidth while also intelligently avoiding interference for reliable, dropout-free audio. Featuring smart rechargeability with up to 12 hours of runtime (improved from prior generation GLX-D), the included lithium-ion battery can be charged multiple ways and offers quick charge capabilities.

Features

  • Includes GLXD1+ Bodypack Transmitter & WA302 Guitar Cable
  • Dual Band Wireless Technology
  • Automatic Frequency Management
  • Smart Rechargeability
  • Up to 16 Compatible Systems

Dropouts Won’t Steal the Show

With the new Dual Band Wireless Technology, GLX-D+ can operate in both 2.4 and 5.8GHz, more than doubling your available bandwidth for reliable dropout-free audio.

Wireless Without Complication

GLX-D+ Dual Band Digital Wireless System is the ideal solution to go wireless without complication. Every aspect of its operation is managed automatically, allowing you to focus on your performance.

Smart Rechargeability

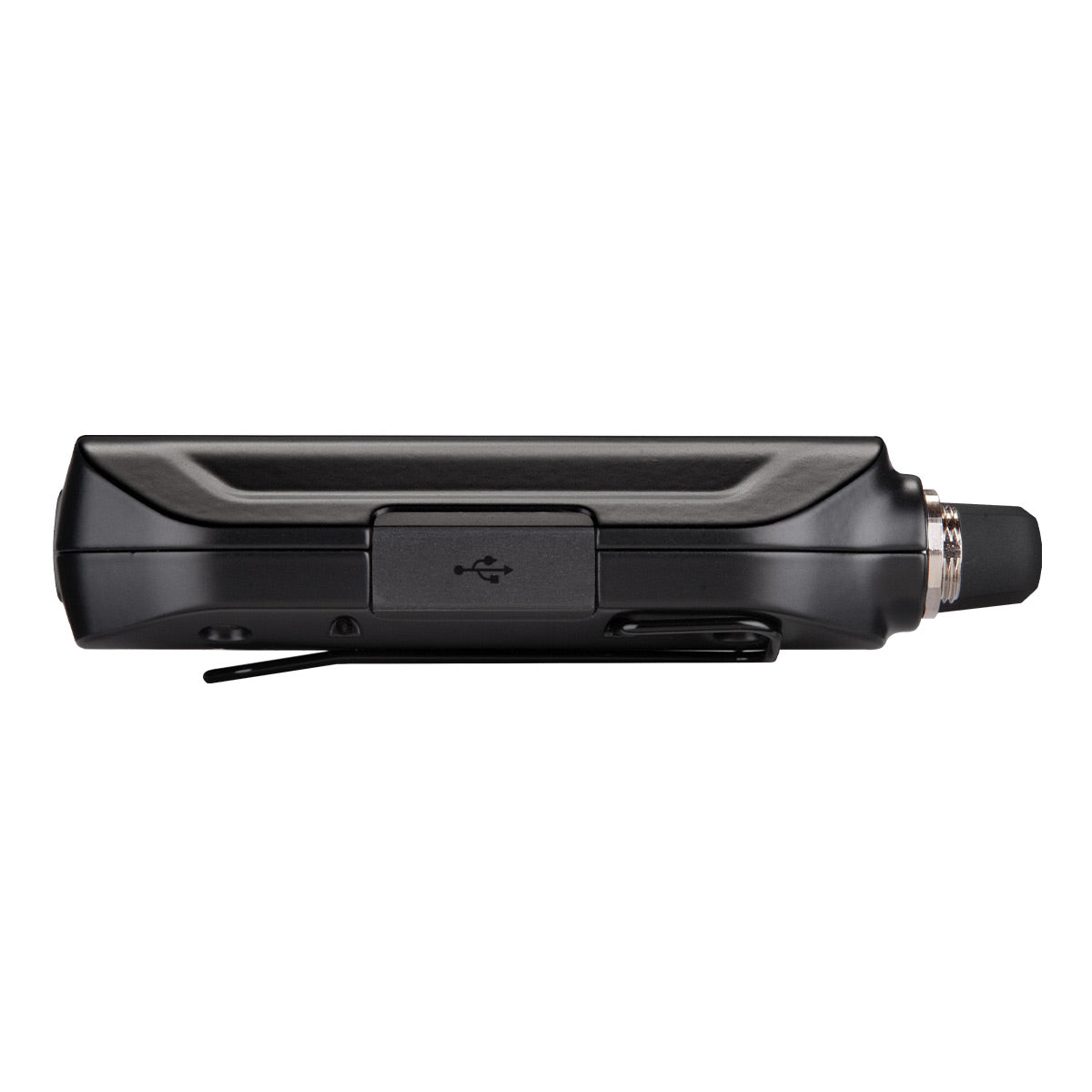

End battery life uncertainty with GLX-D+ Dual Band rechargeable battery. With up to 12 hours of runtime, the new lithium-Ion SB904 batteries can be charged directly in the receiver or via USB-C connector on the handheld microphone or bodypack. A quick charge feature allows for 1.5 hours of use from a 15-minute charge.

GLXD4+ Wireless Receiver

  • Exceptional digital audio clarity
  • Compatible with multiple legendary microphone options
  • Automatically moves away from interference without audio interruption
  • Rock-solid RF performance for multiple system installations
  • License-free frequency range

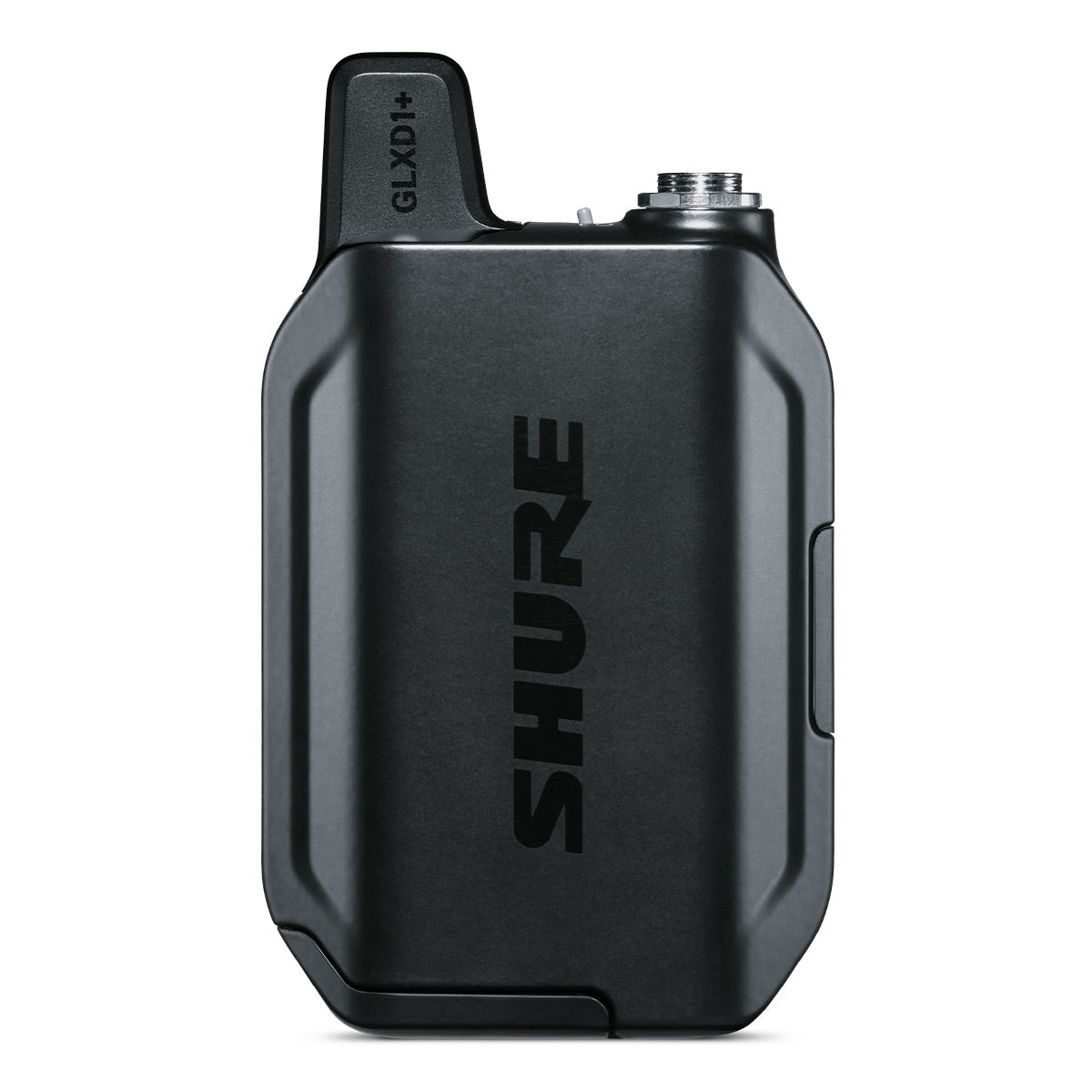

GLXD1+ Bodypack Transmitter

  • Automatically links with GLXD4+ and GLXD4R+ wireless receivers for seamless frequency changing
  • Sophisticated design with rugged metal construction
  • Easily accessible on / off switch
  • Locking TQG connection for use with Shure lavalier, headset, earset, and instrument microphones and guitar cables

WA302 Guitar Cable

Instrument cable connects a 1/4" jack to a 4-pin mini-connector for bodypack transmitters.

Specifications

  • System
    • Compatibility
      • With Frequency Manager: Up to 11 compatible systems in typical setting, and up to 16 under ideal conditions
      • Without Frequency Manager: Up to 4 compatible systems in typical setting, and up to 8 under ideal conditions
    • System Operating Range
      • Indoors: Up to 30 m (100 ft.) typical, with a maximum of 60 m (200 ft.) under ideal conditions
      • Outdoors: Up to 20 m (65 ft.) typical, with a maximum of 50 m (165 ft.) under ideal conditions
    • Transmit Mode: Shure Proprietary Digital - Dual Band (2.4 GHz and 5.8 GHz)
    • Audio Frequency Response: 20 Hz – 20 kHz Note: Dependent on microphone type
    • Dynamic Range: 120 dB, A-weighted
    • RF Sensitivity: -88 dBm, typical
    • Total Harmonic Distortion: 0.07%, typical
    • RF Output Power: 10 mW E.I.R.P. max
    • Operating Temperature Range: -18°C (0°F) to 57°C (135°F) Note: Battery characteristics may limit this range.
    • Storage Temperature Range: -29°C (-20°F) to 74°C (165°F)
    • Polarity: Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 6,35 mm output.
    • Battery Life: Up to 12 hours
  • GLXD4+ Dual Band Wireless Receiver
    • Dimensions (antenna folded) (W x H x D): 7.2” x 4.8” x 1.6”
    • Weight: 10.9 oz (310 g)
    • Housing: Molded Plastic
    • Power Requirements: 14.5 V - 17 V, 600mA
    • Spurious Rejection: >35 dB, typical
    • Gain Adjustment Range: −20 to 40 dB in 1 dB steps
    • Phantom Power Protection: Yes
    • Audio Output
      • Configuration
        • XLR Output: Impedance Balanced
        • 6.35 mm (1/4") output: Impedance balanced
      • Impedance
        • XLR Output: 100 Ω
        • 6.35 mm (1/4") output: 100 Ω (50 Ω, Unbalanced)
      • Maximum Audio Output Level
        • XLR connector (into 600 Ω load) 1 dBV
        • 6.35 mm (1/4“) connector (into 3 kΩ load) +8.5 dBV
      • Pin Assignments
        • XLR Output: 1=ground, 2=hot, 3=cold
        • 6.35 mm (1/4") connector: Tip=audio, Ring/ Sleeve=ground
    • Receiver Antenna Input
      • Impedance: 50 Ω
      • Antenna Type: Dual Band 1/2 WaveSleeve Dipole, non-removable
      • Maximum Input Level: −20 dBm
  • GLXD1+ Dual Band Bodypack Transmitter
    • Dimensions (without antenna)(W x H x D): 2.6” x 4.5” x 1.1”
    • Weight (without battery): 5.4 oz (153.1 g)
    • Power Requirements: 3.7 V Rechargeable Li-Ion
    • Housing: Cast Metal, Black Powdercoat
    • Input Impedance: 900 kΩ
    • RF Output Power: 10 mW E.I.R.P. max
    • Transmitter Input
    • Connector: 4-Pin male mini connector (TA4M)
    • Configuration: Unbalanced
    • Maximum Input Level (1 kHz at 1% THD): +8.4 dBV (7.5 Vp-p)
    • Antenna Type: Dual Band Internal Monopole
    • Pin Assignments TA4M
      • 1: Ground (cable shield)
      • 2: + 5 V Bias
      • 3: Audio
      • 4: Tied through active load to ground (On instrument adapter cable, pin 4 floats)
  • WA302 Instrument Cable
    • Length: 2.5 foot (.75 m)
    • Connector: 4-pin mini connector (TA4F) to 1/4-inch connector
    • Compatible with GLXD1+, T1, SC1, PG1, PGX1, SLX1, LX1, U1, UC1, ULX, UR1, UR1M, UR1H and UT1 bodypack transmitters

What's In The Box

  • GLXD14+-Z3 Dual Band Wireless System
    • GLXD4+ Tabletop Receiver
    • GLXD1+ Bodypack Transmitter
    • WA302 Guitar Cable (TA4F to 1/4")
  • SB904 Battery
  • Power Supply
  • Carrying Case
  • Manual
