Shure GLXD14+/PGA31-Z3 Dual Band Wireless System with GLXD4+ Tabletop Receiver, GLXD1+ Bodypack Transmitter, & PGA31 Headset Condenser Microphone

Questions? We're here to help.
Model: GLXD14+/PGA31-Z3 UPC: 042406695657 Item: 179341
Product Information
Ready-to-go. Every time. Automatically.
GLX-D+ Dual Band Digital Wireless is the perfect solution for musicians and presenters who want to go wireless with confidence, and without complexity. With new Dual Band Wireless Technology, GLX-D+ can operate in both 2.4 and 5.8GHz, more than doubling the available bandwidth while also intelligently avoiding interference for reliable, dropout-free audio. Featuring smart rechargeability with up to 12 hours of runtime (improved from prior generation GLX-D), the included lithium-ion battery can be charged multiple ways and offers quick charge capabilities.
Features
- Includes PGA31 Headset Microphone
- Dual Band Wireless Technology
- Automatic Frequency Management
- Smart Rechargeability
- Up to 16 Compatible Systems
Dropouts Won’t Steal the Show
With the new Dual Band Wireless Technology, GLX-D+ can operate in both 2.4 and 5.8GHz, more than doubling your available bandwidth for reliable dropout-free audio.
Wireless Without Complication
GLX-D+ Dual Band Digital Wireless System is the ideal solution to go wireless without complication. Every aspect of its operation is managed automatically, allowing you to focus on your performance.
Smart Rechargeability
End battery life uncertainty with GLX-D+ Dual Band rechargeable battery. With up to 12 hours of runtime, the new lithium-Ion SB904 batteries can be charged directly in the receiver or via USB-C connector on the handheld microphone or bodypack. A quick charge feature allows for 1.5 hours of use from a 15-minute charge.
GLXD4+ Wireless Receiver
- Exceptional digital audio clarity
- Compatible with multiple legendary microphone options
- Automatically moves away from interference without audio interruption
- Rock-solid RF performance for multiple system installations
- License-free frequency range

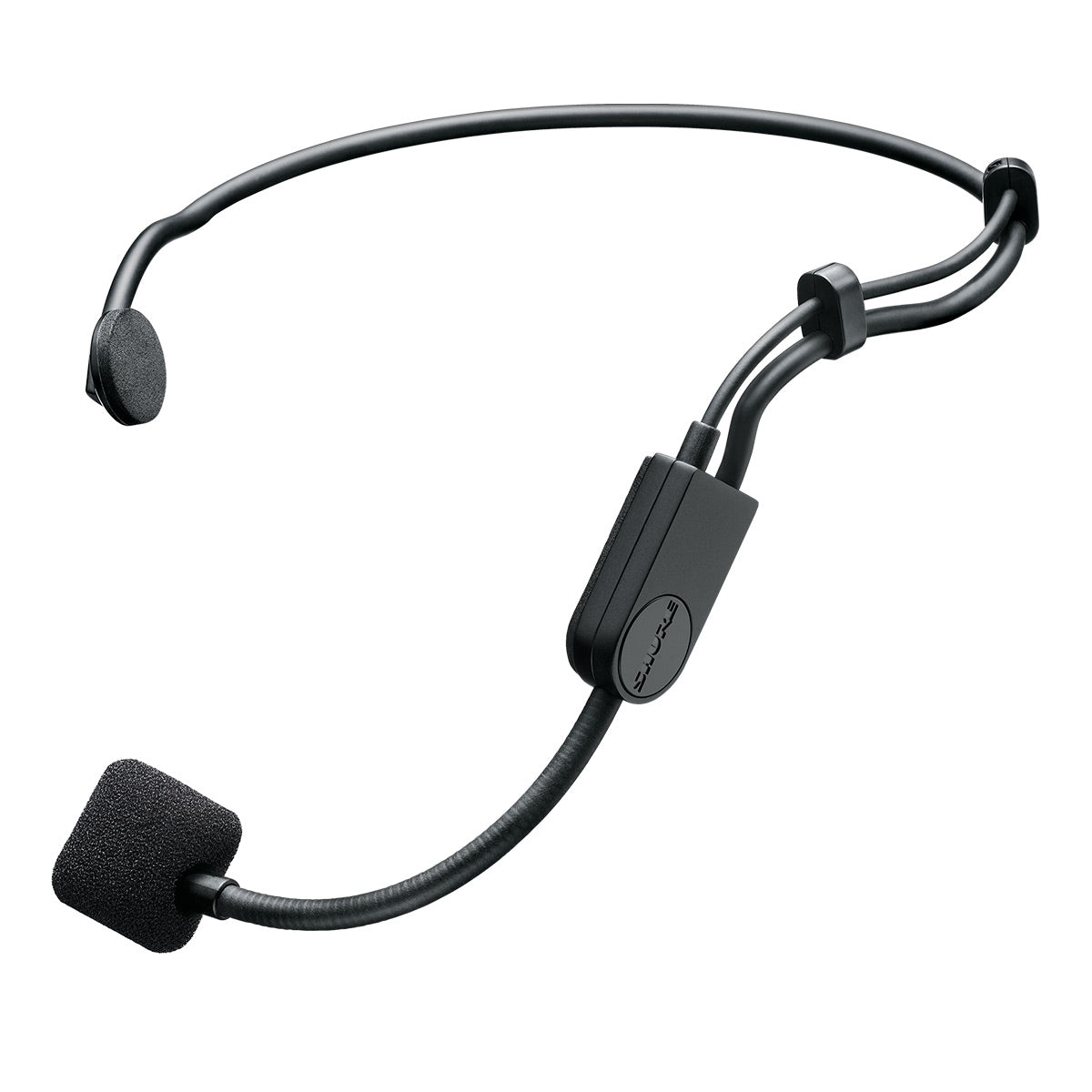

PGA31 Headset Condenser Microphone
- Wearable wireframe headset fits securely for multi-instrumentalists and active performers
- Permanently-charged electret condenser element for detailed, crisp vocals
- Unidirectional (cardioid) polar pattern rejects unwanted noise for improved sound quality and higher gain-before-feedback
- Flexible gooseneck design and discrete adjustment options optimize microphone positioning for further source isolation
- Included windscreen tames plosives for clean and intelligible sound reproduction
- Available with a wide variety of Shure wireless systems, renowned for ease-of-use and reliable performance
- Tailored frequency response primed for great sound on vocals
- Legendary Shure precision engineering for durability and performance
Specifications
Specifications
- System
- Compatibility
- With Frequency Manager: Up to 11 compatible systems in typical setting, and up to 16 under ideal conditions
- Without Frequency Manager: Up to 4 compatible systems in typical setting, and up to 8 under ideal conditions
- System Operating Range
- Indoors: Up to 30 m (100 ft.) typical, with a maximum of 60 m (200 ft.) under ideal conditions
- Outdoors: Up to 20 m (65 ft.) typical, with a maximum of 50 m (165 ft.) under ideal conditions
- Transmit Mode: Shure Proprietary Digital - Dual Band (2.4 GHz and 5.8 GHz)
- Audio Frequency Response: 20 Hz – 20 kHz Note: Dependent on microphone type
- Dynamic Range: 120 dB, A-weighted
- RF Sensitivity: -88 dBm, typical
- Total Harmonic Distortion: 0.07%, typical
- RF Output Power: 10 mW E.I.R.P. max
- Operating Temperature Range: -18°C (0°F) to 57°C (135°F) Note: Battery characteristics may limit this range.
- Storage Temperature Range: -29°C (-20°F) to 74°C (165°F)
- Polarity: Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 6,35 mm output.
- Battery Life: Up to 12 hours
- Compatibility
- GLXD4+ Dual Band Wireless Receiver
- Dimensions (antenna folded) (W x H x D): 7.2” x 4.8” x 1.6”
- Weight: 10.9 oz (310 g)
- Housing: Molded Plastic
- Power Requirements: 14.5 V - 17 V, 600mA
- Spurious Rejection: >35 dB, typical
- Gain Adjustment Range: −20 to 40 dB in 1 dB steps
- Phantom Power Protection: Yes
- Audio Output
- Configuration
- XLR Output: Impedance Balanced
- 6.35 mm (1/4") output: Impedance balanced
- Impedance
- XLR Output: 100 Ω
- 6.35 mm (1/4") output: 100 Ω (50 Ω, Unbalanced)
- Maximum Audio Output Level
- XLR connector (into 600 Ω load) 1 dBV
- 6.35 mm (1/4“) connector (into 3 kΩ load) +8.5 dBV
- Pin Assignments
- XLR Output: 1=ground, 2=hot, 3=cold
- 6.35 mm (1/4") connector: Tip=audio, Ring/ Sleeve=ground
- Configuration
- Receiver Antenna Input
- Impedance: 50 Ω
- Antenna Type: Dual Band 1/2 WaveSleeve Dipole, non-removable
- Maximum Input Level: −20 dBm
- PGA31 Headset Condenser Microphone
- Weight (g) / (lbs): 45 g / 0.099 lbs
- Transducer Type: Condenser
- Polar Pattern: Cardioid
- Frequency Range From (Hz): 60
- Frequency Range To (kHz): 20
- Sensitivity dBV/Pa: -50.00
- Sensitivity mvpa: 3.16
- Equivalent Selfnoise: 28 dB(A)
- Maximum Sound Pressure: 145 dB
- Impedance (Ω): 600
- Switchable Low Cut: No
- Output Connectors: TQG (TA4F, 4-Pin Mini)
- Attenuation PAD: No
- Interchangeable Capsule: No
- Requires Phantom Power (VDC): 5v DC (bias)
- Cable: 1.3m / 50 in

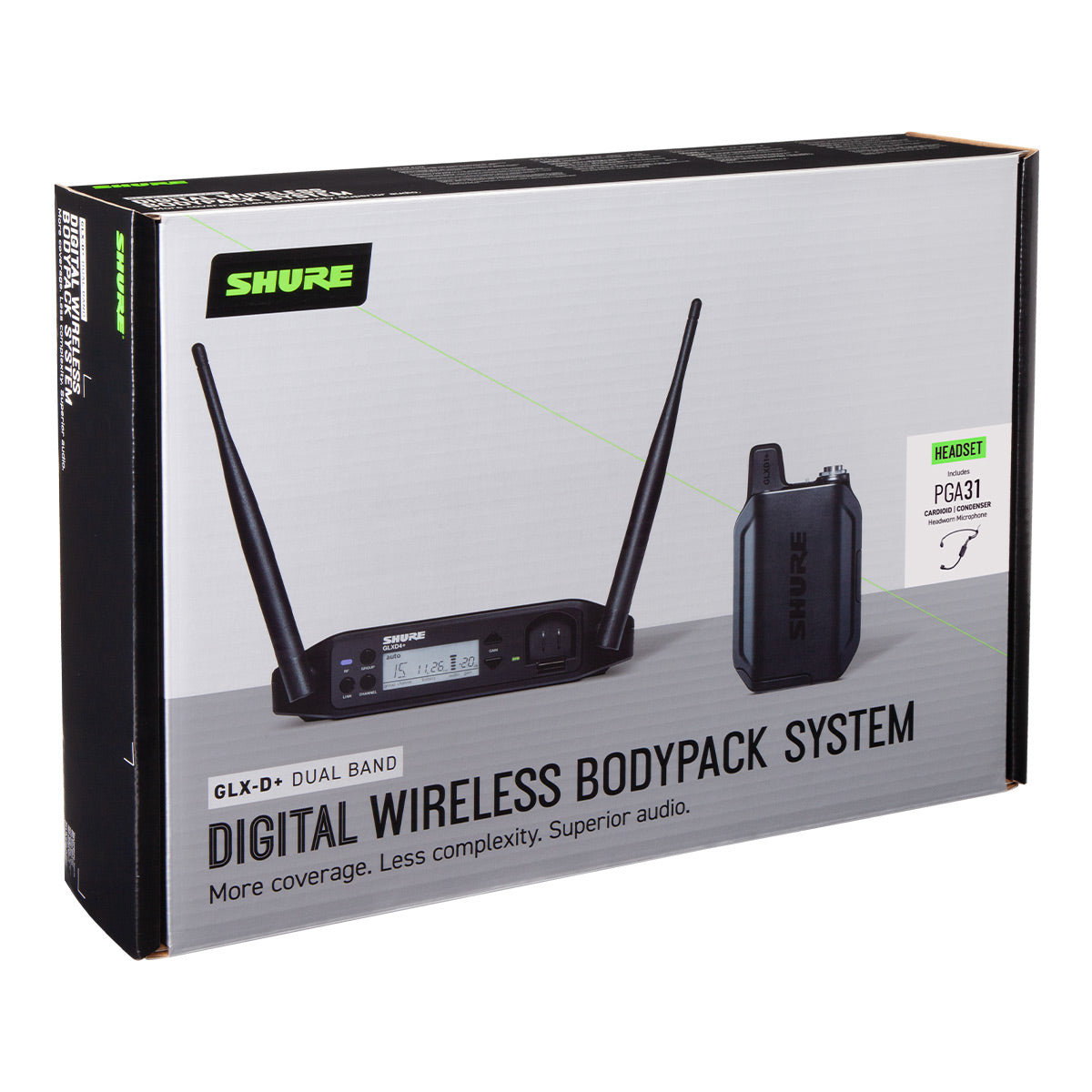

What's in the Box
What's in the Box
- GLXD14+/PGA31-Z3 Dual Band Wireless System
- GLXD4+ Tabletop Receiver
- GLXD1+ Bodypack Transmitter
- PGA31 Headset Condenser Microphone
- SB904 Battery
- Power Supply
- Carrying Case
- Manual
