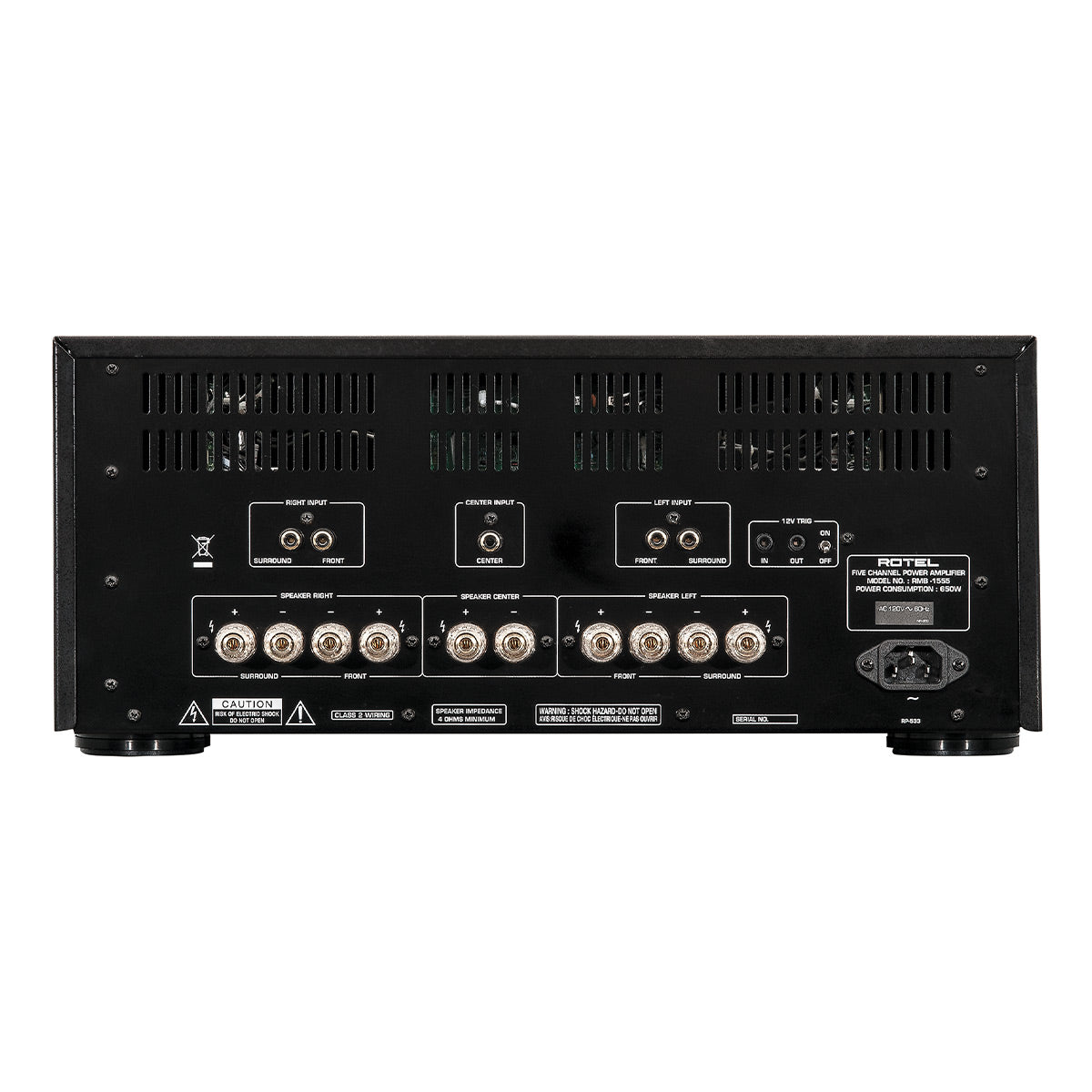

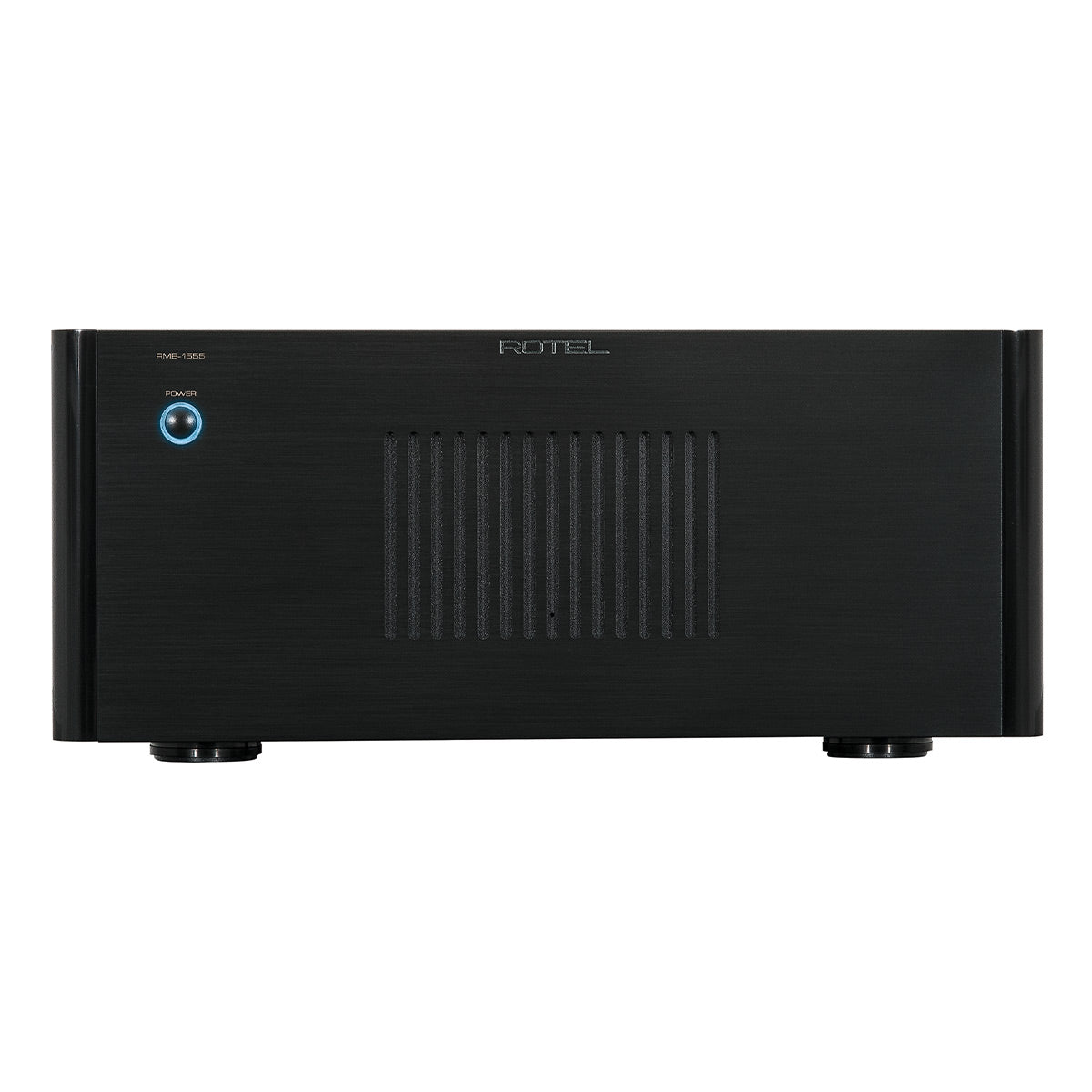

Rotel RMB-1555 5 Channel 120W Multichannel Amplifier (Black)

Regular price $2,299.00
Sale price $2,299.00 Regular price
Save $-2,299.00 (%)
OR

Other Options

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Overview

Product Information

Model: RMB-1555B | UPC: 672563200113

Specifications

What's In The Box

Product Documents

Product Information

Model: RMB-1555B | UPC: 672563200113

Introducing the RMB-1555: a high-performance multichannel amplifier designed to elevate your home theater experience. Delivering 120 watts per channel across five channels, it ensures powerful and precise audio reproduction for both subtle nuances and dynamic soundscapes.

Features

  • High Power Output
  • Class AB Amplifier Design
  • Premium Components
  • Exceptional Sound Clarity
  • Versatile Speaker Compatibility
  • Sleek and Functional Design

Exceptional Power Output

The RMB-1555 provides 120 watts per channel into 8-ohm loads, with all channels driven simultaneously. This robust power output guarantees accurate sound reproduction, capturing everything from delicate musical details to the deep rumble of low-frequency effects.

Advanced Amplifier Design

Utilizing a Class AB amplifier configuration, the RMB-1555 strikes an optimal balance between high power output and thermal efficiency. This design choice ensures consistent performance and reliability, even during extended listening sessions.

High-Quality Components

At the heart of the RMB-1555 is a high-current toroidal transformer, paired with discrete output transistors. This combination offers superior thermal stability and avoids the compromises often found in integrated circuit designs, resulting in cleaner and more accurate audio reproduction.

Precision Engineering

With a total harmonic distortion of less than 0.03% across the 20Hz–20kHz frequency range, the RMB-1555 delivers exceptionally clean sound. Its wide frequency response from 10Hz to 100kHz ensures that all audio details are faithfully reproduced, providing a rich and immersive listening experience.

Versatile Connectivity

The amplifier features five channels, each capable of driving 8-ohm speakers with 120 watts, and 4-ohm speakers with 170 watts. This versatility makes it suitable for a wide range of speaker configurations and home theater setups.

Elegant Design

Measuring 17 inches in width, 7.5 inches in height, and 17.9 inches in depth, the RMB-1555 combines substantial power with a sleek and modern aesthetic, making it a fitting addition to any home theater system.

Specifications

  • Dimensions (W x H x D): 17" x 7.5" x 17.9"
  • Weight: 48 lbs.
  • Power requirements: 120V, 60Hz
  • Power consumption: 650W
  • Standby power consumption: 0.5W
  • BTU rating (4O, 1/8th power): 1683 BTU/h
  • Continuous power output: 120W/ch (all channels driven, 8O)
  • Total Harmonic Distortion (THD): (20Hz - 20kHz) < 0.03%
  • Frequency response: 10Hz - 100kHz ±0.5, -3dB
  • S/N ratio (IHF "A" weighted): 116dB
  • Gain: 26.5dB
  • Intermodulation distortion (60Hz:7kHz, 4:1): < 0.03%
  • Damping factor: 180
  • Speaker impedance: 4O minimum
  • Input sensitivity: 1.5V
  • Input impedance: 12kO

What's In The Box

  • RMB-1555 Multichannel Amplifier
  • Power cord
