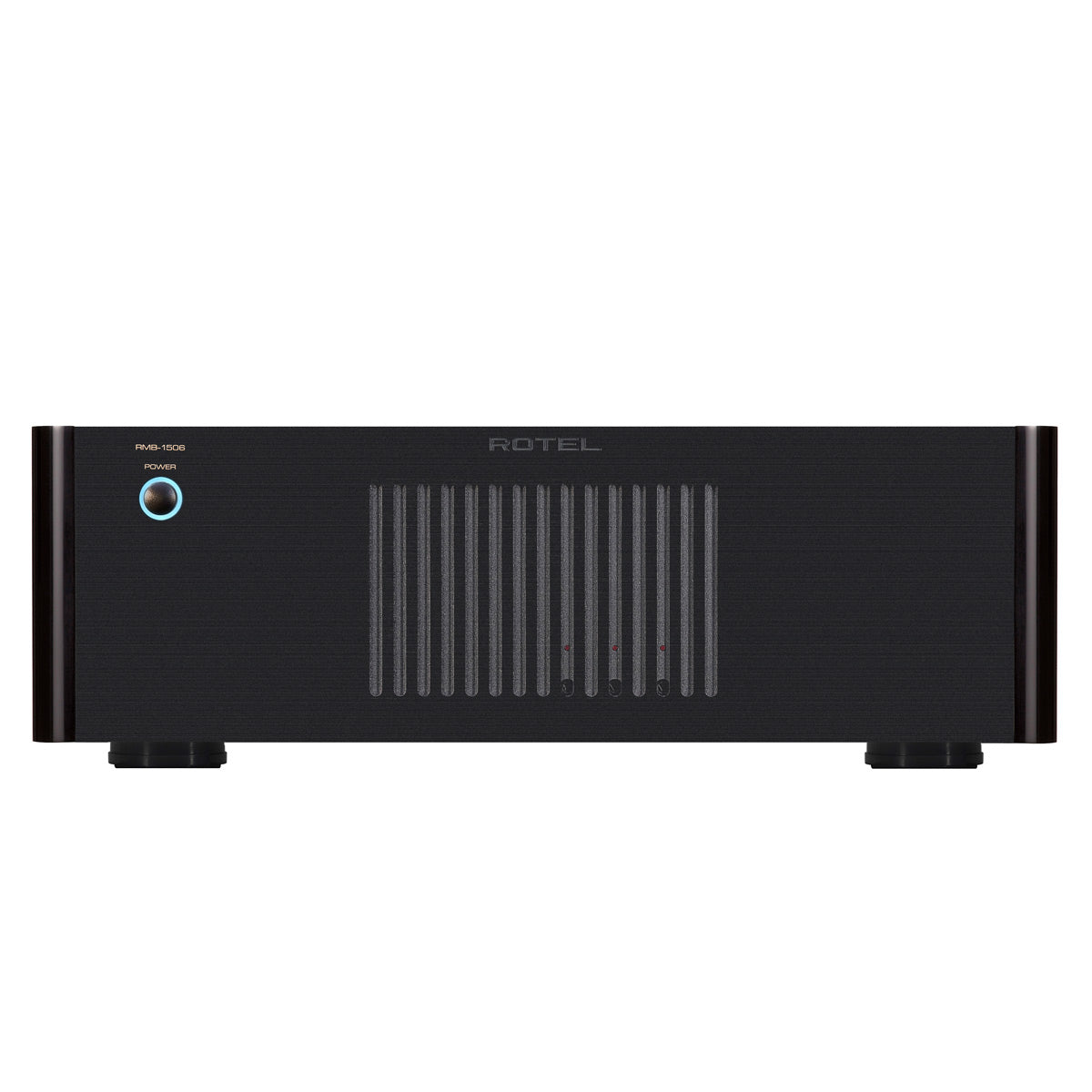

Rotel RMB-1506 6-Channel Amplifier

Regular price $1,499.00
Sale price $1,499.00 Regular price
Save $-1,499.00 (%)
OR

In Stock & Ready to Ship
Free Shipping Get it between Thu, Feb 13 – Thu, Feb 20

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Rotel RMB-1506 Overview

Product Information

Model: RMB-1506 | UPC: 672563137112

Specifications

What's In The Box

Product Documents

Product Information

Model: RMB-1506 | UPC: 672563137112

The Rotel RMB-1506 is a six-channel power amplifier designed to deliver high-quality audio across multiple zones in your home. Ideal for those seeking to expand their audio setup without the complexity of larger systems, it offers a robust 50 watts per channel, ensuring clear and dynamic sound distribution.

Features

  • Six-Channel Amplification
  • Custom Installation Friendly
  • Premium Sound Quality
  • Durable and Compact Design
  • Versatile Multi-Zone Capabilities
  • Easy System Integration

Powerful Multichannel Amplification

With six channels, each providing 50 watts of continuous power into 8-ohm loads (80 watts into 4 ohms), the RMB-1506 ensures consistent and reliable performance across all connected zones. This power capacity makes it suitable for driving a variety of speaker configurations, maintaining audio fidelity throughout your home.

Custom Installation Features

The amplifier is equipped with features tailored for custom installations, including front panel attenuation controls, input linking, and a 12-volt trigger input for seamless integration with other components. Additionally, it offers a buffered link output, allowing for the connection of additional amplifiers in larger multizone setups.

Design and Build Quality

Measuring 17 inches in width, 5.7 inches in height, and 16.7 inches in depth, the RMB-1506 sports a sleek design that fits standard rack mounts, with rack ears included for easy installation. Its solid construction, weighing 34 pounds, reflects Rotel's commitment to durability and high-quality engineering.

Technical Specifications

The amplifier boasts a frequency response ranging from 10Hz to 100kHz (±1dB), ensuring accurate sound reproduction across the audible spectrum. With a total harmonic distortion of less than 0.03% and a signal-to-noise ratio of 115dB, it delivers clean and precise audio output, preserving the integrity of your music.

Versatile Application

The RMB-1506 is ideal for modest multizone audio systems, allowing you to extend music to three additional living areas or zones. Its compatibility with surround receivers or preamp/processors makes it a versatile addition to your existing audio setup, enhancing your home's entertainment experience.

Specifications

  • Dimensions (W x H x D): 17" x 5.7" x 16.7"
  • Weight: 34 lbs.
  • Power requirements: 120V, 60Hz
  • Power consumption: 450W
  • Standby power consumption: 2.6W
  • BTU rating (4Ω, 1/8th power): 1680 BTU/h
  • Continuous power output
    • 50W/ch (all channels driven, 8Ω)
    • 80W/ch (all channels driven, 4Ω)
  • Total Harmonic Distortion (THD): (20Hz - 20kHz) < 0.03%
  • Frequency response: 10Hz - 100kHz ±1dB
  • S/N ratio (IHF "A" weighted): 115dB
  • Gain: 26dB
  • Intermodulation distortion (60Hz:7kHz, 4:1): < 0.03%
  • Damping factor: > 200
  • Speaker impedance: 4Ω minimum
  • Input sensitivity: 1V
  • Input impedance: 20kΩ

What's In The Box

  • RMB-1506 6-Channel Amplifier
  • Power Cord

Product Documents
