Rotel RC-1590MKII Overview

Product Information

Model: RC1590M2S | UPC: 672563770111

Specifications

What's In The Box

Product Information

Model: RC1590M2S | UPC: 672563770111

The Rotel RC-1590MKII is a high-end stereo preamplifier designed for audiophiles seeking exceptional sound quality and versatility. With support for analog, digital, Bluetooth, and turntable inputs, it seamlessly integrates with diverse audio sources, delivering a rich and immersive listening experience.

Features

  • Dual Toroidal Transformers
  • Premium DAC Technology
  • Versatile Connectivity Options
  • Direct Signal Path
  • Flexible Outputs

Advanced Power Supply Design

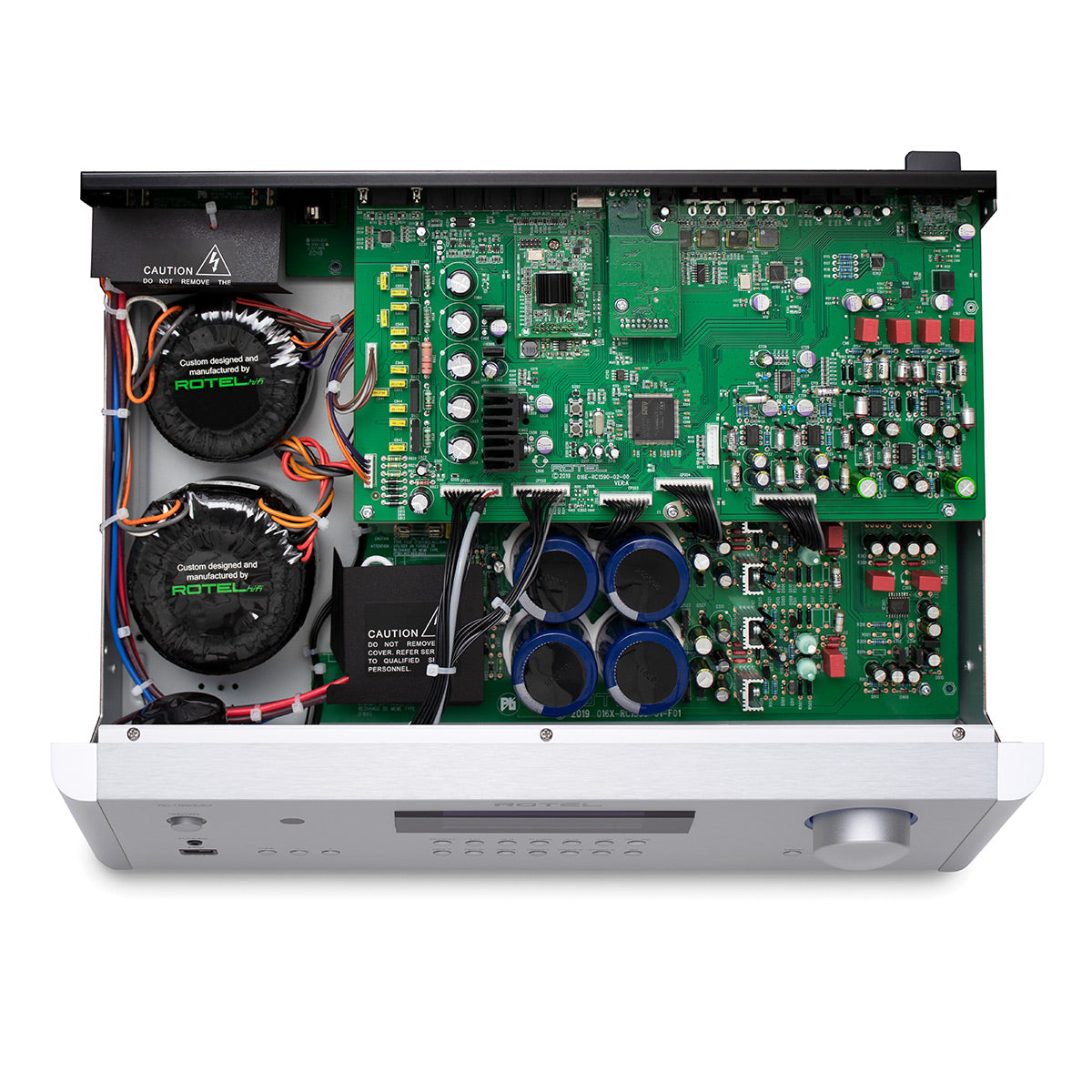

At the core of the RC-1590MKII are dual custom-built toroidal transformers. These transformers are both physically and electrically isolated, providing dedicated power to analog and digital circuits. This meticulous design minimizes distortion and ensures an ultra-low noise floor, allowing your music to shine with pristine clarity.

High-Performance Digital Conversion

Equipped with a premium Texas Instruments 32-bit/384kHz Digital-to-Analog Converter (DAC), the RC-1590MKII excels at processing digital audio inputs. The inclusion of custom-engineered output filter circuits ensures that even the most intricate details of your music are reproduced with exceptional accuracy and precise spatial placement.

Pure Analog Signal Path

The analog circuitry of the RC-1590MKII features DIRECT-PATH bypass modes, eliminating unnecessary components in the signal path. This design choice preserves signal integrity, reduces noise, and distortion, bringing you closer to the artist's original performance.

Comprehensive Connectivity Options

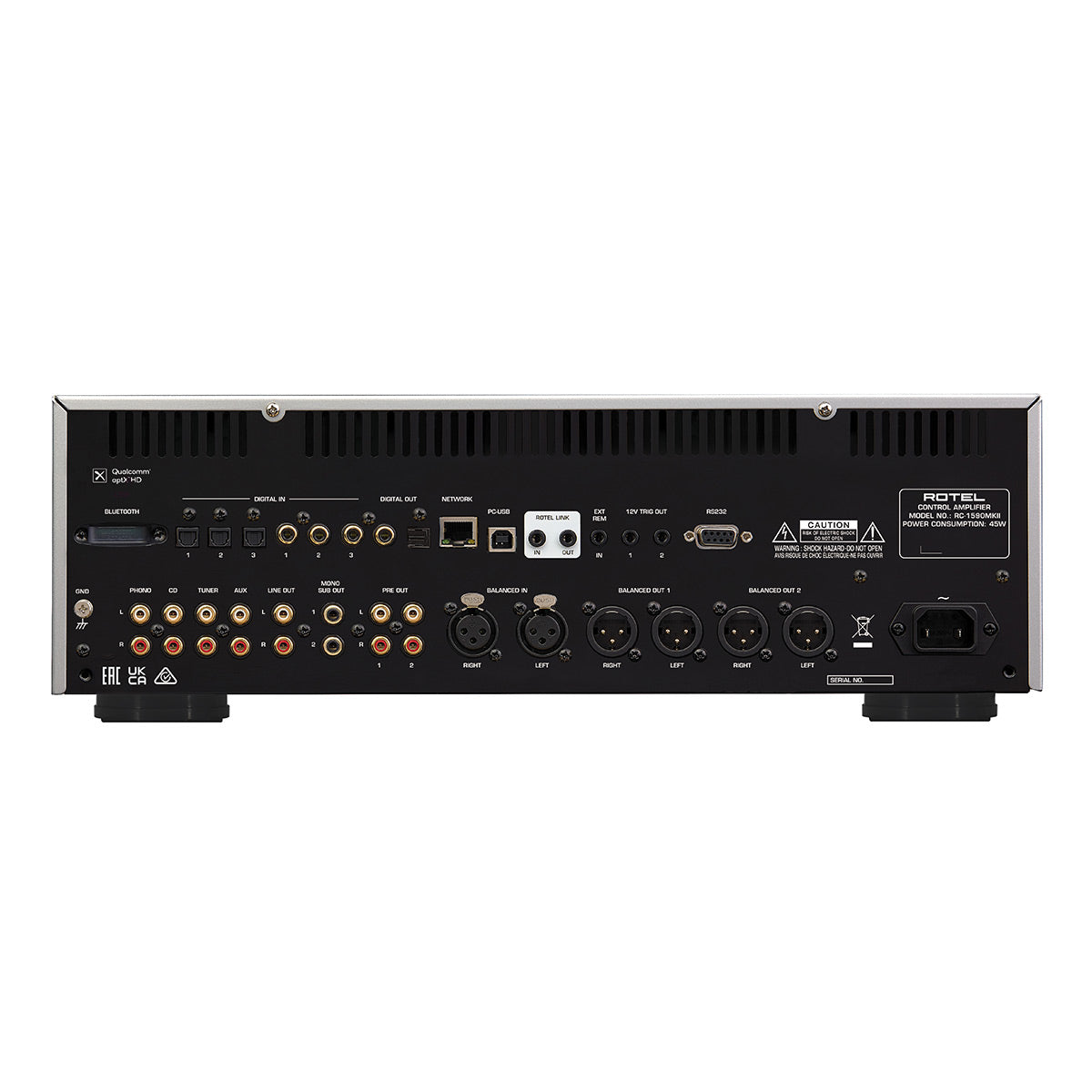

The RC-1590MKII offers versatile inputs, including a Moving Magnet Phono input, analog and digital connections, balanced XLR inputs, aptX™ and AAC Bluetooth, and a PC-USB input supporting 32-bit/384kHz audio and MQA decoding, ensuring seamless integration with any audio source.

Flexible Output Configurations

With dual RCA and XLR outputs, the RC-1590MKII provides flexibility for various system setups, including bi-amplification configurations. Additionally, a dedicated subwoofer output is available for enhanced low-frequency performance.

Specifications

  • Total Harmonic Distortion (20 Hz - 20k Hz): < 0.002%
  • Intermodulation Distortion (60 Hz : 7 kHz, 4:1): < 0.002%
  • Input Sensitivity / Impedance
    • Phono Input (MM): 2.5 mV / 47k ohms
    • Line Level Inputs (RCA): 150 mV / 100k ohms
    • Line Level Inputs (XLR): 250 mV / 100k ohms
  • Input Overload
    • Phono Input: 64 mV
    • Line Level Inputs (RCA): 4 V
    • Line Level Inputs (XLR): 5.5 V
  • Output Level
    • Line Level (RCA): 1 V
    • Balance (XLR): 2 V
  • Frequency Response
    • Phono Input: 20 Hz - 20k Hz, +0.3, -- 0.2dB
    • Line Level Inputs (RCA): 10 Hz - 100k Hz, +0, -- 0.1dB
    • Line Level Inputs (XLR): 10 Hz - 100k Hz, +0, -- 0.1dB
  • Tone Controls
    • Bass: +/- 10 dB at 100Hz
    • Treble: +/- 10 dB at 10kHz
  • Signal to Noise Ratio (A weighting)
    • Phono Input: 80 dB
    • Line Level Inputs (RCA): 117 dB
    • Line Level Inputs (XLR): 115 dB
  • Channel Separation
    • Phono Input: > 85 dB
    • Line Level Inputs (RCA): > 85 dB
    • Line Level Inputs (XLR): > 75 dB
  • Frequency Response: 20Hz - 20kHz (±0.5 dB, Max)
  • Signal to Noise Ratio (A weighting): 108 dB
  • Input Sensitivity / Impedance: 0dBFS / 75 ohms
  • Preamplifier Output Level: 1.65V (at -- 20dB)
  • Digital Inputs: SPDIF LPCM (up to 192kHz 24 bit)
  • PC-USB
    • USB Audio Class 1.0 (up to 96kHz 24 bit)
    • USB Audio Class 2.0 (up to 384kHz 32bit) *Driver installation required*
    • MQA and MQA Studio (up to 384kHz 24bit)
    • Roon Tested
  • General
    • Power Requirements: 120 Volts, 60 Hz
    • Power Consumption: 45 watts
    • Standby Power Consumption: < 0.5 watts
    • BTU: 78 BTU/h
    • Dimensions (W x H x D): 17” x 5-11/16” x 13-7/9”
    • Front Panel Height: 3U (5-1/4”)
    • Weight (net): 22.27 lbs.

What's In The Box

  • RC-1590MKII Preamplifier
  • Remote
  • Power Cord
  • Manual
