Rotel C8+ Multi-Channel Amplifier (Black)

Regular price $3,199.00
Sale price $3,199.00 Regular price
Save $-3,199.00 (%)
OR

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Rotel C8 Overview

Product Information

Model: C8PB | UPC: 672563277115

Specifications

What's In The Box

Product Information

Model: C8PB | UPC: 672563277115

Performance meets efficiency in Rotel’s C8+ Class AB Custom Installation Amplifier delivering on Rotel’s 60 Year heritage of Performance, Quality, and Value.

Features

  • Robust Class AB Power
  • Optical & Digital Inputs
  • Custom Engineered Toroidal Transformer
  • 12 Volt Trigger
  • Rack Ears Included
  • Four 24-bit/192kHz Digital to Analog Converters

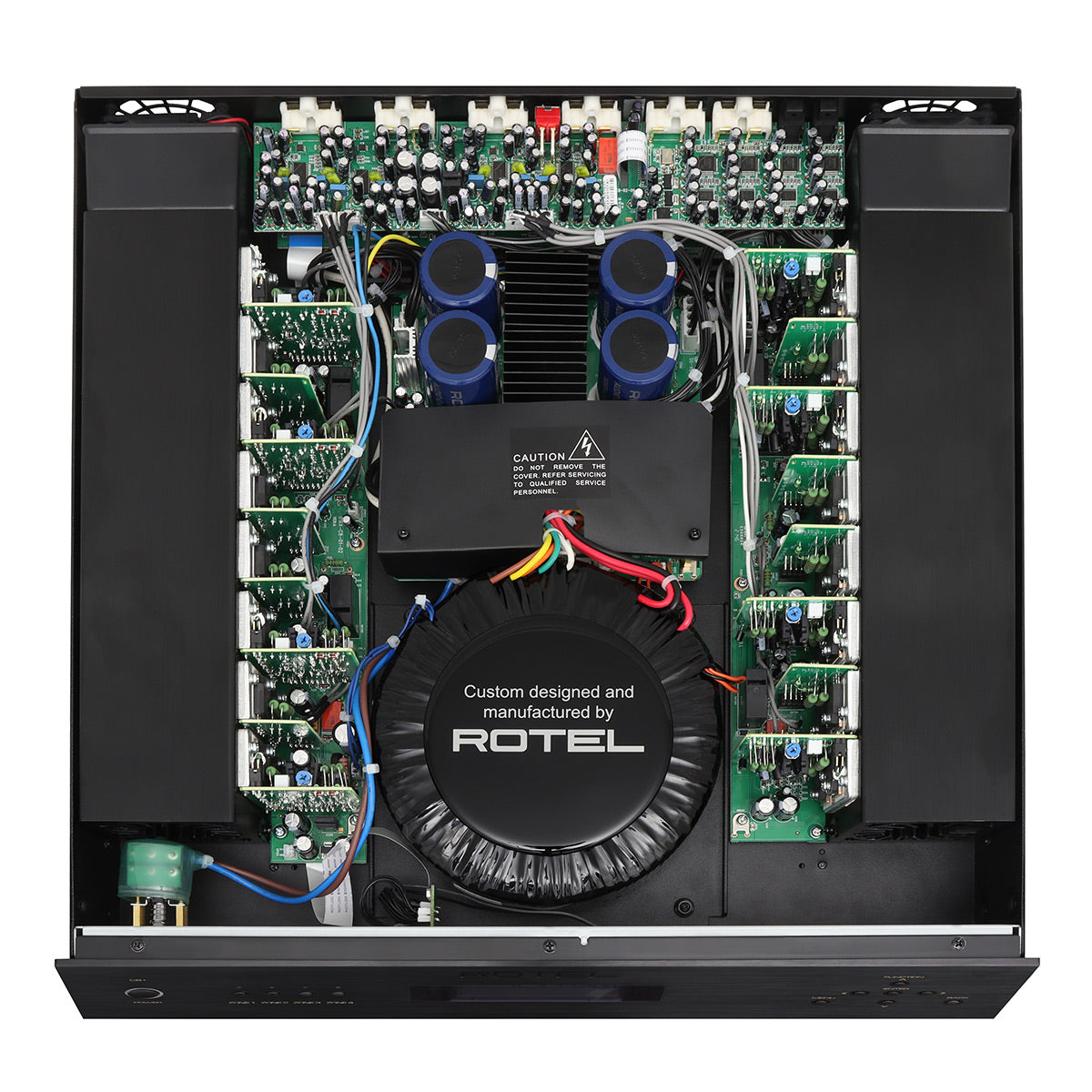

Oversized Toroidal Transformer

The oversized in-house manufactured toroidal transformer drives thirty-two high current output transistor devices for effortless, deep, controlled bass energy. Outputs can be bridged providing 4 channels of 300 Watts per channel, capable of driving even the most demanding loudspeakers and exceptional audio clarity in critical listening zones.

Connection

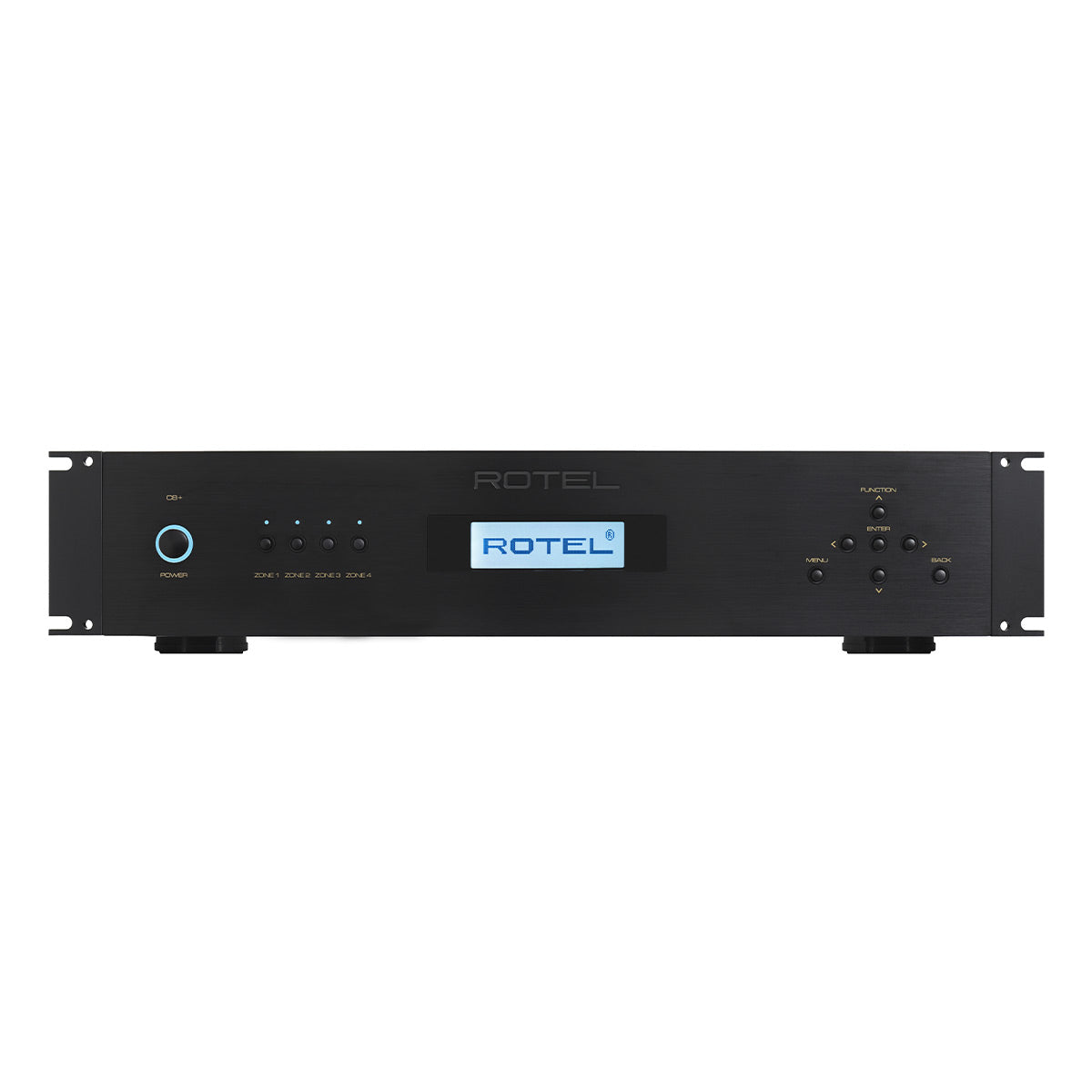

For ultimate installation flexibility the C8+ includes 4 Analog, 2 Coaxial and 2 Optical (24-bit/192kHz) inputs available to all Zones through internal matrix-switching with a Priority Zone PA Override feature allowing critical announcements to be broadcasts to all Zones. The front panel display and user controls provide selection of the matrixed source input and independent volume, bass and treble settings for each zone ensuring the C8+ can be tuned to the speaker and room characteristics. Device setup is also available via the front panel for easy system configuration when mounted in remote locations.

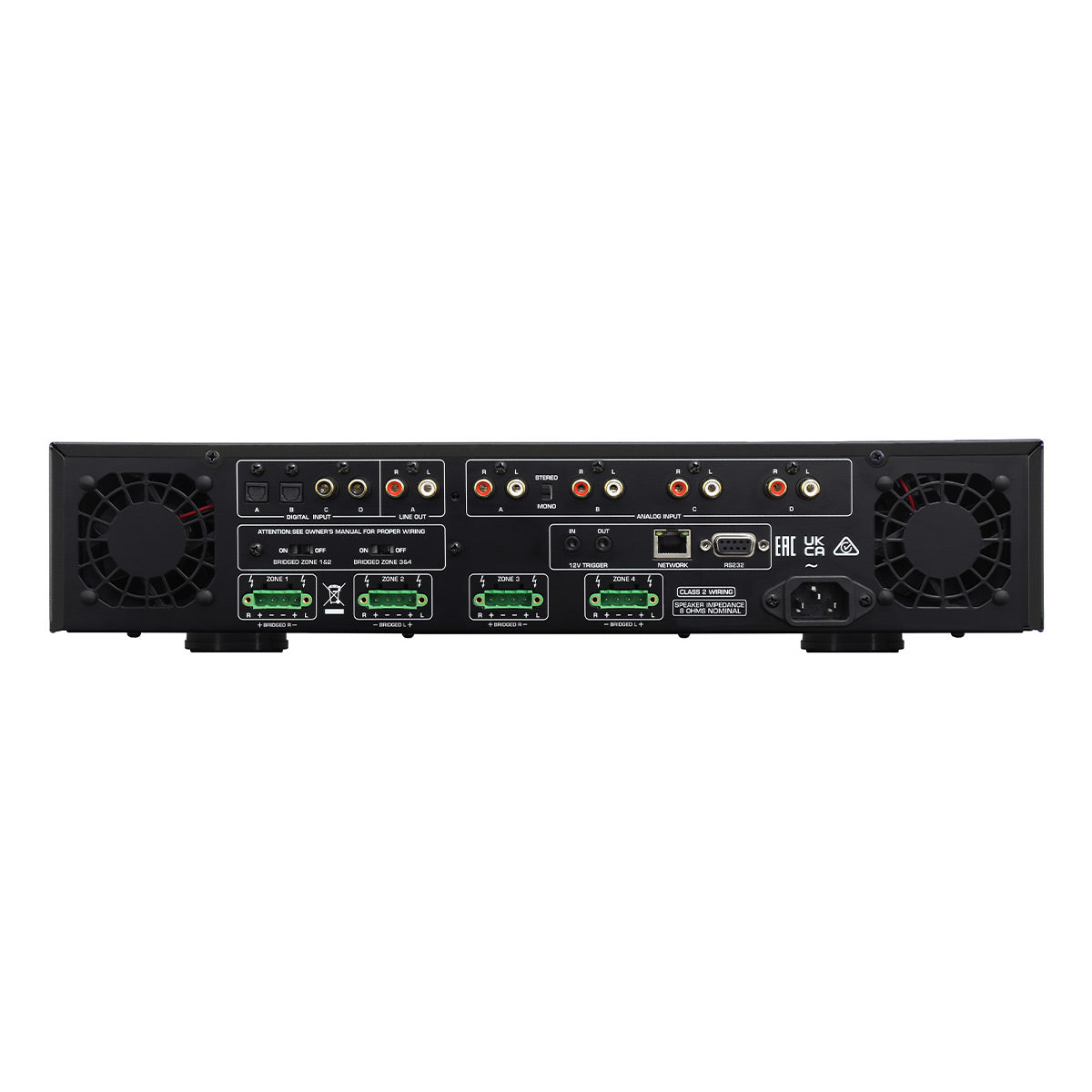

Phoenix Connectors

Speaker outputs utilize detachable Phoenix connectors for prewire installations with secure-locking screw terminals reducing service calls.

Control System Integration

Control system integration is available via IP and RS232 interfaces and the 12-Volt trigger input offers simplified power control.

Specifications

  • Front Panel Height: 2U / 3.5"
  • Power Requirements: 120V, 60Hz
  • Power Consumption: 980W
  • Standby Power Consumption
  • Normal: <0.5W
  • Network Standby: <2W
  • BTU Rating (4Ω, 1/8th power): 1537 BTU/h
  • Total Harmonic Distortion (THD)<0.1%
  • Frequency Response
  • Line Level Inputs: 10Hz - 100kHz, +0dB, 0 ± 0.5dB
  • S/N Ratio (IHF "A" Weighted)
  • Line Level Inputs: 100dB
  • Dimensions (W × H × D): 17" × 3.9" × 16.3"
  • Net Weight: 40.79 lbs.

What's In The Box

  • C8+ Multi-Channel Amplifier
  • Power Cord
  • Manual
