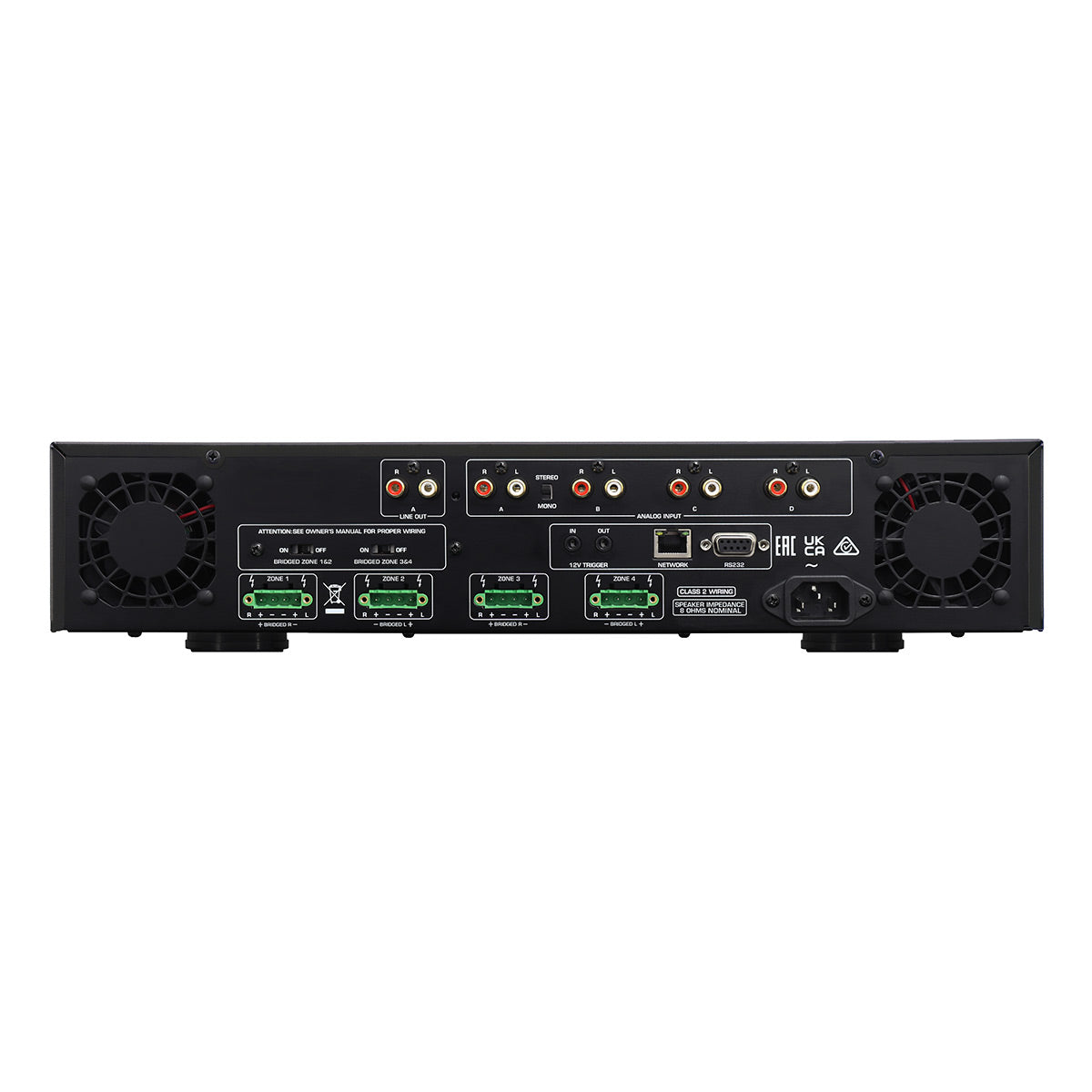

Rotel C8 Multi-Channel Amplifier

Regular price $1,999.00
Sale price $1,999.00 Regular price
Save $-1,999.00 (%)
OR

In Stock & Ready to Ship
Free Shipping Get it between Wed, Oct 9 – Wed, Oct 16

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Rotel C8 Overview

Product Information

Model: C8B | UPC: 672563276118

Specifications

What's In The Box

Product Information

Model: C8B | UPC: 672563276118

Rotel’s C8 Class AB Custom Installation Amplifier delivering on our 60-Year heritage of Performance, Quality and Value.

Features

  • Robust Class AB Power
  • Custom Engineered Toroidal Transformer
  • 12 Volt Trigger
  • Rack Ears Included
  • IP & RS232 System Integration

Toroidal Transformer

The oversized in-house manufactured toroidal transformer drives sixteen high current output devices fed by an array of bulk storage smoothing capacitors ensuring deep, agile and controlled bass energy while maintaining rhythm and timing of all genres of music.

Connection

The C8 includes 4 Analog inputs available to all Zones through internal matrix-switching and a Priority Zone PA Override option allowing critical announcements to be instantly available to all zones. The front panel display and user controls provide selection of the matrixed source input and independent volume, bass and treble settings ensuring the C8 can be tuned for listening preferences, speaker profiles and room characteristics. Setup is also available via the front panel for easy system configuration when mounted in remote locations ensuring ultimate installation flexibility.

Control

Control system integration is available via the IP and RS232 interfaces and the 12-Volt trigger input offers simplified power control. Detachable Phoenix speaker terminals allow for prewire installations with secure-locking terminals reducing service calls.

Rack Mounting

The custom engineered 2U height chassis does not require top or bottom clearance spacing for ultra efficient rack mounting. All rack mounting hardware is included.

Specifications

  • Front Panel Height: 2U / 3.5"
  • Power Requirements: 120V, 60Hz
  • Power Consumption: 570W
  • Standby Power Consumption
    • Normal: <0.5W
    • Network Standby: <2W
  • BTU Rating (4Ω, 1/8th power): 1537 BTU/h
  • Maximum Power Output: 70W/Ch (8 channels driven, 4Ω)
  • Continuous Power Output: 50W/Ch (8 channels driven, 8Ω)
  • Total Harmonic Distortion (THD)<0.1%
  • Frequency Response
    • Line Level Inputs: 10Hz - 100kHz, +0dB, 0 ± 0.5dB
  • S/N Ratio (IHF "A" Weighted)
    • Line Level Inputs: 100dB
  • Dimensions (W × H × D): 17" × 3.9" × 16.3"
  • Net Weight: 36.81 lbs.

What's In The Box

  • C8 Multi-Channel Amplifier
  • Power Cord
  • Manual
