Rotel A12MKII Stereo Integrated Amplifier (Black)

Regular price $1,249.00
Sale price $1,249.00 Regular price
Save $-1,249.00 (%)
OR

In Stock & Ready to Ship
Free Shipping Get it between Wed, Oct 9 – Wed, Oct 16
Other Options

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Rotel A12 Overview

Product Information

Model: A12M2B | UPC: 672563273117

Specifications

What's In The Box

Product Information

Model: A12M2B | UPC: 672563273117

The A12MKII Integrated Amplifier supports your favorite sources including MM Phono Stage, analog, digital, PC-USB and wireless Bluetooth. Optimized circuits and a 32-bit DAC deliver spacious and open reproduction of the music. The A12MKII stands well above its slim, sleek design profile designed and engineered for music lovers.

Features

  • Robust Class AB Power
  • Certified Roon Tested
  • Moving Magnet Phono Input
  • Bluetooth aptX
  • Texas Instruments Premium 32-bit/384kHz DAC
  • Slim Design

Oversized Toroidal Transformer

The heart of the A12MKII begins with Rotel’s in-house manufactured oversized toroidal transformer feeding high efficiency storage and smoothing capacitors for deep, controlled bass energy. The power supply features multiple voltage and current regulators delivering independent power to critical analog, digital and amplification stage circuits isolating sensitive low voltage signals from high power speaker outputs lowering the noise floor and reducing unwanted distortion. Circuit design follows Rotel’s proprietary Balanced Design Concept with physical and electrical isolation techniques delivering exceptionally clean audio.

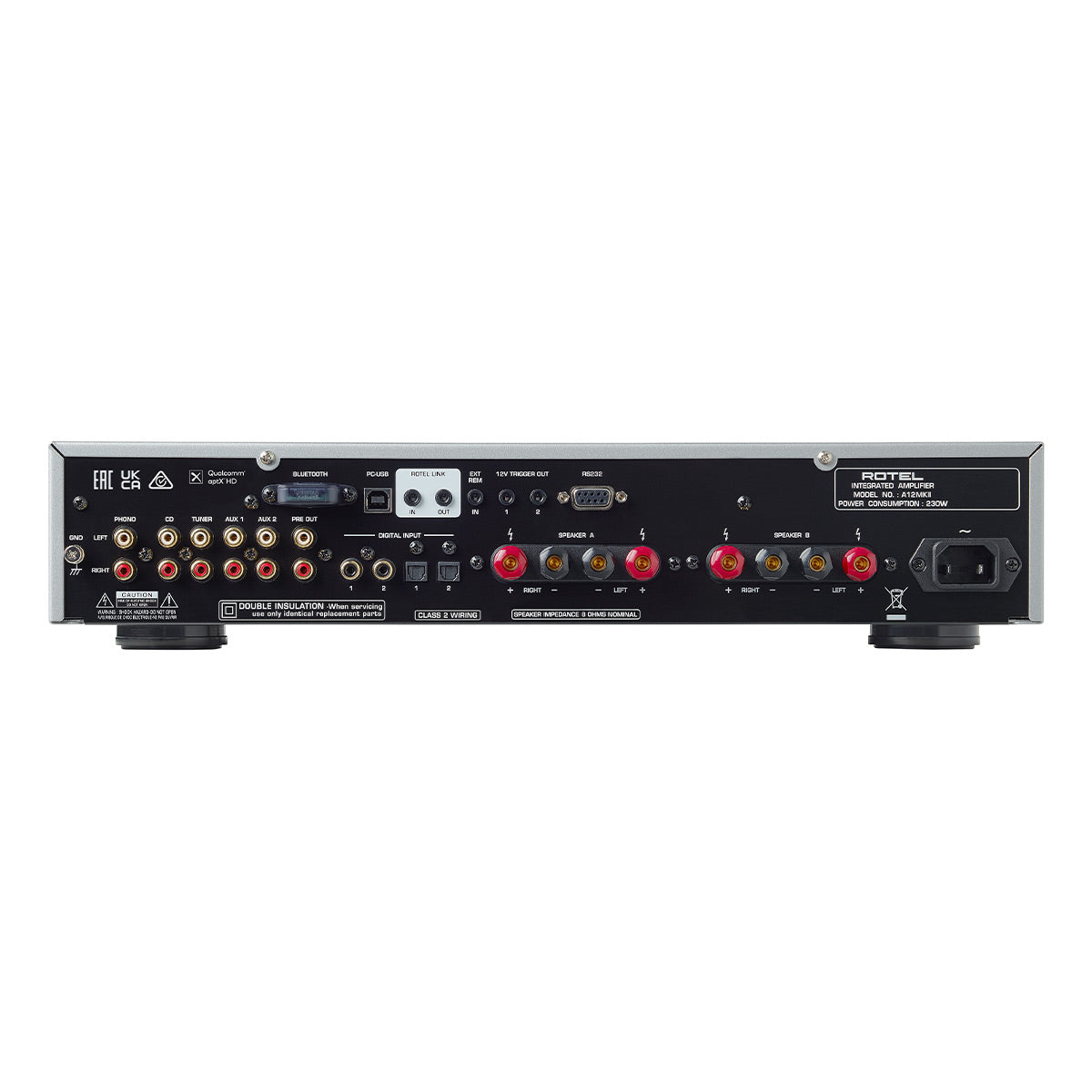

Connections

The A12MKII is replete with inputs supporting your favorite sources including a Moving Magnet Phono Stage for vinyl fans, 4 RCA analog, 4 digital, PC-USB and high quality aptXTM Bluetooth for wireless streaming.

Premium DAC

A premium 32-bit Texas Instruments Digital to Analog converter extracts genuine and accurate details of the music with custom output filters and preamplifier circuits preserving the integrity of the audio stream.

Class AB Amplifier

The Class AB amplifier utilizes high current, fast transient output devices for improved accuracy of the music timing and a more lifelike reproduction of audio into dual A-B speaker binding posts.

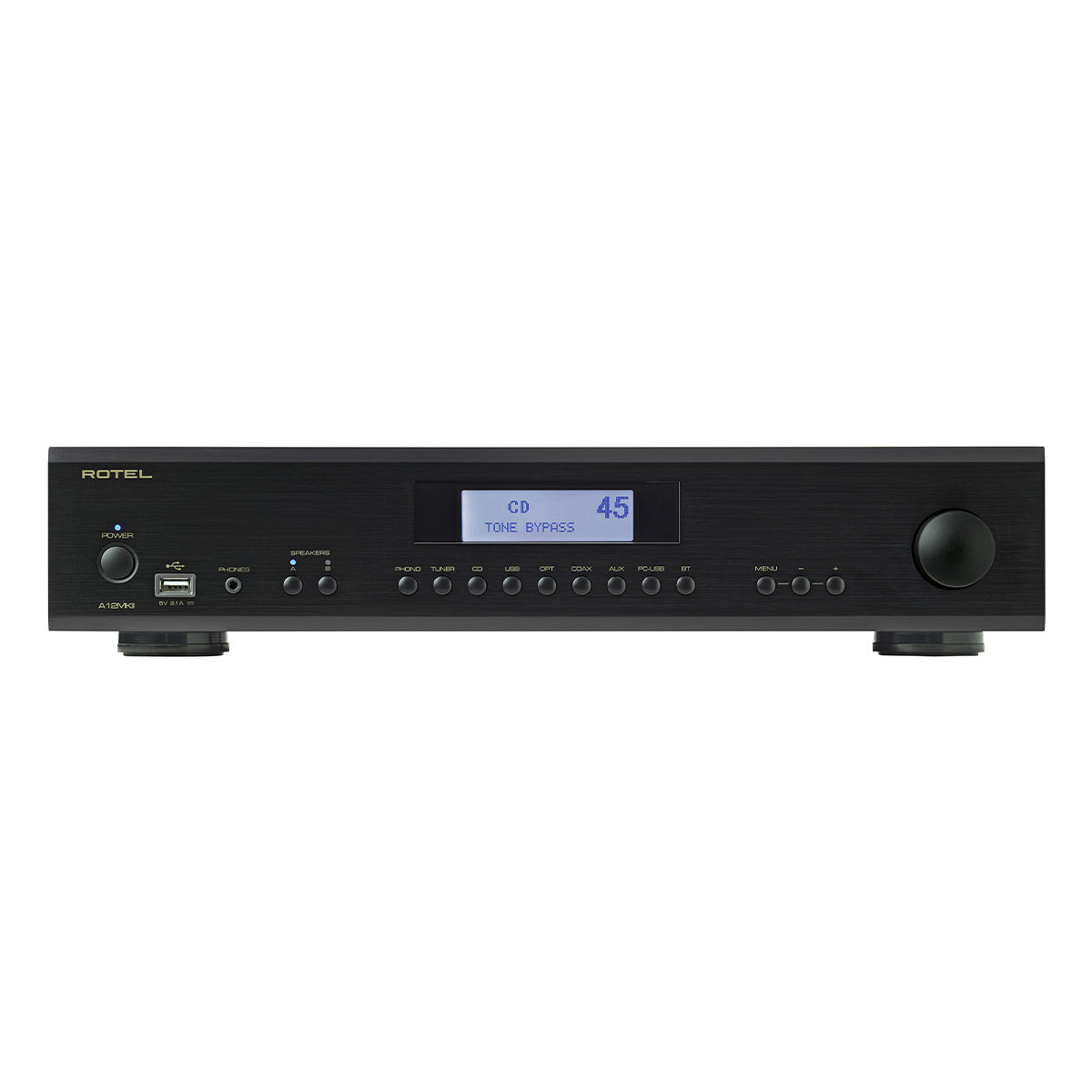

Controls

The IR remote, front panel controls, and graphic display ensure effortless operation. RS232, 12V triggers and remote input ensure seamless integration with control systems.

Specifications

  • Front Panel Height: 3.15"
  • Power Requirements: 120V, 60Hz
  • Power Consumption: 230W
  • Standby Power Consumption: <0.5W
  • BTU Rating (4O, 1/8th power): 632 BTU/h
  • Total Harmonic Distortion (THD)<0.018%
  • Frequency Response
    • Line Level Inputs: 10Hz - 100kHz, 0±0.5dB
    • Digital Inputs: 10Hz - 90kHz, 0±2dB
    • Phono Input: 20Hz - 20kHz, 0±0.5dB
  • S/N Ratio (IHF "A" Weighted)
    • Line Level Inputs: 100dB
    • Digital Inputs: 103dB
    • Phono Input: 90dB
  • Dimensions (W × H × D): 17" × 3.6" × 13.5"
  • Net Weight: 19.31 lbs.

What's In The Box

  • A12MKII Stereo Integrated Amplifier
  • Remote
  • Power Cord
  • Manual
