Rega io Integrated Amplifier

Regular price $725.00
Sale price $725.00 Regular price
Save $-725.00 (%)
OR

In Stock & Ready to Ship
Free Shipping Get it between Mon, May 20 – Mon, May 27

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Overview

Product Information

Model: IO | UPC: 5056186704626

Specifications

What's In The Box

Product Information

Model: IO | UPC: 5056186704626

The all new IO Amplifier is designed with every music lover in mind. Simple to set up and operate, the IO is designed to integrate seamlessly into any hi-fi system. The compact size allows it to be used in a variety of systems and delivers performance well beyond its price point. As you would expect, there is a high-quality built-in MM (moving magnet) phono stage, two line-level inputs, a redesigned mini remote control handset, and a high-quality headphone output that is cleverly integrated to deliver optimum performance without compromising the audio circuit.

The IO uses the same power amplifier and phono stage as its larger brother, the multi-award-winning Brio. The IO aims to deliver exceptional sound quality in a smaller and more cost-effective package. The class A/B circuit shares its DNA with the rest of Rega’s amplifiers, and as usual, great care has been taken in component selection. Sanken output transistors and an Alps volume potentiometer and a linear power supply that enables output of 30 watts per channel into 8 ohms.

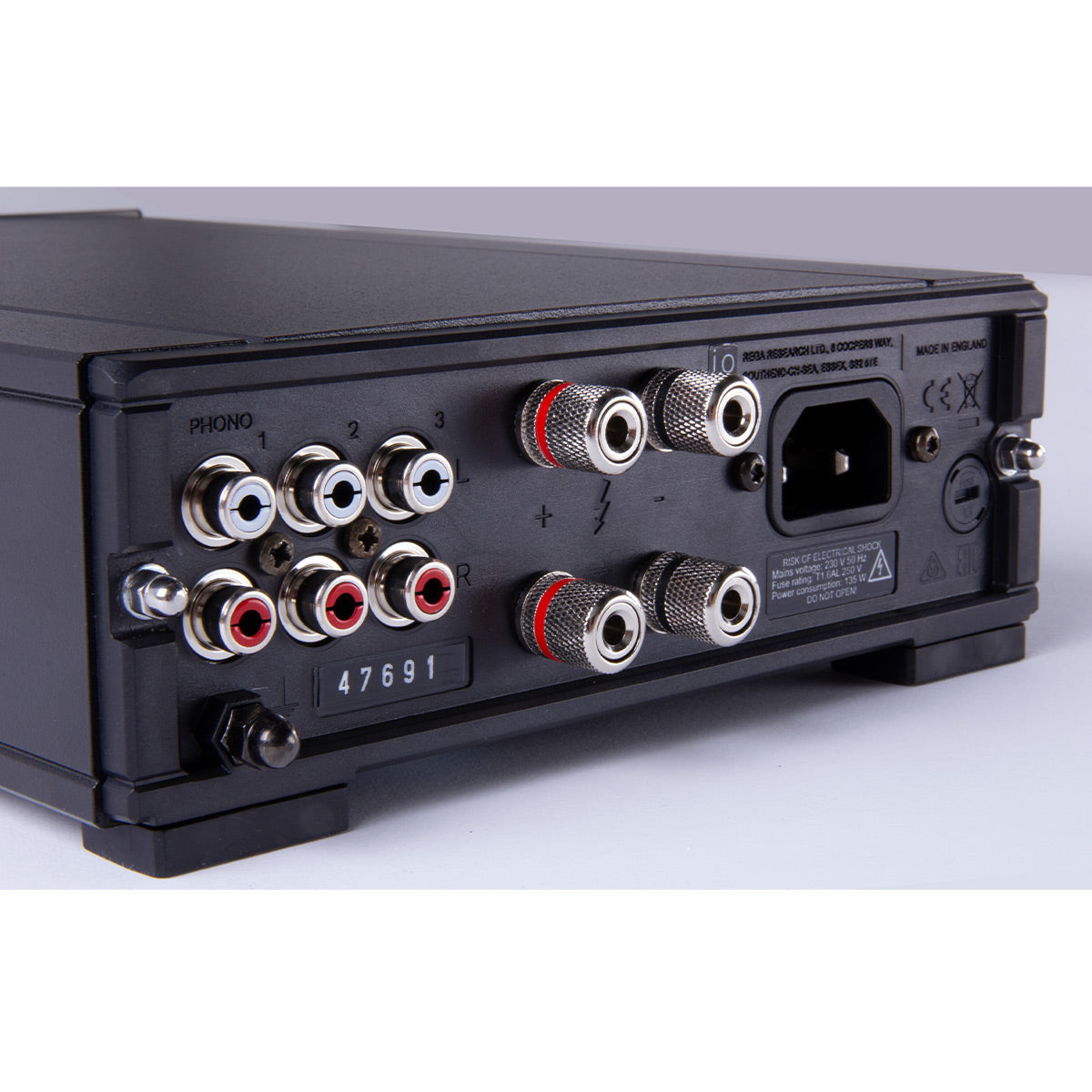

Two line-level inputs and a high quality moving magnet phono input are available as sources. There is a headphone output provided on the front of the unit for powering standard hi-fi headphones; this is driven from the power amplifier stage of the unit through relays to avoid signal degradation when headphones are inserted or the product is muted. A new remote handset is included as well.

Features

  • Integrated amp with Class A/B circuitry
  • High-quality built-in MM (moving magnet) phono stage
  • Two line-level inputs for source components
  • Redesigned mini wireless remote control (batteries included)
  • High-quality headphone output
  • Sanken output transistors
  • Alps volume potentiometer
  • Linear power supply

Specifications

  • Power outputs at 230/115 V supply voltage
    • 30 W RMS both channels driven into the rated load of 8 Ω
  • Input 1 (Phono) input sensitivity: 2.1 mV @ 47 kΩ in parallel with 220 pF
  • Maximum input 1 (Phono) input level: 100 mV
  • Input 2-3 (Line) input sensitivity: 210 mV @ 47 kΩ
  • Maximum input 2-3 (Line) input level: 10.25 V
  • Headphone output
    • No load 8 V
    • 32 Ω 1.6 V
    • 54 Ω 2.4 V
    • 300 Ω 5.7 V
    • Source impedance: 109 Ω
  • Power consumption
    • 135 W @ 230 V / 220 V / 115 V / 100 V into the rated load of 8 Ω
  • Frequency response
    • Phono: 15 Hz to 40 kHz (-3 dB points) / 27 Hz to 20.5 kHz (-1 dB points)
  • RIAA accuracy: (100Hz to 10 kHz) ±0.4 dB typically better than ±0.3 dB
  • Line: 12 Hz (-1 dB points) to 43 kHz (-3 dB points)
  • Remote control: Batteries included –2 x AAA Alkaline.
  • Fuse ratings
    • T1.6 AL 250 V: 230 V / 50Hz and 220 V / 60 Hz
    • T3.15 AL 250 V: 115 V / 60 Hz and 100 V / 50/60 Hz
  • Weight: 6.4 lbs
  • Dimensions (W x D x H): 7.1" x 11.4" x 2.7"

What's In The Box

  • IO Amplifier
  • Wireless Remote Control (batteries included)
