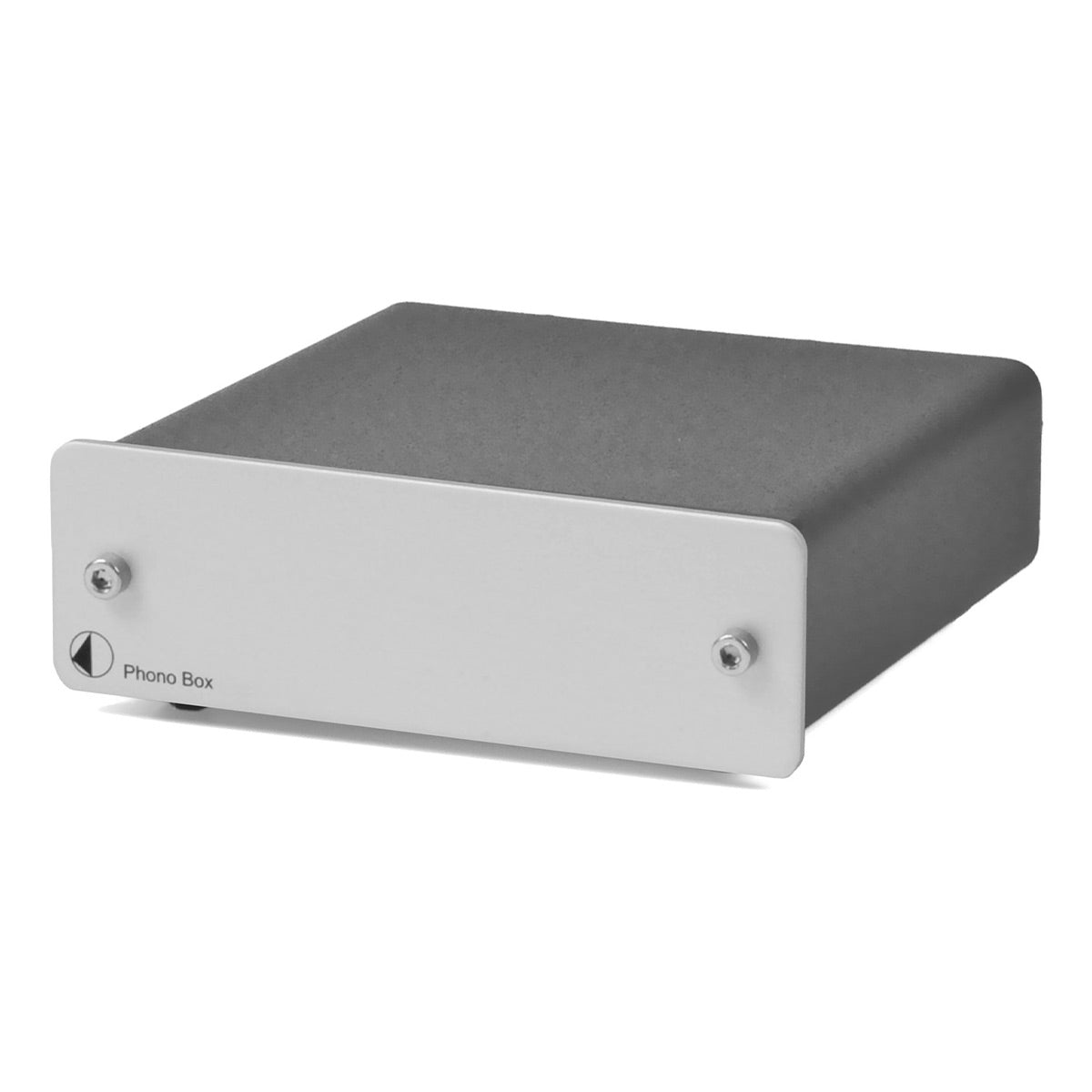

Pro-Ject Phono Box DC MM/MC Phono Preamp (Silver)

Regular price $129.00
Sale price $129.00 Regular price
Save $-129.00 (%)
OR

Other Options

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Pro-Ject Phono Box DC Overview

Product Information

Model: 9120035827227 | UPC: 9120035827227

Specifications

What's In The Box

Product Information

Model: 9120035827227 | UPC: 9120035827227

Sound-First Design

The Pro-Ject Phono Box DC is a classic, versatile sound-first design that is an undeniable bargain. First and foremost, it’s designed to preampflify the phono signal in a clear, low-noise fashion with impressive depth & imaging for a stage in this class. Top-notch circuitry minimizes distortion and heightens RIAA equalization accuracy for gorgeous analog reproduction with MM or MC cartridges. Push-button selection between 40db gain (MM, 47k ohm load) and 60dB (MC, 100ohm load) makes Phono Box DC widely compatible, representing a fantastic introduction to the world of moving coil cartridges.

Specifications

  • Input capacitance/input impedance, MC 100ohms/120pF
  • Input capacitance/input impedance, MM: 47kohms/120pF
  • Gain, MM/MC: 40dB/60dB
  • Output Voltage Typical MM/MC: 300mV at 1kHz -3 mV (MM Input) / 0.3 mV (MC Input)
  • Max Output: 9.5V (1kHz)
  • Noise Floor, MM/MC: 94dB / 75dB (Weighted)
  • THD, MM/MC: 0.01/0.05%
  • RIAA-Equalization Curve Accuracy: 20Hz-20kHz / max 0.5dB
  • Input: 1 pair RCA/Phono sockets
  • Line-Level Output: 1 pair RCA/Phono sockets
  • Outboard Power Supply: 18V/500mA DC
  • Power Consumption: 80mA DC
  • Dimensions (W x H x D): 4.05” x 1.41” x 4.09”
  • Weight: 1.25 lbs.

What's In The Box

  • Phono Box DC MM/MC Phono Preamp
  • Power Cord
  • Manual
