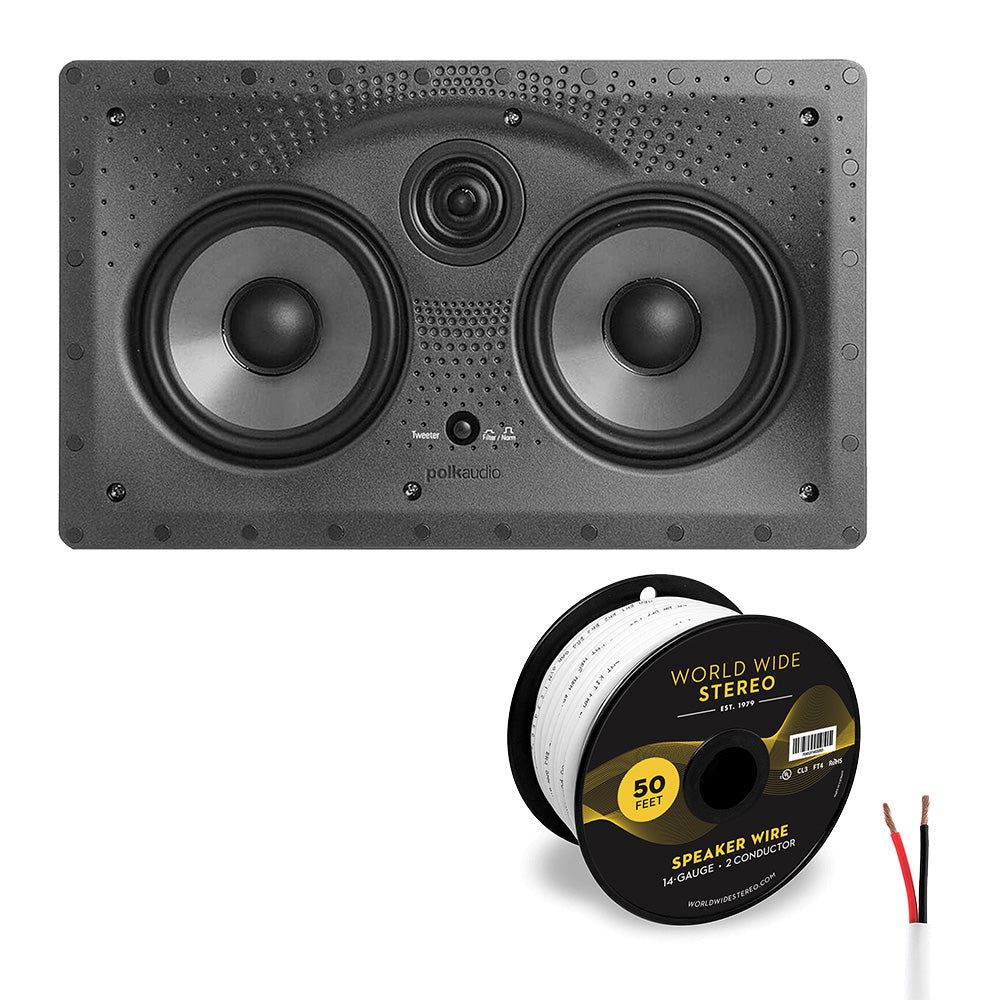

Polk Audio 255C-LS Vanishing In Wall Center Channel Speaker with 14 Gauge Speaker Wire - 50 Feet

Regular price $329.00
Sale price $329.00 Regular price
$568.99 Save $239.99 (42%)
OR

In Stock & Ready to Ship
Free Shipping Get it between Thu, Sep 18 – Thu, Sep 25

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Overview

Product Information

Model: AW2551+PR14250 | UPC: 632665615109

Specifications

What's In The Box

Product Information

Model: AW2551+PR14250 | UPC: 632665615109

This Package Includes

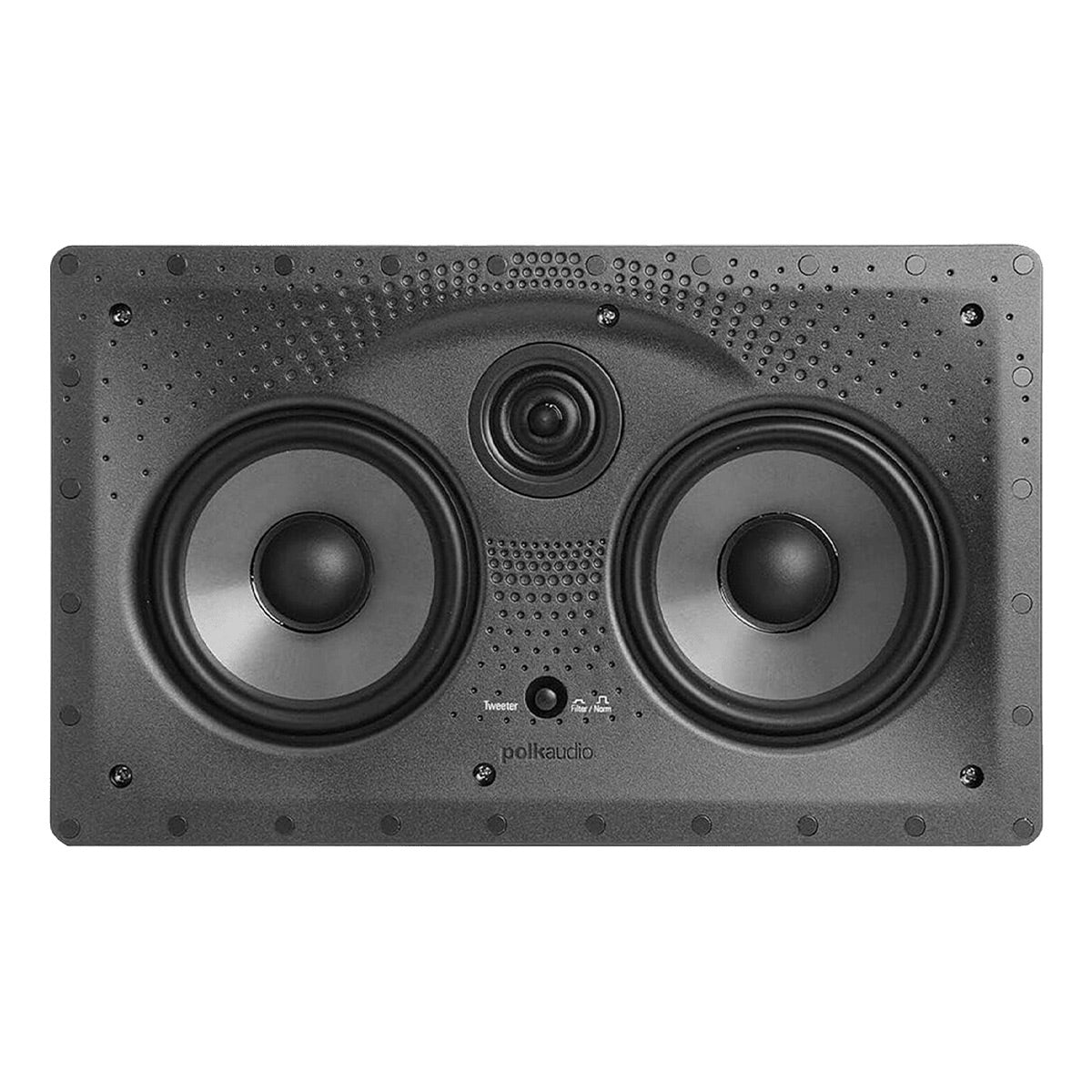

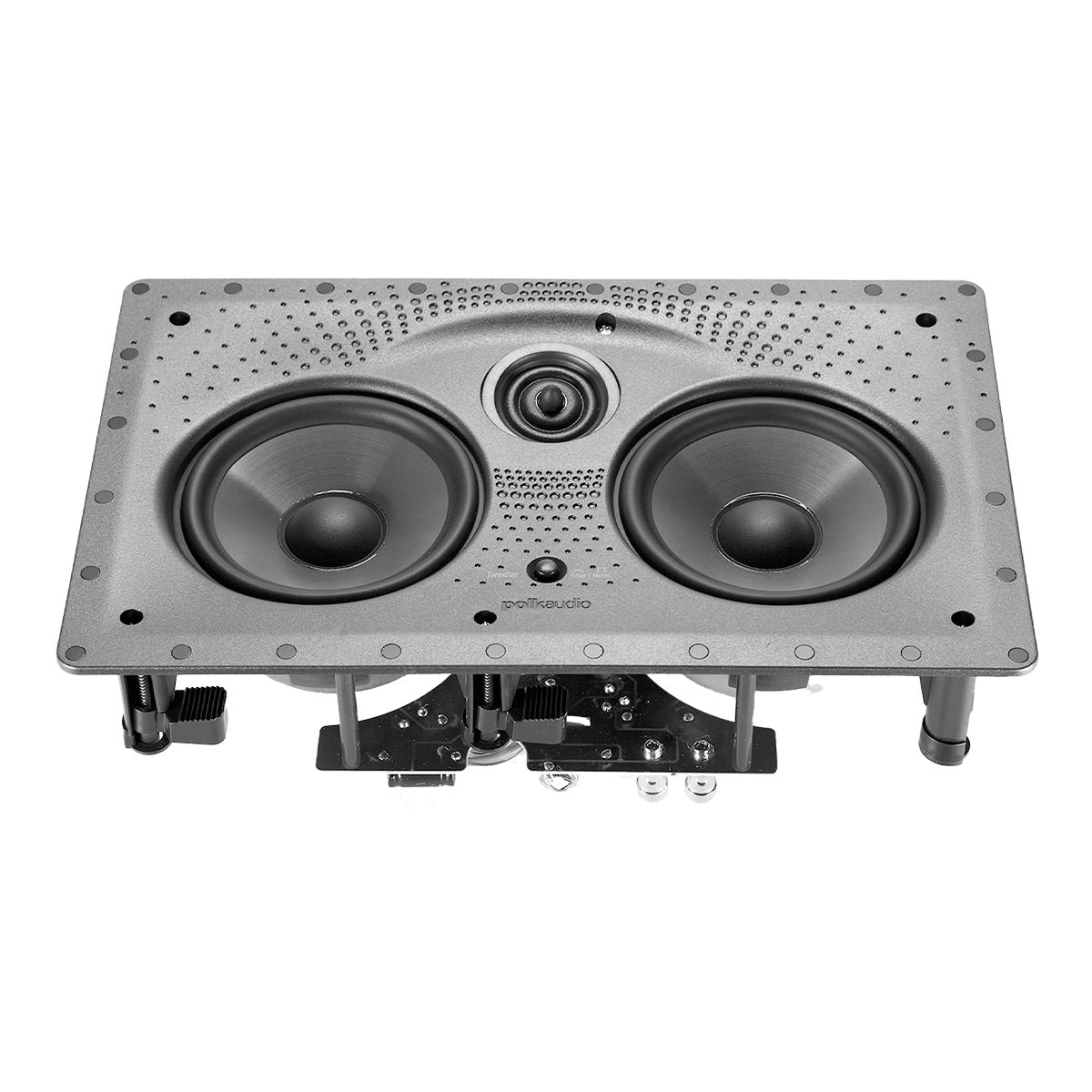

Polk Audio 255C-LS Vanishing In-Wall Center Channel Speaker

Features

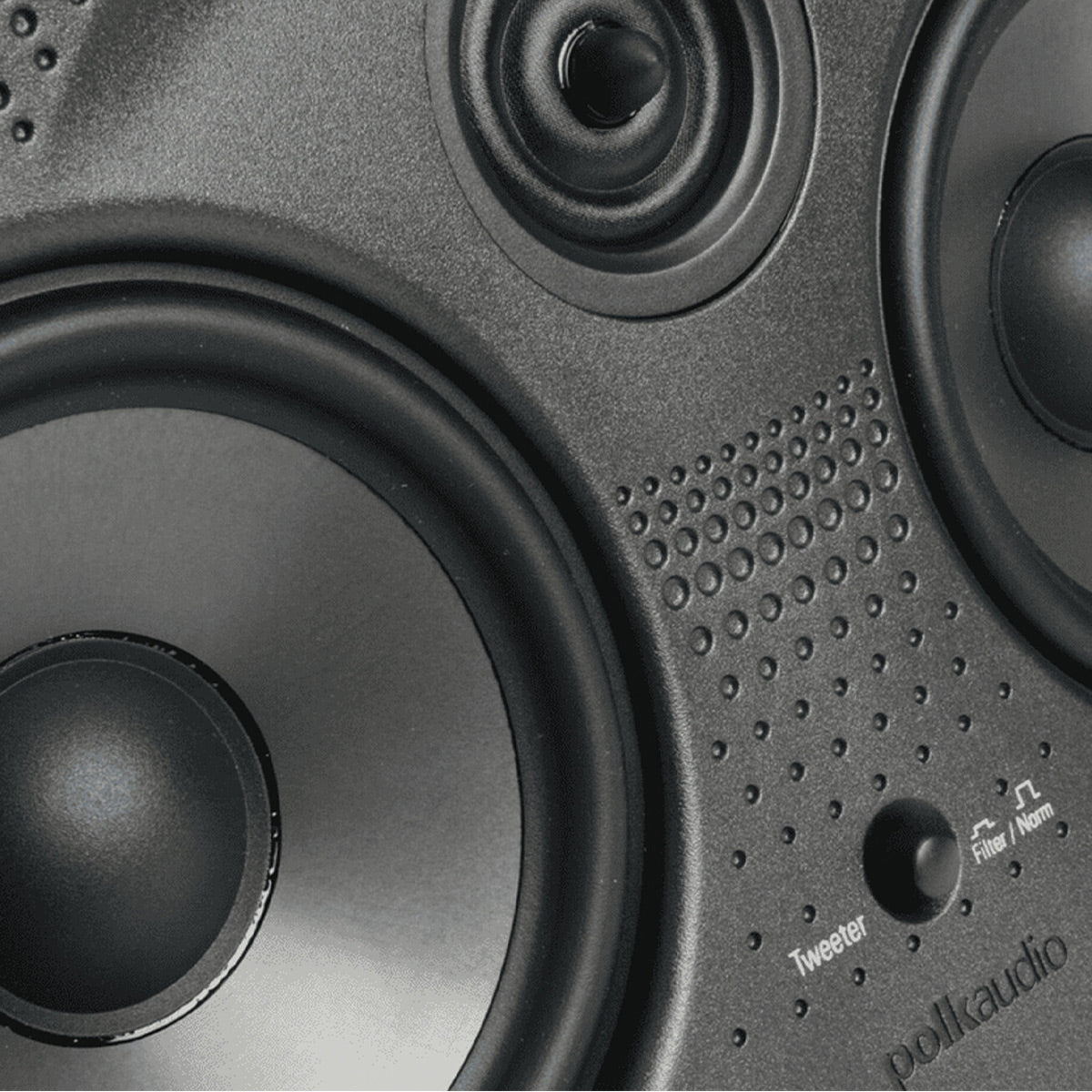

  • Dual 5.25" Dynamic Balance® Polypropylene Woofers
  • 1" Ring Radiator Tweeter

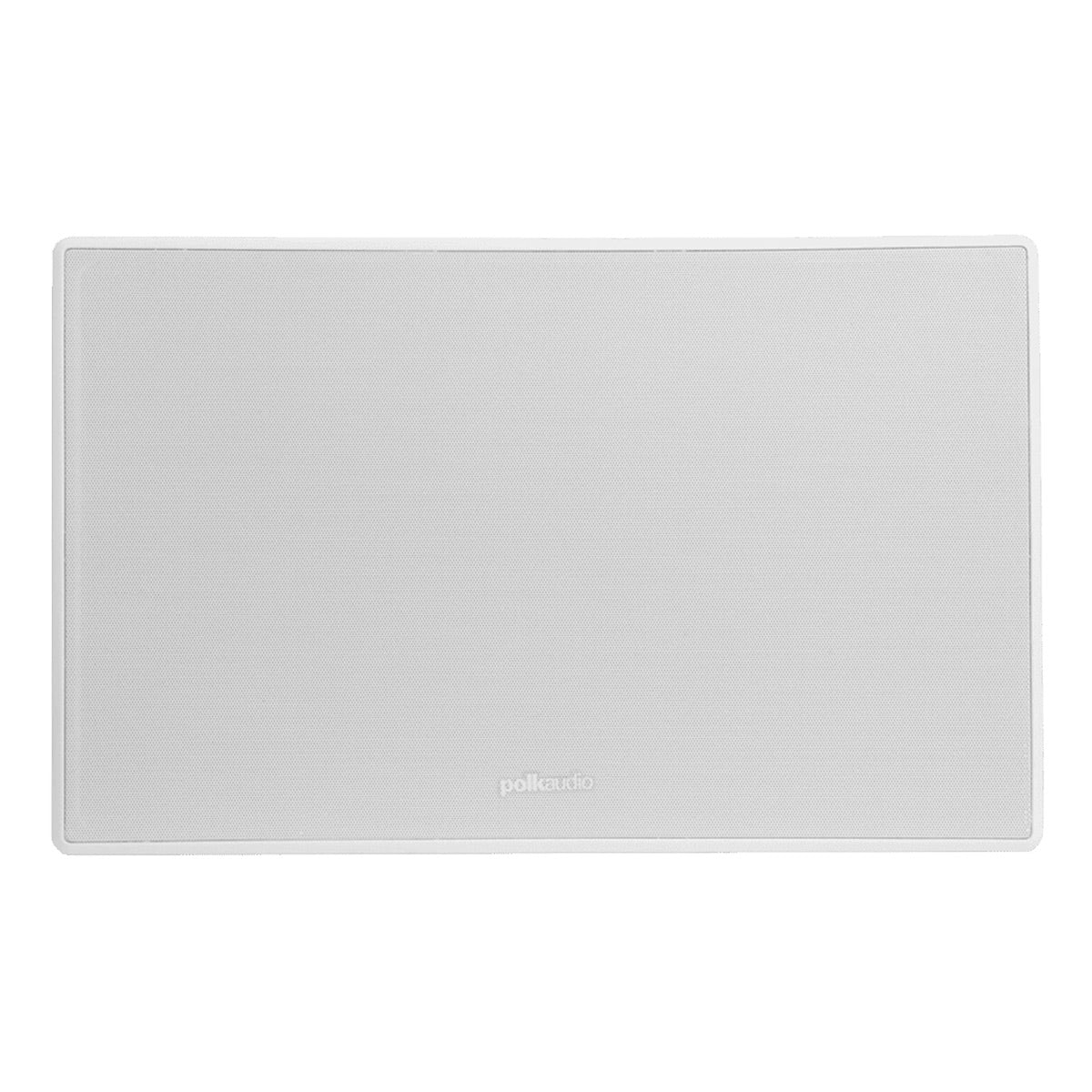

  • Paintable Wafer-thin Sheer Grille™
  • Perfect for Dolby Atmos, DTS:X, Auro 3D, & IMAX Enhanced
  • Timbre Matched to Legend, Reserve, & LSiM Series Polk Speakers

Power Port Design

Polk’s patented Power Port design provides greater surface area and smoother air flow for more output and less distortion compared to conventional ported speakers.

Dynamic Balance® Polypropylene Cones

Polk’s exclusive lightweight Dynamic Balance® Polypropylene Cones deliver spectacular midrange clarity, punchy bass and high efficiency.

Quality, Performance, & Reliability

Proudly engineered and designed in Baltimore, Maryland, Polk products are crafted to meet high standards of quality, performance, and reliability, ensuring a premium audio experience that is the pinnacle of American Hi-Fi.

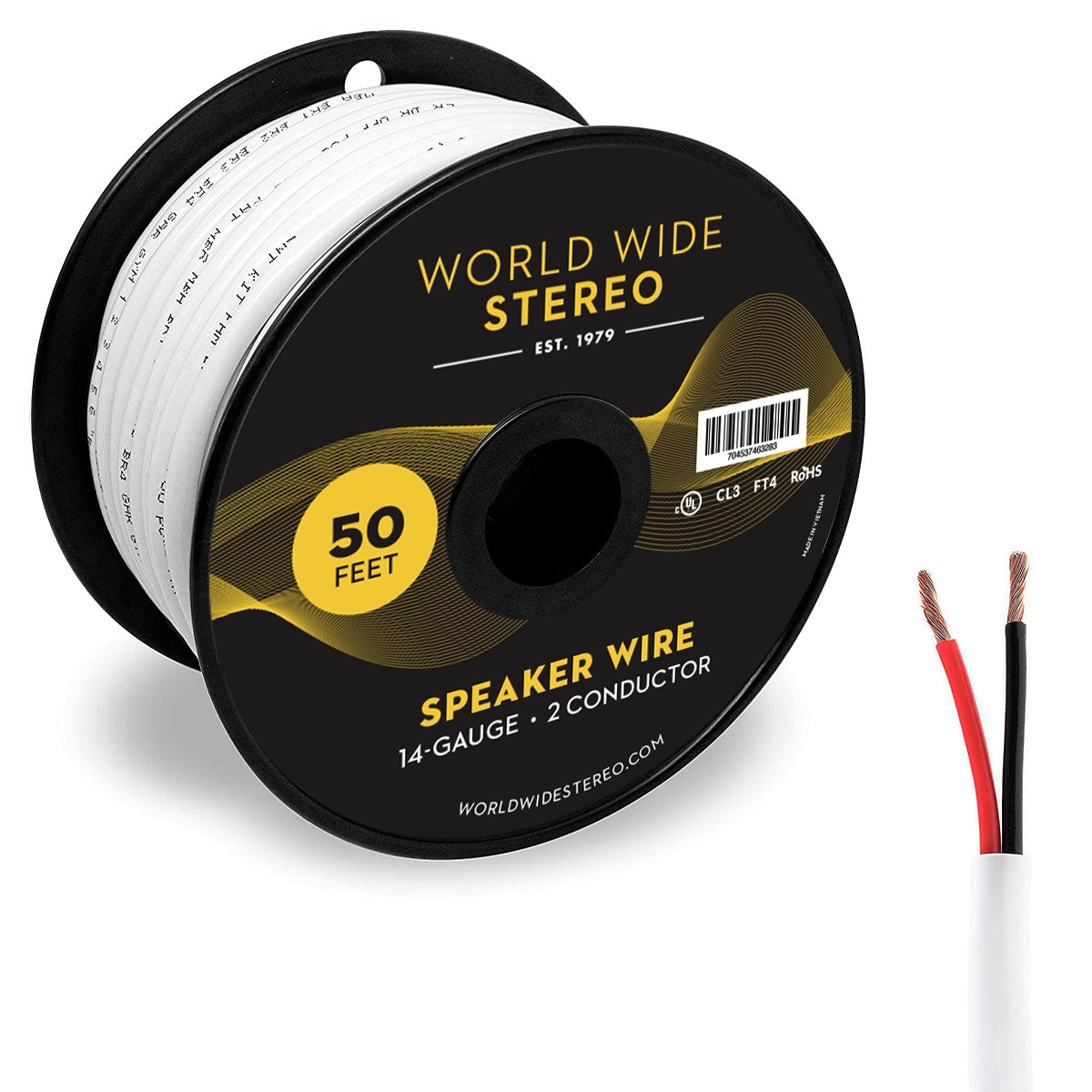

World Wide Stereo 14-Gauge, 2-Conductor Copper Speaker Wire - 50 Feet

This high-quality 14-Gauge Oxygen-Free Copper Wire, Lead-Free PVC jacketed speaker cable may be used to connect speakers to any receiver or amplifier and is rated for in-wall use.

Product Details

  • 14AWG x 2 Conductor
  • Color: White
  • Put-Up: 50 Feet

Cable Technologies

  • 14-gauge Oxygen-Free Copper wire
  • Round jackets
  • Ripcord
  • Lead-Free PVC

Certifications

  • UL CL3-rated for in-wall use
  • FT4
  • RoHS

Specifications

Polk Audio 255C-LS Vanishing In-Wall Center Channel Speaker

  • Orientation: Horizontal
  • Depth: 7.38"
  • Mounting (H x W): 7.63" x 13.13"
  • Grille Dimensions (H x W): 9.31" x 13.81"
  • Weight: 6.86 lbs.
  • Driver Enclosure Type: PowerPort Bass Vented
  • Driver Complement
    • Mid/Woofer: (2) 5.25" (Round) Dynamic Balance aerated polypropylene cone and rubber surround
    • Tweeter: (1) 1" (Round) Dynamic Balance ring radiator
  • Available Orientations: Horizontal
  • Mounting Location: Rectangle
  • Total Frequency Response: 30 Hz - 33,000 Hz
  • Nominal Impedance: 8 ohms
  • Sensitivity (1 watt @ 1 meter): 91 dB
  • Lower and Upper -3dB Limits: 44 Hz - 29,000 Hz
  • Speaker Inputs: (1) Pair of Push Connectors - Gold-Plated
  • Recommended Amplifier Power Per Channel: 10 watts - 150 watts

World Wide Stereo 14-Gauge, 2-Conductor Copper Speaker Wire - 50 Feet

  • Style: 75ºC, 300 V Speaker Cable
  • Size: 14 AWG x 2 Conductor
  • Construction:
    • Conductor
      • Size: 14 AWG x 2 Conductor
      • Conductor Material: Annealed Copper Stranded
      • Conductor Construction (mm): 41/0.251 ± 0.003
      • Approximate Outside Diameter (mm): 1.86
    • Insulation
      • Average Thickness (mm): 0.45 ± 0.08
      • Minimum Thickness at any point (mm): 0.36
      • Diameter (mm): 2.70 ± 0.2
      • Material: Lead-Free PVC
      • Color: Core 1 = Red, Core 2 = Black
      • Ripcord: Nylon (1000D)
    • Jacket
      • Nominal Thickness (mm): 0.50 ± 0.08
      • Minimal Thickness at any point (mm): 0.34
      • Diameter (mm): 6.40 ± 0.30
      • Material: Lead-Free PVC
      • Color: White
  • Electrical & Physical Properties
    • Item: 14 AWG x 2 Conductor
    • Rating Temp & Voltage: 75ºC, 300 V
    • Conductor Resistance (Ohm/Km/20°C Max): 8.60
    • Insulation Resistance: 100 Mega Ohm/Km at 20ºC (Minimum)
    • Dielectric Strength (Underwater): 500 V/1 Minute (No broken)
    • Spark Test: 2.5 KV for 0.15 seconds (No broken)
    • Insulation
      • Unaged
        • Tensile Strength: 13.8 Mpa (1.41 Kg/mm²) (Minimum)
        • Elongation: 100% (Minimum)
      • Aged
        • Tensile Strength: Unaged Min. 70% (100±1ºC x 240 Hrs)
        • Elongation: Unaged Min. 65% (100±1ºC x 240 Hrs)
    • Jacket
      • Unaged
        • Tensile Strength: 13.8 Mpa (1.41 Kg/mm²) (Minimum)
        • Elongation: 100% (Minimum)
      • Aged
        • Tensile Strength: Unaged Min. 70% (100±1ºC x 240 Hrs)
        • Elongation: Unaged Min. 65% (100±1ºC x 240 Hrs)
    • Minimum Bending Radius: 15 * Φ (Minimum)
    • Bonding Force of Insulation: 3.40 (+10%, -30%) (Kgf)
    • Cold Bend Test: -20±1ºC x 4 Hrs (No crack)

What's In The Box

Polk Audio 255C-LS Vanishing In-Wall Center Channel Speaker

  • 255C-LS Vanishing In-Wall Center Channel Speaker
  • Wall Mounting Template
  • Wafer-Thin Sheer Grille (White, Paintable)
  • Manual

World Wide Stereo 14-Gauge, 2-Conductor Copper Speaker Wire - 50 Feet

  • 14-Gauge, 2-Conductor Copper Speaker Wire - 50 Feet
