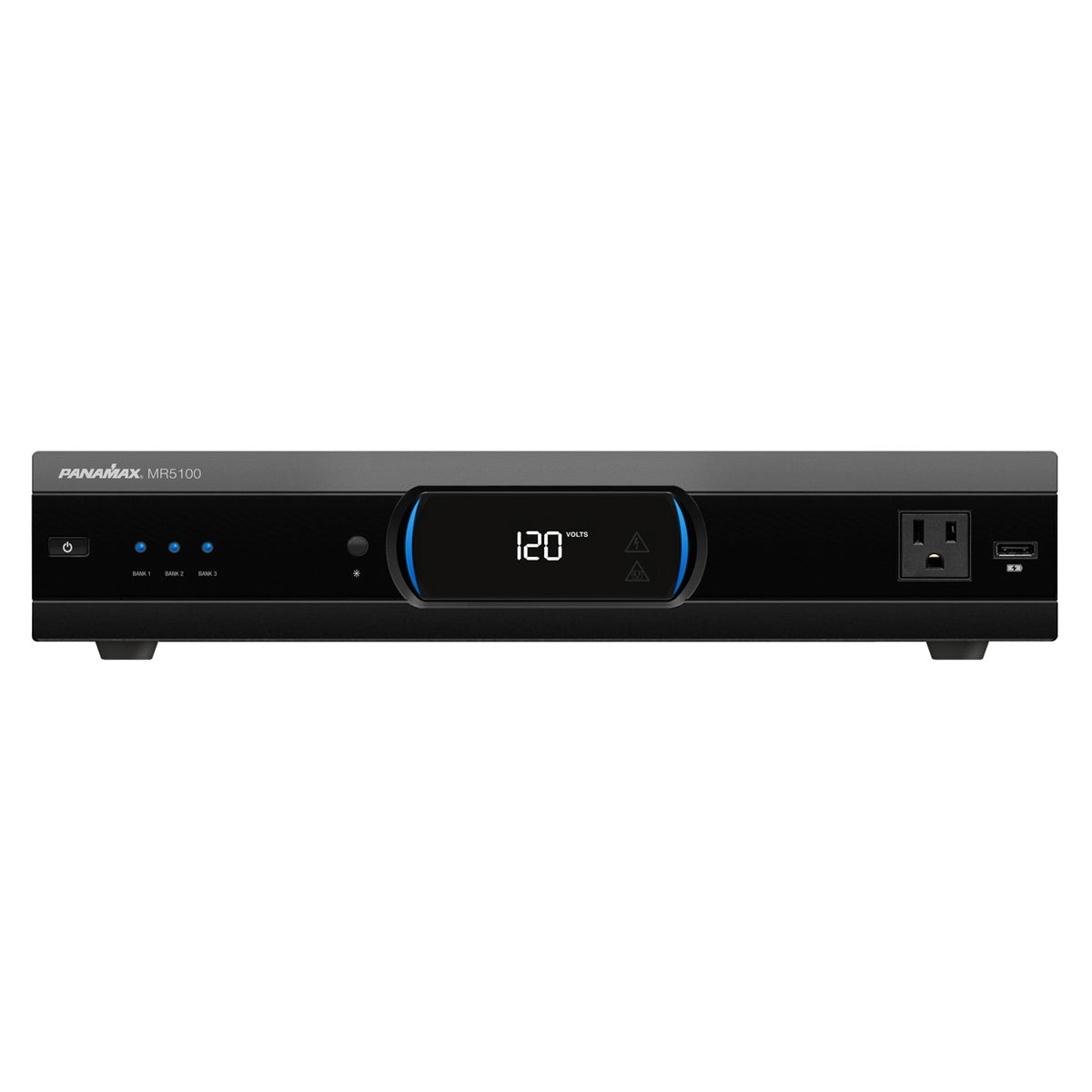

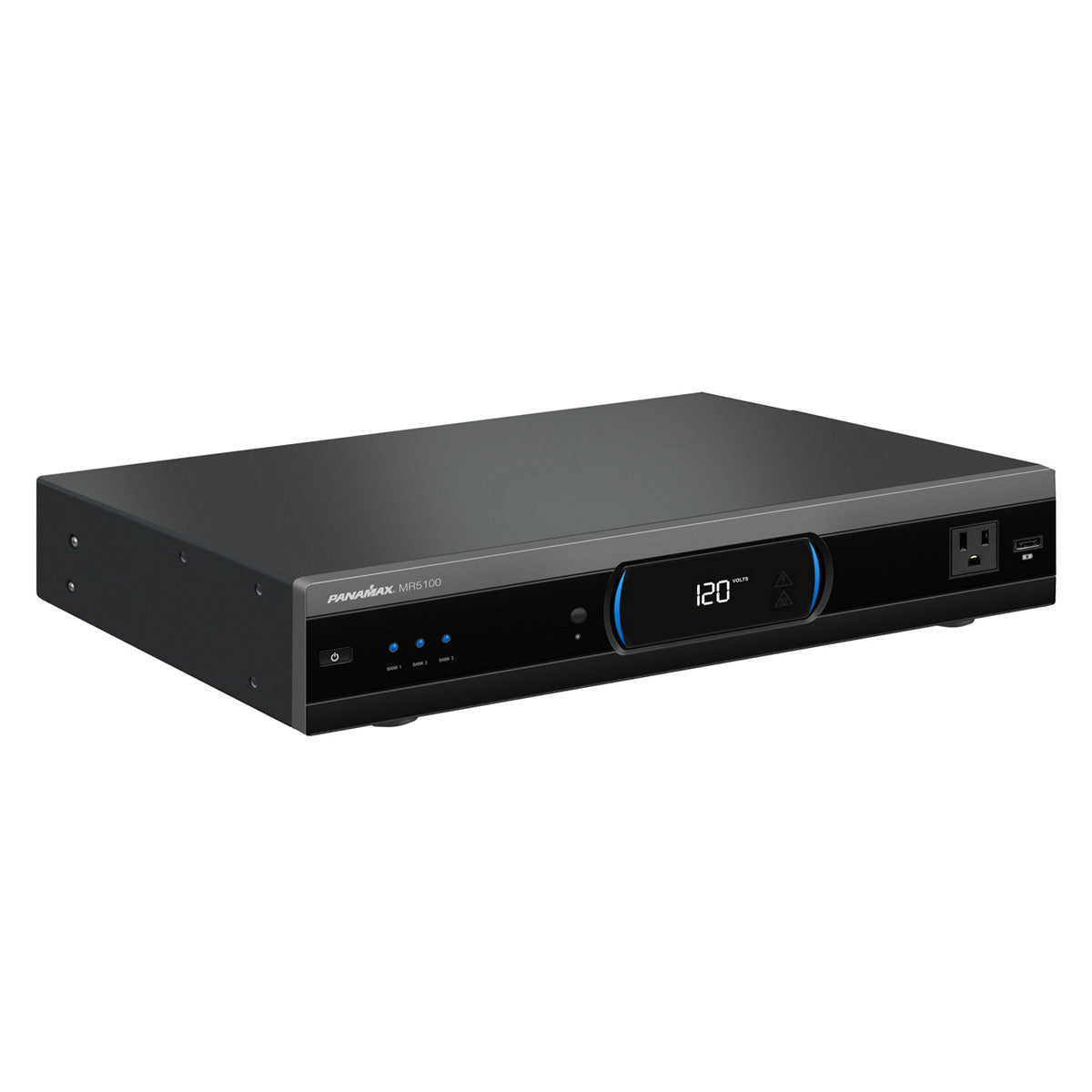

Panamax MR5100 Line Conditioner

Model: MR5100 UPC: 050616008945 Item: 165574

In Stock
Shipping Information
Show Store Details
Address:
104 E Vine St. Hatfield, PA 19440
Hours:
  • Mon - Fri: 9am - 5pm
  • Sat: By appointment only
  • Sun: Closed
Phone:
(866) 961-7781
Show Store Details
Address:
754 Route 309 (Bethlehem Pike) Montgomeryville, PA 18936
Hours:
  • Mon: 9:30am - 8pm
  • Tues - Fri: 9:30am - 6pm
  • Sat: 9:30am - 5pm
  • Sun: 12pm - 5pm
Phone:
(215) 368-8343
Show Store Details
Address:
38 Greenfield Avenue, Ardmore, PA 19003
Hours:
  • Mon - Tues: 10am - 6pm
  • Wed: 10am - 8pm
  • Thurs - Fri: 10am - 6pm
  • Sat: 10am - 5pm
  • Sun: 12pm - 5pm
Phone:
(610) 649-7002
Choose a Store Location

More Product Details

Questions? We're here to help.

Your high-end equipment needs proper protection to maintain value and efficiency, and the Panamax MR5100 Line Conditioner gets the job done. With several layers of surge protection and the patented Protect or Disconnect technology, you can leave your home without fear of undervoltage or brownouts causing damage to your systems. Safely keep the electricity flowing from your wall to your devices.

Product Information

Panamax’s MR Family of products offers several layers of surge protection. Panamax’s patented Automatic Voltage Monitoring (AVM) technology continuously monitors the incoming power. In case of an undervoltage or brownout (too little electricity) or an overvoltage (too much electricity) a flashing red lightning bolt will be displayed and power to the equipment is automatically turned off. When voltage returns to a safe level, power to the equipment is automatically reconnected.

The other layer of surge protection Panamax offers is their exclusive Protect or Disconnect technology. This ultra fast protection circuitry completely protects your equipment from surges such as lightning. When overwhelmed with extreme catastrophic events, Panamax permanently disconnects AC power to equipment. All Panamax products offer this core protection technology.

Protecting a complete system may sometimes require that signal wires coming out of the wall be protected as well. Panamax has you covered there too. Universal ultra low-loss coaxial protection (as well as LAN/Ethernet) protection prevents signal lines from carrying damaging surges while maintaining full high-definition and high-speed Internet signals to your equipment for your connected life.



Panamax MR5100 Line Conditioner Features:

  • 11 Protected & Filtered Power Outlets
  • Exclusive Automatic Voltage Monitoring (AVM)
  • Protect Or Disconnect Technology

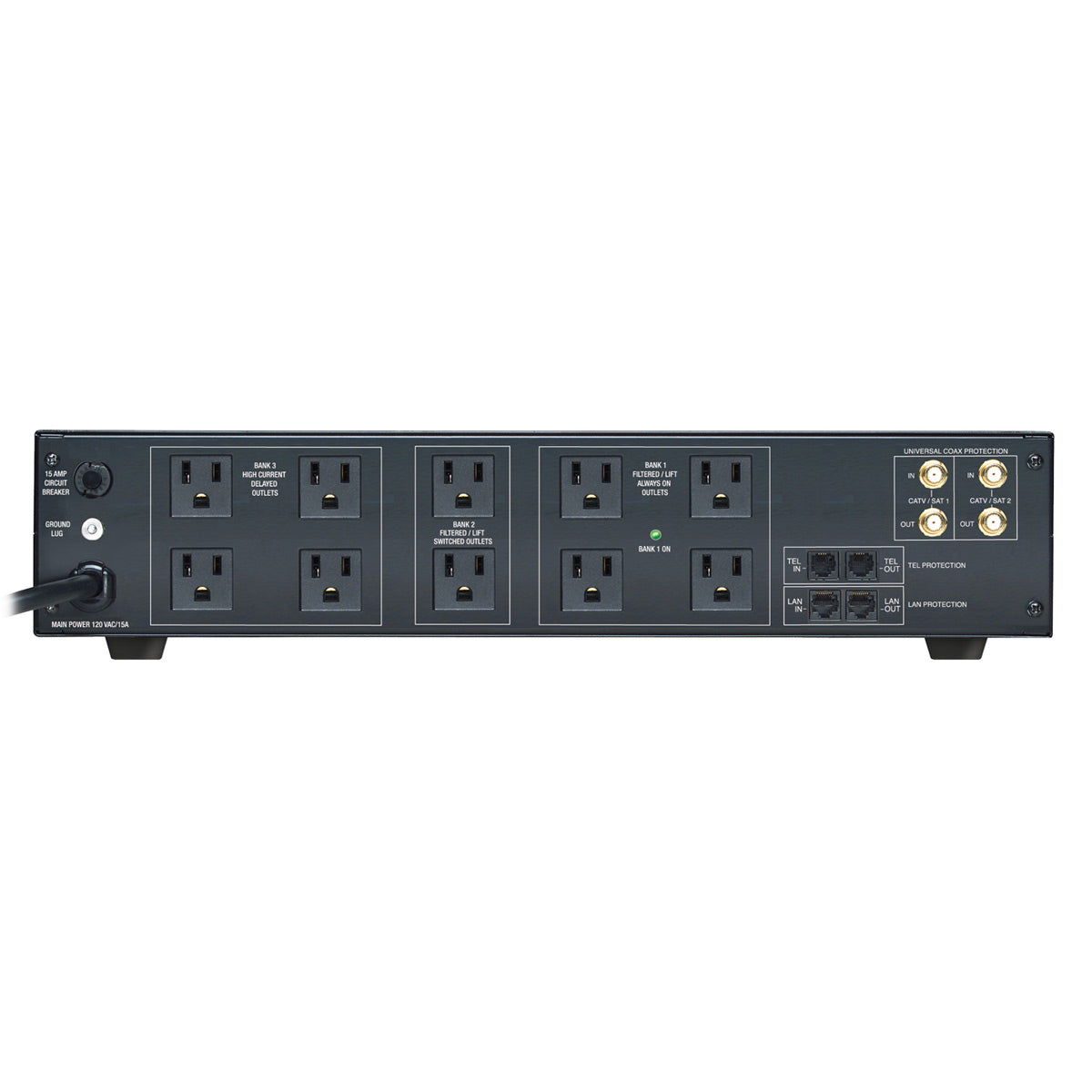

  • Power Sequencing (1 Always On Bank, 1 Switched Bank, 1 Delayed High Current Bank)
  • USB Charging (0.5v/5v)
  • Linear Level 4 Filtration (3 Total Isolated Banks) With Dedicated High Current Outlet Bank (4 Outlets)
  • Antenna, Cable, Or Satellite, LAN And Telco Signal Protection
  • 10 ft. Power Cable With Straight Plug
  • Rack Mounting Kit Included

Specifications

Panamax MR5100 Line Conditioner Specifications:

AC Protection

  • Voltage Protection Rating (UL 1449 3rd Edition, 3,000A): 330V
  • Under-voltage shutoff: 95V +/ 2V
  • Thermal Fusing: Yes
  • Single Pulse Energy Dissipation: 2025 Joules
  • Response Time: < 1ns
  • Protection Modes: L-N, L-G, N-G
  • Protect or Disconnect Circuitry: Yes
  • Peak Impulse Current: 52,000 A
  • Over-voltage shutoff: 135V +/ 2V
  • Maximum Current Rating: 15A
  • Line Voltage: 120V, 50/60Hz
  • Initial Clamping Level: 200V Peak, 141VRMS
  • Automatic Voltage Monitoring Circuit: Yes

Linear Level 4 Noise Filtration

  • Bank 1 & 2
    • -65dB min. @ 100kHz
    • -65dB min. @ 250kHz
    • -45dB min. @ 500kHz
    • Max filtration: -80dB @ 150kHz
  • Bank 3 - High Current, Low Impedance
    • -50dB min. @ 100kHz
    • -60dB min. @ 250kHz
    • -45dB min. @ 500kHz
    • Max filtration: -63dB @ 250kHz
  • Bank-to-Bank (1 vs. 2) Noise Isolation
    • -60dB min. @ 100kHz
    • -65dB min. @ 250kHz
    • -50dB min. @ 500kHz
    • Max filtration: -75dB @ 125kHz

General

  • Weight: 13.5 lbs.
  • Rack Ears: Included
  • Dimensions: 12”l x 17”w x 3.5”h, 4”h with feet

LAN Protection

  • Wires Protected: 8-Wires
  • Jacks: RJ-45
  • Compatibility: 10/100/1000bT
  • Clamping Level: 62V +/ 6V @ 1 mA

TEL Protection

  • Wires Protected: 2 Wires, 1 Pair (4, 5)
  • Jacks: RJ-11
  • Fuseless/Auto-Resetting: Yes
  • Clamping Level: 260V

Universal Coax Protection

  • Shielded: Yes
  • Insertion Loss: < 0.5 dB
  • HD 1080 i/p Ready: Yes
  • Frequency Range: 0 MHz - 2.2 GHz
  • Connections: Female "F", Gold Plated
  • Clamping Level: 75V
  • Bidirectional: Yes
