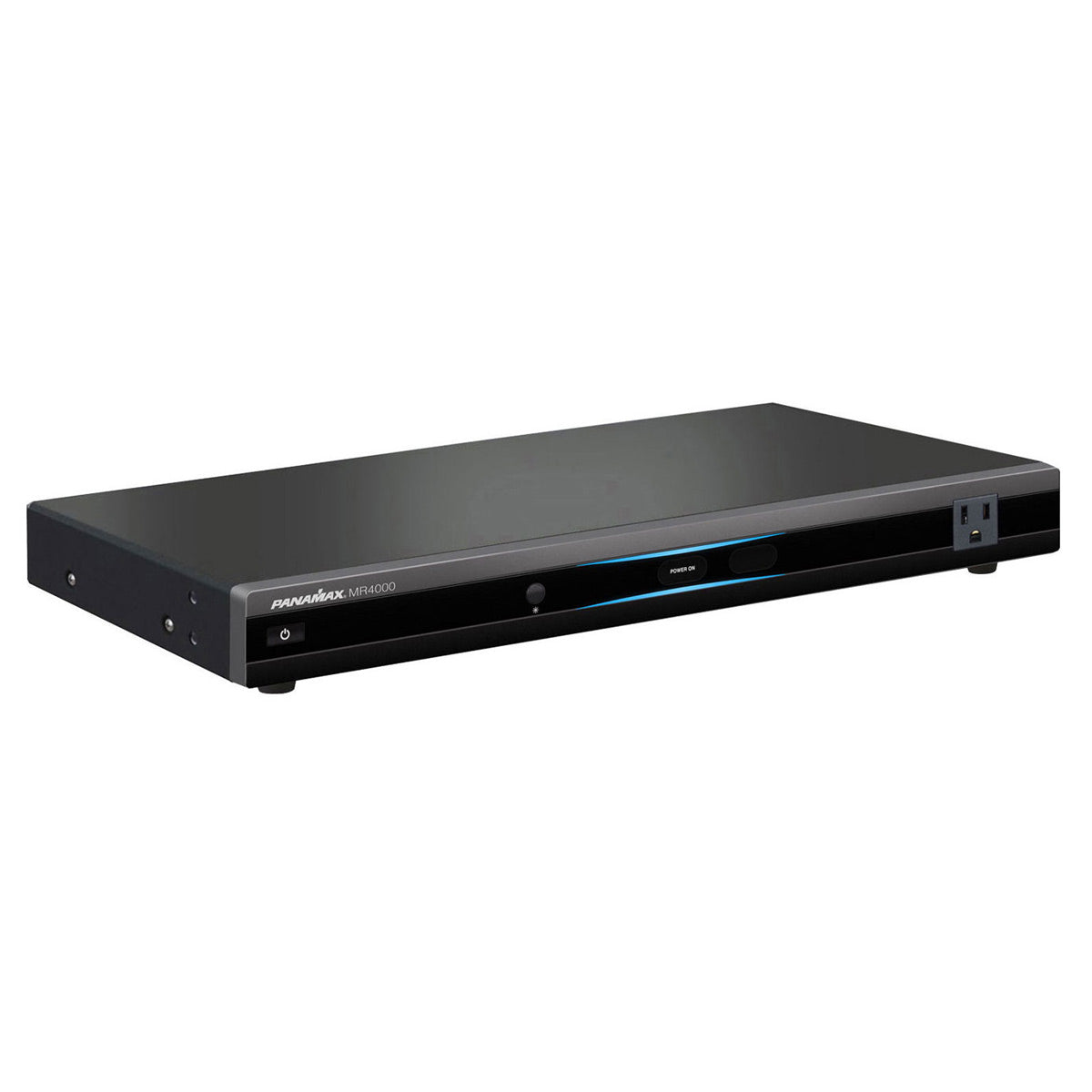

Panamax MR4000 8-Outlet Home Theater Power Management

Model: MR4000 UPC: 050616008921 Item: 167216

In Stock
Shipping Information
Show Store Details
Address:
104 E Vine St. Hatfield, PA 19440
Hours:
  • Mon - Fri: 9am - 5pm
  • Sat: By appointment only
  • Sun: Closed
Phone:
(866) 961-7781
Show Store Details
Address:
754 Route 309 (Bethlehem Pike) Montgomeryville, PA 18936
Hours:
  • Mon: 9:30am - 8pm
  • Tues - Fri: 9:30am - 6pm
  • Sat: 9:30am - 5pm
  • Sun: 12pm - 5pm
Phone:
(215) 368-8343
Show Store Details
Address:
38 Greenfield Avenue, Ardmore, PA 19003
Hours:
  • Mon- Fri: 10am - 6pm
  • Sat: 10am - 5pm
  • Sun: Closed
Phone:
(610) 649-7002
Choose a Store Location

More Product Details

Questions? We're here to help.

Product Information

Power Management for Your Home Theater System

The MR4000 8-Outlet Home Theater Power Management is specifically designed and engineered to provide protected and filtered power to your home theater system.

Panamax’s MR family of products offers several layers of surge protection. Panamax’s patented Automatic Voltage Monitoring (AVM) technology continuously monitors the incoming power. In case of an undervoltage or brownout (too little electricity) or an overvoltage (too much electricity), a flashing red lightning bolt will be displayed, and power to the equipment is automatically turned off. When voltage returns to a safe level, power to the equipment is automatically reconnected.

The other layer of surge protection Panamax offers is their exclusive Protect or Disconnect technology, which completely protects your equipment from strong powers surges such as lightning. When overwhelmed with extreme catastrophic events, Panamax permanently disconnects AC power to equipment.

Protecting a complete system may sometimes require that signal wires coming out of the wall be protected as well. Panamax has you covered there too. Universal ultra low-loss coaxial protection (as well as LAN/Ethernet) protection prevents signal lines from carrying damaging surges while maintaining full high-definition and high-speed Internet signals to your equipment for your connected life.

Features

  • Eight protected and filtered power outlets
  • Exclusive Automatic Voltage Monitoring (AVM)
  • Protect or Disconnect technology
  • Panamax level 2 noise filtration
  • Antenna, cable, or satellite and LAN signal protection
  • 8-foot power cable with low profile plug



Specifications

Specifications

General

  • Line voltage: 120V
  • Number of outlets: 8
  • Outlet descriptions:
    • 1 (filtered outlet, front panel)
    • 7 (filtered outlets, rear panel)
  • Rack mountable: Yes
  • Rack ears included: Yes
  • Front panel meter(s): No
  • Front media light(s): No
  • Control: On/off control to all outlets through front panel power button
  • Voltage regulation: No
  • Compliance: cCSAus
  • USB charging: N/A
  • Low voltage trigger: N/A
  • AC power cord: 8 ft. captive, with low profile plug
  • Dimensions (W x D x H): 17" x 6" x 1.75"
  • Weight: 6.5 lbs.

AC Protection

  • AC protection technology:
    • Protect or disconnect
    • Automatic Voltage Monitoring
    • L-N, L-G, N-G protection modes
    • Thermal fusing
  • Automatic Voltage Shutoff: Yes
  • Undervoltage shutoff: 95V ± 2V
  • Overvoltage shutoff: 140V ± 4V
  • Maximum current rating: 15 (Amps)
  • Initial clamping level: 200V peak

Filtration

  • Filtration technology: RFI/EMI filtration
  • Filtration rating
    • All outlets
      • -30dB min. @ 100kHz
      • -55dB min. @ 250kHz
      • -45dB min. @ 500kHz
      • Max filtration: -60dB @ 300kHz

Signal Line Protection

  • Signal line protection: 1 LAN, 1 cable/satellite

Other Specifications

  • Voltage protection rating (UL 1449 3rd Edition, 3,000A): 400V
  • Single pulse energy dissipation: 1350 Joules
  • Response time: < 1ns
  • Peak impulse current: 52,000 Amps
  • LAN - wires protected: 8 wires
  • LAN - compatibility: 10/100bT
  • LAN - clamping level: 50V
  • Coax - shielded: Yes
  • Coax - insertion loss: < 0.5dB
  • Coax - HD 1080 i/p ready: Yes
  • Coax - frequency range: 0MHz - 2.2GHz
  • Coax - connections: Female "F", gold-plated
  • Coax - clamping level: 75V
  • Coax - bidirectional: Yes



What's in the Box

What's in the Box:

  • MR4000 8-Outlet Home Theater Power Management
