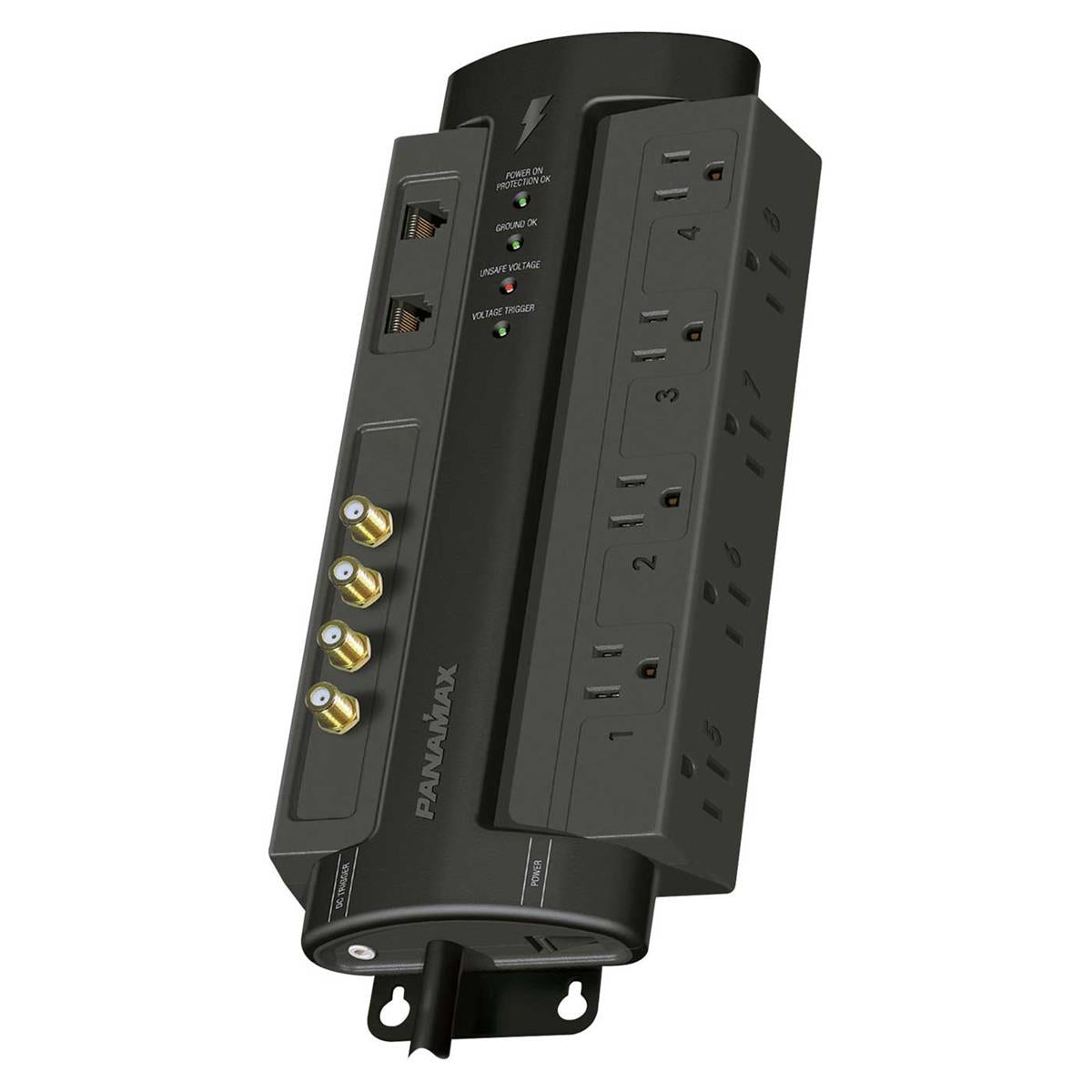

Panamax M8-AV-PRO Hi-Definition 8 Outlet Surge Protector

Model: M8-AV-PRO UPC: 050616008747 Item: 152622

In Stock
Shipping Information
Show Store Details
Address:
104 E Vine St. Hatfield, PA 19440
Hours:
  • Mon - Fri: 9am - 5pm
  • Sat: By appointment only
  • Sun: Closed
Phone:
(866) 961-7781
Show Store Details
Address:
754 Route 309 (Bethlehem Pike) Montgomeryville, PA 18936
Hours:
  • Mon: 9:30am - 8pm
  • Tues - Fri: 9:30am - 6pm
  • Sat: 9:30am - 5pm
  • Sun: 12pm - 5pm
Phone:
(215) 368-8343
Show Store Details
Address:
38 Greenfield Avenue, Ardmore, PA 19003
Hours:
  • Mon- Fri: 10am - 6pm
  • Sat: 10am - 5pm
  • Sun: Closed
Phone:
(610) 649-7002
Choose a Store Location

More Product Details

Questions? We're here to help.

Product Information

Home Theater Power Management

AC power, telephone, and coax lines can provide direct pathways for surges and spikes to enter and damage expensive audio/video equipment. M8-AV-PRO eliminates voltage irregularities and protects your AV system.

Reduces Cross-Contamination Between Components

The M8-AV-PRO is designed to provide noise isolation between the two isolated outlet banks so that any noise created by an A/V component in one bank cannot contaminate the power to the equipment that is plugged into the other outlet bank.

Monitors Incoming Line Voltage

Panamax's patented AVM circuitry continuously monitors the incoming line voltage and disconnects your equipment in the event of an overvoltage or undervoltage (brownout). Power is automatically reconnected when voltage returns to a safe level, eliminating service calls or system downtime

Improves Picture and Sound Quality

The M8-AV-PRO's power cleaning and premium filtration eliminate common symptoms of contaminated power (including loss of detail, hisses, hums, and visual artifacts) and allow your A/V equipment to perform up to its full capability.

Coax/Sat Protection

Protects equipment from electrical surges that travel over cable, satellite, and antenna lines.

Telephone/LAN Line Protection

Protects equipment from electrical surges that travel over telephone and network lines.

AVM (Automatic Voltage Monitoring)

Protects equipment against prolonged over/under voltages by disconnecting the power and reconnecting it when safe power returns.

Surge Protection

In the event of a catastrophic surge such as lightning, it completely disconnects AC power to connected equipment.

12-Volt Trigger

Allows source equipment to activate or deactivate outlets 5-8 on surge protector.

8 Outlets

Eight filtered and surge-protected outlets for all your power needs.

Hi-Def Ready

Designed to work with your high definition system.

Specifications

Specifications

General

  • Weight: 3.5 lbs.
  • Dimensions (L x W x H): 12" x 5" x 1.75"
  • Line voltage: 120 volts
  • Number of outlets: 8 - 4 outlets filtered and surge-protected, 4 surge-protected high-current outlets
  • Power supply: 8-foot captive cord

AC Power

  • Voltage protection rating (UL 1449 3rd Edition, 3,000A): 500V
  • UL991 Electronic Safety Circuit: Yes
  • Undervoltage shutoff: 90 VAC ± 6 VAC
  • Overvoltage shutoff: 142 VAC ± 8 VAC
  • Maximum current rating: 15 amps
  • Initial clamping level: 200V peak
  • Thermal fusing: Yes
  • Automatic voltage shutoff: Yes
  • Single pulse energy dissipation: 1875 Joules
  • Response time: < 1n
  • Peak impulse current: 65,000 Amps
  • Patented power management circuit: Yes

Filtration

  • Filtration technology: FI/EMI filtration
  • Filtration rating: 50dB (100KHz - 1MHz)

Telco Protection

  • Wires protected: 2 wire, 1 pair (3,4)
  • Suppression modes: Metallic and longitudinal
  • Fuseless/auto-reseting: Yes
  • Connectors: RJ-45 shared with LAN
  • Clamping level: 260V
  • Capacitance: 30pf (approx.)

Universal Coaxial

  • Protection shielded: Yes
  • Insertion loss: < 0.5 dB
  • Frequency range: 5MHz - 2GHz
  • Connections: Female "F", gold-lated
  • Clamping level: 75V
  • Bidirectional: Yes

What's in the Box

What's in the Box:

  • M8-AV-PRO Hi-Definition 8 Outlet Surge Protector
  • 3-foot coax cable
